Your new vehicle comes with
high-quality tires made by
a leading tire manufacturer.
If you ever have questions about
the tire warranty and where to
obtain service, see the “Limited
Warranty, Maintenance and
Owner Assistance Information”
manual for details.
{CAUTION
Poorly maintained and
improperly used tires are
dangerous.
Overloading your tires can
cause overheating as a
result of too much exing.
You could have an air-out
and a serious accident.
SeeLoading the Vehicle
on page 8-30.
(Continued)
CAUTION (Continued)
Underinated tires pose
the same danger as
overloaded tires.
The resulting accident
could cause serious
injury. Check all tires
frequently to maintain the
recommended pressure.
Tire pressure should be
checked when your tires
are cold. SeeInflation - Tire
Pressure on page 9-46.
Overinated tires are more
likely to be cut, punctured,
or broken by a sudden
impact — such as when
you hit a pothole. Keep
tires at the recommended
pressure.
(Continued)
9-38 Vehicle Service and Care
ProCarManuals.com

When high-speed driving ends,
return the tire pressure to the
recommended cold ination
pressure shown on the Tire and
Loading Information label. See
Loading the Vehicle on page 8-30.
Tire pressure should be checked
and correctly set when the tires are
cold. SeeInflation - Tire Pressure
on page 9-46.
Tire Pressure Monitor
System
The Tire Pressure Monitor System
(TPMS) uses radio and sensor
technology to check tire pressure
levels. The TPMS sensors monitor
the air pressure in your vehicle’s tires
and transmit tire pressure readings to
a receiver located in the vehicle.
Each tire, including the spare
(if provided), should be checked
monthly when cold and inated to
the ination pressure recommended
by the vehicle manufacturer on
the vehicle placard or tire inationpressure label. (If your vehicle has
tires of a different size than
the size indicated on the vehicle
placard or tire ination pressure
label, you should determine the
proper tire ination pressure
for those tires.)
As an added safety feature, your
vehicle has been equipped with
a tire pressure monitoring system
(TPMS) that illuminates a low
tire pressure telltale when one or
more of your tires is signicantly
under-inated.
Accordingly, when the low tire
pressure telltale illuminates, you
should stop and check your tires
as soon as possible, and inate them
to the proper pressure. Driving on
a signicantly under-inated tire
causes the tire to overheat and can
lead to tire failure. Under-ination
also reduces fuel efficiency and tire
tread life, and may affect the
vehicle’s handling and stopping
ability.Please note that the TPMS is
not a substitute for proper tire
maintenance, and it is the driver’s
responsibility to maintain correct tire
pressure, even if under-ination has
not reached the level to trigger
illumination of the TPMS low tire
pressure telltale.
Your vehicle has also been equipped
with a TPMS malfunction indicator to
indicate when the system is not
operating properly. The TPMS
malfunction indicator is combined
with the low tire pressure telltale.
When the system detects a
malfunction, the telltale will ash for
approximately one minute and then
remain continuously illuminated.
This sequence will continue upon
subsequent vehicle start-ups as long
as the malfunction exists.
9-48 Vehicle Service and Care
ProCarManuals.com

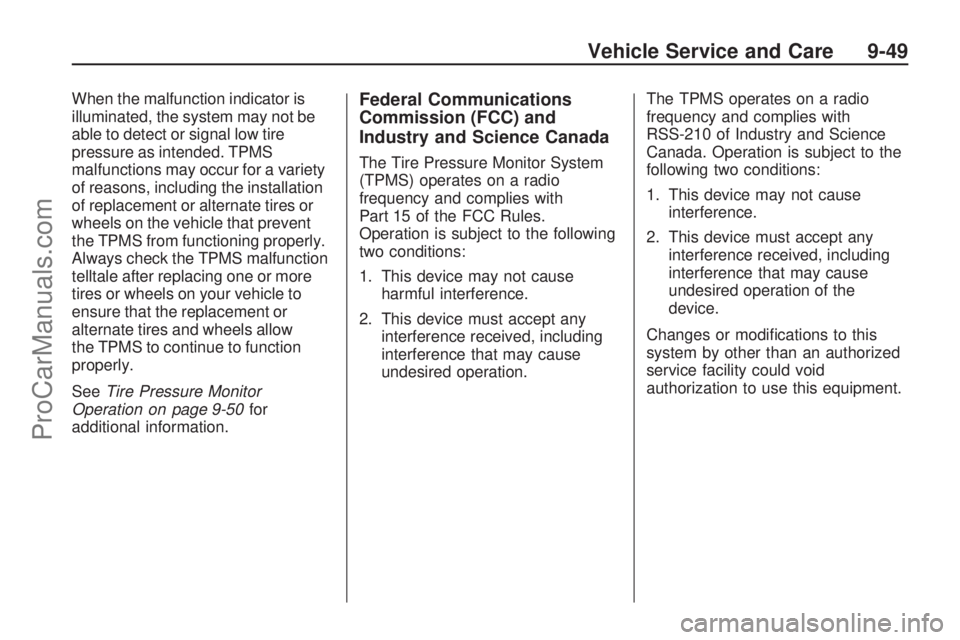

When the malfunction indicator is
illuminated, the system may not be
able to detect or signal low tire
pressure as intended. TPMS
malfunctions may occur for a variety
of reasons, including the installation
of replacement or alternate tires or
wheels on the vehicle that prevent
the TPMS from functioning properly.
Always check the TPMS malfunction
telltale after replacing one or more
tires or wheels on your vehicle to
ensure that the replacement or
alternate tires and wheels allow
the TPMS to continue to function
properly.
SeeTire Pressure Monitor
Operation on page 9-50for
additional information.Federal Communications
Commission (FCC) and
Industry and Science Canada
The Tire Pressure Monitor System
(TPMS) operates on a radio
frequency and complies with
Part 15 of the FCC Rules.
Operation is subject to the following
two conditions:
1. This device may not cause
harmful interference.
2. This device must accept any
interference received, including
interference that may cause
undesired operation.The TPMS operates on a radio
frequency and complies with
RSS-210 of Industry and Science
Canada. Operation is subject to the
following two conditions:
1. This device may not cause
interference.
2. This device must accept any
interference received, including
interference that may cause
undesired operation of the
device.
Changes or modications to this
system by other than an authorized
service facility could void
authorization to use this equipment.
Vehicle Service and Care 9-49
ProCarManuals.com

Tire Pressure Monitor
Operation
The Tire Pressure Monitor System
(TPMS) is designed to warn the
driver when a low tire pressure
condition exists. TPMS sensors are
mounted onto each tire and
wheel assembly, excluding the
spare tire. The TPMS sensors
monitor the air pressure in the
vehicle’s tires and transmit tire
pressure readings to a receiver
located in the vehicle.
When a low tire pressure condition
is detected, the TPMS illuminates
the low tire pressure warning
light located in the instrument
panel cluster.The low tire pressure warning light
comes on at each ignition cycle
until the tires are inated to
the correct ination pressure.
The low tire pressure warning light
may come on in cool weather
when the vehicle is rst started, and
then turn off as you start to drive.
This could be an early indicator that
the air pressure in the tire(s) are
getting low and need to be inated
to the proper pressure.
You must begin driving before the
TPMS system is operational.
TPMS sensors need to be installed
onto the full-size tire and wheel
assemblies, and the tires adjusted
to the manufacturers’ recommended
tire pressure amount.
A Tire and Load Information label is
attached to the vehicle, and shows
the size of the vehicle’s original
equipment tires and the correct
ination pressure for the tires when
they are cold. SeeLoading the
Vehicle on page 8-30, for anexample of the Tire and Load
Information label and its location on
the vehicle. Also seeInflation - Tire
Pressure on page 9-46.
The vehicle’s TPMS can warn you
about a low tire pressure condition
but it does not replace normal tire
maintenance. SeeTire Inspection
and Rotation on page 9-51andTires
on page 9-38.
Notice:Liquid tire sealants
could damage the Tire Pressure
Monitor System (TPMS) sensors.
Sensor damage caused by
using a tire sealant is not covered
by your warranty. Do not use
liquid tire sealants.
Each TPMS sensor has a unique
identication code. Any time
you replace one or more of the
TPMS sensors or rotate the
vehicle’s tires, the identication
codes are automatically learned by
the TPMS. This occurs within a
few moments of driving the vehicle
over 19 mph (31 km/h).
9-50 Vehicle Service and Care
ProCarManuals.com

TPMS Malfunction Light
The TPMS will not function properly
if one or more of the TPMS
sensors are missing or inoperable.
When the system detects a
malfunction, the low tire warning
light ashes for about one minute
and then stays on for the remainder
of the ignition cycle. Some of the
conditions that can cause the
malfunction light to come on are:
One of the road tires has been
replaced with the spare tire. The
spare tire does not have a TPMS
sensor. The TPMS malfunction
light and DIC message should go
off once you re-install the road tire
containing the TPMS sensor.
One or more TPMS sensors are
missing or damaged. The TPMS
malfunction light should go off
after the TPMS sensors are
installed and the vehicle is
driven for a few moments over
19 mph (31 km/h). See your
dealer/retailer for service.
Replacement tires or wheels do
not match the vehicle’s original
equipment tires or wheels. Tires
and wheels other than those
recommended for the vehicle
could prevent the TPMS from
functioning properly. SeeBuying
New Tires on page 9-54.
Operating electronic devices or
being near facilities using radio
wave frequencies similar to the
TPMS could cause the TPMS
sensors to malfunction.
If the TPMS is not functioning it
cannot detect or signal a low tire
condition. See your dealer/retailer
for service if the TPMS malfunction
light comes on and stays on.
Tire Inspection and
Rotation
Inspect tires regularly for signs of
wear or damage. Also inspect the
spare tire. For more information
on tire inspection, seeWhen It Is
Time for New Tires on page 9-53.
Rotating vehicle tires helps them
to wear evenly and keeps the
vehicle performing like it did
when tires were new.
Rotate the tires and check
wheel alignment approximately
every 5,000 to 8,000 miles
(8 000 to 13 000 km) or when
unusual tire wear is noted.
See “Scheduled Maintenance”
in the Index of the “Limited
Warranty, Maintenance
and Owner Assistance
Information” manual for more
information. Also check the
wheels for damage, seeWheel
Replacement on page 9-58
for more information.
