glove box SATURN ASTRA 2008 Owners Manual

Storage
Storage
Glove Box..........................3-1
Cupholders.........................3-1
Cargo Cover.......................3-1
Cargo Tie Downs...............3-1
Storage
Glove Box
Pull up on the handle to open the
glovebox. There may be a shelf
inside that can be removed by lifting
up on the shelf and pulling it out.
Cupholders
There is a cupholder on the front
edge of the rear seat cushion.
To open or close, press on the
cupholder.
There is a cupholder on the rear
center console.
Cargo Cover
Your vehicle may have a cargo
cover.
To remove the cover, unhook the
retaining straps from the liftgate and
pull the cover from the side guides.
Cargo Tie Downs
There are four cargo tie-downs
located in the rear compartment of
the vehicle, that can be used to
secure small loads.
Storage 3-1
ProCarManuals.com

The main components of the
instrument panel are the:
A.Exterior Lamps Controls on
page 5-1.
B. Outlets.Outlet Adjustment on
page 7-4.
C.Turn Signal/Multifunction Lever
on page 4-4.
D.DIC Operation and Displays
(Base Level DIC and Audio)
on page 4-27orDIC Operation
and Displays (Uplevel DIC
and Audio) on page 4-31and
Audio Steering Wheel Controls
on page 6-24. (If Equipped)
E.Instrument Panel Cluster on
page 4-12.F.Audio Steering Wheel Controls
on page 6-24. (If Equipped)
G.Windshield Wipers on page 4-9.
H.Heated Seats on page 1-6.
(If Equipped)
I.StabiliTrak
®System on
page 8-19. (If Equipped)
J.Driver Information Center (DIC)
on page 4-26. (If Equipped)
K.Hazard Warning Flashers on
page 4-4.
L.Power Door Locks on page 2-5.
M. Passenger Safety Belt
Reminder.Safety Belt
Reminders on page 4-14.
N. Front Passenger Airbag.Airbag
System on page 1-23.O.Fog Lamps on page 5-2.
(If Equipped)
P.Instrument Panel Brightness on
page 5-3.
Q.Hood Release on page 9-5.
R.Tilt Wheel on page 4-4.
S.Horn on page 4-4.
T.Ignition Positions on page 8-2.
U.Climate Control System on
page 7-1.
V.Accessory Power Outlet(s) on
page 4-10. (Covered)
W.Audio System(s) on page 6-1.
X.Glove Box on page 3-1.
Instruments and Controls 4-3
ProCarManuals.com

OnStar service is provided to you
subject to the OnStar Terms and
Conditions. You may cancel your
OnStar service at any time by
contacting OnStar. A complete
OnStar Owner’s Guide and the
OnStar Terms and Conditions are
included in the vehicle’s OnStar
Subscriber glove box literature.
For more information, visit
onstar.com or onstar.ca, contact
OnStar at 1-888-4-ONSTAR
(1-888-466-7827) or TTY
1-877-248-2080, or press the
OnStar button to speak with an
OnStar advisor 24 hours a day,
7 days a week.
Not all OnStar features are available
on all vehicles. To check if your
vehicle is equipped to provide the
services described below, or for a
full description of OnStar services
and system limitations, see the
OnStar Owner’s Guide in your
glove box or visit onstar.com.OnStar Services
For new vehicles with OnStar,
the Safe & Sound Plan, or the
Directions & Connections Plan
is included for one year from the
date of purchase. You can extend
this plan beyond the rst year,
or upgrade to the Directions &
Connections Plan. For more
information, press the OnStar
button to speak with an advisor.
Some OnStar services (such as
Remote Door Unlock or Stolen
Vehicle Location Assistance) may
not be available until you register
with OnStar.Available Services with
Safe & Sound PlanAutomatic Notication of Airbag
Deployment
Link to Emergency Services
Roadside Assistance
Stolen Vehicle Location
Assistance
AccidentAssist
Remote Door Unlock/Vehicle
Alert
OnStar Vehicle Diagnostics
GM Goodwrench On Demand
Diagnostics (if equipped)
OnStar Hands-Free Calling with
30 complimentary minutes
OnStar Virtual Advisor
(U.S. Only)
Instruments and Controls 4-39
ProCarManuals.com

Available Services included with
Directions & Connections Plan
All Safe and Sound Plan Services
Driving Directions - Advisor
delivered or OnStar Turn-by-Turn
Navigation (If equipped)
RideAssist
Information and Convenience
Services
OnStar Hands-Free Calling
OnStar Hands-Free Calling allows
eligible OnStar subscribers to make
and receive calls using voice
commands. Hands-Free Calling is
integrated into the vehicle, and can
be used with OnStar Pre-Paid Minute
Packages. Hands-Free Calling may
also be linked to a Verizon Wireless
service plan in the U.S. or a BellMobility service plan in Canada,
depending on eligibility. To nd out
more, refer to the OnStar Owner’s
Guide in the vehicle’s glove box, visit
onstar.com or onstar.ca, or speak
with an OnStar advisor by pressing
the OnStar button or calling
1-888-4-ONSTAR (1-888-466-7827).
OnStar Virtual Advisor
OnStar Virtual Advisor is a feature
of OnStar Hands-Free Calling
that uses your minutes to access
location-based weather, local
traffic reports, and stock quotes.
By pressing the phone button and
giving a few simple voice commands,
you can browse through the various
topics. See the OnStar Owner’s
Guide for more information (Only
available in the continental U.S.).
How OnStar Service Works
In order to provide you with OnStar
services, your vehicle’s OnStar
system has the capability of
recording and transmitting vehicle
information. This information is
automatically sent to an OnStar
Call Center at the time of an OnStar
button press, Emergency button
press or if your airbags deploy.
The vehicle information usually
includes your GPS location and,
in the event of a crash, additional
information regarding the accident
that your vehicle has been involved
in. When you use the Virtual Advisor
feature of OnStar Hands-Free
Calling, your vehicle also sends
OnStar your GPS location so that we
can provide you with location-based
services.
4-40 Instruments and Controls
ProCarManuals.com

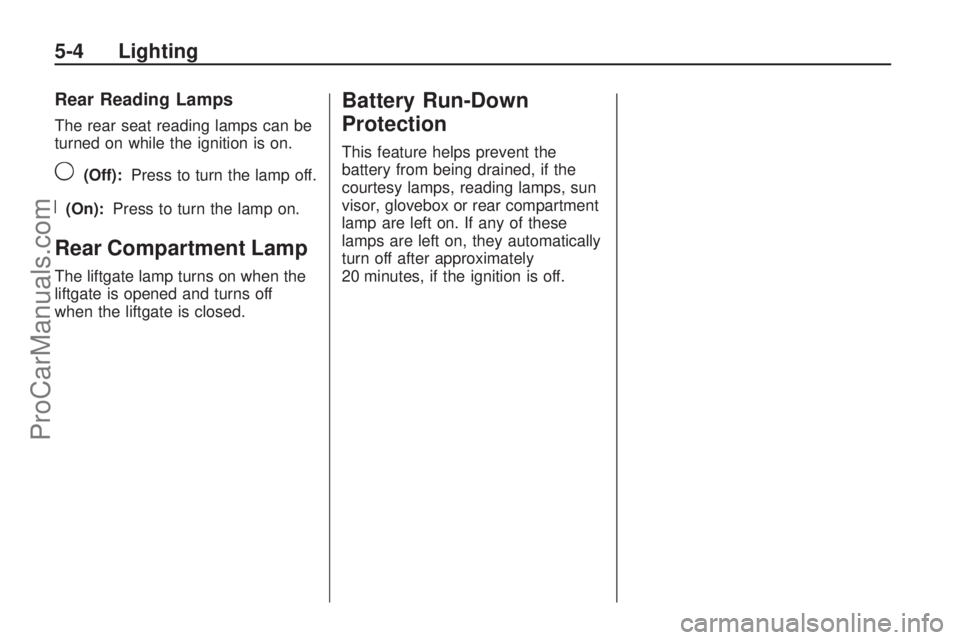

Rear Reading Lamps
The rear seat reading lamps can be
turned on while the ignition is on.
9(Off):Press to turn the lamp off.
R(On):Press to turn the lamp on.
Rear Compartment Lamp
The liftgate lamp turns on when the
liftgate is opened and turns off
when the liftgate is closed.
Battery Run-Down
Protection
This feature helps prevent the
battery from being drained, if the
courtesy lamps, reading lamps, sun
visor, glovebox or rear compartment
lamp are left on. If any of these
lamps are left on, they automatically
turn off after approximately
20 minutes, if the ignition is off.
5-4 Lighting
ProCarManuals.com

To Use the Engine Heater
1. Turn off the engine.
2. The engine heater connector is
located in the passenger side
lower front grille. Open the cover
and insert the 110-volt AC
adapter delivered in the vehicles
glove box.
3. Plug the other end of the adapter
into a grounded 110-volt AC
outlet.{CAUTION
Plugging the cord into an
ungrounded outlet could cause
an electrical shock. Also, the
wrong kind of extension cord
could overheat and cause a
re. You could be seriously
injured. Plug the cord into a
properly grounded three-prong
110-volt AC outlet. If the cord
will not reach, use a heavy-duty
three-prong extension cord
rated for at least 15 amps.
4. Before starting the engine, be
sure to unplug both ends of
the adapter and store the adapter
to prevent damage.
The length of time the heater should
remain plugged in depends on
several factors. Ask a dealer/retailer
in the area where you will be parking
the vehicle for the best advice
on this.
Automatic Transmission
Operation
If your vehicle has an automatic
transmission, the shift lever is
located on the console between
the seats.
Your vehicle may also have an
electronic shift position indicator that
displays the position of the shift
lever. This indicator is located above
the trip odometer on the instrument
panel cluster.
Driving and Operating 8-5
ProCarManuals.com

F
Filter
Engine Air Cleaner............9-11
Finish Damage....................9-79
Fixed Mast Antenna.............6-25
Flashers, Hazard Warning....... 4-4
Flash-to-Pass........................ 4-8
Flat Tire..............................9-60
Flat Tire, Changing...............9-60
Flat Tire, Storing..................9-66
Fluid..................................9-12
Automatic Transmission.....9-12
Power Steering.................9-20
Windshield Washer...........9-20
Fog Lamp
Fog .................................. 5-2
Fog Lamp Light...................4-23
Fuel...................................8-35
Additives.........................8-36
California Fuel..................8-35
Filling a Portable Fuel
Container.....................8-38
Filling the Tank.................8-37
Fuels in Foreign
Countries.....................8-36Fuel (cont.)
Gage ..............................4-25
Gasoline Octane...............8-35
Gasoline Specications......8-35
Low Warning Light............4-25
Fuses.................................9-34
Engine Compartment
Fuse Block...................9-34
Rear Compartment
Fuse Block...................9-36
Windshield Wiper..............9-34
G
Gage
Fuel................................4-25
Speedometer...................4-13
Tachometer......................4-13
Gasoline
Octane............................8-35
Specications...................8-35
Glove Box............................ 3-1
GM Mobility
Reimbursement
Program..........................11-5
H
Hazard Warning Flashers........ 4-4
Head Restraints..................... 1-5
Headlamp
Aiming ............................9-26
Headlamp Wiring.................9-33
Headlamps
Bulb Replacement.............9-28
Daytime Running Lamps..... 5-2
Delayed............................ 5-2
Exterior Lamps................... 5-1
Flash-to-Pass..................... 4-8
Front Turn Signal Lamps . . . 9-28
Halogen Bulbs..................9-28
High/Low Beam Changer..... 4-8
Heater................................. 7-1
Engine.............................. 8-4
Height Adjuster, Seat.............. 1-2
Highbeam On Light..............4-24
High-Speed Operation,
Tires...............................9-47
Highway Hypnosis................8-26
Hill and Mountain Roads.......8-26
i-4 INDEX
ProCarManuals.com

S
Safety Belts.......................... 1-8
Care of ...........................1-22
Check.............................1-22
How to Wear Safety
Belts Properly...............1-12
Lap-Shoulder Belt.............1-17
Reminder Light.................4-14
Replacing Parts After
a Crash.......................1-23
Safety Belt Extender.........1-22
Safety Belt Use During
Pregnancy....................1-21
Seats
Head Restraints................. 1-5
Heated Seats - Rear........... 1-6
Height Adjuster.................. 1-2
Lumbar Adjustment............. 1-3
Rear Seat Operation........... 1-7
Reclining Seatbacks............ 1-3
Securing Child
Restraints................1-50, 1-53Service................................ 9-2
Accessories and
Modications.................. 9-3
Adding Equipment to the
Outside of the Vehicle..... 9-4
California Perchlorate
Materials Requirements.... 9-3
California Proposition 65
Warning......................... 9-3
Doing Your Own Work........ 9-4
Engine Soon Light............4-20
Owner Checks................... 9-5
Publications Ordering
Information.................11-14
Vehicle Soon Light............4-24
Service, Scheduling
Appointments...................12-8
Servicing Your
Airbag-Equipped Vehicle....1-34
Sheet Metal Damage............9-78
Shifting Into Park.................8-11
Shifting Out of Park..............8-13
Signals, Turn and
Lane-Change..................... 4-8Spare Tire
Compact.........................9-67
Installing..........................9-62
Removing
........................9-61
Storing............................9-66
Specications, Capacities......10-2
Speedometer.......................4-13
StabiliTrak
®Indicator Light.....4-19
Stabilitrak®System...............8-19
Starting the Engine................ 8-3
Steering..............................8-20
Steering Wheel Controls,
Audio..............................6-24
Steering Wheel, Tilt Wheel...... 4-4
Storage Areas
Cupholders........................ 3-1
Glove Box......................... 3-1
Stuck in Sand, Mud, Ice,
or Snow..........................8-29
Sun Visors..........................2-11
Sunroof..............................2-13
i-8 INDEX
ProCarManuals.com
