Vehicle Symbol Chart
Here are some additional symbols
that may be found on the vehicle
and what they mean. For more
information on the symbol, refer to
the index.
9:Airbag Readiness Light
#:Air Conditioning
!:Antilock Brake System (ABS)
g:Audio Steering Wheel
Controls or OnStar®
$:Brake System Warning Light
":Charging System
I:Cruise Control
B:Engine Coolant Temperature
O:Exterior Lamps
#:Fog Lamps
.:Fuel Gage
+:Fuses
i:Headlamp High/Low-Beam
Changer
j:LATCH System Child Restraints
*:Malfunction Indicator Lamp
::Oil Pressure
}:Power
/:Remote Vehicle Start
>:Safety Belt Reminders
7:Tire Pressure Monitor
F:Traction Control
M:Windshield Washer Fluid
iv Preface
ProCarManuals.com

Press the front of the switch to the
second position and release. If you
want to stop the window as it is
lowering, briey pull up the switch.
Press and hold the unlock button on
the Remote Keyless Entry (RKE)
transmitter to lower all of the
windows from outside the vehicle.
Window Lockout
o(Window Lockout):This button
is located on the driver’s door
armrest. Slide the switch forward
to turn the lockout feature on.
The rear windows can only be
opened or closed by the driver
window switches. The light on the
button indicates the feature is in use.
Press again to turn off.
Sun Visors
Pull the visor toward you, or move it
to the side to help reduce glare.
To use the lighted mirror, lift
the cover.
Mirrors
Manual Rearview Mirror
Hold the mirror in the center to move
it for a clearer view of behind your
vehicle.
Headlamp Glare
To reduce headlamp glare from
vehicles following from behind, pull
the lever toward you. Push the
lever forward after the vehicle glare
is gone, to return the mirror back
to the original position.
Vehicles with OnStar
®have three
additional control buttons located
at the bottom of the mirror.
See your dealer/retailer for more
information on the system and
how to subscribe to OnStar
®.
SeeOnStar®System on page 4-38
for more information about the
services OnStar provides.
Cleaning the Mirror
Do not spray glass cleaner directly
on the mirror. Use a soft towel
dampened with glass cleaner.
Outside Mirror(s)
To maximize the viewing area,
adjust each mirror to see the side of
your vehicle and the area beside
and behind your vehicle.
Manually fold the mirrors inward to
prevent damage when going
through an automatic car wash.
To fold, push the mirror toward the
vehicle. Push the mirror outward,
to return to its original position.
Keys, Doors and Windows 2-11
ProCarManuals.com

Instruments and
Controls
Instrument Panel
Overview
Instrument Panel
Overview...........................4-2
Hazard Warning Flashers. . .4-4
Horn...................................4-4
Tilt Wheel...........................4-4
Turn Signal/Multifunction
Lever................................4-4
Cruise Control....................4-5
Turn and Lane-Change
Signals.............................4-8
Headlamp High/
Low-Beam Changer..........4-8
Flash-to-Pass......................4-8
Windshield Wipers..............4-8
Windshield Washer.............4-9
Rear Window Wiper/
Washer.............................4-9
Accessory Power
Outlet(s)..........................4-10
Warning Lights, Gages,
and Indicators
Warning Lights, Gages,
and Indicators.................4-11
Instrument Panel Cluster. . .4-12
Speedometer and
Odometer........................4-13
Trip Odometer(s)...............4-13Tachometer.......................4-13
Safety Belt Reminders......4-13
Airbag Readiness Light.....4-14
Passenger Airbag Status
Indicator..........................4-15
Charging System Light......4-16
Brake System Warning
Light................................4-16
Antilock Brake System
(ABS) Warning Light.......4-17
StabiliTrak®Indicator
Light................................4-17
Engine Coolant
Temperature Warning
Light
................................4-18
Tire Pressure Light...........4-18
Malfunction
Indicator Lamp................4-18
Oil Pressure Light.............4-21
Low Oil Level Light...........4-22
Winter Driving Mode
Light................................4-22
Fog Lamp Light................4-22
Exterior Lamps Off
Reminder........................4-23
Cruise Control Light..........4-23
Highbeam On Light...........4-23
Door Ajar Light.................4-23
Service Vehicle Soon
Light................................4-23
Fuel Gage........................4-24
Low Fuel Warning Light. . . .4-24
Driver Information
Center (DIC)
Driver Information
Center (DIC)...................4-25
DIC Operation and
Displays (Uplevel DIC
and Audio)
.......................4-26
DIC Operation and
Displays (Base Level
DIC and Audio)
...............4-32
DIC Warnings and
Messages (Base and
Uplevel Systems)
............4-36
OnStar®System
OnStar®System................4-38
Instruments and Controls 4-1
ProCarManuals.com

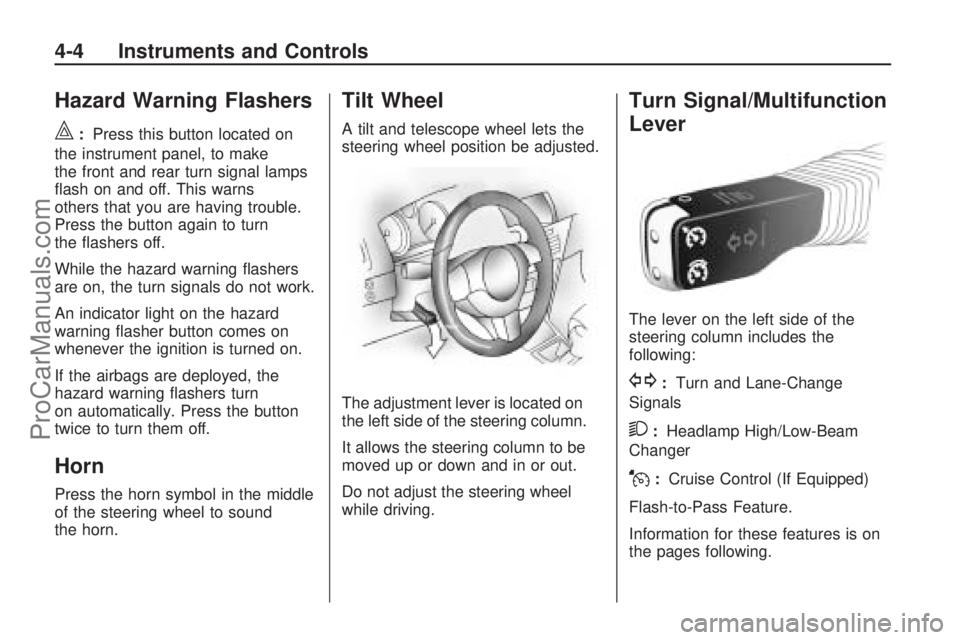

Hazard Warning Flashers
|
:Press this button located on
the instrument panel, to make
the front and rear turn signal lamps
ash on and off. This warns
others that you are having trouble.
Press the button again to turn
the ashers off.
While the hazard warning ashers
are on, the turn signals do not work.
An indicator light on the hazard
warning asher button comes on
whenever the ignition is turned on.
If the airbags are deployed, the
hazard warning ashers turn
on automatically. Press the button
twice to turn them off.
Horn
Press the horn symbol in the middle
of the steering wheel to sound
the horn.
Tilt Wheel
A tilt and telescope wheel lets the
steering wheel position be adjusted.
The adjustment lever is located on
the left side of the steering column.
It allows the steering column to be
moved up or down and in or out.
Do not adjust the steering wheel
while driving.
Turn Signal/Multifunction
Lever
The lever on the left side of the
steering column includes the
following:
G:Turn and Lane-Change
Signals
2:Headlamp High/Low-Beam
Changer
J:Cruise Control (If Equipped)
Flash-to-Pass Feature.
Information for these features is on
the pages following.
4-4 Instruments and Controls
ProCarManuals.com

Turn and Lane-Change
Signals
To signal a turn, move the lever all
the way up or down, past the
detent. The lever returns to its
starting position when released.
An arrow on the instrument panel
cluster ashes in the direction of the
turn or lane change.
To signal a lane change, raise or
lower the lever until the arrow starts
to ash, and then release the
lever. Do not move the lever past
the detent. The turn signal will
automatically ash three times and
turn off.
To cancel it before turning, move
the lever slightly in either direction.
Do not past the detent.
If the turn signal is moved up or down
and left engaged, the headlamps and
taillamps will remain on and the
battery could be drained.
Headlamp High/
Low-Beam Changer
23
(Headlamp High/Low
Beam Changer):To change the
headlamps from low to high
beam, push the multifunction lever
towards the instrument panel.
To return to low-beam headlamps,
push the lever towards the
instrument panel again or pull the
lever toward you. Then release it.
This indicator light on the instrument
panel cluster is on while the high
beam headlamps are on.
Flash-to-Pass
Pull the turn signal/multifunction
lever towards you to ash the high
beams from low beam.
Windshield Wipers
Clear ice and snow from the wiper
blades before using them. If the
wiper blades are frozen to the
windshield, gently loosen or thaw
them. If the blades do become
damaged, install new blades or blade
inserts. SeeWindshield Wiper Blade
Replacement on page 9-21.
Heavy snow or ice can overload the
wiper motor. A circuit breaker will
stop the motor until it cools down.
Clear away snow or ice to prevent
an overload.
4-8 Instruments and Controls
ProCarManuals.com

Exterior Lamps Off
Reminder
This light comes on whenever the
exterior lights are off.
SeeExterior Lamps Controls on
page 5-1for more information.
Cruise Control Light
This light comes on whenever you
set the cruise control.
The light goes out when the cruise
control is turned off or disengaged.
SeeCruise Control on page 4-5
for more information.
Highbeam On Light
This light comes on when the
high-beam headlamps are in use.
SeeHeadlamp High/Low-Beam
Changer on page 4-8for more
information.
Door Ajar Light
This light comes on when a door or
liftgate is open. Before driving,
check that all doors are properly
closed.
Service Vehicle Soon
Light
This light should come one briey
when the ignition is turned on
as a check to let you know that the
light is working.
This light will come on if a condition
exists that may require the vehicle
to be taken in for service.
If the light comes on and stays on,
see your dealer/retailer for
service as soon as possible.
Instruments and Controls 4-23
ProCarManuals.com

Lighting
Lighting
Exterior Lamps Controls.....5-1
Daytime Running
Lamps (DRL)....................5-2
Delayed Headlamps............5-2
Fog Lamps.........................5-2
Instrument Panel
Brightness.........................5-3
Dome Lamp(s)....................5-3
Entry Lighting.....................5-3
Reading Lamps..................5-3
Trunk Lamp........................5-4
Battery Run-Down
Protection.........................5-4
Lighting
Exterior Lamps Controls
The exterior lamp control is
located on the instrument panel to
the left of the steering wheel.
Turn the exterior lamp control to the
following positions:
T(Off):Turns off the exterior lamps.AUTO (Automatic):Turns the
exterior lamps on and off
automatically, depending upon
outside lighting.
;(Parking Lamps):Turns on the
parking lamps together with the
following:
Taillamps
Sidemarkers
License Plate Lamps
2(Headlamps):Turns on the
headlamps, together with the
previously listed lamps.
After 15 minutes with the ignition
switched off and the low-beam
headlamps on, the parking lamps
turn on.
Lighting 5-1
ProCarManuals.com

Daytime Running
Lamps (DRL)
Daytime Running Lamps (DRL) can
make it easier for others to see
the front of your vehicle during the
day. DRL can be helpful in many
different driving conditions, but they
can be especially helpful in the
short periods after dawn and before
sunset. Fully functional daytime
running lamps are required on all
vehicles rst sold in Canada.
The DRL system makes the
low-beam headlamps turn on at a
reduced brightness when the
following conditions are met:
The engine is running.
The light sensor determines it is
night and the exterior lamps
control is in the off position.
The light sensor determines it is
daytime.
The taillamps and other lamps will
be off.The DRL turns off when the engine
is not running.
The regular headlamps or parking
lamps should be used when needed.
Delayed Headlamps
Vehicles with headlamp exit delay,
keep the headlamps and taillamps
on for 30 seconds.
To activate:
1. Turn the ignition off and remove
the key from the ignition.
2. Open the driver door.
3. Pull the multifunction lever
toward the steering wheel.
To deactivate, do either of the
following:
Insert the key into the ignition.
Pull the multifunction lever toward
the steering wheel again while
the driver door is open.
Fog Lamps
For vehicles with fog lamps, the
button is located on the instrument
panel, to the left of the steering
wheel.
The ignition and headlamps or
parking lamps must be on to use
the fog lamps. The fog lamps will not
turn on if the high beam headlamps
or ash to pass are active.
#:Press to turn the fog lamps on
or off. An indicator light on the
instrument panel cluster comes on
when the fog lamps are on.
Some localities have laws that
require the headlamps to be
on along with the fog lamps.
5-2 Lighting
ProCarManuals.com

While driving on a surface with
reduced traction, try your best to
avoid sudden steering, acceleration,
or braking, including reducing vehicle
speed by shifting to a lower gear.
Any sudden changes could cause
the tires to slide. You might not
realize the surface is slippery until
the vehicle is skidding. Learn to
recognize warning clues — such as
enough water, ice, or packed snow
on the road to make a mirrored
surface — and slow down when you
have any doubt.
Remember: Any Antilock Brake
System (ABS) helps avoid only the
braking skid.Driving at Night
Night driving is more dangerous than
day driving because some drivers
are likely to be impaired — by alcohol
or drugs, with night vision problems,
or by fatigue.
Night driving tips include:
Drive defensively.
Do not drink and drive.
Reduce headlamp glare by
adjusting the inside rearview
mirror.
Slow down and keep more space
between you and other vehicles
because headlamps can only
light up so much road ahead.
Watch for animals.
When tired, pull off the road.
Do not wear sunglasses.
Avoid staring directly into
approaching headlamps.
Keep the windshield and all glass
on your vehicle clean — inside
and out.
Keep your eyes moving,
especially during turns or curves.
No one can see as well at night as
in the daytime. But, as we get
older, these differences increase.
A 50-year-old driver might need
at least twice as much light to see
the same thing at night as a
20-year-old.
Driving and Operating 8-23
ProCarManuals.com
