Engine Coolant Temperature
Warning Light........................................ 171
Malfunction Indicator Lamp........................ 172
Oil Pressure Light..................................... 175
Security Light............................................ 176
Cruise Control Light.................................. 176
Highbeam On Light................................... 176
Fuel Gage................................................. 177
Auto Stop Mode........................................ 178
Charge/Assist Gage................................... 178
Fuel Economy Light.................................. 179
Driver Information Center (DIC).................. 179
DIC Operation and Displays...................... 180
DIC Warnings and Messages.................... 182
DIC Vehicle Personalization....................... 187Audio System(s)......................................... 192
Setting the Time........................................ 194
Radio with CD (MP3)................................ 195
Using an MP3........................................... 200
Theft-Deterrent Feature............................. 206
Audio Steering Wheel Controls.................. 206
Radio Reception........................................ 207
Care of Your CDs..................................... 207
Care of the CD Player.............................. 207
Backglass Antenna.................................... 208
Section 3 Instrument Panel
136
ProCarManuals.com

Keeping your mind on the drive is important for
safe driving. SeeDefensive Driving on page 210.
Here are some ways in which you can help
avoid distraction while driving.
While your vehicle is parked:
Familiarize yourself with all of its controls.
Familiarize yourself with its operation.
Set up your audio system by presetting your
favorite radio stations, setting the tone, and
adjusting the speakers. Then, when driving
conditions permit, you can tune to your favorite
radio stations using the presets and steering
wheel controls if the vehicle has them.Notice:Before adding any sound equipment
to your vehicle, such as an audio system,
CD player, CB radio, mobile telephone,
or two-way radio, make sure that it can be
added by checking with your dealer/retailer.
Also, check federal rules covering mobile radio
and telephone units. If sound equipment can
be added, it is very important to do it properly.
Added sound equipment may interfere with
the operation of your vehicle’s engine, radio, or
other systems, and even damage them. Your
vehicle’s systems may interfere with the
operation of sound equipment that has been
added.
Your vehicle has a feature called Retained
Accessory Power (RAP). With RAP, the audio
system can be played even after the ignition
is turned off. SeeRetained Accessory Power
(RAP) on page 109for more information.
193
ProCarManuals.com

Category (CAT) Button Option
CAT (Category):The CAT button does not
function in this Hybrid vehicle.
Radio Messages
Calibration Error:The audio system has been
calibrated for your vehicle from the factory. If
Calibration Error displays, it means that the radio
has not been congured properly for your
vehicle and it must be returned to your
dealer/retailer for service.
Locked:This message is displayed when the
THEFTLOCK
®system has locked up the
radio. Take the vehicle to your dealer/retailer for
service.
If any error occurs repeatedly or if an error cannot
be corrected, contact your dealer/retailer.
Playing an MP3 CD-R or CD-RW Disc
If your radio system has a single CD (MP3) player,
it is capable of playing an MP3 CD-R or CD-RW
disc. For more information on how to play an MP3
CD-R or CD-RW disc, seeUsing an MP3 on
page 200later in this section.
CD Messages
CHECK DISC:If this message displays and/or
the CD ejects, it could be for one of the following
reasons:
It is very hot. When the temperature returns to
normal, the CD should play.
You are driving on a very rough road. When the
road becomes smoother, the CD should play.
The CD is dirty, scratched, wet, or
upside down.
The air is very humid. If so, wait about an hour
and try again.
There could have been a problem while burning
the CD.
The label could be caught in the CD player.
If the CD is not playing correctly, for any other
reason, try a known good CD.
If any error occurs repeatedly or if an error cannot
be corrected, contact your dealer/retailer. If the
radio displays an error message, write it down and
provide it to your dealer/retailer while reporting
the problem.
199
ProCarManuals.com

Using the Auxiliary Input Jack
Your radio system has an auxiliary input jack
located on the lower right side of the faceplate.
This is not an audio output; do not plug the
headphone set into the front auxiliary input jack.
You can however, connect an external audio
device such as an iPod, laptop computer, MP3
player, CD changer, or cassette tape player, etc. to
the auxiliary input jack for use as another source
for audio listening.
Drivers are encouraged to set up any auxiliary
device while the vehicle is in PARK (P). See
Defensive Driving on page 210for more
information on driver distraction.
To use a portable audio player, connect a 3.5 mm
(1/8 inch) cable to the radio’s front auxiliary
input jack. When a device is connected, press the
radio CD/AUX button to begin playing audio
from the device over the vehicle speakers.
O(Power/Volume):Turn this knob clockwise or
counterclockwise to increase or decrease the
volume of the portable player. You might need to
do additional volume adjustments from the
portable device if the volume is not loud or soft
enough.BAND:Press this button to listen to the radio
while a portable audio device is playing. The
portable audio device continues playing, so you
might want to stop it or turn it off.
CD/AUX (CD/Auxiliary):Press this button to play
a CD while a portable audio device is playing.
Press this button again and the system begins
playing audio from the connected portable audio
player. If a portable audio player is not
connected, No Input Device Found displays.
Using an MP3
MP3 CD-R or CD-RW Disc
The radio plays MP3 les that were recorded on a
CD-R or CD-RW disc. The les can be recorded
with the following xed bit rates: 32 kbps, 40 kbps,
56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps,
128 kbps, 160 kbps, 192 kbps, 224 kbps,
256 kbps, and 320 kbps or a variable bit rate.
Song title, artist name, and album are available for
display by the radio when recorded using ID3
tags version 1 and 2.
200
ProCarManuals.com

Compressed Audio
The radio also plays discs that contain both
uncompressed CD audio (.CDA les) and MP3
les. By default the radio reads only the
uncompressed audio and ignore the MP3 les.
Pressing the CAT button toggles between
compressed and uncompressed audio format.
MP3 Format
If you burn your own MP3 disc on a personal
computer:
Make sure the MP3 les are recorded on a
CD-R or CD-RW disc.
Do not mix standard audio and MP3 les on
one disc.
The CD player is able to read and play a
maximum of 50 folders, 50 playlists, and
255 les.
Create a folder structure that makes it easy
to nd songs while driving. Organize songs
by albums using one folder for each album.
Each folder or album should contain 18 songs
or less.
Avoid subfolders. The system can support up
to 8 subfolders deep, however, keep the total
number of folders to a minimum in order to
reduce the complexity and confusion in trying
to locate a particular folder during playback.
Make sure playlists have a .mp3 or .wpl
extension (other le extensions might
not work).
Minimize the length of the le, folder or playlist
names. Long le, folder, or playlist names, or
a combination of a large number of les
and folders, or playlists can cause the player
to be unable to play up to the maximum
number of les, folders, playlists, or sessions.
If you wish to play a large number of les,
folders, playlists, or sessions, minimize
the length of the le, folder, or playlist name.
Long names also take up more space on
the display, potentially getting cut off.
Finalize the audio disc before you burn it.
Trying to add music to an existing disc
can cause the disc not to function in the
player.
201
ProCarManuals.com

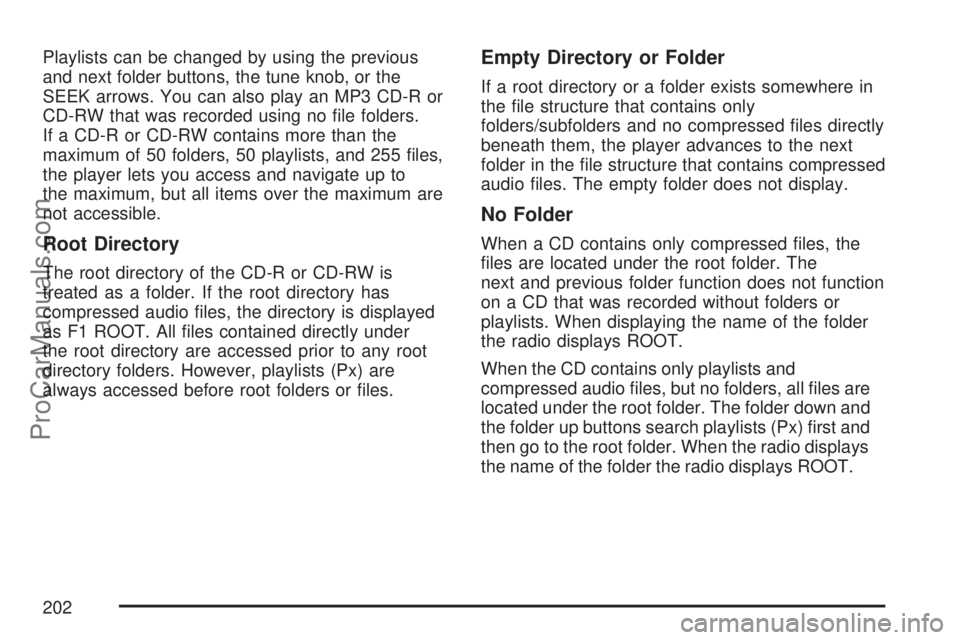

Playlists can be changed by using the previous
and next folder buttons, the tune knob, or the
SEEK arrows. You can also play an MP3 CD-R or
CD-RW that was recorded using no le folders.
If a CD-R or CD-RW contains more than the
maximum of 50 folders, 50 playlists, and 255 les,
the player lets you access and navigate up to
the maximum, but all items over the maximum are
not accessible.
Root Directory
The root directory of the CD-R or CD-RW is
treated as a folder. If the root directory has
compressed audio les, the directory is displayed
as F1 ROOT. All les contained directly under
the root directory are accessed prior to any root
directory folders. However, playlists (Px) are
always accessed before root folders or les.
Empty Directory or Folder
If a root directory or a folder exists somewhere in
the le structure that contains only
folders/subfolders and no compressed les directly
beneath them, the player advances to the next
folder in the le structure that contains compressed
audio les. The empty folder does not display.
No Folder
When a CD contains only compressed les, the
les are located under the root folder. The
next and previous folder function does not function
on a CD that was recorded without folders or
playlists. When displaying the name of the folder
the radio displays ROOT.
When the CD contains only playlists and
compressed audio les, but no folders, all les are
located under the root folder. The folder down and
the folder up buttons search playlists (Px) rst and
then go to the root folder. When the radio displays
the name of the folder the radio displays ROOT.
202
ProCarManuals.com

Order of Play
Tracks recorded to the CD-R or CD-RW are
played in the following order:
Play begins from the rst track in the rst
playlist and continues sequentially through
all tracks in each playlist. When the last track
of the last playlist has played, play continues
from the rst track of the rst playlist.
Play begins from the rst track in the rst
folder and continues sequentially through
all tracks in each folder. When the last track of
the last folder has played, play continues
from the rst track of the rst folder.
When play enters a new folder, the display does
not automatically show the new folder name unless
you have chosen the folder mode as the default
display. The new track name displays.
File System and Naming
The song name that displays is the song name
that is contained in the ID3 tag. If the song name is
not present in the ID3 tag, then the radio displays
the le name without the extension (such
as .mp3) as the track name.Track names longer than 32 characters or four
pages are shortened. The display does not show
parts of words on the last page of text and the
extension of the lename does not display.
Preprogrammed Playlists
Preprogrammed playlists that were created using
WinAmp™, MusicMatch™, or Real Jukebox™
software can be accessed, however, there is no
playlist editing capability using the radio. These
playlists are treated as special folders containing
compressed audio song les.
Playing an MP3
Insert a CD-R or CD-RW partway into the slot,
label side up. The player pulls it in, and the CD-R
or CD-RW should begin playing.
If the ignition or radio is turned off while a CD-R or
CD-RW is in the player, it stays in the player.
When the ignition or radio is turned on, the CD-R
or CD-RW starts to play where it stopped, if it
was the last selected audio source.
203
ProCarManuals.com

As each new track starts to play, the track number
and song title displays.
ZEJECT:Press the CD eject button to eject
CD-R(s) or CD-RW(s). To eject the CD-R or
CD-RW that is currently playing, press and release
this button. A beep sounds and Ejecting Disc
displays. Once the disc is ejected, Remove Disc
displays. The CD-R or CD-RW can be removed. If
the CD-R or CD-RW is not removed, after several
seconds, the CD-R or CD-RW automatically pulls
back into the player and begins playing.
f(Tune):Turn this knob to select MP3 les on
the CD-R or CD-RW currently playing.
©SEEK¨:Press the left SEEK arrow to go to
the start of the current MP3 le, if more than
10 seconds have played. Press the right SEEK
arrow to go to the next MP3 le. If either
SEEK arrow is held or pressed multiple times, the
player continues moving backward or forward
through MP3 les on the CD.
Sc(Previous Folder):Press the pushbutton
positioned under the Folder label to go to the
rst track in the previous folder.
cT(Next Folder):Press the pushbutton
positioned under the Folder label to go to the rst
track in the next folder.
sREV (Reverse):Press and hold this button
to reverse playback quickly within an MP3
le. Sound is heard at a reduced volume. Release
this button to resume playing the le. The
elapsed time of the le displays.
\FWD (Fast Forward):Press and hold this
button to advance playback quickly within an MP3
le. Sound is heard at a reduced volume.
Release this button to resume playing the le. The
elapsed time of the le displays.
RDM (Random):With the random setting, MP3
les on the CD-R or CD-RW can be listened to in
random, rather than sequential order. To play
MP3 les from a CD-R or CD-RW in random order,
press the pushbutton positioned under the RDM
label until Random Current Disc displays.
Press the same pushbutton again to turn off
random play.
204
ProCarManuals.com

h(Music Navigator):Use the music navigator
feature to play MP3 les on the CD-R or CD-RW in
order by artist or album. Press the pushbutton
located below the music navigator label. The player
scans the disc to sort the les by artist and album
ID3 tag information. It can take several minutes to
scan the disc depending on the number of MP3 les
recorded to the CD-R or CD-RW. The radio can
begin playing while it is scanning the disc in the
background. When the scan is nished, the CD-R
or CD-RW begins playing again.
Once the disc has scanned, the player defaults to
playing MP3 les in order by artist. The current
artist playing is shown on the second line of the
display between the arrows. Once all songs by that
artist are played, the player moves to the next artist
in alphabetical order on the CD-R or CD-RW and
begins playing MP3 les by that artist. To listen to
MP3 les by another artist, press the pushbutton
located below either arrow button. The disc goes to
the next or previous artist in alphabetical order.
Continue pressing either button until the desired
artist displays.To change from playback by artist to playback by
album, press the pushbutton located below the Sort
By label. From the sort screen, push one of the
buttons below the album button. Press the
pushbutton below the back label to return to the
main music navigator screen. Now the album name
is displayed on the second line between the arrows
and songs from the current album begins to play.
Once all songs from that album are played, the
player moves to the next album in alphabetical
order on the CD-R or CD-RW and begins playing
MP3 les from that album.
To exit the music navigator mode, press the
pushbutton below the Back label to return to normal
MP3 playback.
205
ProCarManuals.com

Radio Reception
You might experience frequency interference and
static during normal radio reception if items
such as cellphone chargers, vehicle convenience
accessories, and external electronic devices
are plugged into the accessory power outlet. If
there is interference or static, unplug the item from
the accessory power outlet.
AM
The range for most AM stations is greater than for
FM, especially at night. The longer range can
cause station frequencies to interfere with each
other. For better radio reception, most AM
radio stations boost the power levels during the
day, and then reduce these levels during the night.
Static can also occur when things like storms
and power lines interfere with radio reception.
When this happens, try reducing the treble on your
radio.
FM Stereo
FM stereo gives the best sound, but FM signals
reach only about 10 to 40 miles (16 to 65 km). Tall
buildings or hills can interfere with FM signals,
causing the sound to fade in and out.
Care of Your CDs
Handle CDs carefully. Store them in their original
cases or other protective cases and away from
direct sunlight and dust. The CD player scans the
bottom surface of the disc. If the surface of a
CD is damaged, such as cracked, broken,
or scratched, the CD does not play properly or not
at all. If the surface of a CD is soiled, take a
soft, lint free cloth or dampen a clean, soft cloth in
a mild, neutral detergent solution mixed with
water, and clean it. Make sure the wiping process
starts from the center to the edge.
Do not touch the bottom side of a CD while
handling it; this could damage the surface. Pick up
CDs by grasping the outer edges or the edge of
the hole and the outer edge.
Care of the CD Player
Do not use CD lens cleaners for CD players
because the lens of the CD optics can become
contaminated by lubricants.
207
ProCarManuals.com
