Page 21 of 406
or the safety belts!
With safety belts, you slow down as the vehicle
does. You get more time to stop. You stop
over more distance, and your strongest bones
take the forces. That is why safety belts
make such good sense.
Questions and Answers About
Safety Belts
Q:Will I be trapped in the vehicle after an
accident if I am wearing a safety belt?
A:Youcouldbe — whether you are wearing a
safety belt or not. But you can unbuckle a
safety belt, even if you are upside down. And
your chance of being conscious during and
after an accident, so youcanunbuckle and get
out, ismuchgreater if you are belted.
Q:If my vehicle has airbags, why should I
have to wear safety belts?
A:Airbags are supplemental systems only; so
they workwithsafety belts — not instead of
them. Every airbag system ever offered
for sale has required the use of safety belts.
Even if you are in a vehicle that has airbags,
you still have to buckle up to get the most
protection. That is true not only in frontal
collisions, but especially in side and other
collisions.
21
ProCarManuals.com
Page 43 of 406
{CAUTION:
Children who are up against, or very close
to, any airbag when it in ates can be
seriously injured or killed. Airbags plus
lap-shoulder belts offer protection for
adults and older children, but not for
young children and infants. Neither the
CAUTION: (Continued)
CAUTION: (Continued)
vehicle’s safety belt system nor its airbag
system is designed for them. Young
children and infants need the protection
that a child restraint system can provide.
43
ProCarManuals.com

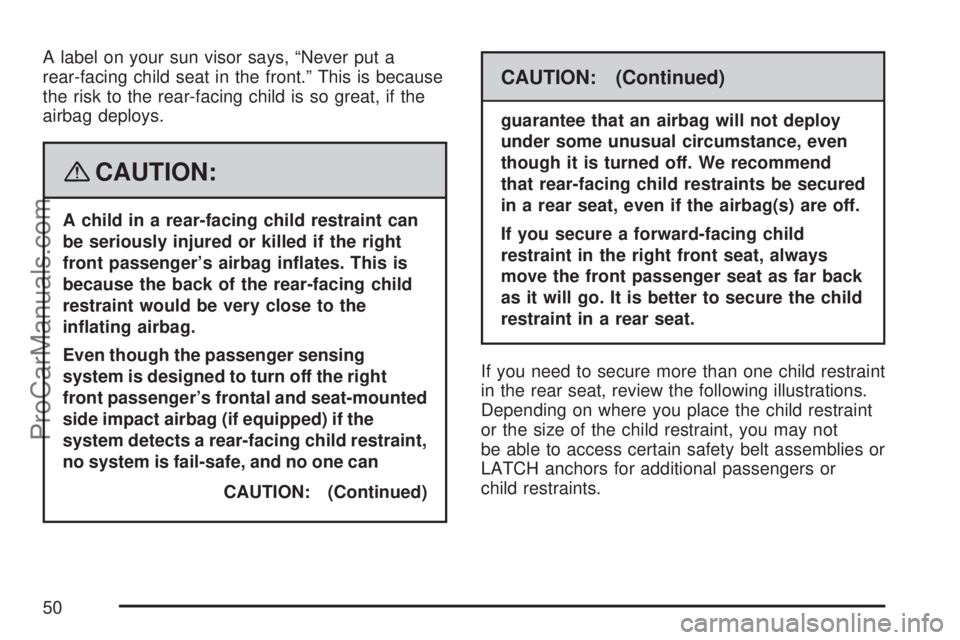

Page 50 of 406
A label on your sun visor says, “Never put a
rear-facing child seat in the front.” This is because
the risk to the rear-facing child is so great, if the
airbag deploys.
{CAUTION:
A child in a rear-facing child restraint can
be seriously injured or killed if the right
front passenger’s airbag in ates. This is
because the back of the rear-facing child
restraint would be very close to the
in ating airbag.
Even though the passenger sensing
system is designed to turn off the right
front passenger’s frontal and seat-mounted
side impact airbag (if equipped) if the
system detects a rear-facing child restraint,
no system is fail-safe, and no one can
CAUTION: (Continued)
CAUTION: (Continued)
guarantee that an airbag will not deploy
under some unusual circumstance, even
though it is turned off. We recommend
that rear-facing child restraints be secured
in a rear seat, even if the airbag(s) are off.
If you secure a forward-facing child
restraint in the right front seat, always
move the front passenger seat as far back
as it will go. It is better to secure the child
restraint in a rear seat.
If you need to secure more than one child restraint
in the rear seat, review the following illustrations.
Depending on where you place the child restraint
or the size of the child restraint, you may not
be able to access certain safety belt assemblies or
LATCH anchors for additional passengers or
child restraints.
50
ProCarManuals.com
Page 63 of 406
In addition, your vehicle has a passenger sensing
system. The passenger sensing system is
designed to turn off the right front passenger’s
frontal airbag and seat-mounted side impact airbag
when an infant in a rear-facing infant seat or a
small child in a forward-facing child restraint
or booster seat is detected. SeePassenger
Sensing System on page 77andPassenger Airbag
Status Indicator on page 165for more information
on this, including important safety information.
A label on your sun visor says, “Never put
a rear-facing child seat in the front.” This is
because the risk to the rear-facing child is so
great, if the airbag deploys.
{CAUTION:
A child in a rear-facing child restraint can
be seriously injured or killed if the right
front passenger’s airbag in ates. This is
CAUTION: (Continued)
CAUTION: (Continued)
because the back of the rear-facing child
restraint would be very close to the
in ating airbag.
Even though the passenger sensing
system is designed to turn off the right
front passenger’s frontal and
seat-mounted side impact airbag if the
system detects a rear-facing child
restraint, no system is fail-safe, and no
one can guarantee that an airbag will not
deploy under some unusual circumstance,
even though it is turned off. We
recommend that rear-facing child
restraints be secured in a rear seat, even
if the airbags are off.
If you secure a forward-facing child
restraint in the right front seat, always
move the front passenger seat as far back
as it will go. It is better to secure the child
restraint in a rear seat.
63
ProCarManuals.com
Page 64 of 406
If your child restraint has the LATCH system, see
Lower Anchors and Tethers for Children
(LATCH) on page 52.
There is no top tether anchor at the right front
seating position. Do not secure a child seat in this
position if a national or local law requires that
the top tether be anchored or if the instructions
that come with the child restraint say that the top
tether must be anchored. SeeLower Anchors
and Tethers for Children (LATCH) on page 52if
the child restraint has a top tether.
You will be using the lap-shoulder belt to secure
the child restraint in this position. Be sure to follow
the instructions that came with the child restraint.
Secure the child in the child restraint when and as
the instructions say.Your vehicle has airbags. SeePassenger Sensing
System on page 77. We recommend that
rear-facing child restraints be secured in a rear
seat, even if the airbags are off.
1. Move the seat as far back as it will go before
securing the forward-facing child restraint.
SeeManual Seats on page 8orPower Seats
on page 9.
When the passenger sensing system has
turned off the right front passenger’s frontal
airbag and seat-mounted side impact
airbag, the off indicator on the passenger
airbag status indicator should light and stay lit
when you start the vehicle. SeePassenger
Airbag Status Indicator on page 165.
2. Put the child restraint on the seat.
64
ProCarManuals.com
Page 66 of 406
6. To tighten the belt, push down on the child
restraint, pull the shoulder portion of the belt
to tighten the lap portion of the belt and
feed the shoulder belt back into the retractor.
If you are using a forward-facing child
restraint, you may nd it helpful to use your
knee to push down on the child restraint
as you tighten the belt. You should not be able
to pull more of the belt from the retractor
once the lock has been set.
7. Push and pull the child restraint in different
directions to be sure it is secure.If the airbags are off, the off indicator will be lit
and stay lit when you start the vehicle.
If a child restraint has been installed and the on
indicator is lit, turn the vehicle off. Remove
the child restraint from the vehicle and reinstall the
child restraint.
If, after reinstalling the child restraint and restarting
the vehicle, the on indicator is still lit, check to
make sure that the vehicle’s seatback is not
pressing the child restraint into the seat cushion. If
this happens, slightly recline the vehicle’s
seatback and adjust the seat cushion if possible.
Also make sure the child restraint is not trapped
under the vehicle head restraint. If this happens,
adjust the head restraint.
If the on indicator is still lit, secure the child in the
child restraint in a rear seat position in the
vehicle and check with your dealer/retailer.
To remove the child restraint, unbuckle the
vehicle’s safety belt and let it go back all the way.
The safety belt will move freely again and be
ready to work for an adult or larger child
passenger. When the safety belt is not in use,
slide the latch plate up the safety belt webbing.
The latch plate should rest on the stitching on the
safety belt, near the guide loop.
66
ProCarManuals.com
Page 69 of 406
{CAUTION:
Anyone who is up against, or very close
to, any airbag when it in ates can be
seriously injured or killed. Airbags plus
lap-shoulder belts offer the best
protection for adults, but not for young
children and infants. Neither the vehicle’s
safety belt system nor its airbag system is
designed for them. Young children and
infants need the protection that a child
restraint system can provide. Always
secure children properly in your vehicle.
To read how, seeOlder Children on
page 39orInfants and Young Children on
page 42.There is an airbag
readiness light on the
instrument panel cluster,
which shows the
airbag symbol.
The system checks the airbag electrical system for
malfunctions. The light tells you if there is an
electrical problem. SeeAirbag Readiness Light on
page 164for more information.
69
ProCarManuals.com
Page 74 of 406
If the front of your vehicle goes straight into a wall
that does not move or deform, the threshold
level for the reduced deployment is about 12 to
16 mph (19 to 26 km/h), and the threshold level for
a full deployment is about 18 to 25 mph (29 to
40.2 km/h). The threshold level can vary, however,
with speci c vehicle design, so that it can be
somewhat above or below this range.
Frontal airbags may in ate at different crash
speeds. For example:
If the vehicle hits a stationary object, the
airbags could in ate at a different crash speed
than if the vehicle hits a moving object.
If the vehicle hits an object that deforms, the
airbags could in ate at a different crash
speed than if the vehicle hits an object that
does not deform.
If the vehicle hits a narrow object (like a pole),
the airbags could in ate at a different crash
speed than if the vehicle hits a wide object
(like a wall).
If the vehicle goes into an object at an angle,
the airbags could in ate at a different crash
speed than if the vehicle goes straight into the
object.Frontal airbags (driver and right front passenger)
are not intended to in ate during vehicle
rollovers, rear impacts, or in many side impacts.
The side impact airbags are intended to in ate
in moderate to severe side crashes. A side impact
airbag will in ate if the crash severity is above
the system’s designed “threshold level.” The
threshold level can vary with speci c vehicle
design. Side impact airbags are not intended to
in ate in frontal or near-frontal impacts, rollovers,
or rear impacts. A side impact airbag is intended
to deploy on the side of the vehicle that is
struck, unless the passenger sensing system has
turned off the passenger’s seat-mounted side
impact airbag. SeePassenger Sensing System on
page 77for more information.
In any particular crash, no one can say whether
an airbag should have in ated simply because
of the damage to a vehicle or because of what the
repair costs were. For frontal airbags, in ation is
determined by what the vehicle hits, the angle
of the impact, and how quickly the vehicle slows
down in frontal and near-frontal impacts. For
side impact airbags, in ation is determined by the
location and severity of the impact.
74
ProCarManuals.com
Page 76 of 406
What Will You See After an Airbag
In ates?
After frontal airbags and seat-mounted side impact
airbags in ate, they quickly de ate, so quickly
that some people may not even realize an airbag
in ated. Roof-mounted side impact airbags
may still be at least partially in ated minutes after
the vehicle comes to rest. Some components
of the airbag module — the steering wheel hub for
the driver’s airbag, the instrument panel for the
right front passenger’s bag, the side of the
seatback closest to the door for the seat-mounted
side impact airbags, and the area along the
ceiling of your vehicle near the side windows for
roof-mounted side impact airbags — may be
hot for a short time. The parts of the airbag that
come into contact with you may be warm, but not
too hot to touch. There may be some smoke
and dust coming from the vents in the de ated
airbags. Airbag in ation does not prevent the driver
from seeing out of the windshield or being able
to steer the vehicle, nor does it prevent people
from leaving the vehicle.
{CAUTION:
When an airbag in ates, there may be
dust in the air. This dust could cause
breathing problems for people with a
history of asthma or other breathing
trouble. To avoid this, everyone in the
vehicle should get out as soon as it is
safe to do so. If you have breathing
problems but cannot get out of the vehicle
after an airbag in ates, then get fresh air
by opening a window or a door. If you
experience breathing problems following
an airbag deployment, you should seek
medical attention.
Your vehicle has a feature that may automatically
unlock the doors, turn the interior lamps on,
and turn the hazard warning ashers on when the
airbags in ate. You can lock the doors, turn the
interior lamps off, and turn the hazard warning
ashers off by using the controls for those
features.
76
ProCarManuals.com
Page 77 of 406
In many crashes severe enough to in ate the
airbag, windshields are broken by vehicle
deformation. Additional windshield breakage may
also occur from the right front passenger
airbag.
Airbags are designed to in ate only once.
After an airbag in ates, you will need
some new parts for the airbag system. If you
do not get them, the airbag system will
not be there to help protect you in another
crash. A new system will include airbag
modules and possibly other parts. The service
manual for your vehicle covers the need to
replace other parts.
Your vehicle has a crash sensing and
diagnostic module which records information
after a crash. SeeVehicle Data Recording and
Privacy on page 389andEvent Data
Recorders on page 389.
Let only quali ed technicians work on the
airbag systems. Improper service can
mean that an airbag system will not work
properly. See your dealer/retailer for service.
Passenger Sensing System
Your vehicle has a passenger sensing system for
the right front passenger’s position. The
passenger airbag status indicator will be visible
when you start your vehicle in the instrument
panel.
The words ON and OFF, or the symbol for on and
off, will be visible during the system check.
When the system check is complete, either the
word ON or the word OFF, or the symbol for on or
the symbol for off, will be visible. SeePassenger
Airbag Status Indicator on page 165.
United StatesCanada
77
ProCarManuals.com
