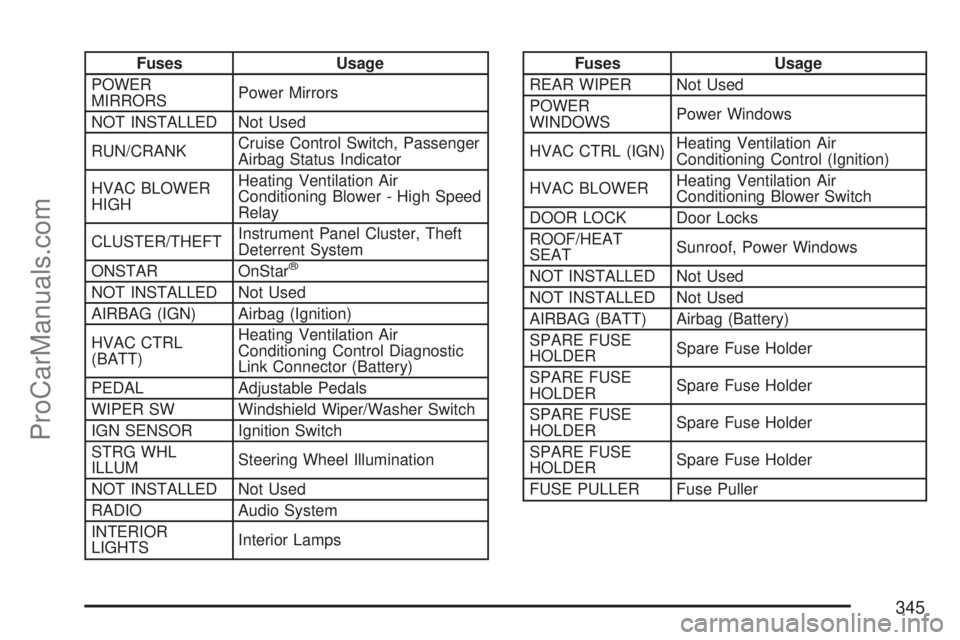

Fuses Usage
POWER
MIRRORSPower Mirrors
NOT INSTALLED Not Used
RUN/CRANKCruise Control Switch, Passenger
Airbag Status Indicator
HVAC BLOWER
HIGHHeating Ventilation Air
Conditioning Blower - High Speed
Relay
CLUSTER/THEFTInstrument Panel Cluster, Theft
Deterrent System
ONSTAR OnStar
®
NOT INSTALLED Not Used
AIRBAG (IGN) Airbag (Ignition)
HVAC CTRL
(BATT)Heating Ventilation Air
Conditioning Control Diagnostic
Link Connector (Battery)
PEDAL Adjustable Pedals
WIPER SW Windshield Wiper/Washer Switch
IGN SENSOR Ignition Switch
STRG WHL
ILLUMSteering Wheel Illumination
NOT INSTALLED Not Used
RADIO Audio System
INTERIOR
LIGHTSInterior Lamps
Fuses Usage
REAR WIPER Not Used
POWER
WINDOWSPower Windows
HVAC CTRL (IGN)Heating Ventilation Air
Conditioning Control (Ignition)
HVAC BLOWERHeating Ventilation Air
Conditioning Blower Switch
DOOR LOCK Door Locks
ROOF/HEAT
SEATSunroof, Power Windows
NOT INSTALLED Not Used
NOT INSTALLED Not Used
AIRBAG (BATT) Airbag (Battery)
SPARE FUSE
HOLDERSpare Fuse Holder
SPARE FUSE
HOLDERSpare Fuse Holder
SPARE FUSE
HOLDERSpare Fuse Holder
SPARE FUSE
HOLDERSpare Fuse Holder
FUSE PULLER Fuse Puller
345
ProCarManuals.com

Fuses Usage
1 Air Conditioner Clutch
2 Electronic Throttle Control
3 Belt Alternator Starter (BAS) IGN
4Transmission, Transmission Control
Module Ignition 1
5 Belt Alternator Starter (BAS) Pumps
6 Emission
7 Left Headlamp Low-Beam
8 Horn
9 Right Headlamp Low-Beam
11 Left Headlamp High-Beam
12 Right Headlamp High-Beam
13 Engine Control Module BATT
14 Windshield Wiper
15Anti-lock Brake System (ABS)
(IGN 1)
16 Engine Control Module (IGN 1)
17 Cooling Fan 1
18 Cooling Fan 2
19Run Relay, Heating, Ventilation, Air
Conditioning BlowerFuses Usage
20 Body Control Module 1
21 Body Control Module Run/Crank
22 Rear Electrical Center 1
23 Rear Electrical Center 2
24 Anti-lock Brake System (ABS)
25 Body Control Module 2
26 Starter
41 Electric Power Steering
42Transmission Control Module
Battery
43 Ignition Module
44 Injectors
46 Daytime Running Lamps
47 Center High-Mounted Stoplamps
50 Driver Power Window
51 Belt Alternator Starter (BAS) BATT
52 Transmission Pump Motor
54 Battery Voltage Sense
347
ProCarManuals.com

Relays Usage
28 Cooling Fan 1
29 Cooling Fan Series/Parallel
30 Cooling Fan 2
31 Starter
32 Run/Crank, Ignition
33 Powertrain
34 Air Conditioning Clutch
35 High-Beam Headlamp
37 Horn
38 Low-Beam Headlamp
39 Windshield Wiper 1
40 Windshield Wiper 2
48 Daytime Running Lamps (DRL)
49 Stoplamps
53 Transmission Pump Motor
Diodes Usage
27 Wiper
Rear Compartment Fuse Block
The rear compartment fuse block is located in the
trunk of the vehicle. Access the fuse block
through the trunk panel on the driver’s side of the
rear cargo area.
348
ProCarManuals.com

Fuses Usage
9 Not Used
10 Sunroof Controls
11 Not Used
12 Not Used
13 Audio Amplier
14 Heated Seat Controls
15 Not Used
16Remote Keyless Entry (RKE)
System, XM™ Satellite Radio
17 Back-up Lamps
18 Not Used
19 Not Used
20 Auxiliary Power Outlets
21 Not Used
22 Trunk Release
23 Rear Defog
24 Heated Mirrors
25 Fuel PumpRelays Usage
26 Rear Window Defogger
27 Park Lamps
28 Not Used
29 Not Used
30 Not Used
31 Not Used
32 Not Used
33 Back-up Lamps
34 Not Used
35 Not Used
36 Trunk Release
37 Fuel Pump
38 (Diode) Cargo Lamp
