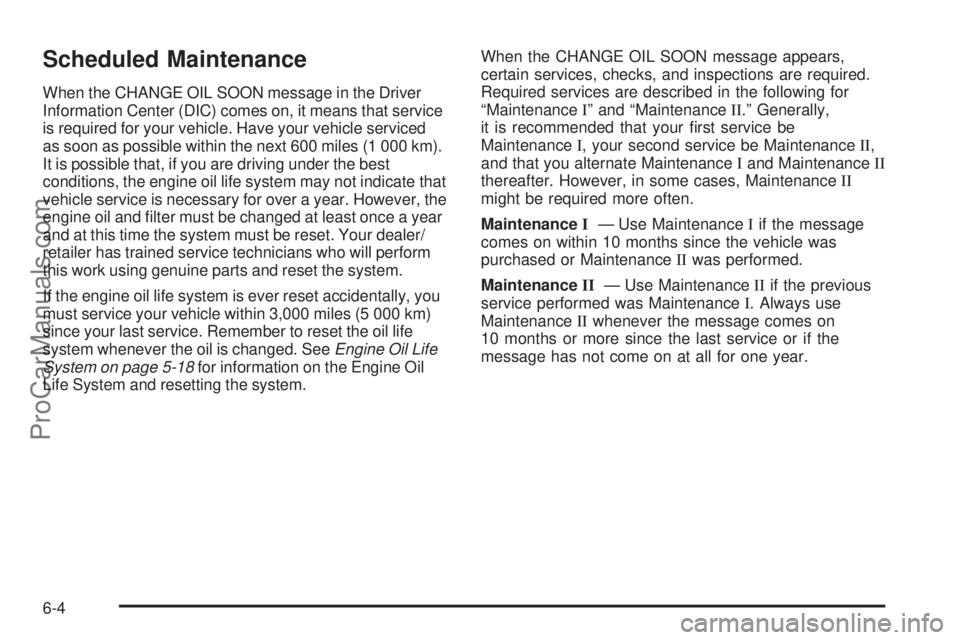

Scheduled Maintenance
When the CHANGE OIL SOON message in the Driver
Information Center (DIC) comes on, it means that service
is required for your vehicle. Have your vehicle serviced
as soon as possible within the next 600 miles (1 000 km).
It is possible that, if you are driving under the best
conditions, the engine oil life system may not indicate that
vehicle service is necessary for over a year. However, the
engine oil and lter must be changed at least once a year
and at this time the system must be reset. Your dealer/
retailer has trained service technicians who will perform
this work using genuine parts and reset the system.
If the engine oil life system is ever reset accidentally, you
must service your vehicle within 3,000 miles (5 000 km)
since your last service. Remember to reset the oil life
system whenever the oil is changed. SeeEngine Oil Life
System on page 5-18for information on the Engine Oil
Life System and resetting the system.When the CHANGE OIL SOON message appears,
certain services, checks, and inspections are required.
Required services are described in the following for
“MaintenanceI” and “MaintenanceII.” Generally,
it is recommended that your rst service be
MaintenanceI, your second service be MaintenanceII,
and that you alternate MaintenanceIand MaintenanceII
thereafter. However, in some cases, MaintenanceII
might be required more often.
MaintenanceI— Use MaintenanceIif the message
comes on within 10 months since the vehicle was
purchased or MaintenanceIIwas performed.
MaintenanceII— Use MaintenanceIIif the previous
service performed was MaintenanceI. Always use
MaintenanceIIwhenever the message comes on
10 months or more since the last service or if the
message has not come on at all for one year.
6-4
ProCarManuals.com

Scheduled Maintenance
Service MaintenanceIMaintenanceII
Change engine oil and lter. SeeEngine Oil on page 5-15. Reset oil life system.
SeeEngine Oil Life System on page 5-18.An Emission Control Service.••
Visually check for any leaks or damage.See footnote (j).••
Inspect engine air cleaner lter. If necessary, replace lter. SeeEngine Air
Cleaner/Filter on page 5-20.See footnote (k).•
Rotate tires and check ination pressures and wear. SeeTire Inspection and
Rotation on page 5-58andAt Least Once a Month on page 6-9.••
Inspect brake system.See footnote (a).••
Check engine coolant and windshield washer uid levels and add uid
as needed.••
Perform any needed additional services. See “Additional Required Services”
in this section.••
Inspect suspension and steering components.See footnote (b).•
Inspect engine cooling system.See footnote (c).•
Inspect wiper blades.See footnote (d).•
Inspect restraint system components.See footnote (e).•
Lubricate body components.See footnote (f).•
Inspect throttle system.See footnote (g).•
6-5
ProCarManuals.com

(e)Make sure the safety belt reminder light and safety
belt assemblies are working properly. Look for any
other loose or damaged safety belt system parts. If you
see anything that might keep a safety belt system
from doing its job, have it repaired. Have any torn or
frayed safety belts replaced. Also see Checking
the Restraint Systems on page 1-70.
(f)Lubricate all key lock cylinders, door hinges and
latches, hood hinges and latches, and trunk lid hinges
and latches. More frequent lubrication may be required
when exposed to a corrosive environment. Applying
silicone grease on weatherstrips with a clean cloth
will make them last longer, seal better, and not stick
or squeak.
(g)Check system for interference or binding and for
damaged or missing parts. Replace parts as needed.
Replace any components that have high effort or
excessive wear. Do not lubricate accelerator or
cruise control cables.
(h)Change automatic transmission fluid and filter if the
vehicle is mainly driven under one or more of these
conditions:
In heavy city traffic where the outside temperature
regularly reaches 90°F (32°C) or higher.
In hilly or mountainous terrain.When doing frequent trailer towing.
Uses such as found in taxi, police,
or delivery service.
If you do not use your vehicle under any of these
conditions, the fluid and filter do not require changing.
(i)Drain, flush, and refill cooling system. This service
can be complex; you should have your dealer/retailer
perform this service. See Engine Coolant on page 5-22
for what to use. Inspect hoses. Clean radiator,
condenser, pressure cap, and filler neck. Pressure
test the cooling system and pressure cap.
(j)A fluid loss in any vehicle system could indicate a
problem. Have the system inspected and repaired and
the fluid level checked. Add fluid if needed.
(k)If you drive regularly under dusty conditions, inspect
the filter at each engine oil change.
(l)Visually inspect underbody 36-volt battery system
cable for damage. Replace cable if necessary.
(m)Visually inspect belt for fraying, excessive cracks,
or obvious damage. Replace belt if necessary.
6-8
ProCarManuals.com

Owner Checks and Services
These owner checks and services should be performed
at the intervals specied to help ensure the safety,
dependability, and emission control performance of your
vehicle. Your dealer/retailer can assist you with these
checks and services.
Be sure any necessary repairs are completed at once.
Whenever any uids or lubricants are added to your
vehicle, make sure they are the proper ones, as shown
inRecommended Fluids and Lubricants on page 6-12.
At Each Fuel Fill
It is important to perform these underhood checks
at each fuel fill.
Engine Oil Level Check
Notice:It is important to check the engine oil
regularly and keep it at the proper level. Failure to
keep the engine oil at the proper level can cause
damage to the engine not covered by your warranty.
Check the engine oil level and add the proper oil
if necessary. SeeEngine Oil on page 5-15.
Engine Coolant Level Check
Check the engine coolant level and add DEX-COOL®
coolant mixture if necessary. SeeEngine Coolant
on page 5-22.
Windshield Washer Fluid Level Check
Check the windshield washer uid level in the
windshield washer uid reservoir and add the
proper uid if necessary.
At Least Once a Month
Tire Inspection and Ination Check
Inspect your vehicle’s tires for wear and make
sure they are inated to the correct pressures.
SeeInflation - Tire Pressure on page 5-52.
6-9
ProCarManuals.com

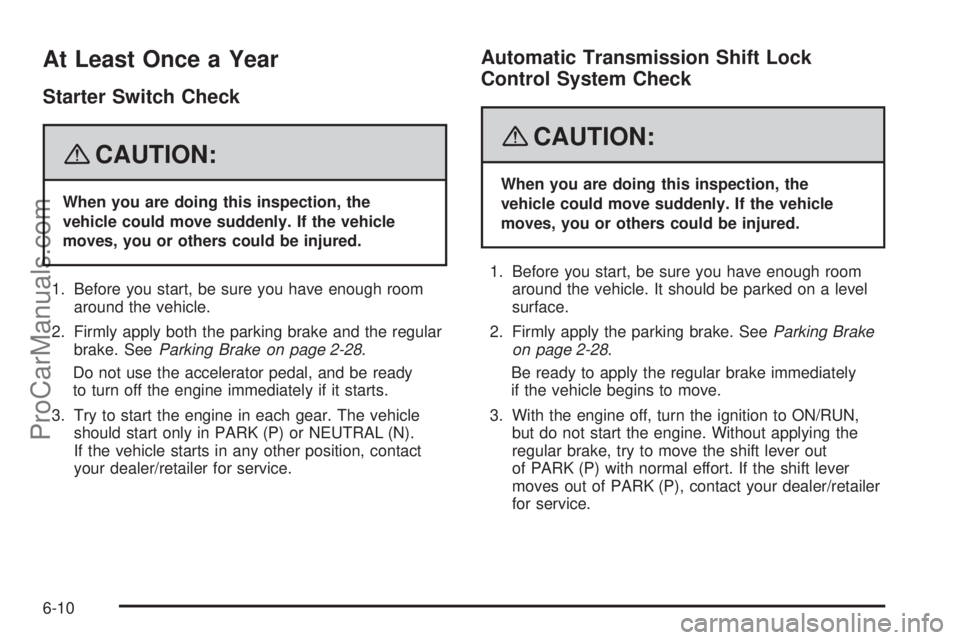

At Least Once a Year
Starter Switch Check
{CAUTION:
When you are doing this inspection, the
vehicle could move suddenly. If the vehicle
moves, you or others could be injured.
1. Before you start, be sure you have enough room
around the vehicle.
2. Firmly apply both the parking brake and the regular
brake. SeeParking Brake on page 2-28.
Do not use the accelerator pedal, and be ready
to turn off the engine immediately if it starts.
3. Try to start the engine in each gear. The vehicle
should start only in PARK (P) or NEUTRAL (N).
If the vehicle starts in any other position, contact
your dealer/retailer for service.
Automatic Transmission Shift Lock
Control System Check
{CAUTION:
When you are doing this inspection, the
vehicle could move suddenly. If the vehicle
moves, you or others could be injured.
1. Before you start, be sure you have enough room
around the vehicle. It should be parked on a level
surface.
2. Firmly apply the parking brake. SeeParking Brake
on page 2-28.
Be ready to apply the regular brake immediately
if the vehicle begins to move.
3. With the engine off, turn the ignition to ON/RUN,
but do not start the engine. Without applying the
regular brake, try to move the shift lever out
of PARK (P) with normal effort. If the shift lever
moves out of PARK (P), contact your dealer/retailer
for service.
6-10
ProCarManuals.com

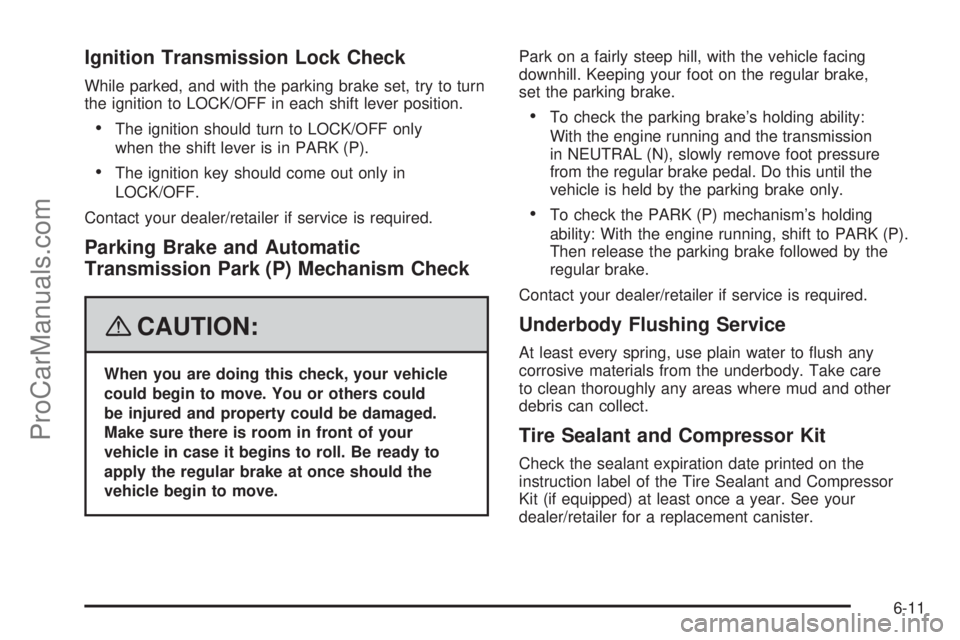

Ignition Transmission Lock Check
While parked, and with the parking brake set, try to turn
the ignition to LOCK/OFF in each shift lever position.
The ignition should turn to LOCK/OFF only
when the shift lever is in PARK (P).
The ignition key should come out only in
LOCK/OFF.
Contact your dealer/retailer if service is required.
Parking Brake and Automatic
Transmission Park (P) Mechanism Check
{CAUTION:
When you are doing this check, your vehicle
could begin to move. You or others could
be injured and property could be damaged.
Make sure there is room in front of your
vehicle in case it begins to roll. Be ready to
apply the regular brake at once should the
vehicle begin to move.Park on a fairly steep hill, with the vehicle facing
downhill. Keeping your foot on the regular brake,
set the parking brake.
To check the parking brake’s holding ability:
With the engine running and the transmission
in NEUTRAL (N), slowly remove foot pressure
from the regular brake pedal. Do this until the
vehicle is held by the parking brake only.
To check the PARK (P) mechanism’s holding
ability: With the engine running, shift to PARK (P).
Then release the parking brake followed by the
regular brake.
Contact your dealer/retailer if service is required.
Underbody Flushing Service
At least every spring, use plain water to ush any
corrosive materials from the underbody. Take care
to clean thoroughly any areas where mud and other
debris can collect.
Tire Sealant and Compressor Kit
Check the sealant expiration date printed on the
instruction label of the Tire Sealant and Compressor
Kit (if equipped) at least once a year. See your
dealer/retailer for a replacement canister.
6-11
ProCarManuals.com

Auto Stop Mode.............................................3-42
Automatic Climate Control System.....................3-19
Automatic Headlamp System............................3-15
Automatic Transmission
Fluid..........................................................5-22
Operation...................................................2-26
B
Backglass Antenna..........................................3-74
Battery..........................................................5-34
Run-Down Protection...................................3-17
Brake
Emergencies................................................ 4-5
Brakes..........................................................5-33
Regenerative Braking...................................2-29
System Warning Light..................................3-32
Braking........................................................... 4-3
Braking in Emergencies..................................... 4-5
Break-In, New Vehicle.....................................2-19
Bulb Replacement...........................................5-42
Halogen Bulbs............................................5-42
Headlamp Aiming........................................5-41
License Plate Lamps....................................5-44
Replacement Bulbs......................................5-44
Taillamps, Turn Signal, Sidemarker,
Stoplamps, and Back-Up Lamps.................5-42
Buying New Tires...........................................5-60
C
California Fuel.................................................. 5-6
California Perchlorate Materials Requirements....... 5-4
California Proposition 65 Warning....................... 5-4
Canadian Owners................................................ ii
Capacities and Specications............................5-95
Carbon Monoxide...................2-10, 2-32, 4-17, 4-29
Care of
Safety Belts................................................5-79
CD, MP3 .......................................................3-66
Center Console Storage Area...........................2-39
Chains, Tire...................................................5-66
Charge/Assist Gage........................................3-42
Charging System Light....................................3-32
Check
Engine Light...............................................3-36
Checking Things Under the Hood......................5-12
Chemical Paint Spotting...................................5-83
Child Restraints
Child Restraint Systems...............................1-35
Infants and Young Children...........................1-32
Lower Anchors and Tethers for Children..........1-40
Older Children.............................................1-29
Securing a Child Restraint in a
Rear Seat Position...................................1-47
Securing a Child Restraint in the
Right Front Seat Position..........................1-50
Where to Put the Restraint...........................1-38
2
ProCarManuals.com

Door
Delayed Locking........................................... 2-8
Door Ajar Reminder....................................... 2-8
Locks.......................................................... 2-7
Power Door Locks......................................... 2-7
Programmable Automatic Door Locks............... 2-8
Rear Door Security Locks............................... 2-9
Driver Information Center (DIC).........................3-43
DIC Operation and Displays..........................3-44
DIC Vehicle Personalization..........................3-51
DIC Warnings and Messages........................3-46
Driving
At Night.....................................................4-14
Before a Long Trip......................................4-16
Defensive..................................................... 4-2
Drunken....................................................... 4-2
Highway Hypnosis.......................................4-16
Hill and Mountain Roads..............................4-16
In Rain and on Wet Roads...........................4-14
Rocking Your Vehicle to Get it Out.................4-22
Winter........................................................4-17E
EDR .............................................................7-16
Electrical System
Add-On Equipment......................................5-86
Engine Compartment Fuse Block...................5-89
Fuses........................................................5-87
Instrument Panel Fuse Block.........................5-87
Power Windows and Other Power Options......5-86
Rear Compartment Fuse Block......................5-92
Windshield Wiper Fuses...............................5-86
Electronic Stability Control................................. 4-8
Electronic Stability Control Indicator Light...........3-34
Engine
Air Cleaner/Filter.........................................5-20
Check and Service Engine Soon Light............3-36
Coolant......................................................5-22
Coolant Heater............................................2-25
Coolant Temperature Warning Light................3-35
Drive Belt Routing.......................................6-13
Engine Compartment Overview......................5-14
Exhaust.....................................................2-32
Oil .............................................................5-15
Oil Life System...........................................5-18
Overheating................................................5-26
Starting......................................................2-21
Entry/Exit Lighting...........................................3-16
Event Data Recorders.....................................7-17
Extender, Safety Belt.......................................1-28
4
ProCarManuals.com

Headlamps Off in Park (P)...............................3-14
Heater...........................................................3-19
Highbeam On Light.........................................3-40
Highway Hypnosis...........................................4-16
Hill and Mountain Roads..................................4-16
Hood
Checking Things Under................................5-12
Release.....................................................5-13
Horn............................................................... 3-6
How to Wear Safety Belts Properly...................1-15
I
Ignition Positions.............................................2-20
Infants and Young Children, Restraints...............1-32
Ination - Tire Pressure...................................5-52
Inator Kit, Tire...............................................5-68
Instrument Panel
Overview..................................................... 3-4
Instrument Panel (I/P)
Brightness..................................................3-16
Cluster.......................................................3-26
J
Jump Starting.................................................5-36
K
Keyless Entry System....................................... 2-3
Keys............................................................... 2-2
L
Labeling, Tire Sidewall.....................................5-47
Lamps
Dome........................................................3-16
Overhead Console Reading..........................3-17
Trunk.........................................................3-17
Lap-Shoulder Belt...........................................1-22
LATCH System
Child Restraints...........................................1-40
License Plate Lamps.......................................5-44
Lift Seat, Power............................................... 1-8
Light
Airbag Readiness........................................3-29
Antilock Brake System Warning.....................3-33
Brake System Warning.................................3-32
Charging System.........................................3-32
Cruise Control.............................................3-40
Engine Coolant Temperature Warning.............3-35
Fuel Economy.............................................3-43
Highbeam On.............................................3-40
Malfunction Indicator....................................3-36
6
ProCarManuals.com

Mirrors (cont.)
Outside Automatic Dimming Mirror.................2-35
Outside Power Mirrors..................................2-34
MP3 .............................................................3-66
MyGMLink.com................................................ 7-4
N
Navigation System, Privacy..............................7-18
New Vehicle Break-In......................................2-19
O
Odometer......................................................3-27
Odometer, Trip...............................................3-27
Off-Road Recovery..........................................4-12
Oil
Engine.......................................................5-15
Pressure Light.............................................3-39
Oil, Engine Oil Life System..............................5-18
Older Children, Restraints................................1-29
Online Owner Center........................................ 7-4
OnStar, Privacy..............................................7-18
OnStar
®System, see OnStar®Manual...............2-35
Other Warning Devices...................................... 3-6
Outlet Adjustment............................................3-24Outlets
Accessory Power.........................................3-18
Outside
Automatic Dimming Mirror.............................2-35
Power Mirrors.............................................2-34
Overhead Console Reading Lamps....................3-17
Owner Checks and Services.............................. 6-9
Owners, Canadian............................................... ii
P
Paint, Damage...............................................5-83
Parade Dimming.............................................3-17
Park Brake....................................................2-28
Park (P)
Shifting Into................................................2-29
Shifting Out of............................................2-31
Park (P) Headlamps Off in Park (P)..................3-14
Parking
Over Things That Burn.................................2-31
Passenger Airbag Status Indicator.....................3-30
Passenger Sensing System..............................1-63
Passing.........................................................4-12
PASS-Key
®III+..............................................2-17
PASS-Key®III+ Operation................................2-18
Perchlorate Materials Requirements, California....... 5-4
8
ProCarManuals.com
