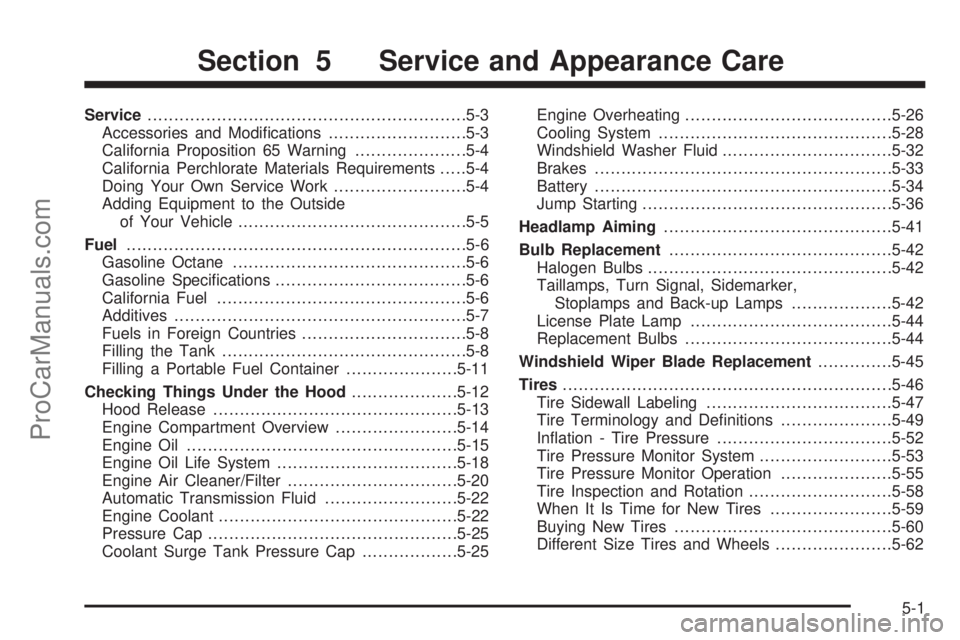

air filter SATURN AURA 2008 Owners Manual

Service............................................................5-3
Accessories and Modications..........................5-3
California Proposition 65 Warning.....................5-4
California Perchlorate Materials Requirements.....5-4
Doing Your Own Service Work.........................5-4
Adding Equipment to the Outside
of Your Vehicle...........................................5-5
Fuel................................................................5-6
Gasoline Octane............................................5-6
Gasoline Specications....................................5-6
California Fuel...............................................5-6
Additives.......................................................5-7
Fuels in Foreign Countries...............................5-8
Filling the Tank..............................................5-8
Filling a Portable Fuel Container.....................5-11
Checking Things Under the Hood....................5-12
Hood Release..............................................5-13
Engine Compartment Overview.......................5-14
Engine Oil...................................................5-15
Engine Oil Life System..................................5-18
Engine Air Cleaner/Filter................................5-20
Automatic Transmission Fluid.........................5-22
Engine Coolant.............................................5-22
Pressure Cap...............................................5-25
Coolant Surge Tank Pressure Cap..................5-25Engine Overheating.......................................5-26
Cooling System............................................5-28
Windshield Washer Fluid................................5-32
Brakes........................................................5-33
Battery........................................................5-34
Jump Starting...............................................5-36
Headlamp Aiming...........................................5-41
Bulb Replacement..........................................5-42
Halogen Bulbs..............................................5-42
Taillamps, Turn Signal, Sidemarker,
Stoplamps and Back-up Lamps...................5-42
License Plate Lamp......................................5-44
Replacement Bulbs.......................................5-44
Windshield Wiper Blade Replacement..............5-45
Tires..............................................................5-46
Tire Sidewall Labeling...................................5-47
Tire Terminology and Denitions.....................5-49
Ination - Tire Pressure.................................5-52
Tire Pressure Monitor System.........................5-53
Tire Pressure Monitor Operation.....................5-55
Tire Inspection and Rotation...........................5-58
When It Is Time for New Tires.......................5-59
Buying New Tires.........................................5-60
Different Size Tires and Wheels......................5-62
Section 5 Service and Appearance Care
5-1
ProCarManuals.com

A. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 5-20.
B. Cooling Fans. SeeCooling System on page 5-28.
C. Engine Oil Dipstick. See “Checking Engine Oil” under
Engine Oil on page 5-15.
D. Engine Oil Fill Cap. See “When to Add Engine Oil”
underEngine Oil on page 5-15.
E. Engine Coolant Surge Tank. SeeEngine Coolant
on page 5-22.
F. Brake Master Cylinder Reservoir. See″Brake Fluid″
underBrakes on page 5-33.
G. Battery. SeeBattery on page 5-34.
H. Engine Compartment Fuse Block. SeeEngine
Compartment Fuse Block on page 5-89.
I. Windshield Washer Fluid Reservoir. See “Adding
Washer Fluid” underWindshield Washer Fluid
on page 5-32.Engine Oil
Checking Engine Oil
It is a good idea to check the engine oil every time you
get fuel. In order to get an accurate reading, the oil
must be warm and the vehicle must be on level ground.
The engine oil dipstick handle is a yellow loop. See
Engine Compartment Overview on page 5-14for
the location of the engine oil dipstick.
1. Turn off the engine and give the oil several minutes
to drain back into the oil pan. If you do not do this,
the oil dipstick might not show the actual level.
2. Pull the dipstick and clean it with a paper towel or
cloth, then push it back in all the way. Remove it
again, keeping the tip down and check the level.
5-15
ProCarManuals.com

Engine Air Cleaner/Filter
SeeEngine Compartment Overview on page 5-14for
the location of the engine air cleaner/lter.
When to Inspect the Engine
Air Cleaner/Filter
Inspect the air cleaner/lter at the MaintenanceII
intervals and replace it at the rst oil change after
each 50,000 mile (80 000 km) interval. SeeScheduled
Maintenance on page 6-4for more information.
If you are driving in dusty/dirty conditions, inspect
the lter at each engine oil change.
How to Inspect the Engine
Air Cleaner/Filter
To inspect the air cleaner/lter, remove the lter
from the vehicle and lightly shake the lter to release
loose dust and dirt. If the lter remains caked with dirt,
a new lter is required.To inspect or replace the engine air cleaner/lter,
do the following:
1. Remove the spring clamps that hold the cover on.
2. Lift off the cover.
5-20
ProCarManuals.com

Capacities and Specications
The following approximate capacities are given in English and metric conversions. Please refer toRecommended
Fluids and Lubricants on page 6-12for more information.
ApplicationCapacities
English Metric
Air Conditioning Refrigerant R134aFor the air conditioning system refrigerant
charge amount, see the refrigerant caution
label located under the hood. See your
dealer/retailer for more information.
Cooling System 8.1 qt 7.7 L
Transmission (Bottom Pan Removal) 7.0 qt 6.6 L
Engine Oil with Filter 5.0 qt 4.7 L
Fuel Tank 16.3 gal 61.7 L
Wheel Nut Torque 100 lb ft 140Y
All capacities are approximate. When adding, be sure to ll to the appropriate level, as recommended in this manual.
Engine Specications
Engine VIN Code Transmission Spark Plug Gap
2.4L L4 5 Automatic 0.040 inches (1.01 mm)
5-95
ProCarManuals.com

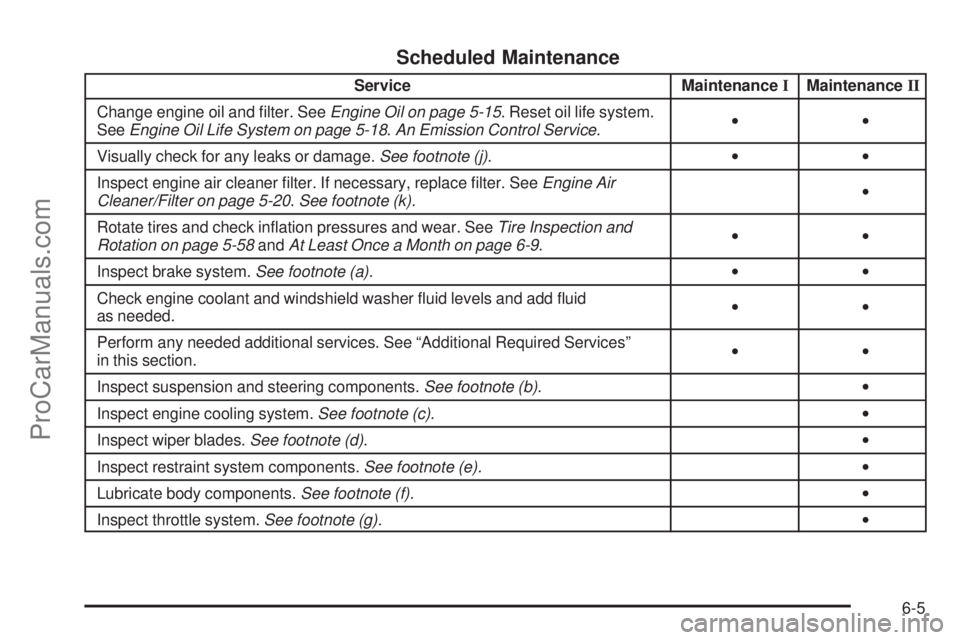

Scheduled Maintenance
Service MaintenanceIMaintenanceII
Change engine oil and lter. SeeEngine Oil on page 5-15. Reset oil life system.
SeeEngine Oil Life System on page 5-18.An Emission Control Service.••
Visually check for any leaks or damage.See footnote (j).••
Inspect engine air cleaner lter. If necessary, replace lter. SeeEngine Air
Cleaner/Filter on page 5-20.See footnote (k).•
Rotate tires and check ination pressures and wear. SeeTire Inspection and
Rotation on page 5-58andAt Least Once a Month on page 6-9.••
Inspect brake system.See footnote (a).••
Check engine coolant and windshield washer uid levels and add uid
as needed.••
Perform any needed additional services. See “Additional Required Services”
in this section.••
Inspect suspension and steering components.See footnote (b).•
Inspect engine cooling system.See footnote (c).•
Inspect wiper blades.See footnote (d).•
Inspect restraint system components.See footnote (e).•
Lubricate body components.See footnote (f).•
Inspect throttle system.See footnote (g).•
6-5
ProCarManuals.com

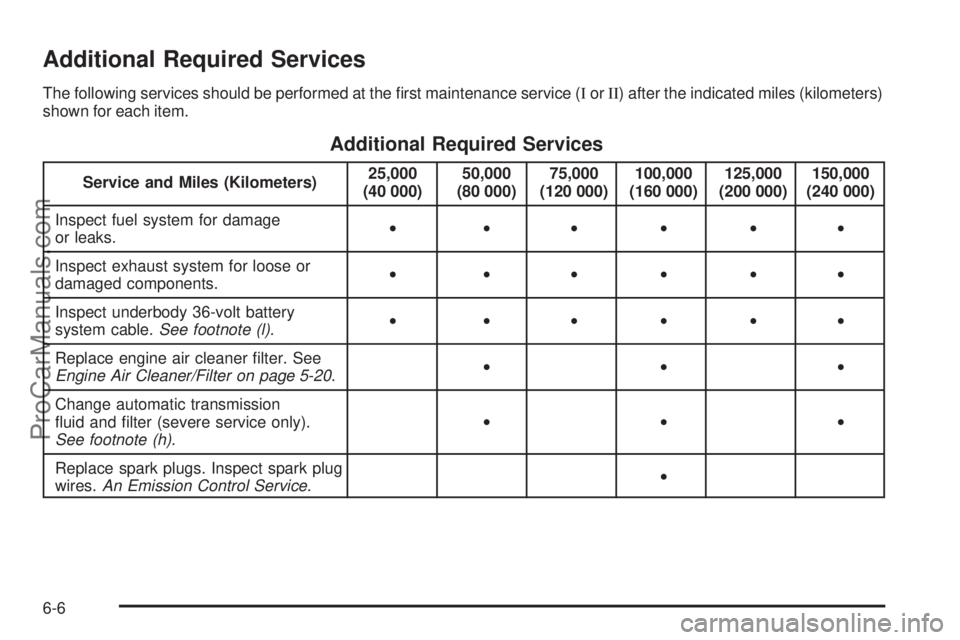

Additional Required Services
The following services should be performed at the rst maintenance service (IorII) after the indicated miles (kilometers)
shown for each item.
Additional Required Services
Service and Miles (Kilometers)25,000
(40 000)50,000
(80 000)75,000
(120 000)100,000
(160 000)125,000
(200 000)150,000
(240 000)
Inspect fuel system for damage
or leaks.• •••••
Inspect exhaust system for loose or
damaged components.• •••••
Inspect underbody 36-volt battery
system cable.See footnote (l).• •••••
Replace engine air cleaner lter. See
Engine Air Cleaner/Filter on page 5-20.•••
Change automatic transmission
uid and lter (severe service only).
See footnote (h).•••
Replace spark plugs. Inspect spark plug
wires.An Emission Control Service.•
6-6
ProCarManuals.com

Maintenance Replacement Parts
Replacement parts identied below by name, part number, or specication can be obtained from your dealer/retailer.
Part Part Numbers ACDelco®Part Numbers
Engine Air Cleaner/Filter 22676970 A1627C
Engine Oil Filter 12605566 PF457G
Spark Plugs 12598004 41-103
Windshield Wiper Blades
Driver’s Side – 23.6 inches (60.0 cm) 25800624 —
Passenger’s Side – 21.0 inches (53.0 cm) 25800623 —
Engine Drive Belt RoutingThe engine drive belt on this hybrid vehicle is under
a higher tension than the engine drive belt on a
non-hybrid vehicle and requires the use of a special
kind of tool to service. See your dealer/retailer
for service.
6-13
ProCarManuals.com

A
Accessories and Modications............................ 5-3
Adding Equipment to Your Airbag-Equipped
Vehicle.......................................................1-68
Additives, Fuel................................................. 5-7
Add-On Electrical Equipment............................5-86
Air Cleaner/Filter, Engine.................................5-20
Air Conditioning..............................................3-19
Airbag
Passenger Status Indicator...........................3-30
Readiness Light..........................................3-29
Airbag System................................................1-54
What Will You See After an Airbag Inates?....1-62
When Should an Airbag Inate?....................1-59
Where Are the Airbags?...............................1-56
Airbag Systems
Adding Equipment to Your Airbag-Equipped
Vehicle...................................................1-68
How Does an Airbag Restrain?......................1-61
Passenger Sensing System...........................1-63
Servicing Your Airbag-Equipped Vehicle..........1-68
What Makes an Airbag Inate?......................1-61
Antenna, Backglass.........................................3-74
Antenna, XM™ Satellite Radio Antenna System.....3-74
Antilock Brake System (ABS)............................. 4-4
Antilock Brake, System Warning Light................3-33Appearance Care
Aluminum Wheels........................................5-82
Care of Safety Belts....................................5-79
Chemical Paint Spotting...............................5-83
Cleaning Exterior Lamps/Lenses....................5-80
Fabric/Carpet..............................................5-78
Finish Care.................................................5-81
Finish Damage............................................5-83
Instrument Panel, Vinyl, and Other
Plastic Surfaces.......................................5-79
Interior Cleaning..........................................5-77
Sheet Metal Damage...................................5-83
Tires..........................................................5-83
Underbody Maintenance...............................5-83
Vehicle Care/Appearance Materials................5-84
Washing Your Vehicle...................................5-80
Weatherstrips..............................................5-80
Windshield and Wiper Blades........................5-81
Appointments, Scheduling Service....................... 7-9
Audio System.................................................3-56
Audio Steering Wheel Controls......................3-72
Backglass Antenna......................................3-74
Radio Reception..........................................3-73
Setting the Clock.........................................3-57
Theft-Deterrent Feature................................3-72
XM™ Satellite Radio Antenna System............3-74
Audio System(s).............................................3-58
1
ProCarManuals.com

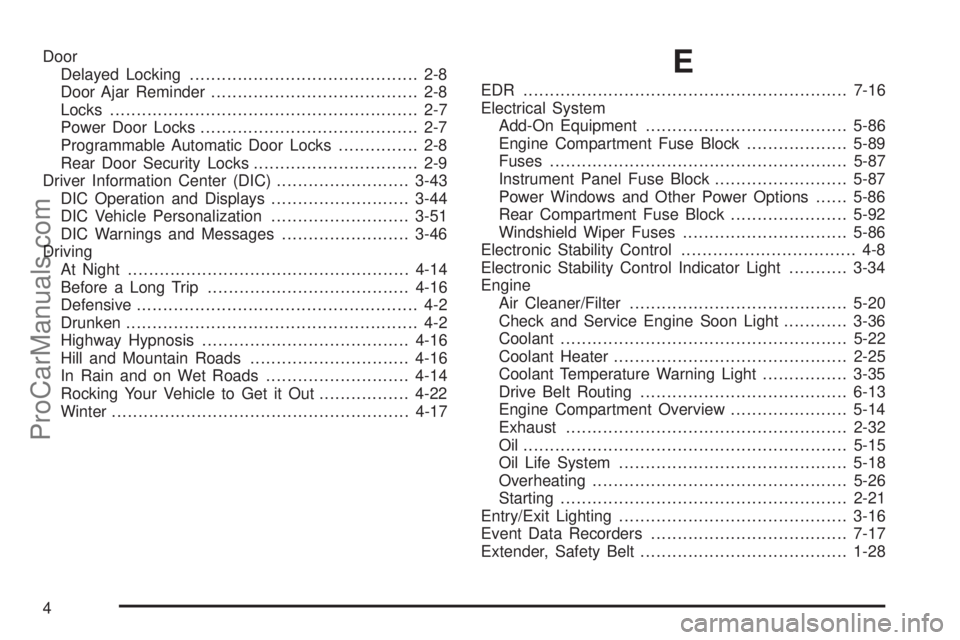

Door
Delayed Locking........................................... 2-8
Door Ajar Reminder....................................... 2-8
Locks.......................................................... 2-7
Power Door Locks......................................... 2-7
Programmable Automatic Door Locks............... 2-8
Rear Door Security Locks............................... 2-9
Driver Information Center (DIC).........................3-43
DIC Operation and Displays..........................3-44
DIC Vehicle Personalization..........................3-51
DIC Warnings and Messages........................3-46
Driving
At Night.....................................................4-14
Before a Long Trip......................................4-16
Defensive..................................................... 4-2
Drunken....................................................... 4-2
Highway Hypnosis.......................................4-16
Hill and Mountain Roads..............................4-16
In Rain and on Wet Roads...........................4-14
Rocking Your Vehicle to Get it Out.................4-22
Winter........................................................4-17E
EDR .............................................................7-16
Electrical System
Add-On Equipment......................................5-86
Engine Compartment Fuse Block...................5-89
Fuses........................................................5-87
Instrument Panel Fuse Block.........................5-87
Power Windows and Other Power Options......5-86
Rear Compartment Fuse Block......................5-92
Windshield Wiper Fuses...............................5-86
Electronic Stability Control................................. 4-8
Electronic Stability Control Indicator Light...........3-34
Engine
Air Cleaner/Filter.........................................5-20
Check and Service Engine Soon Light............3-36
Coolant......................................................5-22
Coolant Heater............................................2-25
Coolant Temperature Warning Light................3-35
Drive Belt Routing.......................................6-13
Engine Compartment Overview......................5-14
Exhaust.....................................................2-32
Oil .............................................................5-15
Oil Life System...........................................5-18
Overheating................................................5-26
Starting......................................................2-21
Entry/Exit Lighting...........................................3-16
Event Data Recorders.....................................7-17
Extender, Safety Belt.......................................1-28
4
ProCarManuals.com

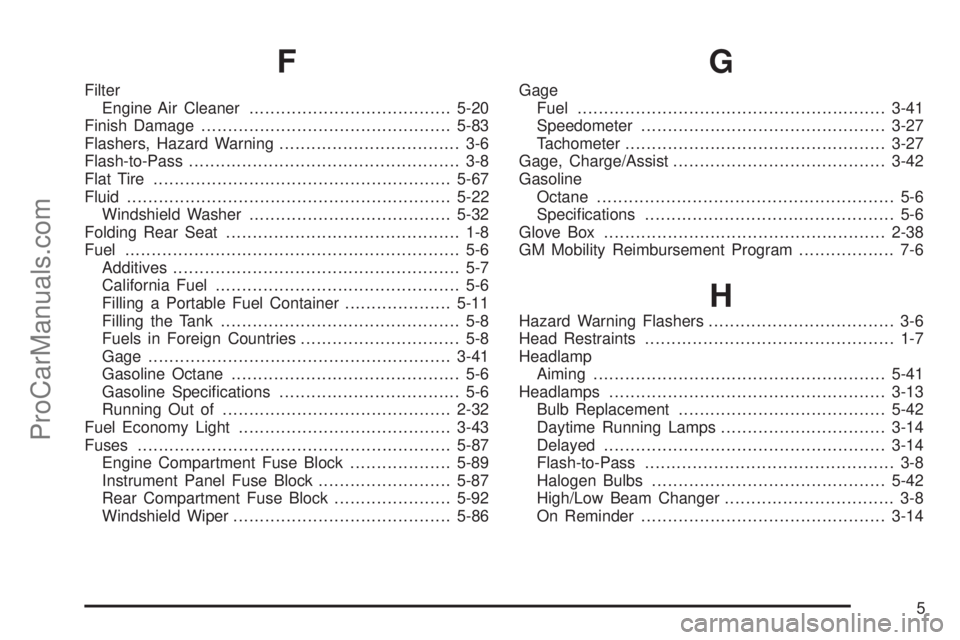

F
Filter
Engine Air Cleaner......................................5-20
Finish Damage...............................................5-83
Flashers, Hazard Warning.................................. 3-6
Flash-to-Pass................................................... 3-8
Flat Tire........................................................5-67
Fluid.............................................................5-22
Windshield Washer......................................5-32
Folding Rear Seat............................................ 1-8
Fuel............................................................... 5-6
Additives...................................................... 5-7
California Fuel.............................................. 5-6
Filling a Portable Fuel Container....................5-11
Filling the Tank............................................. 5-8
Fuels in Foreign Countries.............................. 5-8
Gage.........................................................3-41
Gasoline Octane........................................... 5-6
Gasoline Specications.................................. 5-6
Running Out of...........................................2-32
Fuel Economy Light........................................3-43
Fuses...........................................................5-87
Engine Compartment Fuse Block...................5-89
Instrument Panel Fuse Block.........................5-87
Rear Compartment Fuse Block......................5-92
Windshield Wiper.........................................5-86
G
Gage
Fuel..........................................................3-41
Speedometer..............................................3-27
Tachometer.................................................3-27
Gage, Charge/Assist........................................3-42
Gasoline
Octane........................................................ 5-6
Specications............................................... 5-6
Glove Box.....................................................2-38
GM Mobility Reimbursement Program.................. 7-6
H
Hazard Warning Flashers................................... 3-6
Head Restraints............................................... 1-7
Headlamp
Aiming.......................................................5-41
Headlamps....................................................3-13
Bulb Replacement.......................................5-42
Daytime Running Lamps...............................3-14
Delayed.....................................................3-14
Flash-to-Pass............................................... 3-8
Halogen Bulbs............................................5-42
High/Low Beam Changer................................ 3-8
On Reminder..............................................3-14
5
ProCarManuals.com
