alarm SATURN AURA 2008 Owners Manual

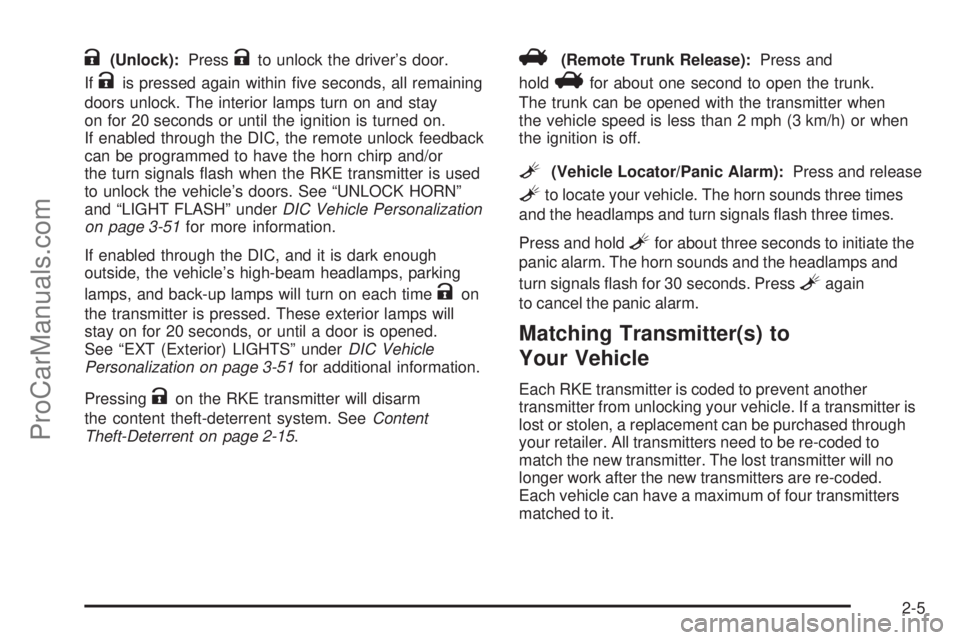

K(Unlock):PressKto unlock the driver’s door.
If
Kis pressed again within ve seconds, all remaining
doors unlock. The interior lamps turn on and stay
on for 20 seconds or until the ignition is turned on.
If enabled through the DIC, the remote unlock feedback
can be programmed to have the horn chirp and/or
the turn signals ash when the RKE transmitter is used
to unlock the vehicle’s doors. See “UNLOCK HORN”
and “LIGHT FLASH” underDIC Vehicle Personalization
on page 3-51for more information.
If enabled through the DIC, and it is dark enough
outside, the vehicle’s high-beam headlamps, parking
lamps, and back-up lamps will turn on each time
Kon
the transmitter is pressed. These exterior lamps will
stay on for 20 seconds, or until a door is opened.
See “EXT (Exterior) LIGHTS” underDIC Vehicle
Personalization on page 3-51for additional information.
Pressing
Kon the RKE transmitter will disarm
the content theft-deterrent system. SeeContent
Theft-Deterrent on page 2-15.
V(Remote Trunk Release):Press and
hold
Vfor about one second to open the trunk.
The trunk can be opened with the transmitter when
the vehicle speed is less than 2 mph (3 km/h) or when
the ignition is off.
L(Vehicle Locator/Panic Alarm):Press and release
Lto locate your vehicle. The horn sounds three times
and the headlamps and turn signals ash three times.
Press and hold
Lfor about three seconds to initiate the
panic alarm. The horn sounds and the headlamps and
turn signals ash for 30 seconds. Press
Lagain
to cancel the panic alarm.
Matching Transmitter(s) to
Your Vehicle
Each RKE transmitter is coded to prevent another
transmitter from unlocking your vehicle. If a transmitter is
lost or stolen, a replacement can be purchased through
your retailer. All transmitters need to be re-coded to
match the new transmitter. The lost transmitter will no
longer work after the new transmitters are re-coded.
Each vehicle can have a maximum of four transmitters
matched to it.
2-5
ProCarManuals.com

Sun Visors
To block out glare, swing down the visors. They can
also be removed from the center mount and swung to
the side, to block out glare from the side. The visors
also have extenders that can be pulled out.
Your vehicle may have lighted visor vanity mirrors
located on the passenger and driver side visors.
A light turns on when the cover is lifted.
Theft-Deterrent Systems
Vehicle theft is big business, especially in some cities.
Although your vehicle has a number of theft-deterrent
features, we know that nothing we put on it can make
it impossible to steal.
Content Theft-Deterrent
Your vehicle may have
a content theft-deterrent
alarm system.
Arming the System
With the ignition off, you can arm the system by
pressing the Remote Keyless Entry (RKE) transmitter
lock button.
The system will arm 30 seconds after all the doors are
closed, or 60 seconds with any door open.
2-15
ProCarManuals.com

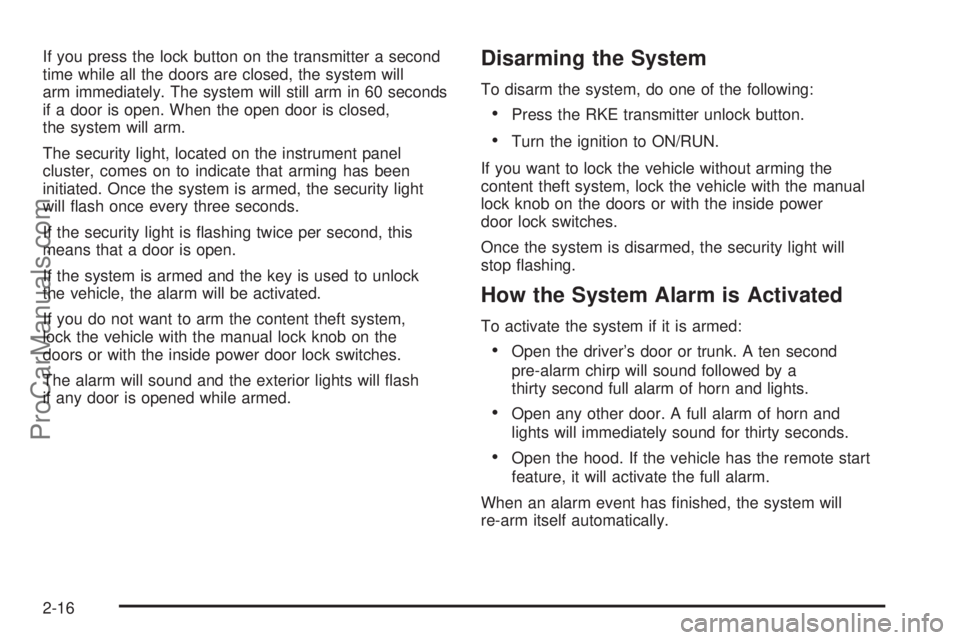

If you press the lock button on the transmitter a second
time while all the doors are closed, the system will
arm immediately. The system will still arm in 60 seconds
if a door is open. When the open door is closed,
the system will arm.
The security light, located on the instrument panel
cluster, comes on to indicate that arming has been
initiated. Once the system is armed, the security light
will ash once every three seconds.
If the security light is ashing twice per second, this
means that a door is open.
If the system is armed and the key is used to unlock
the vehicle, the alarm will be activated.
If you do not want to arm the content theft system,
lock the vehicle with the manual lock knob on the
doors or with the inside power door lock switches.
The alarm will sound and the exterior lights will ash
if any door is opened while armed.Disarming the System
To disarm the system, do one of the following:
Press the RKE transmitter unlock button.
Turn the ignition to ON/RUN.
If you want to lock the vehicle without arming the
content theft system, lock the vehicle with the manual
lock knob on the doors or with the inside power
door lock switches.
Once the system is disarmed, the security light will
stop ashing.
How the System Alarm is Activated
To activate the system if it is armed:
Open the driver’s door or trunk. A ten second
pre-alarm chirp will sound followed by a
thirty second full alarm of horn and lights.
Open any other door. A full alarm of horn and
lights will immediately sound for thirty seconds.
Open the hood. If the vehicle has the remote start
feature, it will activate the full alarm.
When an alarm event has nished, the system will
re-arm itself automatically.
2-16
ProCarManuals.com

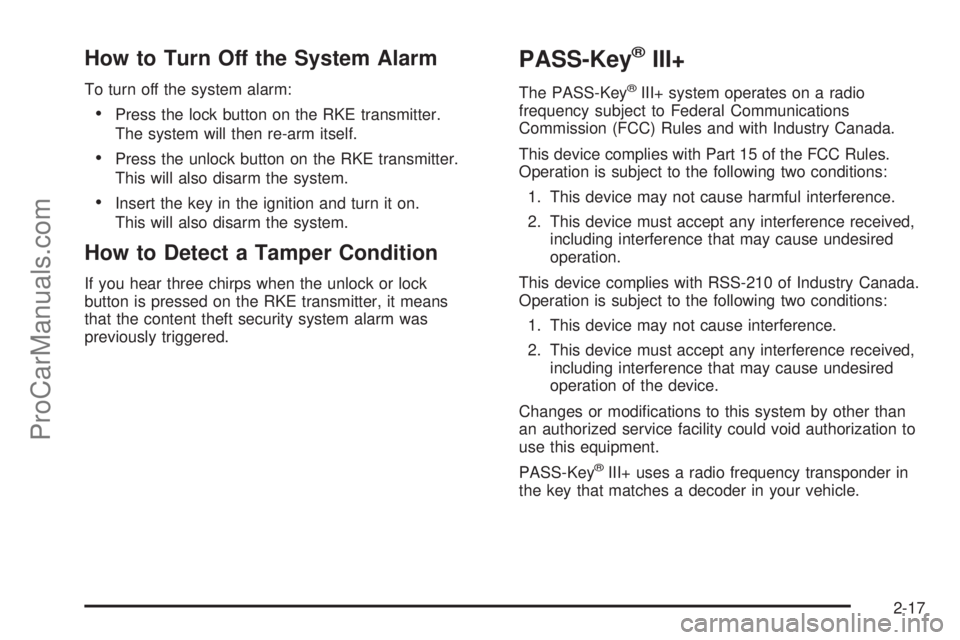

How to Turn Off the System Alarm
To turn off the system alarm:
Press the lock button on the RKE transmitter.
The system will then re-arm itself.
Press the unlock button on the RKE transmitter.
This will also disarm the system.
Insert the key in the ignition and turn it on.
This will also disarm the system.
How to Detect a Tamper Condition
If you hear three chirps when the unlock or lock
button is pressed on the RKE transmitter, it means
that the content theft security system alarm was
previously triggered.
PASS-Key®III+
The PASS-Key®III+ system operates on a radio
frequency subject to Federal Communications
Commission (FCC) Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation.
This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation of the device.
Changes or modications to this system by other than
an authorized service facility could void authorization to
use this equipment.
PASS-Key
®III+ uses a radio frequency transponder in
the key that matches a decoder in your vehicle.
2-17
ProCarManuals.com

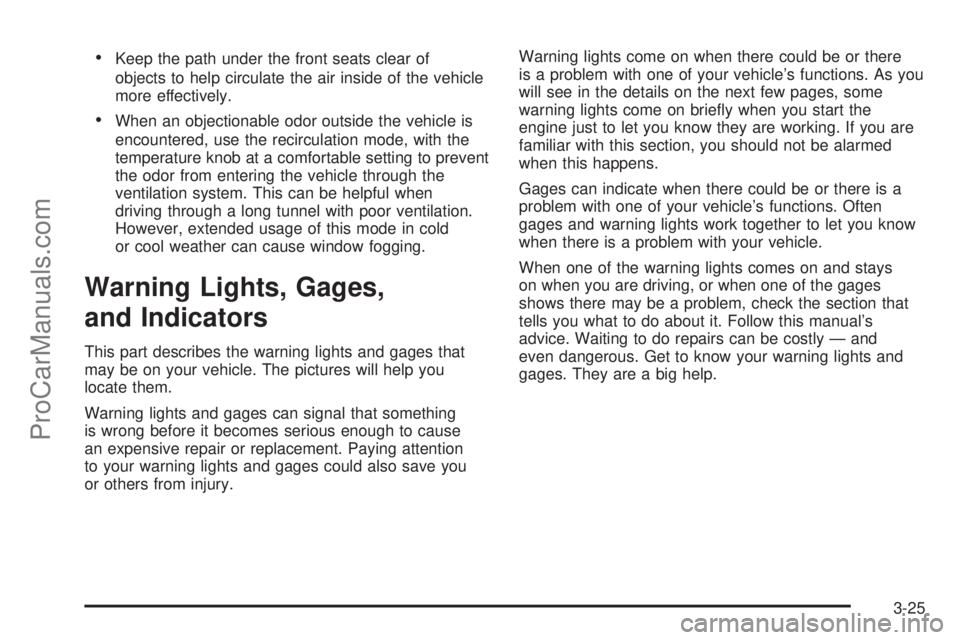

Keep the path under the front seats clear of
objects to help circulate the air inside of the vehicle
more effectively.
When an objectionable odor outside the vehicle is
encountered, use the recirculation mode, with the
temperature knob at a comfortable setting to prevent
the odor from entering the vehicle through the
ventilation system. This can be helpful when
driving through a long tunnel with poor ventilation.
However, extended usage of this mode in cold
or cool weather can cause window fogging.
Warning Lights, Gages,
and Indicators
This part describes the warning lights and gages that
may be on your vehicle. The pictures will help you
locate them.
Warning lights and gages can signal that something
is wrong before it becomes serious enough to cause
an expensive repair or replacement. Paying attention
to your warning lights and gages could also save you
or others from injury.Warning lights come on when there could be or there
is a problem with one of your vehicle’s functions. As you
will see in the details on the next few pages, some
warning lights come on briey when you start the
engine just to let you know they are working. If you are
familiar with this section, you should not be alarmed
when this happens.
Gages can indicate when there could be or there is a
problem with one of your vehicle’s functions. Often
gages and warning lights work together to let you know
when there is a problem with your vehicle.
When one of the warning lights comes on and stays
on when you are driving, or when one of the gages
shows there may be a problem, check the section that
tells you what to do about it. Follow this manual’s
advice. Waiting to do repairs can be costly — and
even dangerous. Get to know your warning lights and
gages. They are a big help.
3-25
