windshield wipers SATURN AURA HYBRID 2007 Owners Manual

Ignition Positions
With the key in the
ignition switch, you can
turn it to four different
positions.
Notice:Using a tool to force the key from the
ignition switch could cause damage or
break the key. Use the correct key and turn the
key only with your hand. Make sure the key
is in all the way. If none of this works,
then your vehicle needs service.
9(OFF):This is the only position from which
you can remove the key. It also locks the ignition
and transaxle. A warning chime sounds if the
driver’s door is opened while the ignition is off and
the key is left in the ignition.ACC (ACCESSORY):This position lets you use
things like the radio and windshield wipers
while the engine is not running.
Use this position if your vehicle must be pushed or
towed, but never try to push-start your vehicle.
SeeRecreational Vehicle Towing on page 247.
R(ON):This position unlocks the ignition. It
is also the position to where the key returns after
you release the switch and the engine starts.
The switch will stay in this position while the
engine is running. But even while the engine is not
running, you can use ON to operate the electrical
accessories, and to display some instrument
panel warning lights.
The battery could be drained if you leave the key
in the ACC or ON position with the engine off.
You might not be able to start your vehicle if the
battery is allowed to drain for an extended
period of time.
/(START):This position starts the engine.
When the engine starts, release the key.
The ignition switch will return to the ON position
for normal driving.
108

Instrument Panel Overview........................ 138
Hazard Warning Flashers.......................... 140
Other Warning Devices............................. 140
Horn.......................................................... 140
Tilt and Telescopic Steering Wheel............ 140
Turn Signal/Multifunction Lever.................. 141
Turn and Lane-Change Signals................. 142
Headlamp High/Low-Beam Changer.......... 142
Flash-to-Pass............................................ 142
Windshield Wipers..................................... 143
Windshield Washer.................................... 144
Cruise Control........................................... 145
Headlamps................................................ 148
Headlamps on Reminder........................... 148
Headlamps Off in PARK (P)...................... 149
Delayed Headlamps.................................. 149
Daytime Running Lamps (DRL)................. 149
Automatic Headlamp System..................... 150
Instrument Panel Brightness...................... 151
Dome Lamp.............................................. 151
Entry/Exit Lighting...................................... 151
Parade Dimming........................................ 152
Overhead Console Reading Lamps........... 152Trunk Lamp............................................... 152
Battery Run-Down Protection..................... 152
Accessory Power Outlet(s)........................ 153
Climate Controls......................................... 154
Automatic Climate Control System............. 154
Outlet Adjustment...................................... 160
Warning Lights, Gages, and Indicators..... 161
Instrument Panel Cluster........................... 162
Speedometer and Odometer...................... 163
Trip Odometer........................................... 163
Tachometer............................................... 163
Safety Belt Reminder Light........................ 163
Passenger Safety Belt Reminder Light....... 164
Airbag Readiness Light............................. 164
Passenger Airbag Status Indicator............. 165
Charging System Light.............................. 167
Brake System Warning Light..................... 168
Antilock Brake System Warning Light........ 169
Low Tire Pressure Warning Light.............. 170
Traction Control System (TCS)
Warning Light........................................ 170
Electronic Stability Control
Indicator Light........................................ 171
Section 3 Instrument Panel
135

The main components of your instrument panel are the following:
A. Air Outlets. SeeOutlet Adjustment on
page 160.
B. Turn Signal/Multifunction Lever. SeeTurn
Signal/Multifunction Lever on page 141.
C. Instrument Panel Cluster. SeeInstrument Panel
Cluster on page 162.
D. Windshield Wiper and Washer Lever. See
Windshield Wipers on page 143andWindshield
Washer on page 144.
E. Hazard Warning Flashers Button. SeeHazard
Warning Flashers on page 140.
F. Passenger Airbag Status Indicator. See
Passenger Airbag Status Indicator on page 165.
G. Instrument Panel Brightness Control. See
Instrument Panel Brightness on page 151.
H. Cruise Controls. SeeCruise Control on
page 145. Driver Information Center (DIC)
Buttons. SeeDriver Information Center (DIC)
on page 179.
I. Tilt Lever. SeeTilt and Telescopic Steering
Wheel on page 140.J. Horn. SeeHorn on page 140.
K. Audio Steering Wheel Controls (If Equipped).
SeeAudio Steering Wheel Controls on
page 206.
L. Ignition Switch. SeeIgnition Positions on
page 108.
M. Automatic Climate Control System. See
Automatic Climate Control System on
page 154.
N. Traction Control Button. SeeTraction Control
System (TCS) on page 217. Electronic Stability
Control Button. SeeElectronic Stability
Control on page 219.
O. Shift Lever. SeeAutomatic Transaxle Operation
on page 116.
P. Audio System. SeeAudio System(s) on
page 192.
Q. Glove Box. SeeGlove Box on page 131.
139

Windshield Wipers
Use this lever, located on the right side of the
steering wheel, to operate the windshield wipers.
9(Off):Move the lever to this position to
turn off the windshield wipers.
&(Intermittent; Speed Sensitive Wipers):
Move the lever to this position for intermittent or
speed sensitive operation. The amount of
delay time varies between wiping cycles due to
the delay setting selected or the speed of the
vehicle.
x(Delay):While the lever is in the intermittent
position, turn the intermittent adjust band with
this symbol on it up or down to select a shorter or
longer delay between wiping cycles. To the left
of the adjust band are bars, increasing in size from
bottom to top, that indicate the frequency of the
wipes. Smaller bars mean the wipers movement is
less frequent. Larger bars mean the movement
is more frequent.
6(Low Speed):Move the lever up to the
rst setting past intermittent, for steady wiping at
low speed.
1(High Speed):Move the lever up to the
second setting past intermittent, for wiping
at a high speed.
8(Mist):Move the lever all the way down to
this position for a single wiping cycle. Hold it there
until the windshield wipers start; then let go.
The windshield wipers stop after one wiping cycle.
If additional wiping cycles are needed, hold the
lever down longer.
143

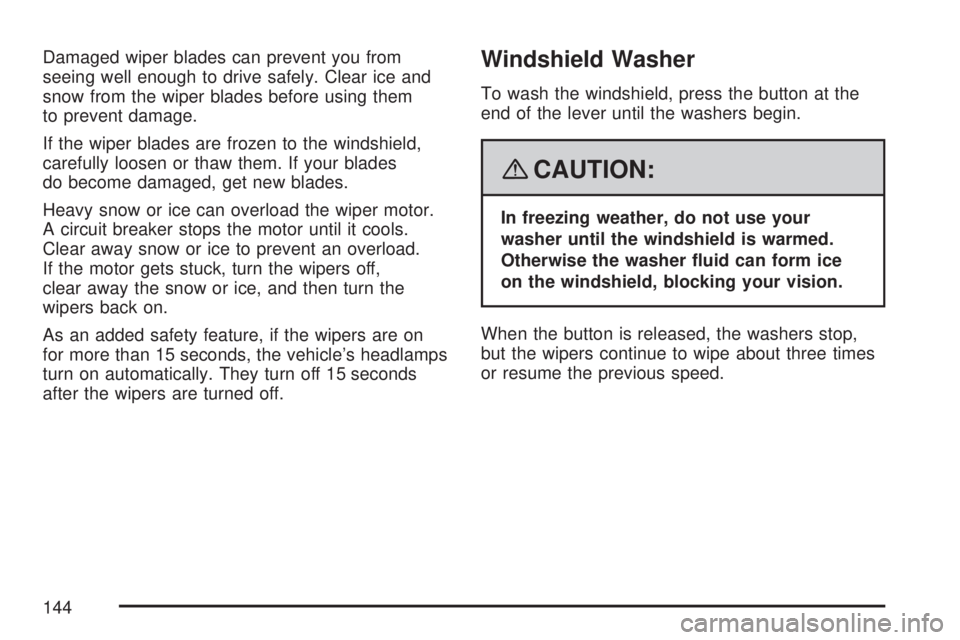

Damaged wiper blades can prevent you from
seeing well enough to drive safely. Clear ice and
snow from the wiper blades before using them
to prevent damage.
If the wiper blades are frozen to the windshield,
carefully loosen or thaw them. If your blades
do become damaged, get new blades.
Heavy snow or ice can overload the wiper motor.
A circuit breaker stops the motor until it cools.
Clear away snow or ice to prevent an overload.
If the motor gets stuck, turn the wipers off,
clear away the snow or ice, and then turn the
wipers back on.
As an added safety feature, if the wipers are on
for more than 15 seconds, the vehicle’s headlamps
turn on automatically. They turn off 15 seconds
after the wipers are turned off.Windshield Washer
To wash the windshield, press the button at the
end of the lever until the washers begin.
{CAUTION:
In freezing weather, do not use your
washer until the windshield is warmed.
Otherwise the washer uid can form ice
on the windshield, blocking your vision.
When the button is released, the washers stop,
but the wipers continue to wipe about three times
or resume the previous speed.
144

Windshield and Wiper Blades
Clean the outside of the windshield with glass
cleaner.
Clean the rubber blades using a lint free cloth or
paper towel soaked with windshield washer uid or
a mild detergent. Wash the windshield thoroughly
when cleaning the blades. Bugs, road grime,
sap, and a buildup of vehicle wash/wax treatments
may cause wiper streaking. Replace the wiper
blades if they are worn or damaged.
Wipers can be damaged by:
Extreme dusty conditions
Sand and salt
Heat and sun
Snow and ice, without proper removal
Aluminum Wheels
Notice:Chrome wheels and other chrome trim
may be damaged if you do not wash your
vehicle after driving on roads that have been
sprayed with magnesium, calcium or sodium
chloride. These chlorides are used on roads for
conditions such as ice and dust. Always
wash your vehicle’s chrome with soap and
water after exposure.
Notice:If you use strong soaps, chemicals,
abrasive polishes, cleaners, brushes, or
cleaners that contain acid on aluminum or
chrome-plated wheels, you could damage the
surface of the wheel(s). The repairs would
not be covered by your warranty. Use
only approved cleaners on aluminum or
chrome-plated wheels.
Keep the wheels clean using a soft clean cloth
with mild soap and water. Rinse with clean water.
After rinsing thoroughly, dry with a soft clean
towel. A wax may then be applied.
337

W
Warning Lights, Gages and
Indicators................................................. 161
Warnings
DIC Warnings and Messages................... 182
Hazard Warning Flashers......................... 140
Other Warning Devices............................ 140
Safety and Symbols..................................... 4
Vehicle Damage.......................................... 5
Wheels
Alignment and Tire Balance..................... 316
Different Size........................................... 314
Replacement............................................ 316
Where to Put the Restraint............................ 49Windows....................................................... 99
Power...................................................... 100
Windshield
Washer.................................................... 144
Washer Fluid........................................... 282
Wiper Blade Replacement........................ 297
Wiper Blades, Cleaning............................ 337
Wiper Fuses............................................ 342
Wipers..................................................... 143
Winter Driving............................................. 237
Y
Your Vehicle and the Environment............... 354
406
