SATURN AURA HYBRID 2008 Repair Manual
Manufacturer: SATURN, Model Year: 2008, Model line: AURA HYBRID, Model: SATURN AURA HYBRID 2008Pages: 362, PDF Size: 2.05 MB
Page 61 of 362
The right front passenger’s frontal airbag is in the
instrument panel on the passenger’s side. The seat-mounted side impact airbags for the driver and
right front passenger are in the side of the seatbacks
closest to the door.Driver Side shown, Passenger Side similar
1-57
Page 62 of 362
The roof-rail airbags for the driver, right front passenger,
and second row outboard passengers are in the
ceiling above the side windows.
{CAUTION:
If something is between an occupant and an
airbag, the airbag might not in ate properly
or it might force the object into that person
causing severe injury or even death. The
path of an in ating airbag must be kept clear.
Do not put anything between an occupant and
an airbag, and do not attach or put anything
on the steering wheel hub or on or near any
other airbag covering.
Do not use seat accessories that block the
in ation path of a seat-mounted side impact
airbag.
If your vehicle has roof-rail airbags, never
secure anything to the roof of your vehicle by
routing the rope or tie down through any door
or window opening. If you do, the path of an
in ating roof-rail airbag will be blocked. Driver Side shown, Passenger Side similar
1-58
Page 63 of 362
When Should an Airbag In ate?
Frontal airbags are designed to in ate in moderate
to severe frontal or near-frontal crashes to help reduce
the potential for severe injuries mainly to the driver’s
or right front passenger’s head and chest. However,
they are only designed to in ate if the impact exceeds
a predetermined deployment threshold. Deployment
thresholds are used to predict how severe a crash
is likely to be in time for the airbags to in ate and
help restrain the occupants.
Whether your frontal airbags will or should deploy
is not based on how fast your vehicle is traveling.
It depends largely on what you hit, the direction
of the impact, and how quickly your vehicle
slows down.Frontal airbags may in ate at different crash speeds.
For example:If the vehicle hits a stationary object, the airbags
could in ate at a different crash speed than if the
vehicle hits a moving object.
If the vehicle hits an object that deforms, the
airbags could in ate at a different crash speed than
if the vehicle hits an object that does not deform.
If the vehicle hits a narrow object (like a pole), the
airbags could in ate at a different crash speed
than if the vehicle hits a wide object (like a wall).
If the vehicle goes into an object at an angle, the
airbags could in ate at a different crash speed
than if the vehicle goes straight into the object.
Thresholds can also vary with speci c vehicle design.
1-59
Page 64 of 362

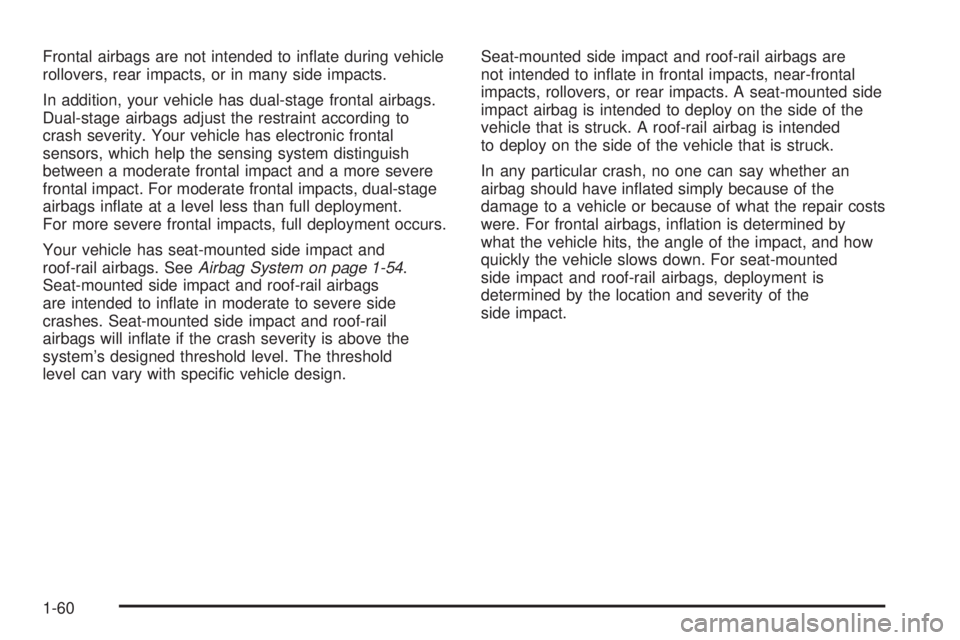

Frontal airbags are not intended to in ate during vehicle
rollovers, rear impacts, or in many side impacts.
In addition, your vehicle has dual-stage frontal airbags.
Dual-stage airbags adjust the restraint according to
crash severity. Your vehicle has electronic frontal
sensors, which help the sensing system distinguish
between a moderate frontal impact and a more severe
frontal impact. For moderate frontal impacts, dual-stage
airbags in ate at a level less than full deployment.
For more severe frontal impacts, full deployment occurs.
Your vehicle has seat-mounted side impact and
roof-rail airbags. SeeAirbag System on page 1-54.
Seat-mounted side impact and roof-rail airbags
are intended to in ate in moderate to severe side
crashes. Seat-mounted side impact and roof-rail
airbags will in ate if the crash severity is above the
system’s designed threshold level. The threshold
level can vary with speci c vehicle design.Seat-mounted side impact and roof-rail airbags are
not intended to in ate in frontal impacts, near-frontal
impacts, rollovers, or rear impacts. A seat-mounted side
impact airbag is intended to deploy on the side of the
vehicle that is struck. A roof-rail airbag is intended
to deploy on the side of the vehicle that is struck.
In any particular crash, no one can say whether an
airbag should have in ated simply because of the
damage to a vehicle or because of what the repair costs
were. For frontal airbags, in ation is determined by
what the vehicle hits, the angle of the impact, and how
quickly the vehicle slows down. For seat-mounted
side impact and roof-rail airbags, deployment is
determined by the location and severity of the
side impact.
1-60
Page 65 of 362
What Makes an Airbag In ate?
In a deployment event, the sensing system sends
an electrical signal triggering a release of gas from
the in ator. Gas from the in ator lls the airbag
causing the bag to break out of the cover and deploy.
The in ator, the airbag, and related hardware are
all part of the airbag module.
Frontal airbag modules are located inside the
steering wheel and instrument panel. For vehicles
with seat-mounted side impact airbags, there are
airbag modules in the side of the front seatbacks
closest to the door. For vehicles with roof-rail
airbags, there are airbag modules in the ceiling
of the vehicle, near the side windows that have
occupant seating positions.
How Does an Airbag Restrain?
In moderate to severe frontal or near frontal collisions,
even belted occupants can contact the steering
wheel or the instrument panel. In moderate to severe
side collisions, even belted occupants can contact
the inside of the vehicle.
Airbags supplement the protection provided by
safety belts. Frontal airbags distribute the force of the
impact more evenly over the occupant’s upper body,
stopping the occupant more gradually. Seat-mounted
side impact and roof-rail airbags distribute the force
of the impact more evenly over the occupant’s
upper body.
But airbags would not help in many types of
collisions, primarily because the occupant’s motion
is not toward those airbags. SeeWhen Should an
Airbag Inflate? on page 1-59for more information.
Airbags should never be regarded as anything
more than a supplement to safety belts.
1-61
Page 66 of 362
What Will You See After an
Airbag In ates?
After the frontal airbags and seat-mounted side impact
airbags in ate, they quickly de ate, so quickly that
some people may not even realize an airbag in ated.
Roof-rail airbags may still be at least partially in ated
for some time after they deploy. Some components
of the airbag module may be hot for several minutes.
For location of the airbag modules, seeWhat Makes
an Airbag Inflate? on page 1-61.
The parts of the airbag that come into contact with
you may be warm, but not too hot to touch. There may
be some smoke and dust coming from the vents in
the de ated airbags. Airbag in ation does not prevent
the driver from seeing out of the windshield or being
able to steer the vehicle, nor does it prevent people
from leaving the vehicle.
{CAUTION:
When an airbag in ates, there may be dust
in the air. This dust could cause breathing
problems for people with a history of asthma
or other breathing trouble. To avoid this,
everyone in the vehicle should get out as soon
as it is safe to do so. If you have breathing
problems but cannot get out of the vehicle
after an airbag in ates, then get fresh air by
opening a window or a door. If you experience
breathing problems following an airbag
deployment, you should seek medical
attention.
Your vehicle has a feature that may automatically
unlock the doors, turn the interior lamps on, and turn
the hazard warning ashers on when the airbags in ate.
You can lock the doors, turn the interior lamps off,
and turn the hazard warning ashers off by using the
controls for those features.
1-62
Page 67 of 362
In many crashes severe enough to in ate the airbag,
windshields are broken by vehicle deformation.
Additional windshield breakage may also occur from
the right front passenger airbag.
Airbags are designed to in ate only once. After an
airbag in ates, you will need some new parts for
the airbag system. If you do not get them, the airbag
system will not be there to help protect you in
another crash. A new system will include airbag
modules and possibly other parts. The service
manual for your vehicle covers the need to
replace other parts.
Your vehicle has a crash sensing and diagnostic
module which records information after a crash.
SeeVehicle Data Recording and Privacy on
page 7-16andEvent Data Recorders on page 7-17.
Let only quali ed technicians work on the airbag
systems. Improper service can mean that an
airbag system will not work properly. See your
dealer/retailer for service.
Passenger Sensing System
Your vehicle has a passenger sensing system for
the right front passenger’s position. The passenger
airbag status indicator will be visible on the instrument
panel when you start your vehicle.
The words ON and OFF, or the symbol for on and off,
will be visible during the system check. If you are
using remote start to start your vehicle from a distance,
if equipped, you may not see the system check.
When the system check is complete, either the word
ON or the word OFF, or the symbol for on or the symbol
for off, will be visible. SeePassenger Airbag Status
Indicator on page 3-30. United States
Canada
1-63
Page 68 of 362

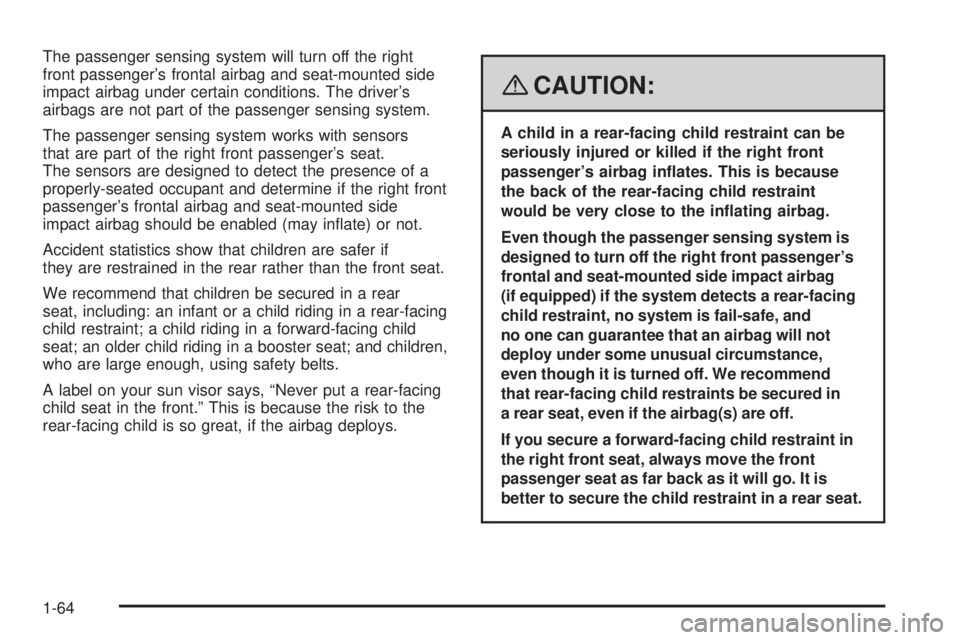

The passenger sensing system will turn off the right
front passenger’s frontal airbag and seat-mounted side
impact airbag under certain conditions. The driver’s
airbags are not part of the passenger sensing system.
The passenger sensing system works with sensors
that are part of the right front passenger’s seat.
The sensors are designed to detect the presence of a
properly-seated occupant and determine if the right front
passenger’s frontal airbag and seat-mounted side
impact airbag should be enabled (may in ate) or not.
Accident statistics show that children are safer if
they are restrained in the rear rather than the front seat.
We recommend that children be secured in a rear
seat, including: an infant or a child riding in a rear-facing
child restraint; a child riding in a forward-facing child
seat; an older child riding in a booster seat; and children,
who are large enough, using safety belts.
A label on your sun visor says, “Never put a rear-facing
child seat in the front.” This is because the risk to the
rear-facing child is so great, if the airbag deploys.
{CAUTION:
A child in a rear-facing child restraint can be
seriously injured or killed if the right front
passenger’s airbag in ates. This is because
the back of the rear-facing child restraint
would be very close to the in ating airbag.
Even though the passenger sensing system is
designed to turn off the right front passenger’s
frontal and seat-mounted side impact airbag
(if equipped) if the system detects a rear-facing
child restraint, no system is fail-safe, and
no one can guarantee that an airbag will not
deploy under some unusual circumstance,
even though it is turned off. We recommend
that rear-facing child restraints be secured in
a rear seat, even if the airbag(s) are off.
If you secure a forward-facing child restraint in
the right front seat, always move the front
passenger seat as far back as it will go. It is
better to secure the child restraint in a rear seat.
1-64
Page 69 of 362
The passenger sensing system is designed to turn off
the right front passenger’s frontal airbag and
seat-mounted side impact airbag if:
The right front passenger seat is unoccupied.
The system determines that an infant is present
in a rear-facing infant seat.
The system determines that a small child is
present in a child restraint.
The system determines that a small child is
present in a booster seat.
A right front passenger takes his/her weight off
of the seat for a period of time.
The right front passenger seat is occupied by a
smaller person, such as a child who has outgrown
child restraints.
Or, if there is a critical problem with the airbag
system or the passenger sensing system.
When the passenger sensing system has turned off the
right front passenger’s frontal airbag and seat-mounted
side impact airbag, the off indicator will light and
stay lit to remind you that the airbags are off. See
Passenger Airbag Status Indicator on page 3-30.If a child restraint has been installed and the on
indicator is lit, turn the vehicle off. Remove the child
restraint from the vehicle and reinstall the child restraint
following the child restraint manufacturer’s directions
and refer toSecuring a Child Restraint in the Right
Front Seat Position on page 1-50.
If, after reinstalling the child restraint and restarting the
vehicle, the on indicator is still lit, check to make sure that
the vehicle’s seatback is not pressing the child restraint
into the seat cushion. If this happens, slightly recline
the vehicle’s seatback and adjust the seat cushion if
possible. Also make sure the child restraint is not trapped
under the vehicle head restraint. If this happens, adjust
the head restraint. SeeHead Restraints on page 1-7.
Remove any additional material from the seat such as
blankets, cushions, seat covers, seat heaters, or seat
massagers before reinstalling or securing the child
restraint.
If the on indicator is still lit, secure the child in the child
restraint in a rear seat position in the vehicle, and check
with your dealer/retailer.
The passenger sensing system is designed to
enable (may in ate) the right front passenger’s frontal
airbag and seat-mounted side impact airbag anytime
the system senses that a person of adult size is
sitting properly in the right front passenger’s seat.
1-65
Page 70 of 362
When the passenger sensing system has allowed the
airbags to be enabled, the on indicator will light and
stay lit to remind you that the airbags are active.
For some children who have outgrown child restraints
and for very small adults, the passenger sensing system
may or may not turn off the right front passenger’s frontal
airbag and seat-mounted side impact airbag, depending
upon the person’s seating posture and body build.
Everyone in your vehicle who has outgrown child
restraints should wear a safety belt properly — whether
or not there is an airbag for that person.
If a person of adult-size is sitting in the right front
passenger’s seat, but the off indicator is lit, it could be
because that person is not sitting properly in the seat.
If this happens, turn the vehicle off, remove any
additional material from the seat, such as blankets,
cushions, seat covers, seat heaters or seat massagers
and ask the person to place the seatback in the fully
upright position, then sit upright in the seat, centered
on the seat cushion, with the person’s legs comfortably
extended. Restart the vehicle and have the person
remain in this position for two to three minutes.
This will allow the system to detect that person and
then enable the right front passenger’s frontal airbag
and seat-mounted side impact airbag.Safety belts help keep the passenger in position on
the seat during vehicle maneuvers and braking, which
helps the passenger sensing system maintain the
passenger airbag status. See “Safety Belts” and
“Child Restraints” in the Index for additional information
about the importance of proper restraint use.
1-66
