key SATURN ION 2005 Owner's Guide

How to Reset the Engine Oil Life
System
The Engine Oil Life System calculates when to change
your engine oil and lter based on vehicle use.
Anytime your oil is changed, reset the system so it can
calculate when the next oil change is required. If a
situation occurs where you change your oil prior to the
CHG OIL message being turned on, reset the system.
After changing the engine oil, reset the system by doing
the following:
1. Press and release the trip/reset button until the OIL
LIFE message is displayed.
2. Then press and hold the trip/reset button until a
chime sounds ve times, and RESET is displayed
in the message center.
When the system is reset, the odometer will again
be displayed in the message center.
3. Turn the key to LOCK.
If the CHG OIL message comes back on when you start
your vehicle, the engine oil life system has not reset.
Repeat the procedure.Your vehicle has a unique oil lter element. When
installing the ller cap do not exceed 18 lb-ft (25Y).
Inspect the condition of the O-ring and replace if
damaged. See your Saturn retailer for additional
information.
What to Do with Used Oil
Used engine oil contains certain elements that may be
unhealthy for your skin and could even cause cancer.
Do not let used oil stay on your skin for very long. Clean
your skin and nails with soap and water, or a good
hand cleaner. Wash or properly dispose of clothing or
rags containing used engine oil. See the manufacturer’s
warnings about the use and disposal of oil products.
Used oil can be a threat to the environment. If you
change your own oil, be sure to drain all the oil from the
lter before disposal. Never dispose of oil by putting it
in the trash, pouring it on the ground, into sewers, or into
streams or bodies of water. Instead, recycle it by
taking it to a place that collects used oil. If you have a
problem properly disposing of your used oil, ask
your retailer, a service station or a local recycling center
for help.
5-21
ProCarManuals.com

8. Now connect the black negative (−) cable to the
negative (−) terminal of the good battery. Use a
remote negative (−) terminal if the vehicle has one.
Do not let the other end touch anything until the
next step. The other end of the negative (−) cable
does not go to the dead battery. It goes to a
heavy, unpainted metal engine part or to a remote
negative (−) terminal on the vehicle with the
dead battery.
9. Connect the other end of the negative (−) cable at
least 18 inches (45 cm) away from the dead battery,
but not near engine parts that move. The electrical
connection is just as good there, and the chance
of sparks getting back to the battery is much less.
Your vehicle has a remote negative (−) terminal
for this purpose.10. Now start the vehicle with the good battery and run
the engine for a while.
11. Press the unlock button on the remote keyless
entry transmitter to disarm your security system,
if equipped.
12. Try to start the vehicle that had the dead battery. If
it will not start after a few tries, it probably needs
service.
5-45
ProCarManuals.com

Maintenance Footnotes
†The U.S. Environmental Protection Agency or the
California Air Resources Board has determined that the
failure to perform this maintenance item will not nullify
the emission warranty or limit recall liability prior to
the completion of the vehicle’s useful life. We, however,
urge that all recommended maintenance services be
performed at the indicated intervals and the
maintenance be recorded.
(a)Visually inspect brake lines and hoses for proper
hook-up, binding, leaks, cracks, chang, etc. Inspect
disc brake pads for wear and rotors for surface
condition. Inspect drum brake linings/shoes for wear or
cracks. Inspect other brake parts, including drums,
wheel cylinders, calipers, parking brake, etc.
(b)Visually inspect front and rear suspension and
steering system for damaged, loose, or missing parts or
signs of wear.
(c)Visually inspect hoses and have them replaced if
they are cracked, swollen, or deteriorated. Inspect
all pipes, ttings, and clamps; replace with genuine
Saturn parts as needed. To help ensure proper
operation, a pressure test of the cooling system and
pressure cap and cleaning the outside of the radiator
and air conditioning condenser is recommended at least
once a year.(d)Visually inspect wiper blades for wear or cracking.
Replace wiper blades that appear worn or damaged
or that streak or miss areas of the windshield.
(e)Make sure the safety belt reminder light and all your
belts, buckles, latch plates, retractors, and anchorages
are working properly. Look for any other loose or
damaged safety belt system parts. If you see anything
that might keep a safety belt system from doing its
job, have it repaired. Have any torn or frayed safety belts
replaced. Also look for any opened or broken airbag
coverings, and have them repaired or replaced.
The airbag system does not need regular maintenance.
(f)Lubricate all key lock cylinders, door hinges and
latches, hood hinges and latches, glove box hinges,
sunroof (if equipped), and any folding seat hardware.
More frequent lubrication may be required when
exposed to a corrosive environment. Applying silicone
grease on weatherstrips with a clean cloth will make
them last longer, seal better, and not stick or squeak.
(g)Check system for interference or binding and
for damaged or missing parts. Replace parts as needed.
Replace any components that have high effort or
excessive wear. Do not lubricate accelerator or cruise
control cables.
6-8
ProCarManuals.com

Automatic Transaxle Shift Lock Control
System Check
{CAUTION:
When you are doing this inspection, the
vehicle could move suddenly. If the vehicle
moves, you or others could be injured.
1. Before you start, be sure you have enough room
around the vehicle. It should be parked on a level
surface.
2. Firmly apply the parking brake. SeeParking Brake
on page 2-26.
Be ready to apply the regular brake immediately if
the vehicle begins to move.
3. With the engine off, turn the ignition to RUN, but do
not start the engine. Without applying the regular
brake, try to move the shift lever out of PARK (P)
with normal effort. If the shift lever moves out
of PARK (P), contact your Saturn retailer for service.
Ignition Transaxle Lock Check
While parked, and with the parking brake set, try to turn
the ignition to LOCK in each shift lever position.
With an automatic transaxle, the ignition should turn
to LOCK only when the shift lever is in PARK (P).
The key should come out only in LOCK.
With a manual transaxle, the key should come out
only in LOCK.
Contact your Saturn retailer if service is required.
6-12
ProCarManuals.com

Usage Fluid/Lubricant
Intercooler
System
(2.0L L4
Supercharged
engine)50/50 mixture of clean, drinkable
water and use only DEX-COOL
®
Coolant.
Hydraulic Brake
SystemDelco
®Supreme 11 Brake Fluid or
equivalent DOT-3 brake uid.
Windshield
WasherOptikleen
®Washer Solvent.
Parking Brake
Cable GuidesChassis Lubricant (GM Part No.
12377985, in Canada 88901242) or
lubricant meeting requirements of
NLGI #2, Category LB or GC-LB.
Hydraulic
Clutch SystemDelco
®Supreme 11 Brake Fluid or
equivalent DOT-3 brake uid (Saturn
Part No. 21013073).
Manual
Transaxle
(2.2L L4
engine)DEXRON
®-III Automatic
Transmission Fluid. Look for
“Approved for the H-Specication”
on the label.
Manual
Transaxle
(2.0L L4
Supercharged
engine)Manual Transmission Fluid
(Part No. 21018899).
Usage Fluid/Lubricant
Automatic
TransaxleDEXRON
®-III Automatic
Transmission Fluid. Look for
“Approved for the H-Specication”
on the label.
Key Lock
CylindersMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241, in
Canada 10953474).
Hood Latch
Assembly,
Secondary
Latch, Pivots,
Spring Anchor,
and Release
PawlLubriplate Lubricant Aerosol (Saturn
Part No. 21038869 or GM Part No.
U.S. 12346293, in Canada 992723)
or lubricant meeting requirements of
NLGI #2, Category LB or GC-LB.
Hood, Trunk,
and Door
HingesMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241, in
Canada 10953474).
Sunroof TrackLubriplate Lubricant Aerosol
(Saturn Part No. 21038869 or
GM Part No. U.S. 12346293, in
Canada 992723) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
Weatherstrip
ConditioningDielectric Silicone Grease
(GM Part No. U.S. 12345579, in
Canada 992887).
6-15
ProCarManuals.com

Customer Assistance and
Information
Customer Satisfaction Procedure
Your satisfaction and goodwill are important to
your retailer and to Saturn. Together we are committed
to providing our customers with unparalleled service,
before, during and after the purchase of a Saturn
vehicle, for total customer satisfaction. We call this the
Saturn Difference. Normally, any concerns with the
sales transaction or the operation of your vehicle will be
resolved by your retailer’s sales or service departments.
If, for any reason, your ownership experience falls
below your expectations, we suggest you take
the following action:
STEP ONE:Contact the Retail Customer Assistance
Liaison. Any member of the retail management team has
the authority and the desire to resolve your concerns.
Normally, concerns can be quickly resolved at this level.
STEP TWO:Should you need additional assistance,
contact the Saturn Customer Assistance Center by
calling 1-800-553-6000. In Canada, contact the Saturn
Customer Communication Centre at 1-800-263-1999.A Saturn Customer Assistance Center team member
will handle your call and assist in providing product and
warranty information, the nearest retailer location,
roadside assistance, brochures, literature and discuss
any concerns you may have.
We encourage you to call the toll-free number in order
to give your inquiry prompt attention. Please have
the following information available to give the Customer
Assistance Representative:
Vehicle Identication Number. This 17-digit number
can be found on the vehicle registration or title, on
the upper driver’s side corner of the dash, or on
your roadside assistance key card.
The name of your selling and servicing retail facility.
Vehicle delivery date and present mileage.
Your daytime and evening phone numbers.
If you wish to write to the Saturn Customer Assistance
Center, our address is:
Saturn Customer Assistance Center
100 Saturn Parkway
Mail Code 371-999-S24 Spring Hill, TN 37174-1500
In Canada, write to:
Saturn Customer Communication Centre
General Motors of Canada Ltd.
1908 Colonel Sam Drive Oshawa, Ontario L1H 8P7
7-2
ProCarManuals.com

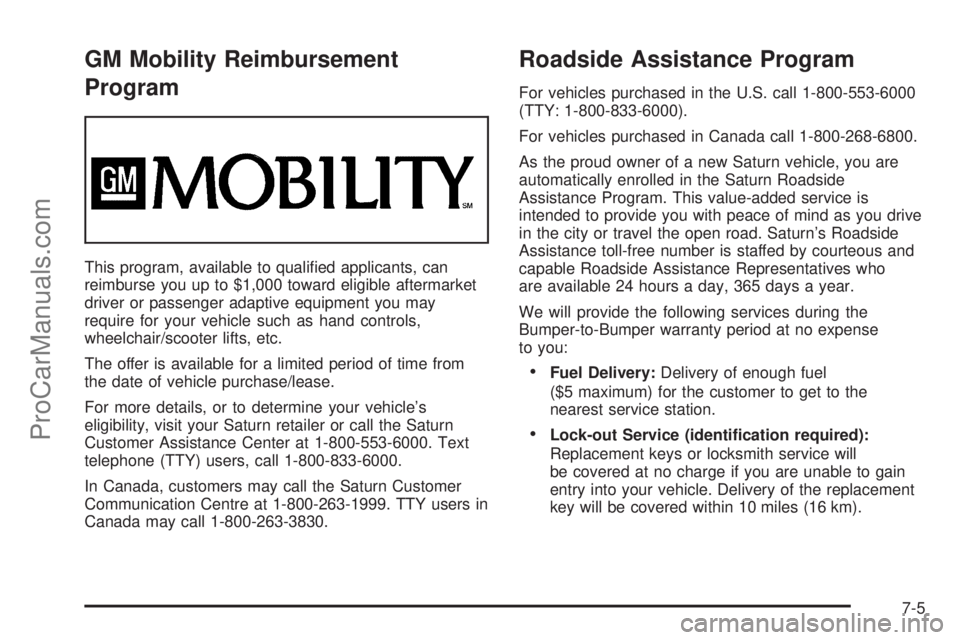

GM Mobility Reimbursement
Program
This program, available to qualied applicants, can
reimburse you up to $1,000 toward eligible aftermarket
driver or passenger adaptive equipment you may
require for your vehicle such as hand controls,
wheelchair/scooter lifts, etc.
The offer is available for a limited period of time from
the date of vehicle purchase/lease.
For more details, or to determine your vehicle’s
eligibility, visit your Saturn retailer or call the Saturn
Customer Assistance Center at 1-800-553-6000. Text
telephone (TTY) users, call 1-800-833-6000.
In Canada, customers may call the Saturn Customer
Communication Centre at 1-800-263-1999. TTY users in
Canada may call 1-800-263-3830.
Roadside Assistance Program
For vehicles purchased in the U.S. call 1-800-553-6000
(TTY: 1-800-833-6000).
For vehicles purchased in Canada call 1-800-268-6800.
As the proud owner of a new Saturn vehicle, you are
automatically enrolled in the Saturn Roadside
Assistance Program. This value-added service is
intended to provide you with peace of mind as you drive
in the city or travel the open road. Saturn’s Roadside
Assistance toll-free number is staffed by courteous and
capable Roadside Assistance Representatives who
are available 24 hours a day, 365 days a year.
We will provide the following services during the
Bumper-to-Bumper warranty period at no expense
to you:
Fuel Delivery:Delivery of enough fuel
($5 maximum) for the customer to get to the
nearest service station.
Lock-out Service (identication required):
Replacement keys or locksmith service will
be covered at no charge if you are unable to gain
entry into your vehicle. Delivery of the replacement
key will be covered within 10 miles (16 km).
7-5
ProCarManuals.com

J
Jump Starting.................................................5-42
K
Keyless Entry System....................................... 2-3
Keys............................................................... 2-2
L
Labelling, Tire Sidewall....................................5-58
Lamps
Battery Run-Down Protection.........................3-16
Dome........................................................3-16
Fog ...................................................3-15, 5-52
Map ..........................................................3-16
LATCH System
Child Restraints...........................................1-42
Securing a Child Restraint Designed for
the LATCH System...................................1-43
Light
Airbag Readiness........................................3-28
Anti-Lock Brake System Warning...................3-32
Battery Warning..........................................3-29
Brake System Warning.................................3-30
Highbeam On.............................................3-37
Malfunction Indicator....................................3-33
Oil Pressure...............................................3-36Light (cont.)
Passlock
®Warning.......................................3-37
Reduced Engine Power................................3-37
Safety Belt Reminder...................................3-28
Up-Shift.....................................................3-30
Lighting
Entry.........................................................3-16
Limited-Slip Differential...................................... 4-9
Loading Your Vehicle.......................................4-29
Lockout Protection............................................ 2-9
Locks
Delayed Locking........................................... 2-8
Door........................................................... 2-7
Lockout Protection......................................... 2-9
Power Door.................................................. 2-8
Programmable Automatic Door Locks............... 2-8
Rear Door Security Locks............................... 2-9
Loss of Control...............................................4-13
Low Coolant Level Warning Message................3-41
Low Fuel Warning Message.............................3-43
Lumbar
Manual Controls............................................ 1-3
M
Maintenance Schedule
Additional Required Services........................... 6-6
At Each Fuel Fill........................................... 6-9
At Least Once a Month................................6-10
7
ProCarManuals.com

R
Radios..........................................................3-44
AM-FM Radio.............................................3-45
Care of Your CD Player...............................3-68
Care of Your CDs........................................3-68
Radio with CD....................................3-47, 3-52
Setting the Time for Radios with Radio
Data Systems (RDS)................................3-44
Setting the Time for Radios without
Radio Data Systems (RDS).......................3-44
Theft-Deterrent............................................3-65
Understanding Reception..............................3-67
Rear Door Security Locks.................................. 2-9
Rear Doors....................................................2-10
Rear Safety Belt Comfort Guides......................1-26
Rear Seat Passengers, Safety Belts..................1-23
Rearview Mirror, Automatic Dimming with
Compass and Temperature Display................2-34
Rearview Mirror, Automatic Dimming with OnStar
®,
Compass and Temperature Display..................2-32
Rearview Mirror with OnStar
®...........................2-31
Rearview Mirrors.............................................2-31
Reclining Seatbacks.......................................... 1-4Recommended Fluids and Lubricants.................6-14
Recreational Vehicle Towing.............................4-34
Reduced Engine Power Light............................3-37
Remote Keyless Entry System............................ 2-3
Remote Keyless Entry System, Operation............ 2-4
Removing the Flat Tire and Installing the
Spare Tire..................................................5-77
Removing the Spare Tire and Tools...................5-74
Replacement Bulbs.........................................5-55
Reporting Safety Defects
Canadian Government................................... 7-8
Saturn......................................................... 7-8
United States Government.............................. 7-8
Restraint System Check
Checking the Restraint Systems....................1-59
Replacing Restraint System Parts
After a Crash..........................................1-60
Retained Accessory Power (RAP)......................2-19
Right Front Passenger Position, Safety Belts......1-23
Roadside
Assistance Program....................................... 7-5
Rocking Your Vehicle to Get it Out....................4-29
Roof Rack System..........................................2-40
Running the Engine While Parked.....................2-30
10
ProCarManuals.com
