Instrument Panel Fuse Block
Some fuses are in a fuse block on the driver’s side of
the vehicle, near the driver’s right leg. Loosen the screw
on the cover and remove the cover.
Fuses Usage
FUEL PUMP Fuel Pump Relay
BCM ELECTIgnition Switch, Body Control
Module (BCM)
BCM (PWR) Entry Control, Trunk Release
DASH Instrument Panel, Dimming Switch
LIGHTER Cigar Lighter
PARK Headlamp Switch
CLUSTER Instrument Panel Cluster
PWR
WINDOWSPower Window Switches
STOP Stoplamp (Brake) Switch
5-94
ProCarManuals.com

Fuses Usage
HVAC Climate Control
CRUISECruise Control Module, Clutch Start
Switch
AIR BAGAirbags, Sensing and Diagnostic
Module (SDM)
WIPER SWWindshield Wipers and Washers,
Transaxle Shift Lock Control Switch
RADIO
(BATT1)Radio Receiver, Entertainment
Memory
ONSTAREntertainment, Mobile
Communications, OnStar
®
RADIO (ACC) Radio Receiver, Entertainment
IGN SW Ignition Switch
EPS Cruise Control Switches, EPS Unit
PWR OUTLET Auxiliary Power Outlet
SUN ROOF Power Sunroof, OnStar Mirror
Relay Usage
ALC/PARK
RELAYOnStar®, Radio, Instrument Panel
Cluster, Body Control Module (Entry
Control), Cigar Lighter, Headlamp
Switch, License Lamp
FUEL PUMP
RELAYFuel Pump
ACC RELAYPower Windows, Sunroof, Radio,
Wiper/Washer Switch, Accessory
Power Outlet
RUN RELAYClimate Control (HVAC Blower,
Control Heads)
5-95
ProCarManuals.com

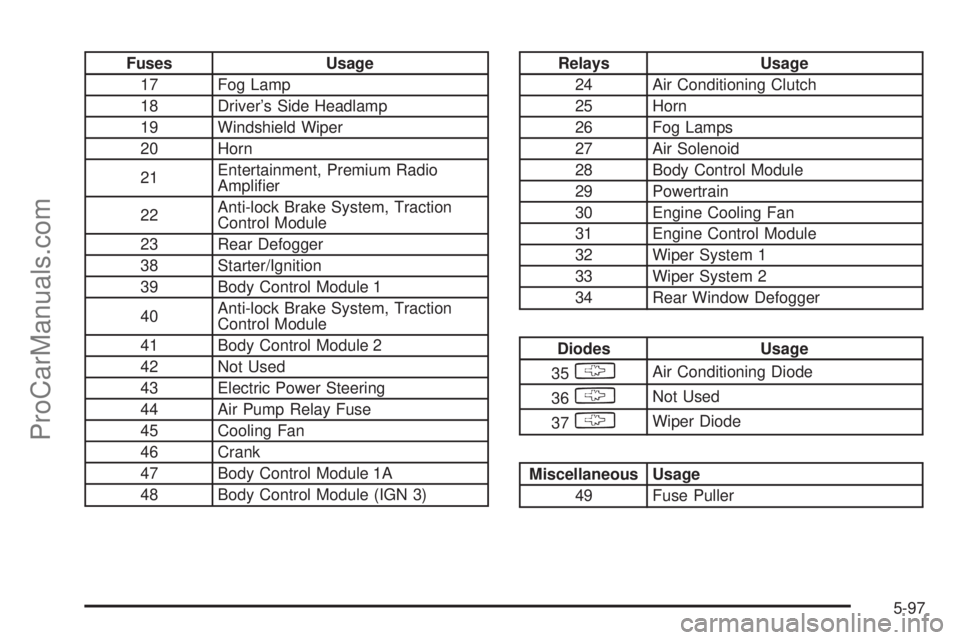

Fuses Usage
17 Fog Lamp
18 Driver’s Side Headlamp
19 Windshield Wiper
20 Horn
21Entertainment, Premium Radio
Amplier
22Anti-lock Brake System, Traction
Control Module
23 Rear Defogger
38 Starter/Ignition
39 Body Control Module 1
40Anti-lock Brake System, Traction
Control Module
41 Body Control Module 2
42 Not Used
43 Electric Power Steering
44 Air Pump Relay Fuse
45 Cooling Fan
46 Crank
47 Body Control Module 1A
48 Body Control Module (IGN 3)Relays Usage
24 Air Conditioning Clutch
25 Horn
26 Fog Lamps
27 Air Solenoid
28 Body Control Module
29 Powertrain
30 Engine Cooling Fan
31 Engine Control Module
32 Wiper System 1
33 Wiper System 2
34 Rear Window Defogger
Diodes Usage
35
§Air Conditioning Diode
36
§Not Used
37
§Wiper Diode
Miscellaneous Usage
49 Fuse Puller
5-97
ProCarManuals.com

Fuses Usage
42 Not Used
43 Electric Power Steering
44 Cooling Fan 2
45 Cooling Fan 1
46 Crank
47 Body Control Module 1A
48 Body Control Module (IGN 3)
Relays Usage
24 Air Conditioning Clutch
25 Horn
26 Not Used
27 After Cooler Pump
28 Starter/Crank
29 Powertrain
30 Engine Cooling Fan 1
31 Engine Control Module
32 Wiper System 1
33 Wiper System 2
34 Rear Window Defogger
Diodes Usage
35
§Air Conditioning Diode
36
§Not Used
37
§Wiper Diode
Miscellaneous Usage
49 Fuse Puller
5-99
