window SATURN L-SERIES 2004 User Guide

Keys...............................................................2-3
Remote Keyless Entry System.........................2-4
Remote Keyless Entry System Operation...........2-5
Doors and Locks.............................................2-9
Door Locks....................................................2-9
Power Door Locks........................................2-10
Delayed Locking...........................................2-10
Programmable Automatic Door Locks..............2-11
Rear Door Security Locks..............................2-11
Lockout Protection........................................2-12
Leaving Your Vehicle....................................2-12
Trunk/Liftgate...............................................2-13
Windows........................................................2-16
Manual Windows..........................................2-17
Power Windows............................................2-17
Sun Visors...................................................2-18
Theft-Deterrent Systems..................................2-18
Passlock
®....................................................2-18
Starting and Operating Your Vehicle................2-19
New Vehicle Break-In....................................2-19
Ignition Positions..........................................2-20Starting Your Engine.....................................2-21
Engine Coolant Heater..................................2-22
Automatic Transaxle Operation.......................2-23
Parking Brake..............................................2-27
Shifting Into Park (P) (Automatic Transaxle)......2-28
Shifting Out of Park (P).................................2-30
Parking Over Things That Burn.......................2-30
Engine Exhaust............................................2-31
Running Your Engine While You Are Parked. . . .2-32
Mirrors...........................................................2-33
Manual Rearview Mirror.................................2-33
Manual Rearview Mirror with OnStar
®..............2-33
Automatic Dimming Rearview Mirror with
OnStar
®, Compass and Temperature
Display....................................................2-34
Automatic Dimming Rearview Mirror with
Compass and Temperature Display..............2-36
Outside Remote Control Mirror.......................2-38
Outside Power Mirrors...................................2-39
Outside Convex Mirror...................................2-39
Outside Heated Mirrors..................................2-39
OnStar
®System.............................................2-40
Section 2 Features and Controls
2-1
ProCarManuals.com

Keys
{CAUTION:
Leaving children in a vehicle with the ignition
key is dangerous for many reasons. They
could operate the power windows or other
controls or even make the vehicle move. The
children or others could be badly injured or
even killed. Do not leave the keys in a vehicle
with children.
2-3
ProCarManuals.com

Trunk/Liftgate
{CAUTION:
It can be dangerous to drive with the trunk or
liftgate open because carbon monoxide (CO)
gas can come into your vehicle. You can not
see or smell CO. It can cause
unconsciousness and even death.If you must
drive with the trunk or liftgate open or if
electrical wiring or other cable connections
must pass through the seal between the body
and the trunk or liftgate:
Make sure all other windows are shut.
Turn the fan on your heating or cooling
system to its highest speed and select the
control setting that will force outside air
into your vehicle. SeeClimate Control
System on page 3-17.
If you have air outlets on or under the
instrument panel, open them all the way.
SeeEngine Exhaust on page 2-31.
Trunk (Sedan)
To open the trunk on your
sedan from outside of your
vehicle you may either
insert the key into the lock
cylinder and turn the
key clockwise, or press the
trunk release button.
To open the trunk on your sedan from inside your
vehicle, push the trunk release button located on the
instrument panel to the left of the steering wheel.
Your trunk release button will not function if the vehicle
is moving.
2-13
ProCarManuals.com

Liftgate Release (Wagon)
Unlock the liftgate by doing any of the following:
Press the unlock button on your remote keyless
entry transmitter twice.
Press the liftgate button on your transmitter.
Press the interior door unlock switch.
Enable the automatic door unlocking feature.
Insert the key into the liftgate and turn it clockwise
to open the liftgate.
Once the liftgate is unlocked, it can be opened by
pressing the liftgate key cylinder button.
The liftgate will lock automatically when closed and the
vehicle detects a speed greater than 3 mph (5 km).
{CAUTION:
It can be dangerous to drive with the trunk or
liftgate open because carbon monoxide (CO)
gas can come into your vehicle. You can not
see or smell CO. It can cause
unconsciousness and even death. If you must
drive with the trunk or liftgate open or if
electrical wiring or other cable connections
must pass through the seal between the body
and the trunk or liftgate:
Make sure all other windows are shut.
Turn the fan on your heating or cooling
system to its highest speed and select the
control setting that will force outside air
into your vehicle. SeeClimate Control
System on page 3-17.
If you have air outlets on or under the
instrument panel, open them all the way.
SeeEngine Exhaust on page 2-31.
2-14
ProCarManuals.com

Windows
{CAUTION:
Leaving children, helpless adults, or pets in a
vehicle with the windows closed is dangerous.
They can be overcome by the extreme heat
and suffer permanent injuries or even death
from heat stroke. Never leave a child, a
helpless adult, or a pet alone in a vehicle,
especially with the windows closed in warm or
hot weather.
2-16
ProCarManuals.com

Manual Windows
On a vehicle with manual windows, use the window
crank to open and close each window.
Power Windows
Switches are located on each side of the shift lever on
the console. To open a window press the switch
down and lift up to close it.
The power windows can operate only when the ignition
key is in the RUN or the ACC position.
A rear window switch is located on each rear door.
Press the bottom half of the switch to open the window
and the top to close it.
Express-Down Window
The driver’s window switch has an express-down
feature that is labeled AUTO. Press the switch all the
way down and hold it there momentarily, and the driver’s
window will go all the way down. To stop the automatic
function, lift the switch all the way up and release it.
2-17
ProCarManuals.com

Window Lock Out
The driver’s window controls also include a lock-out
switch. Press the window lock switch to the left to stop
rear passengers from using their window switches.
The driver can still control all the windows with the lock
on. Press the right side of the window lock button to
return to normal window operation.
Sun Visors
To block out glare swing the visors down or to the side.
Visor Vanity Mirrors
Your vehicle has covered visor vanity mirrors. Some
models have illuminated visor vanity mirrors for
the driver only or for the driver and right front passenger.
When you lift the cover the light will automatically
come on, even when the ignition is off.
Theft-Deterrent Systems
Vehicle theft is big business, especially in some cities.
Although your vehicle has a number of theft-deterrent
features, we know that nothing we put on it can make it
impossible to steal.
Passlock®
Your vehicle is equipped with the
Passlock®theft-deterrent system.
L:This light will come on for the theft-deterent system.
Passlock
®is a passive theft-deterrent system.
Passlock®enables fuel if the ignition lock cylinder is
turned with a valid key. If a correct key is not used or the
ignition lock cylinder is tampered with, fuel is disabled.
2-18
ProCarManuals.com

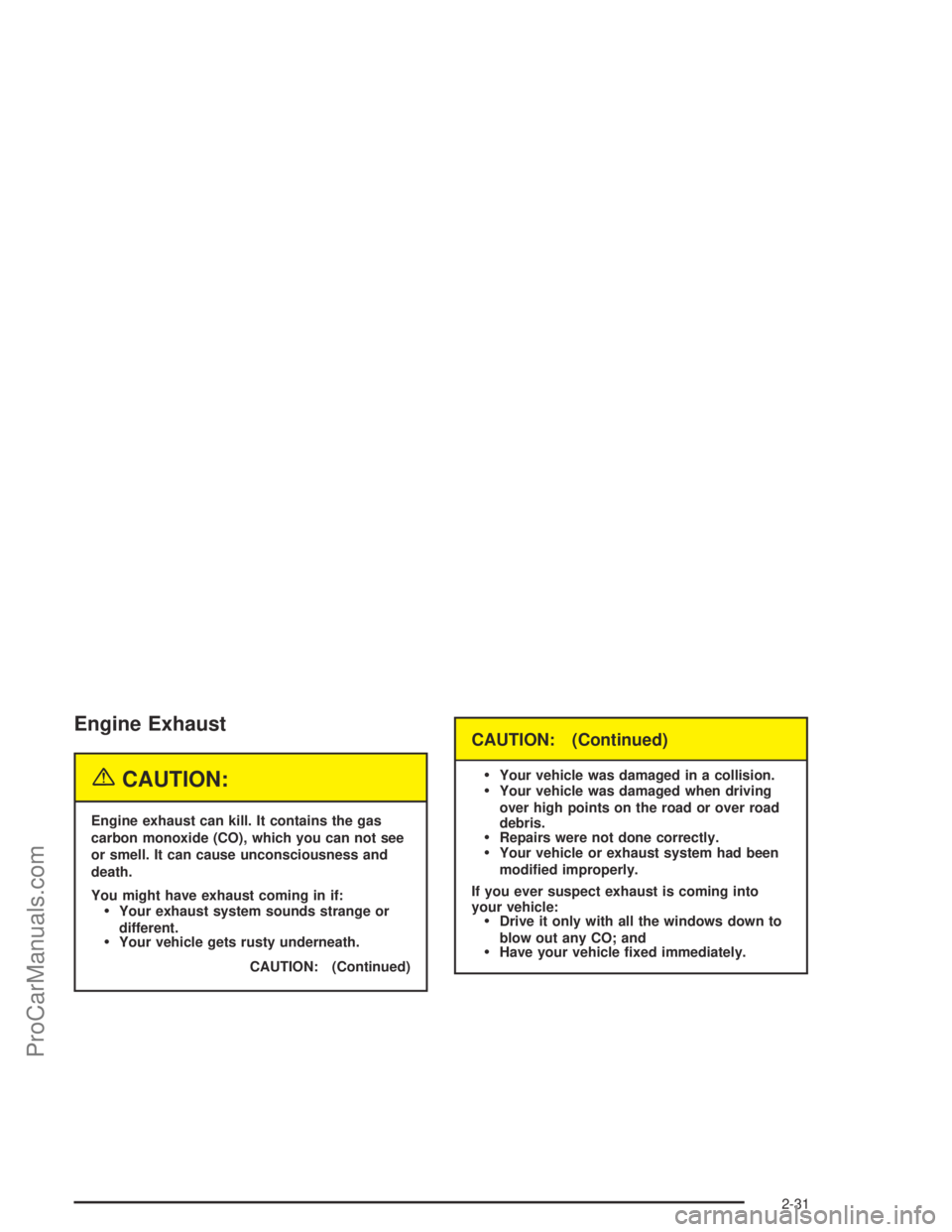

Engine Exhaust
{CAUTION:
Engine exhaust can kill. It contains the gas
carbon monoxide (CO), which you can not see
or smell. It can cause unconsciousness and
death.
You might have exhaust coming in if:
Your exhaust system sounds strange or
different.
Your vehicle gets rusty underneath.
CAUTION: (Continued)
CAUTION: (Continued)

Your vehicle was damaged in a collision.Your vehicle was damaged when driving
over high points on the road or over road
debris.
Repairs were not done correctly.Your vehicle or exhaust system had been
modied improperly.
If you ever suspect exhaust is coming into
your vehicle:
Drive it only with all the windows down to
blow out any CO; and
Have your vehicle xed immediately.
2-31
ProCarManuals.com

Automatic Dimming Mirror Operation
The automatic dimming mirror function is turned
on automatically each time the ignition is started. To
operate the automatic dimming mirror do the following:
1. Make sure the indicator light, located to the left
of the on/off button, is lit. If it’s not, press and
hold the on/off button for approximately six seconds
until the light comes on, indicating that the mirror
is in automatic dimming mode.
2. Turn off the automatic dimming mirror function by
pressing and holding the on/off button for
approximately six seconds until the indicator light
turns off.
Compass Calibration
The compass may need calibration from time to time.
In order to calibrate, CAL must be displayed in the mirror
compass windows. If CAL is not displayed, push in
the on/off button for about nine seconds or until CAL is
displayed.
The compass can be calibrated by driving the vehicle in
circles at ve mph (8 km/h) or less until the display
reads a direction.
Compass Variance
Compass variance is the difference between earth’s
magnetic north and true geographic north. If not
adjusted to account for compass variance, your
compass could give false readings.
The mirror is set in zone eight upon leaving the factory.
It will be necessary to adjust the compass to
compensate for compass variance if you live outside of
zone eight. Under certain circumstances, as during a
long distance cross-country trip, it will be necessary to
adjust for compass variance.
2-35
ProCarManuals.com

Temperature Display
The temperature can be displayed by pressing the
TEMP button. Pressing the TEMP button once briey,
will toggle the temperature reading from Fahrenheit (°F),
Celsius (°C), to off.
Automatic Dimming Mirror Operation
Press the COMP button to turn the automatic dimming
feature on and off. An indicator light on the bottom
of the mirror face will be on when the automatic dimming
feature is on.
Compass Operation
Press the COMP button once briey to turn the compass
on or off.
When compass feature is on, the compass will show the
direction the vehicle is traveling, with a maximum of
two characters.
Compass Calibration
The compass may need calibration from time to time.
In order to calibrate, CAL must be displayed in the mirror
compass windows. If CAL is not displayed, push in
the COMP button for approximately six seconds or until
CAL is displayed.
The compass can be calibrated by driving the vehicle in
circles at ve mph (8 km/h) or less until the display
reads a direction.
Compass Variance
Compass variance is the difference between earth’s
magnetic north and true geographic north. If not
adjusted to account for compass variance, your
compass could give false readings.
The mirror is set in zone eight upon leaving the factory.
It will be necessary to adjust the compass to
compensate for compass variance if you live outside
zone eight. Under certain circumstances, as during
a long distance cross-country trip, it will be necessary to
adjust for compass variance.
2-37
ProCarManuals.com
