glove box SATURN L-SERIES 2005 Owners Manual

Keys...............................................................2-2
Remote Keyless Entry System.........................2-3
Remote Keyless Entry System Operation...........2-4
Doors and Locks.............................................2-7
Door Locks....................................................2-7
Power Door Locks..........................................2-8
Delayed Locking.............................................2-8
Programmable Automatic Door Locks................2-8
Rear Door Security Locks................................2-9
Lockout Protection..........................................2-9
Trunk..........................................................2-10
Windows........................................................2-12
Manual Windows..........................................2-12
Power Windows............................................2-13
Sun Visors...................................................2-14
Theft-Deterrent Systems..................................2-14
Passlock
®....................................................2-14
Starting and Operating Your Vehicle................2-15
New Vehicle Break-In....................................2-15
Ignition Positions..........................................2-16Starting Your Engine.....................................2-17
Automatic Transaxle Operation.......................2-18
Parking Brake..............................................2-22
Shifting Into Park (P).....................................2-23
Shifting Out of Park (P).................................2-24
Parking Over Things That Burn.......................2-25
Engine Exhaust............................................2-25
Running Your Engine While You
Are Parked...............................................2-26
Mirrors...........................................................2-27
Manual Rearview Mirror.................................2-27
Outside Remote Control Mirror.......................2-27
Outside Power Mirrors...................................2-27
Outside Convex Mirror...................................2-28
Outside Heated Mirrors..................................2-28
Storage Areas................................................2-28
Glove Box...................................................2-28
Center Console Storage Area.........................2-28
Assist Handles.............................................2-29
Sunroof.........................................................2-29
Section 2 Features and Controls
2-1
ProCarManuals.com

Outside Convex Mirror
{CAUTION:
A convex mirror can make things (like other
vehicles) look farther away than they really are.
If you cut too sharply into the right lane, you
could hit a vehicle on your right. Check your
inside mirror or glance over your shoulder
before changing lanes.
The passenger’s side mirror is convex. A convex
mirror’s surface is curved so more can be seen from
the driver’s seat. It also makes things appear farther
away than they really are.
Outside Heated Mirrors
When the rear window defogger is turned on, it also
warms both outside rearview mirrors to help clear them
of ice, snow, or condensation. SeeClimate Control
System on page 3-18.
Storage Areas
Glove Box
To open the glove box, lift up on the lever. The glove
box has a light inside.
Center Console Storage Area
Your vehicle is equipped with a center console.
To open the console’s storage area, pull up on the
latch located in the front of the console lid.
2-28
ProCarManuals.com

The main components of the instrument panel are the following:
A. Air Outlets. SeeOutlet Adjustment on page 3-20.
B. Turn Signal/Multifunction Lever. SeeTurn
Signal/Multifunction Lever on page 3-7.
C. Cruise Control. SeeCruise Control on page 3-10.
D. Horn. SeeHorn on page 3-6.
E. Instrument Panel Cluster. SeeInstrument Panel
Cluster on page 3-23.
F. Windshield Wiper Lever. SeeWindshield Wiper
Lever on page 3-9.
G. Fog Lamps (If Equipped). SeeFog Lamps on
page 3-15.
H. Hazard Warning Flasher Button. SeeHazard
Warning Flashers on page 3-6.I. Traction Control. SeeTraction Control System (TCS)
Warning Light on page 3-29.
J. Audio System. SeeAudio System(s) on page 3-38.
K. Trunk Release Button/Dimmer Switch. SeeTrunk
on page 2-10andInstrument Panel Brightness
on page 3-15.
L. Hood Release. SeeHood Release on page 5-11.
M. Climate Control. SeeClimate Control System
on page 3-18.
N. Automatic Transaxle Shift Lever. SeeAutomatic
Transaxle Operation on page 2-18.
O. Power Windows. SeePower Windows on page 2-13.
P. Glove Box. SeeGlove Box on page 2-28.
3-5
ProCarManuals.com

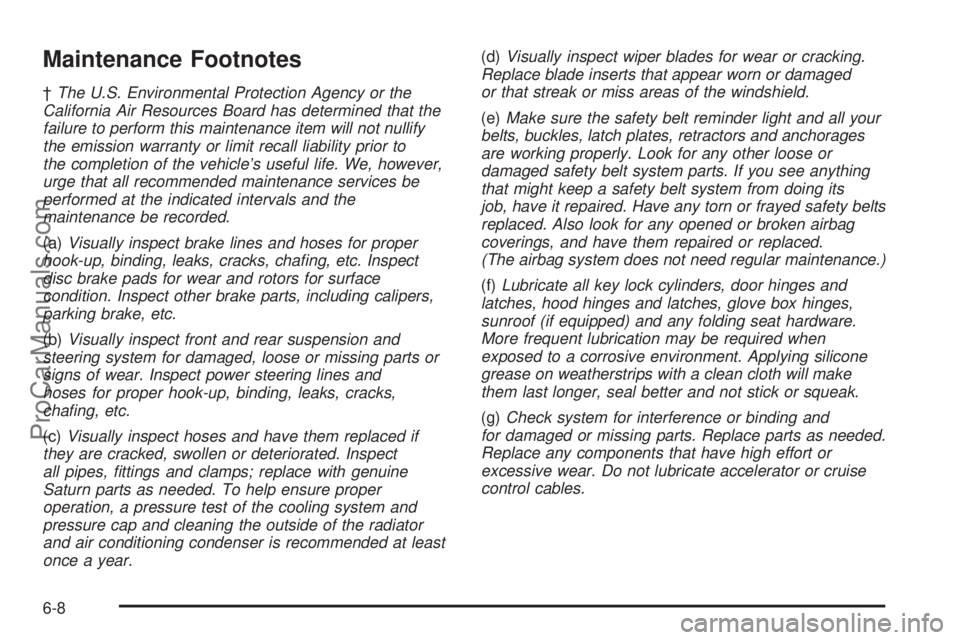

Maintenance Footnotes
†The U.S. Environmental Protection Agency or the
California Air Resources Board has determined that the
failure to perform this maintenance item will not nullify
the emission warranty or limit recall liability prior to
the completion of the vehicle’s useful life. We, however,
urge that all recommended maintenance services be
performed at the indicated intervals and the
maintenance be recorded.
(a)Visually inspect brake lines and hoses for proper
hook-up, binding, leaks, cracks, chang, etc. Inspect
disc brake pads for wear and rotors for surface
condition. Inspect other brake parts, including calipers,
parking brake, etc.
(b)Visually inspect front and rear suspension and
steering system for damaged, loose or missing parts or
signs of wear. Inspect power steering lines and
hoses for proper hook-up, binding, leaks, cracks,
chang, etc.
(c)Visually inspect hoses and have them replaced if
they are cracked, swollen or deteriorated. Inspect
all pipes, ttings and clamps; replace with genuine
Saturn parts as needed. To help ensure proper
operation, a pressure test of the cooling system and
pressure cap and cleaning the outside of the radiator
and air conditioning condenser is recommended at least
once a year.(d)Visually inspect wiper blades for wear or cracking.
Replace blade inserts that appear worn or damaged
or that streak or miss areas of the windshield.
(e)Make sure the safety belt reminder light and all your
belts, buckles, latch plates, retractors and anchorages
are working properly. Look for any other loose or
damaged safety belt system parts. If you see anything
that might keep a safety belt system from doing its
job, have it repaired. Have any torn or frayed safety belts
replaced. Also look for any opened or broken airbag
coverings, and have them repaired or replaced.
(The airbag system does not need regular maintenance.)
(f)Lubricate all key lock cylinders, door hinges and
latches, hood hinges and latches, glove box hinges,
sunroof (if equipped) and any folding seat hardware.
More frequent lubrication may be required when
exposed to a corrosive environment. Applying silicone
grease on weatherstrips with a clean cloth will make
them last longer, seal better and not stick or squeak.
(g)Check system for interference or binding and
for damaged or missing parts. Replace parts as needed.
Replace any components that have high effort or
excessive wear. Do not lubricate accelerator or cruise
control cables.
6-8
ProCarManuals.com

F
Filter
Engine Air Cleaner......................................5-17
Finish Damage...............................................5-79
Fixed Mast Antenna........................................3-62
Flash-to-Pass................................................... 3-8
Flat Tire........................................................5-62
Flat Tire, Changing.........................................5-62
Flat Tire, Storing.............................................5-71
Fluid
Automatic Transaxle.....................................5-20
Power Steering...........................................5-31
Windshield Washer......................................5-32
Fog Lamps............................................3-15, 5-44
Folding Rear Seat............................................ 1-6
Fuel............................................................... 5-5
Additives...................................................... 5-6
California Fuel.............................................. 5-6
Filling a Portable Fuel Container....................5-10
Filling Your Tank........................................... 5-8
Fuels in Foreign Countries.............................. 5-7
Gage.........................................................3-36
Gasoline Octane........................................... 5-5
Gasoline Specifications.................................. 5-5
Low Warning Light.......................................3-37
Fuses
Engine Compartment Fuse Block...................5-86
Floor Console Fuse Block.............................5-84Fuses (cont.)
Fuses and Circuit Breakers...........................5-83
Windshield Wiper.........................................5-83
G
Gage
Engine Coolant Temperature.........................3-30
Fuel..........................................................3-36
Speedometer..............................................3-24
Tachometer.................................................3-25
Gasoline
Octane........................................................ 5-5
Specifications............................................... 5-5
Glove Box.....................................................2-28
GM Mobility Reimbursement Program.................. 7-5
H
Hazard Warning Flashers................................... 3-6
Head Restraints............................................... 1-5
Headlamps....................................................3-13
Automatic Headlamp System.........................3-14
Bulb Replacement.......................................5-42
Daytime Running Lamps...............................3-13
Flash-to-Pass............................................... 3-8
Halogen Bulbs............................................5-42
5
ProCarManuals.com

S
Safety Belt
Reminder Light............................................3-25
Safety Belts
Care of......................................................5-75
Driver Position............................................1-12
How to Wear Safety Belts Properly................1-12
Questions and Answers About Safety Belts.....1-11
Rear Safety Belt Comfort Guides for
Children and Small Adults.........................1-24
Rear Seat Passengers.................................1-21
Right Front Passenger Position......................1-20
Safety Belt Extender....................................1-26
Safety Belt Use During Pregnancy.................1-20
Safety Belts Are for Everyone......................... 1-7
Shoulder Belt Height Adjuster........................1-19
Safety Warnings and Symbols.............................. iii
Scheduled Maintenance..................................... 6-4
Seats
Head Restraints............................................ 1-5
Manual Lumbar............................................. 1-3
Manual Passenger......................................... 1-2
Reclining Seatbacks...................................... 1-3
Six-Way Power Driver.................................... 1-2
Split Folding Rear Seat.................................. 1-6
Securing a Child Restraint
Designed for the LATCH System...................1-41
Rear Seat Position......................................1-41
Right Front Seat Position..............................1-43Security Light.................................................3-34
Service........................................................... 5-3
Adding Equipment to the Outside
of Your Vehicle.......................................... 5-5
Doing Your Own Work................................... 5-4
Engine Soon Light.......................................3-31
Publications Ordering Information..................... 7-9
Vehicle Soon Light.......................................3-36
Servicing Your Airbag-Equipped Vehicle..............1-54
Setting the Time.............................................3-38
Sheet Metal Damage.......................................5-79
Shifting Into Park (P).......................................2-23
Shifting Out of Park (P)...................................2-24
Shoulder Belt Height Adjuster...........................1-19
Signals, Turn and Lane-Change.......................... 3-7
Spare Tire
Installing....................................................5-65
Removing...................................................5-64
Storing.......................................................5-71
Specifications, Capacities.................................5-89
Speedometer..................................................3-24
Split Folding Rear Seat..................................... 1-6
Starting Your Engine.......................................2-17
Steering........................................................4-10
Steering Wheel, Tilt Wheel................................. 3-6
Storage Areas
Center Console Storage Area........................2-28
Glove Box..................................................2-28
Stuck in Sand, Mud, Ice or Snow......................4-30
10
ProCarManuals.com
