Rear Seats
Rear Seat Operation
A. Seat Adjustment Handle.
B. Reclining Seatback Strap.
C. Sliding Seat Lever.
Entering and Exiting the Third Row
{CAUTION:
Using the third row seating position while
the second row is folded, or folded and
tumbled, could cause injury in a sudden
stop or crash. Be sure to return the seat
to the passenger seating position. Push
and pull on the seat to make sure it is
locked into place.
Notice:Folding a rear seat with the safety
belts still fastened may cause damage to the
seat or the safety belts. Always unbuckle
the safety belts and return them to their normal
stowed position before folding a rear seat.
18
ProCarManuals.com
Page 19 of 538
To access the third row:
1. Make sure there are no objects on the oor in
front of or on the second row seat, or in the
seat tracks on the oor.
2. On seats with folding armrests, make sure the
armrest is in the upright position.
3. Make sure the safety belt is unfastened and in
the stowed position.
4. Pull the sliding seat lever (C) forward and
move the seatback forward. The seat
cushion will automatically fold, and the entire
seat will slide forward.Returning the Seat to the Seating
Position
To return the second row seat to its normal
seating position:
1. Make sure there are no objects on the oor
behind the second row seat, or in the seat
tracks on the oor.
2. Pull the seatback rearward until it is locked in
place.
3. Slide the seat rearward by pushing on the
seatback until it is locked into place.
4. Push down on the rear of the seat cushion
until it is locked in place.
5. Push and pull on the seatback and seat
cushion to make sure they are locked in place
6. Make sure the safety belt is not under the seat
cushion.
19
ProCarManuals.com
Page 21 of 538
Third Row Seats
{CAUTION:
Using the third row seating position while
the second row is folded, or pushed
forward in the entry position, could cause
injury in a sudden stop or crash. Be sure
to return the seat to the passenger
seating position. Push and pull on the
seat to make sure it is locked into place.
The third row seats can be folded forward or
removed.
Notice:Folding a rear seat with the safety
belts still fastened may cause damage to the
seat or the safety belts. Always unbuckle
the safety belts and return them to their normal
stowed position before folding a rear seat.To fold the seatback:
1. Make sure there is nothing on or under
the seat.
2. Disconnect the rear safety belt mini-latch,
using a key in the slot on the mini-buckle,
let the belt retract into the headliner. Stow the
mini-latch in the holder located in the
headliner.
21
ProCarManuals.com
Page 23 of 538
4. Make sure the safety belt is not twisted, and
reconnect the center safety belt mini-latch to
the mini-buckle.
5. Pull on the safety belt to be sure the mini-latch
is secure.
Removing the Third Row Seats
1. Remove the cargo management system, if it is
in the vehicle. SeeCargo Management System
on page 164.
2. Make sure there is nothing on or under
the seat.
Notice:Folding a rear seat with the safety belts
still fastened may cause damage to the seat or
the safety belts. Always unbuckle the safety
belts and return them to their normal stowed
position before folding a rear seat.
3. Fold the seatback down. See Folding the
Seatback earlier in this section.
4. Remove the rear bolts located on the oor on
each side of the seat.
5. Remove the seat by tilting it slightly upward,
and then pulling it out of the rear of the vehicle
in one motion.
6. Put the bolts back into the holes on the oor
so they do not get misplaced.
Installing the Third row Seats
1. Make sure the seatback is folded forward
before installing the seat. See Folding the
Seatback earlier in this section.
The seats must be placed in the proper
locations for the legs to attach correctly. The
wider seat must be installed on the driver
side and the narrower seat on the passenger
side. Make sure to remove the bolts from
the holes in the oor before installing
the seats.
2. Place the seat on the vehicle oor so that the
front seat hooks are on the vehicle bars.
3. Reinstall the bolts, and torque to 55
Y
(41 lb ft). Pull up on the seat to make sure
it is locked in place.
4. Raise the seatback to its upright position.
Push and pull on the seatback to make
sure it is locked into place.
5. Push the headrest up into position. Push and
pull on the headrest to make sure it is locked
into place.
23
ProCarManuals.com
Page 49 of 538
{CAUTION:
Never do this.
Here two children are wearing the same
belt. The belt cannot properly spread the
impact forces. In a crash, the two children
can be crushed together and seriously
injured. A belt must be used by only one
person at a time.
Q:What if a child is wearing a lap-shoulder
belt, but the child is so small that the
shoulder belt is very close to the child’s
face or neck?
A:If the child is sitting in a seat next to a
window, move the child toward the center of
the vehicle. Also seeRear Safety Belt
Comfort Guides on page 43. If the child is
sitting in the center rear seat passenger
position, move the child toward the safety belt
buckle. In either case, be sure that the
shoulder belt still is on the child’s shoulder, so
that in a crash the child’s upper body would
have the restraint that belts provide.
49
ProCarManuals.com
Page 55 of 538
{CAUTION:
The body structure of a young child is
quite unlike that of an adult or older child,
for whom the safety belts are designed. A
young child’s hip bones are still so small
that the vehicle’s regular safety belt may
not remain low on the hip bones, as it
should. Instead, it may settle up around
the child’s abdomen. In a crash, the belt
would apply force on a body area that is
unprotected by any bony structure. This
alone could cause serious or fatal injuries.
Young children always should be secured
in appropriate child restraints.
Child Restraint Systems
An infant car bed (A), a special bed made for use
in a motor vehicle, is an infant restraint system
designed to restrain or position a child on a
continuous at surface. Make sure that the infant’s
head rests toward the center of the vehicle.
55
ProCarManuals.com
Page 67 of 538

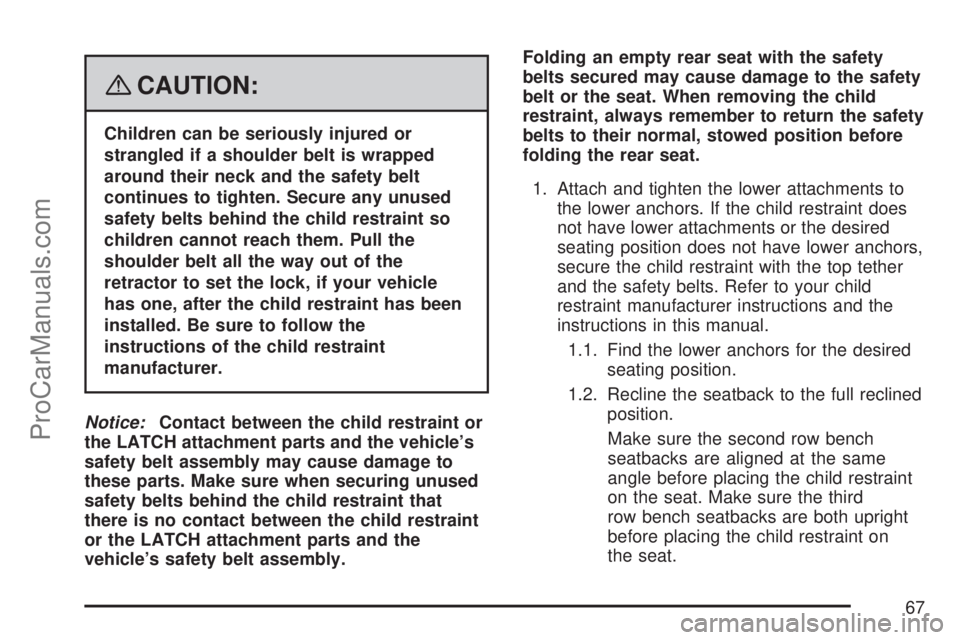

{CAUTION:
Children can be seriously injured or
strangled if a shoulder belt is wrapped
around their neck and the safety belt
continues to tighten. Secure any unused
safety belts behind the child restraint so
children cannot reach them. Pull the
shoulder belt all the way out of the
retractor to set the lock, if your vehicle
has one, after the child restraint has been
installed. Be sure to follow the
instructions of the child restraint
manufacturer.
Notice:Contact between the child restraint or
the LATCH attachment parts and the vehicle’s
safety belt assembly may cause damage to
these parts. Make sure when securing unused
safety belts behind the child restraint that
there is no contact between the child restraint
or the LATCH attachment parts and the
vehicle’s safety belt assembly.Folding an empty rear seat with the safety
belts secured may cause damage to the safety
belt or the seat. When removing the child
restraint, always remember to return the safety
belts to their normal, stowed position before
folding the rear seat.
1. Attach and tighten the lower attachments to
the lower anchors. If the child restraint does
not have lower attachments or the desired
seating position does not have lower anchors,
secure the child restraint with the top tether
and the safety belts. Refer to your child
restraint manufacturer instructions and the
instructions in this manual.
1.1. Find the lower anchors for the desired
seating position.
1.2. Recline the seatback to the full reclined
position.
Make sure the second row bench
seatbacks are aligned at the same
angle before placing the child restraint
on the seat. Make sure the third
row bench seatbacks are both upright
before placing the child restraint on
the seat.
67
ProCarManuals.com
Page 84 of 538
How Does an Airbag Restrain?
In moderate to severe frontal or near frontal
collisions, even belted occupants can contact the
steering wheel or the instrument panel. In
moderate to severe side collisions, even belted
occupants can contact the inside of the vehicle.
Airbags supplement the protection provided
by safety belts.
Frontal airbags distribute the force of the impact
more evenly over the occupant’s upper body,
stopping the occupant more gradually.
Seat-mounted side impact and roof-rail airbags
distribute the force of the impact more evenly over
the occupant’s upper body.
Rollover capable roof-rail airbags are designed to
help contain the head and chest of occupants
in the outboard seating positions in the rst,
second, and third rows. The rollover capable
roof-rail airbags are designed to help reduce the
risk of full or partial ejection in rollover events,
although no system can prevent all such ejections.But airbags would not help in many types of
collisions, primarily because the occupant’s motion
is not toward those airbags. SeeWhen Should
an Airbag Inflate? on page 82for more information.
Airbags should never be regarded as anything
more than a supplement to safety belts.
What Will You See After an Airbag
In ates?
After the frontal airbags and seat-mounted side
impact airbags in ate, they quickly de ate,
so quickly that some people may not even realize
an airbag in ated. Roof-rail airbags may still be
at least partially in ated for some time after
they deploy. Some components of the airbag
module may be hot for several minutes. For
location of the airbag modules, seeWhat Makes
an Airbag Inflate? on page 83.
The parts of the airbag that come into contact with
you may be warm, but not too hot to touch.
There may be some smoke and dust coming from
the vents in the de ated airbags. Airbag in ation
does not prevent the driver from seeing out of the
windshield or being able to steer the vehicle,
nor does it prevent people from leaving the vehicle.
84
ProCarManuals.com
Page 91 of 538
SeeAdding Equipment to Your Airbag-Equipped
Vehicle on page 92for more information about
modi cations that can affect how the system
operates.
{CAUTION:
Stowing of articles under the passenger’s
seat or between the passenger’s seat
cushion and seatback may interfere with
the proper operation of the passenger
sensing system.
Servicing Your Airbag-Equipped
Vehicle
Airbags affect how your vehicle should be serviced.
There are parts of the airbag system in several
places around your vehicle. You do not want the
system to in ate while someone is working on your
vehicle. Your dealer/retailer and the service manual
have information about servicing your vehicle and
the airbag system. To purchase a service manual,
seeService Publications Ordering Information on
page 518.
{CAUTION:
For up to 10 seconds, after the ignition is
turned off and the battery is disconnected,
an airbag can still in ate during improper
service. You can be injured if you are
close to an airbag when it in ates. Avoid
yellow connectors. They are probably part
of the airbag system. Be sure to follow
proper service procedures, and make sure
the person performing work for you is
quali ed to do so.
The airbag system does not need regular
maintenance.
91
ProCarManuals.com
