SATURN OUTLOOK 2008 Owners Manual

Erasing Universal Home Remote
Buttons
The programmed buttons should be erased when the
vehicle is sold or the lease ends.
To erase all programmed buttons on the Universal
Home Remote device:
1. Press and hold down the two outside buttons until
the indicator light begins to ash, after 20 seconds.
2. Release both buttons.
Reprogramming a Single Universal
Home Remote Button
To reprogram any of the three Universal Home Remote
buttons, repeat the programming instructions earlier
in this section, beginning with Step 2.For help or information on the Universal Home Remote
System, call the customer assistance phone number
underCustomer Assistance Offices on page 7-6.
Storage Areas
Glove Box
To open, lift the handle up. Use the key to lock
and unlock.
Cupholders
There are two cupholders, with removable liners, located
in front of the center console. There are cupholders
located in the second row seat armrest. To access, pull
the armrest down. There are additional cupholders
located on each side of the third row seat and in each
door. There are cupholders located behind the center
console. To access, pull down on the handle.
Instrument Panel Storage
Your vehicle has an instrument panel storage area
located above the radio. To open the cover, press
the button.
2-55
ProCarManuals.com

Center Console Storage
The armrest on the center console can slide forwards
and backwards by holding up the lever located on
the front of it. To open the armrest storage area, press
the button located on the front of the armrest. There
is additional storage under the armrest. Move the
armrest all the way to the rear position. The tray can be
removed for additional storage.
Second Row Center Console
Your vehicle may have a second row center console.
2-56
ProCarManuals.com

To access the upper storage area, press the upper
button (2) and lift up. To access the lower storage area,
press the lower button (3) and lift up. The top of the
console can be folded forward for increased storage
area. Lift up on handle on the rear of the console (1) and
pull forward.
{CAUTION:
Never open more than one of the three latches
at a time. This is to help avoid personal injury
and damage to the console.
Notice:Slide the front console as far forward as it
will go before folding the second row console
forward. This will help prevent damage to the
consoles.
Assist Handles
Your vehicle has assist handles above the rear and
front passenger windows. These are to be used when
getting out of your vehicle.
Floor Mats
There is a grommet in the driver side oor mat that
attaches to a hook on the oor of the vehicle to hold the
oor mat in place. To remove the oor mat, pull the
mat towards the rear of the vehicle until the grommet
can be removed from the hook.
2-57
ProCarManuals.com

Luggage Carrier
{CAUTION:
If you try to carry something on top of your
vehicle that is longer or wider than the luggage
carrier — like paneling, plywood, a mattress
and so forth — the wind can catch it as you
drive along. This can cause you to lose
control. What you are carrying could be
violently torn off, and this could cause you or
other drivers to have a collision, and of course
damage your vehicle. You may be able to carry
something like this inside. But, never carry
something longer or wider than the luggage
carrier on top of your vehicle.
If you have the luggage carrier, you can load things on
top of your vehicle. Crossrails are not standard on
this vehicle and must be purchased at your
dealer/retailer.Notice:Loading cargo on the luggage carrier that
weighs more than 200 lbs (91 kg) or hangs over
the rear or sides of the vehicle may damage your
vehicle. Load cargo so that it rests as far forward as
possible and against the side rails, making sure
to fasten it securely.
Do not exceed the maximum vehicle capacity when
loading your vehicle. For more information on vehicle
capacity and loading, seeLoading the Vehicle on
page 4-22.
To prevent damage or loss of cargo as you are driving,
check to make sure the cargo is still securely fastened.
Rear Seat Armrest
Your vehicle may have a rear seat armrest that contains
two cupholders. To access the cupholders, pull the
armrest down from the rear seatback.
Convenience Net
The vehicle may have a convenience net in the rear.
Store small loads as far forward as possible. The
net should not be used to store heavy loads.
2-58
ProCarManuals.com

Cargo Cover
Your vehicle may have a cargo cover. It can be used to
cover items in the rear of the vehicle. To install the
cover, place the loops on each corner of the cover on
the four hooks in the rear of the vehicle. The cover
should be stored securely when not in use.
Cargo Tie Downs
There are four cargo tie-downs located in the rear
compartment of the vehicle, that can be used to secure
small loads.
Cargo Management System
Your vehicle has a cargo management system located
in the rear of the vehicle. To open, pull the handle
toward the rear of the vehicle and lift the cover up.There is an additional storage compartment on each side
of the system. To open, unlatch and lift the panel up.
To remove the cargo management system:
1. Open the lid.
2. Remove the side panels and place inside the bin.
3. Loosen the retaining nuts on each side of the
system by turning them counterclockwise.
4. Close the lid.
5. Pull up on the system by using the built in handles
and remove it from the vehicle.
2-59
ProCarManuals.com

Sunroof
The vehicle may have a sunroof over the front seats,
and a rear sunroof over the second row seats. The rear
sunroof does not open. The switches to operate the
front sunroof and rear sunshade are located on
the headliner above the rearview mirror. The ignition
must be in ON or ACCESSORY to operate the sunroof.
SeeIgnition Positions on page 2-26.
Vent:From the closed position, press and hold the
front of the driver’s side switch to vent the sunroof.
Press and hold the rear of the driver’s side switch to
close the sunroof.Express-open/Express-close:From the closed
position, press and release the rear of the driver’s side
switch to express-open the sunroof. Press and
release the front of the driver’s side switch to
express-close the sunroof.
The front sunshade must be opened and closed
manually. Push up on the sunshade handle to open the
sunshade.
Notice:The rear sunshade could be damaged if
you attempt to open or close it manually. Do
not manually open or close the rear sunshade.
To open the rear sunshade, located over the second
row seats, press and release the rear of the passenger’s
side switch. Press and release the front of the switch
to close the sunshade.
2-60
ProCarManuals.com

Instrument Panel Overview...............................3-4
Hazard Warning Flashers................................3-6
Other Warning Devices...................................3-7
Horn .............................................................3-7
Tilt and Telescopic Steering Wheel...................3-7
Power Tilt Wheel and Telescopic
Steering Column.........................................3-8
Turn Signal/Multifunction Lever.........................3-8
Turn and Lane-Change Signals........................3-9
Headlamp High/Low-Beam Changer...................3-9
Flash-to-Pass...............................................3-10
Windshield Wipers........................................3-10
Windshield Washer.......................................3-10
Rear Window Wiper/Washer...........................3-11
Cruise Control..............................................3-12
Exterior Lamps.............................................3-15
Delayed Headlamps......................................3-16
Daytime Running Lamps (DRL)/
Automatic Headlamp System.......................3-16
Fog Lamps ..................................................3-17
Instrument Panel Brightness...........................3-17
Courtesy Lamps...........................................3-17
Dome Lamps ...............................................3-18
Dome Lamp Override....................................3-18
Entry Lighting...............................................3-18
Delayed Entry Lighting...................................3-19Delayed Exit Lighting.....................................3-19
Parade Dimming...........................................3-19
Reading Lamps............................................3-20
Electric Power Management...........................3-20
Battery Run-Down Protection..........................3-21
Accessory Power Outlet(s).............................3-21
Power Outlet 115 Volt Alternating Current........3-22
Climate Controls............................................3-23
Climate Control System.................................3-23
Dual Automatic Climate Control System...........3-26
Outlet Adjustment.........................................3-34
Rear Air Conditioning and Heating System.......3-34
Rear Air Conditioning and Heating System
and Electronic Climate Controls...................3-36
Warning Lights, Gages, and Indicators............3-37
Instrument Panel Cluster................................3-38
Speedometer and Odometer...........................3-39
Tachometer.................................................3-39
Safety Belt Reminders...................................3-39
Airbag Readiness Light..................................3-40
Passenger Airbag Status Indicator...................3-41
Charging System Light..................................3-43
Voltmeter Gage............................................3-44
Brake System Warning Light..........................3-45
Antilock Brake System (ABS) Warning Light.....3-46
Section 3 Instrument Panel
3-1
ProCarManuals.com

StabiliTrak®Indicator Light.............................3-46
Engine Coolant Temperature Warning Light......3-47
Engine Coolant Temperature Gage..................3-47
Tire Pressure Light.......................................3-48
Malfunction Indicator Lamp.............................3-48
Oil Pressure Light.........................................3-51
Security Light...............................................3-51
Fog Lamp Light............................................3-52
Cruise Control Light......................................3-52
Highbeam On Light.......................................3-52
Tow/Haul Mode Light....................................3-52
Fuel Gage...................................................3-53
Driver Information Center (DIC).......................3-54
DIC Operation and Displays
(With DIC Buttons)....................................3-54
DIC Operation and Displays
(Without DIC Buttons)................................3-60
DIC Warnings and Messages.........................3-64
DIC Vehicle Customization
(With DIC Buttons)....................................3-74Audio System(s).............................................3-82
Setting the Clock..........................................3-84
Radio(s) (MP3).............................................3-86
Using an MP3 (Radio with CD and
Six-Disc CD Player).................................3-104
Using an MP3 (Radio with CD and
DVD Player)...........................................3-108
XM Radio Messages...................................3-114
Navigation/Radio System..............................3-115
Rear Seat Entertainment (RSE) System.........3-115
Rear Seat Audio (RSA)................................3-124
Theft-Deterrent Feature................................3-126
Audio Steering Wheel Controls......................3-126
Radio Reception.........................................3-127
Multi-Band Antenna.....................................3-128
Section 3 Instrument Panel
3-2
ProCarManuals.com

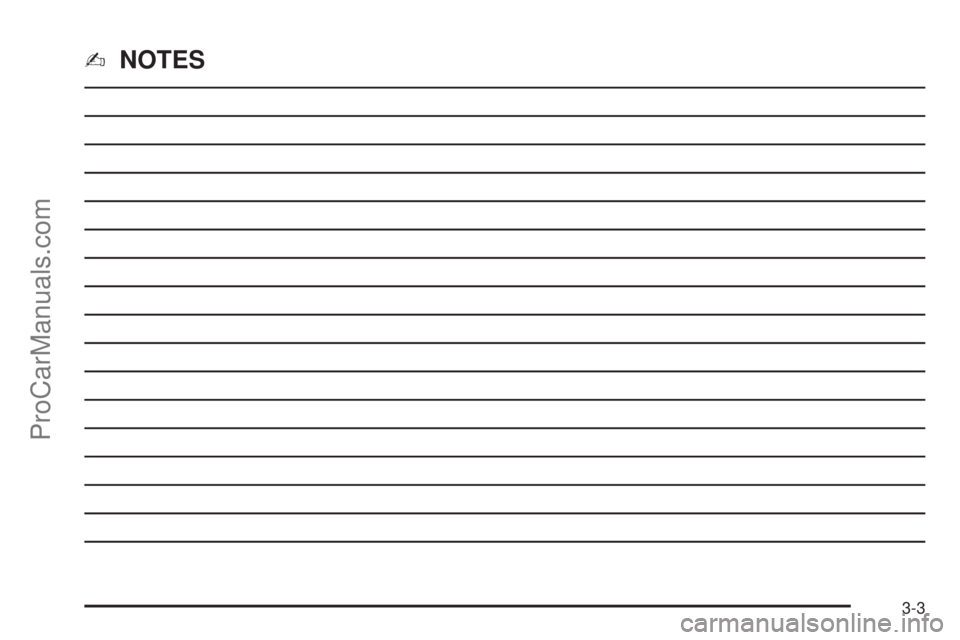

✍NOTES
3-3
ProCarManuals.com

Instrument Panel Overview
3-4
ProCarManuals.com
