SATURN OUTLOOK 2008 Owner's Manual

Removing the Third Row Seats
1. Remove the cargo management system, if it is in
the vehicle. SeeCargo Management System on
page 2-59.
2. Remove anything on or under the seat.
Notice:Folding a rear seat with the safety belts
still fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts
and return them to their normal stowed position
before folding a rear seat.
3. Fold the seatback down. See “Folding the Seatback”
earlier in this section.
4. Remove the rear bolts located on the oor on each
side of the seat.
5. Remove the seat by tilting it slightly upward, and
then pulling it out of the rear of the vehicle in one
motion.
6. Put the bolts back into the holes on the oor so
they do not get misplaced.
Installing the Third Row Seats
1. Before installing the seat the seatback must be
folded forward. See “Folding the Seatback”
earlier in this section.
The seats must be placed in the proper locations
for the legs to attach correctly. The wider seat must
be installed on the driver side and the narrower
seat on the passenger side. Remove the bolts from
the holes in the oor before installing the seats.
2. Place the seat on the vehicle oor so that the front
seat hooks are on the vehicle bars.
3. Reinstall the bolts, and torque to 55Y(41 lb ft).
Pull up on the seat to make sure it is locked in place.
4. Raise the seatback to its upright position. Push
and pull on the seatback to make sure it is locked
into place.
5. Push the headrest up into position. Push and
pull on the headrest to make sure it is locked
into place.
6. Reconnect the center safety belt mini-latch to the
mini-buckle. Do not let it twist.
1-17
ProCarManuals.com

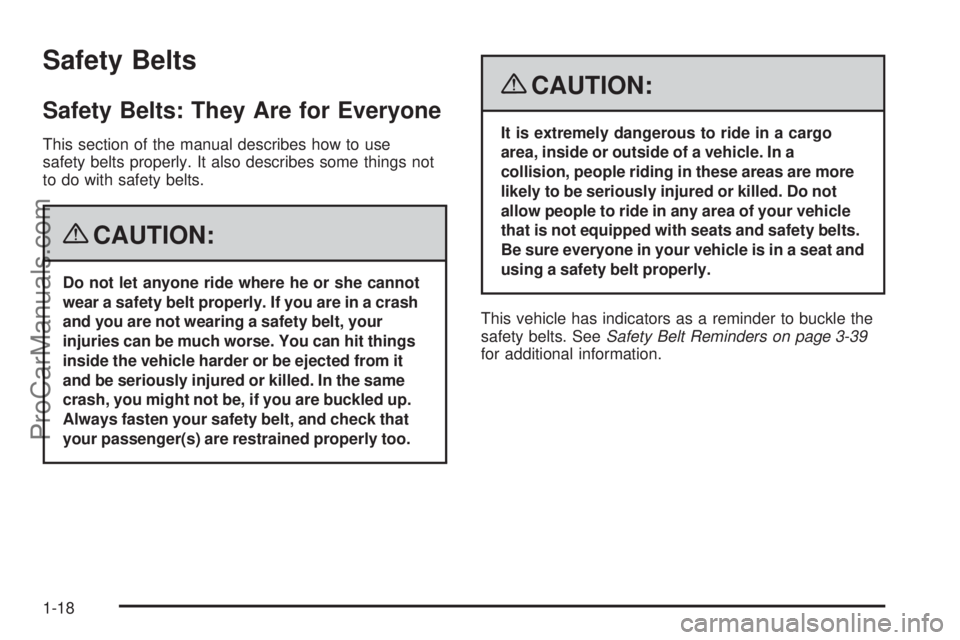

Safety Belts
Safety Belts: They Are for Everyone
This section of the manual describes how to use
safety belts properly. It also describes some things not
to do with safety belts.
{CAUTION:
Do not let anyone ride where he or she cannot
wear a safety belt properly. If you are in a crash
and you are not wearing a safety belt, your
injuries can be much worse. You can hit things
inside the vehicle harder or be ejected from it
and be seriously injured or killed. In the same
crash, you might not be, if you are buckled up.
Always fasten your safety belt, and check that
your passenger(s) are restrained properly too.
{CAUTION:
It is extremely dangerous to ride in a cargo
area, inside or outside of a vehicle. In a
collision, people riding in these areas are more
likely to be seriously injured or killed. Do not
allow people to ride in any area of your vehicle
that is not equipped with seats and safety belts.
Be sure everyone in your vehicle is in a seat and
using a safety belt properly.
This vehicle has indicators as a reminder to buckle the
safety belts. SeeSafety Belt Reminders on page 3-39
for additional information.
1-18
ProCarManuals.com

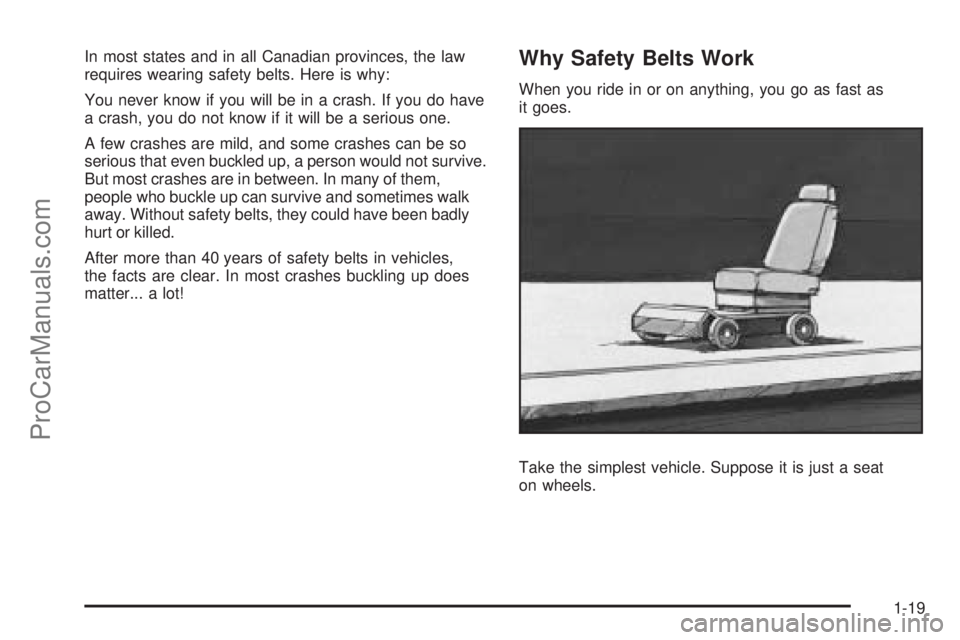

In most states and in all Canadian provinces, the law
requires wearing safety belts. Here is why:
You never know if you will be in a crash. If you do have
a crash, you do not know if it will be a serious one.
A few crashes are mild, and some crashes can be so
serious that even buckled up, a person would not survive.
But most crashes are in between. In many of them,
people who buckle up can survive and sometimes walk
away. Without safety belts, they could have been badly
hurt or killed.
After more than 40 years of safety belts in vehicles,
the facts are clear. In most crashes buckling up does
matter... a lot!Why Safety Belts Work
When you ride in or on anything, you go as fast as
it goes.
Take the simplest vehicle. Suppose it is just a seat
on wheels.
1-19
ProCarManuals.com

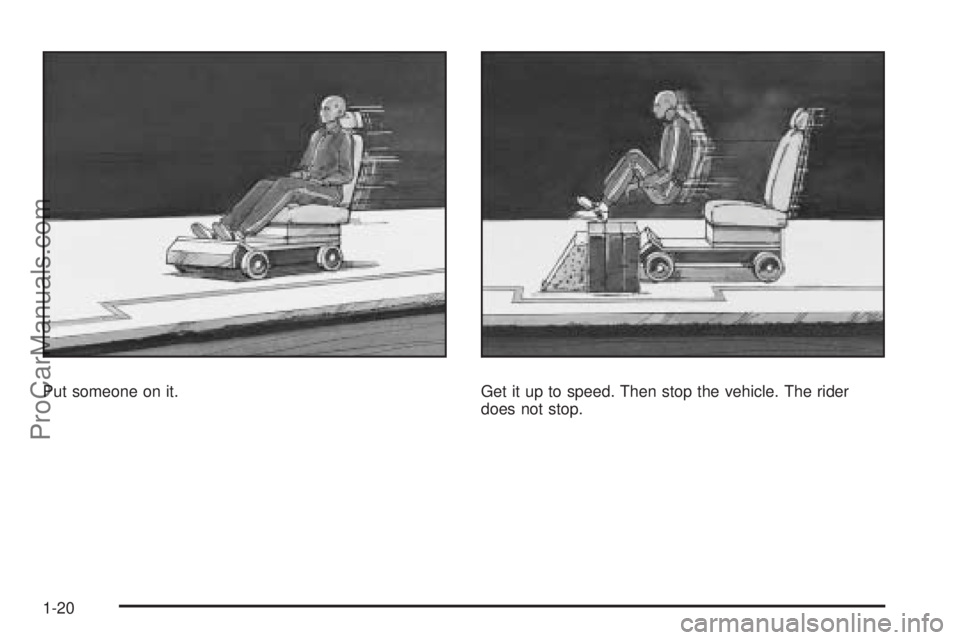

Put someone on it. Get it up to speed. Then stop the vehicle. The rider
does not stop.
1-20
ProCarManuals.com

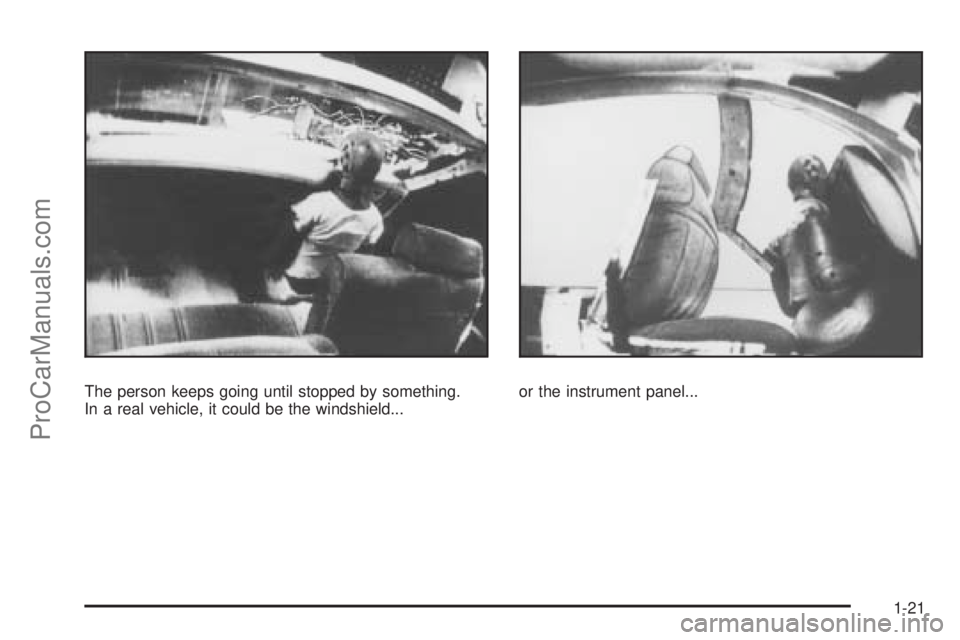

The person keeps going until stopped by something.
In a real vehicle, it could be the windshield...or the instrument panel...
1-21
ProCarManuals.com

or the safety belts!
With safety belts, you slow down as the vehicle does.
You get more time to stop. You stop over more distance,
and your strongest bones take the forces. That is why
safety belts make such good sense.
Questions and Answers About Safety
Belts
Q:Will I be trapped in the vehicle after a crash if I
am wearing a safety belt?
A:Youcouldbe — whether you are wearing a safety
belt or not. But your chance of being conscious
during and after an accident, so youcanunbuckle
and get out, ismuchgreater if you are belted.
And you can unbuckle a safety belt, even if you
are upside down.
Q:If my vehicle has airbags, why should I have to
wear safety belts?
A:Airbags are supplemental systems only; so they
workwithsafety belts — not instead of them.
Whether or not an airbag is provided, all occupants
still have to buckle up to get the most protection.
That is true not only in frontal collisions, but
especially in side and other collisions.
1-22
ProCarManuals.com

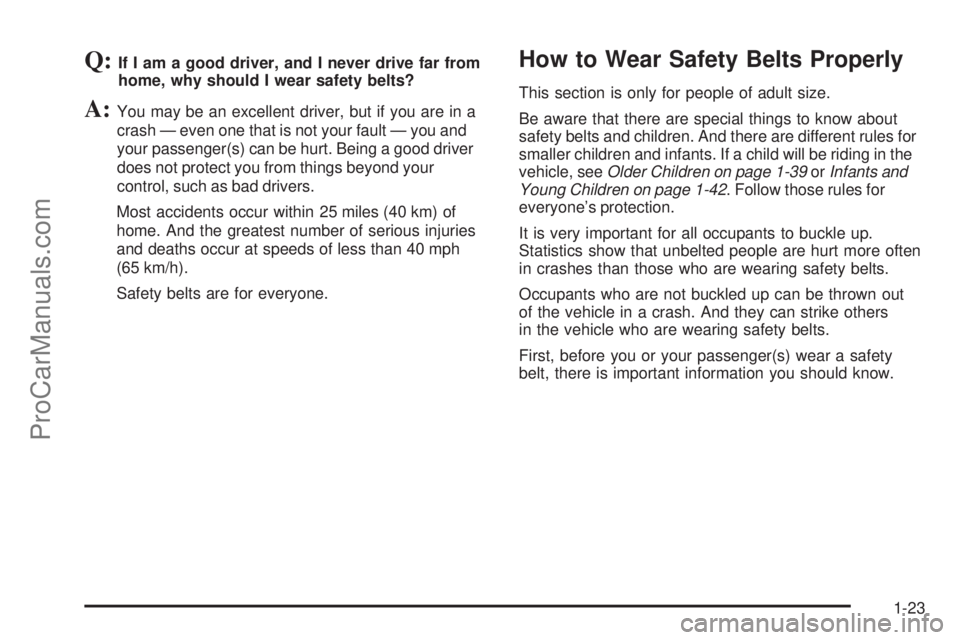

Q:If I am a good driver, and I never drive far from
home, why should I wear safety belts?
A:You may be an excellent driver, but if you are in a
crash — even one that is not your fault — you and
your passenger(s) can be hurt. Being a good driver
does not protect you from things beyond your
control, such as bad drivers.
Most accidents occur within 25 miles (40 km) of
home. And the greatest number of serious injuries
and deaths occur at speeds of less than 40 mph
(65 km/h).
Safety belts are for everyone.
How to Wear Safety Belts Properly
This section is only for people of adult size.
Be aware that there are special things to know about
safety belts and children. And there are different rules for
smaller children and infants. If a child will be riding in the
vehicle, seeOlder Children on page 1-39orInfants and
Young Children on page 1-42. Follow those rules for
everyone’s protection.
It is very important for all occupants to buckle up.
Statistics show that unbelted people are hurt more often
in crashes than those who are wearing safety belts.
Occupants who are not buckled up can be thrown out
of the vehicle in a crash. And they can strike others
in the vehicle who are wearing safety belts.
First, before you or your passenger(s) wear a safety
belt, there is important information you should know.
1-23
ProCarManuals.com

Sit up straight and always keep your feet on the oor in
front of you. The lap part of the belt should be worn low
and snug on the hips, just touching the thighs. In a crash,this applies force to the strong pelvic bones and you
would be less likely to slide under the lap belt. If you slid
under it, the belt would apply force on your abdomen.
This could cause serious or even fatal injuries.
The shoulder belt should go over the shoulder and
across the chest. These parts of the body are best
able to take belt restraining forces.
The shoulder belt locks if there is a sudden stop or
crash.
1-24
ProCarManuals.com

Q:What is wrong with this?
A:The shoulder belt is too loose. It will not give as
much protection this way.
{CAUTION:
You can be seriously hurt if your shoulder
belt is too loose. In a crash, you would move
forward too much, which could increase injury.
The shoulder belt should t snugly against
your body.
1-25
ProCarManuals.com

Q:What is wrong with this?
A:The lap belt is too loose. It will not give nearly as
much protection this way.
{CAUTION:
You can be seriously hurt if your lap belt is
too loose. In a crash, you could slide under
the lap belt and apply force on your abdomen.
This could cause serious or even fatal injuries.
The lap belt should be worn low and snug on
the hips, just touching the thighs.
1-26
