window SATURN OUTLOOK 2008 Service Manual

If Steam Is Coming From Your Engine
{CAUTION:
Steam from an overheated engine can burn
you badly, even if you just open the hood.
Stay away from the engine if you see or hear
steam coming from it. Turn it off and get
everyone away from the vehicle until it cools
down. Wait until there is no sign of steam or
coolant before you open the hood.
If you keep driving when the vehicles engine
is overheated, the liquids in it can catch re.
You or others could be badly burned. Stop
your engine if it overheats, and get out of the
vehicle until the engine is cool.
SeeOverheated Engine Protection Operating
Mode on page 5-25for information on driving
to a safe place in an emergency.Notice:If the engine catches re while driving
with no coolant, the vehicle can be badly damaged.
The costly repairs would not be covered by the
vehicle warranty. SeeOverheated Engine Protection
Operating Mode on page 5-25for information on
driving to a safe place in an emergency.If No Steam Is Coming From Your
Engine
If you get an engine overheat warning but see or
hear no steam, the problem may not be too serious.
Sometimes the engine can get a little too hot when you:
Climb a long hill on a hot day.
Stop after high-speed driving.
Idle for long periods in traffic.
Tow a trailer.
If you get the overheat warning with no sign of steam,
try this for a minute or so:
1. If your air conditioner is on, turn it off.
2. Turn on your heater to full hot at the highest fan
speed and open the windows as necessary.
3. If you are in a traffic jam, shift to N (Neutral);
otherwise, shift to the highest gear while
driving—D(Drive) or L (Low).
5-24
ProCarManuals.com

(C) Aspect Ratio:A two-digit number that
indicates the tire height-to-width measurements.
For example, if the tire size aspect ratio is 60, as
shown in item C of the illustration, it would mean
that the tire’s sidewall is 60 percent as high as
it is wide.
(D) Construction Code
:A letter code is used to
indicate the type of ply construction in the tire. The
letter R means radial ply construction; the letter D
means diagonal or bias ply construction; and the
letter B means belted-bias ply construction.
(E) Rim Diameter
:Diameter of the wheel in
inches.
(F) Service Description
:These characters
represent the load range and speed rating of the
tire. The load index represents the load carry
capacity a tire is certied to carry. The load index
can range from 1 to 279. The speed rating is
the maximum speed a tire is certied to carry
a load. Speed ratings range from A to Z.
Tire Terminology and Denitions
Air Pressure:The amount of air inside the
tire pressing outward on each square inch of the
tire. Air pressure is expressed in pounds per
square inch (psi) or kilopascal (kPa).
Accessory Weight
:This means the combined
weight of optional accessories. Some examples of
optional accessories are, automatic transmission,
power steering, power brakes, power windows,
power seats, and air conditioning.
Aspect Ratio
:The relationship of a tire’s height
to its width.
Belt
:A rubber coated layer of cords that is
located between the plies and the tread. Cords
may be made from steel or other reinforcing
materials.
Bead
:The tire bead contains steel wires wrapped
by steel cords that hold the tire onto the rim.
5-53
ProCarManuals.com

A. Selector Switch
B. On/Off Button
C. Air Pressure Gage
D. Tire Sealant
CanisterE. Air Compressor
Accessory Plug
F. Sealant/Air
Hose (Clear)
G. Air Only Hose
1. Do a safety check. SeeIf a Tire Goes Flat on
page 5-72.
2. Unwrap the air only hose (G) from the bottom of the
air compressor.
3. Remove the tire valve stem cap by turning it
counterclockwise.4. Attach the air only hose (G) onto the valve stem by
turning clockwise.
5. Remove the air compressor accessory plug (E)
from the unit.
6. Plug the air compressor accessory plug (E) into an
accessory power outlet in the vehicle. SeeAccessory
Power Outlet(s) on page 3-21for more information.
Do not slam the door or close the window on the
compressor accessory plug cord.
{CAUTION:
Idling the engine in a closed-in place or with
the climate control system off can cause
deadly carbon monoxide (CO). SeeEngine
Exhaust on page 2-37.
7. Start the vehicle. SeeStarting the Engine on
page 2-27. The vehicle must be running while
using the air compressor.
5-81
ProCarManuals.com

Lighter colored interiors may require more frequent
cleaning. Use care because newspapers and garments
that transfer color to your home furnishings may also
transfer color to your vehicle’s interior.
When cleaning your vehicle’s interior, only use cleaners
specically designed for the surfaces being cleaned.
Permanent damage may result from using cleaners on
surfaces for which they were not intended. Use glass
cleaner only on glass. Remove any accidental over-spray
from other surfaces immediately. To prevent over-spray,
apply cleaner directly to the cleaning cloth.
Notice:If you use abrasive cleaners when cleaning
glass surfaces on your vehicle, you could scratch
the glass and/or cause damage to the rear window
defogger. When cleaning the glass on your
vehicle, use only a soft cloth and glass cleaner.
Many cleaners contain solvents that may become
concentrated in your vehicle’s breathing space.
Before using cleaners, read and adhere to all safety
instructions on the label. While cleaning your vehicle’s
interior, maintain adequate ventilation by opening
your vehicle’s doors and windows.
Dust may be removed from small buttons and knobs
using a small brush with soft bristles.Your dealer/retailer has a product for cleaning your
vehicle’s glass. Should it become necessary, you can
also obtain a product from your dealer/retailer to remove
odors from your vehicle’s upholstery.
Do not clean your vehicle using:
A knife or any other sharp object to remove a soil
from any interior surface.
A stiff brush. It can cause damage to your vehicle’s
interior surfaces.
Heavy pressure or aggressive rubbing with a
cleaning cloth. Use of heavy pressure can damage
your interior and does not improve the effectiveness
of soil removal.
Laundry detergents or dishwashing soaps with
degreasers can leave residue that streaks and
attracts dirt. For liquid cleaners, about 20 drops
per gallon (3.78 L) of water is a good guide.
Use only mild, neutral-pH soaps.
Too much cleaner that saturates the upholstery.
Organic solvents such as naptha, alcohol, etc. that
can damage your vehicle’s interior.
5-101
ProCarManuals.com

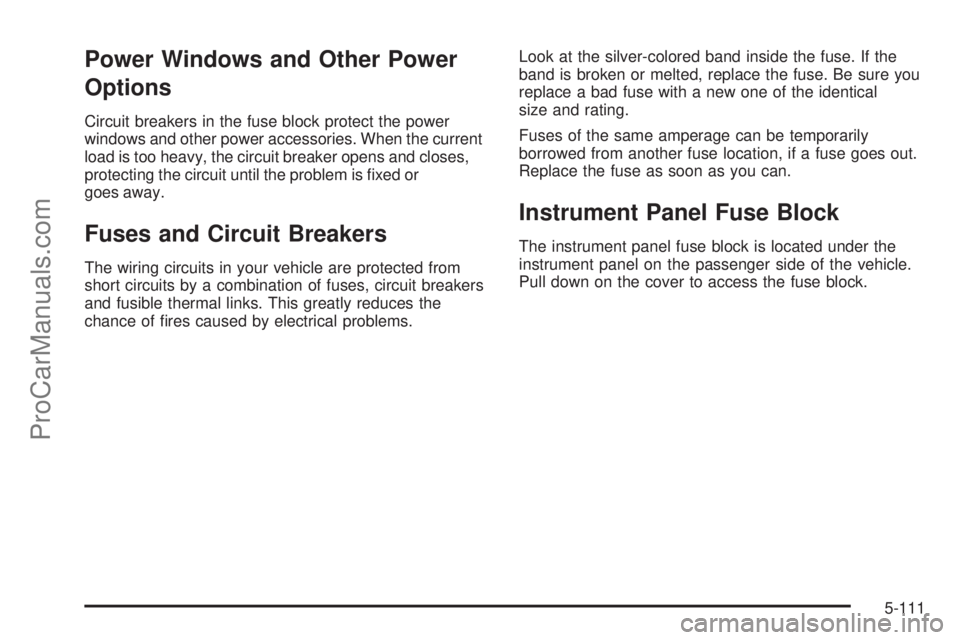

Power Windows and Other Power
Options
Circuit breakers in the fuse block protect the power
windows and other power accessories. When the current
load is too heavy, the circuit breaker opens and closes,
protecting the circuit until the problem is xed or
goes away.
Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by a combination of fuses, circuit breakers
and fusible thermal links. This greatly reduces the
chance of res caused by electrical problems.Look at the silver-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure you
replace a bad fuse with a new one of the identical
size and rating.
Fuses of the same amperage can be temporarily
borrowed from another fuse location, if a fuse goes out.
Replace the fuse as soon as you can.
Instrument Panel Fuse Block
The instrument panel fuse block is located under the
instrument panel on the passenger side of the vehicle.
Pull down on the cover to access the fuse block.
5-111
ProCarManuals.com

Fuses Usage
FRT/WSW Front Windshield Wiper
SPARE Spare
HTD/SEAT Front Heated Seats
STR/WHL/
ILLUMSteering Wheel Illumination
MSM Memory Seat Module
PWR/MIRRORS Power Mirrors
DR/LCK Door Locks
AIRBAG Airbag System
LT/TRN/SIG Driver Side Turn Signal
REAR WIPER Rear Window Wiper
Fuse Side
5-112
ProCarManuals.com

Relays Usage
LT/PWR/SEAT Driver Side Power Seat Relay
RT/PWR/SEAT Passenger Side Power Seat Relay
PWR/WNDW Power Windows Relay
PWR/COLUMN Power Steering Column Relay
L/GATE Liftgate Relay
LCK Power Lock Relay
REAR/WSW Rear Window Washer Relay
Relay Side
5-114
ProCarManuals.com

Relays Usage
A/C CMPRSR
CLTCHAir Conditioning Compressor Clutch
CRNK Switched Power
FAN 1 Cooling Fan 1
FAN 2 Cooling Fan 2
FAN 3 Cooling Fan 3
FOG LAMP Fog Lamps
FUEL PUMP Fuel Pump
HI BEAM High-Beam Headlamps
HID/LO BEAMHigh Intensity Discharge (HID)
Low-Beam Headlamps
HORN HornRelays Usage
IGN Ignition Main
LT TRLR
STOP/TRNTrailer Left Stoplamp and Turn
Signal Lamp
PRK LAMP Park Lamp
PWR/TRN Powertrain
RR DEFOG Rear Window Defogger
RT TRLR
STOP/TRNTrailer Right Stoplamp and Turn
Signal Lamp
SPARE Spare
TRLR BCK/UP Trailer Back-up Lamps
WPR Windshield Wiper
WPR HI Windshield Wiper High Speed
5-119
ProCarManuals.com

E
EDR .............................................................7-18
Electrical System
Add-On Equipment.....................................5-110
Fuses and Circuit Breakers.........................5-111
Instrument Panel Fuse Block.......................5-111
Power Windows and Other Power Options.......5-111
Underhood Fuse Block...............................5-115
Windshield Wiper Fuses.............................5-110
Electronic Immobilizer
PASS-Key
®III+...........................................2-23
Electronic Immobilizer Operation
PASS-Key
®III+...........................................2-24
Engine
Air Cleaner/Filter.........................................5-18
Check and Service Engine Soon Light............3-48
Coolant......................................................5-20
Coolant Heater............................................2-29
Coolant Temperature Gage...........................3-47
Coolant Temperature Warning Light................3-47
Drive Belt Routing.......................................6-14
Engine Compartment Overview......................5-12
Exhaust.....................................................2-37
Oil .............................................................5-13
Oil Life System...........................................5-16Engine (cont.)
Overheated Protection Operating Mode...........5-25
Overheating................................................5-23
Starting......................................................2-27
Entry Lighting.................................................3-18
Event Data Recorders.....................................7-18
Extender, Safety Belt.......................................1-38
Exterior Lamps...............................................3-15
F
Filter
Engine Air Cleaner......................................5-18
Finish Damage.............................................5-107
Flashers, Hazard Warning.................................. 3-6
Flash-to-Pass.................................................3-10
Flat Tire........................................................5-72
Flat Tire, Changing.........................................5-84
Flat Tire, Storing.............................................5-96
Floor Mats.....................................................2-57
Fluid
Automatic Transmission................................5-20
Power Steering...........................................5-32
Windshield Washer......................................5-33
Fog Lamp
Fog ...........................................................3-17
5
ProCarManuals.com

Park Brake....................................................2-34
Parking
Assist........................................................2-44
Over Things That Burn.................................2-37
Passenger Airbag Status Indicator.....................3-41
Passenger Sensing System..............................1-73
Passing.........................................................4-12
PASS-KEY
®III+ Electronic Immobilizer...............2-23
PASS-Key®III+ Electronic Immobilizer
Operation...................................................2-24
Perchlorate Materials Requirements, California...... 5-4
Power
Door Locks.................................................2-11
Electrical System.......................................5-111
Liftgate......................................................2-14
Lumbar Controls........................................... 1-5
Outlet 115 Volt Alternating Current.................3-22
Retained Accessory (RAP)............................2-27
Seat ............................................................ 1-3
Steering Fluid.............................................5-32
Tilt Wheel and Telescopic Steering Column....... 3-8
Windows....................................................2-19
Privacy..........................................................7-18
Event Data Recorders..................................7-18
Navigation System.......................................7-19
OnStar .......................................................7-19
Radio Frequency Identication.......................7-19
Programmable Automatic Door Locks.................2-11
R
Radiator Pressure Cap....................................5-23
Radio Frequency Identication (RFID), Privacy......7-19
Radio(s)........................................................3-86
Radios
Navigation/Radio System,
see Navigation Manual............................3-115
Rear Seat Audio........................................3-124
Reception.................................................3-127
Setting the Clock.........................................3-84
Theft-Deterrent..........................................3-126
Reading Lamps..............................................3-20
Rear Air Conditioning and Heating System.........3-34
Rear Air Conditioning and Heating System and
Electronic Climate Controls...........................3-36
Rear Door Security Locks................................2-12
Rear Seat Armrest..........................................2-58
Rear Seat Audio (RSA)..................................3-124
Rear Seat Entertainment System.....................3-115
Rear Seat Operation.......................................1-12
Rear Vision Camera........................................2-46
Rear Windshield Washer/Wiper.........................3-11
Rearview Mirror, Automatic Dimming with
OnStar
®and Compass.................................2-39
Rearview Mirror with OnStar®...........................2-39
Reclining Seatbacks.......................................... 1-8
10
ProCarManuals.com
