r(Enter/Select):For the GM Mobile Digital
Media system, press the enter/select button (E) to
go into any selected menu item.
v(Title/Top Menu):For the GM Mobile Digital
Media system, press the title/top menu button (B)
to jump to the start screen.
q(Return/Current Selection):For the
GM Mobile Digital Media system, if audio is playing
or in the pause mode, press the return/current
selection button (H) to go back to the current
selection.
y(Menu/Options):For the GM Mobile Digital
Media system, press the menu/options button (F)
to display the options list.
c(Stop):For the GM Mobile Digital Media
system, press this button to stop playback of the
selected option.
r/j(Play/Pause):For the GM Mobile Digital
Media system, press this button to start playback of
a selected option. Press this button while an option
is in the play mode to pause it. Press it again to
continue playback of the current option.
DVD Remote Control Batteries
If the remote control does not seem to be working,
the batteries may need to be replaced. See
Remote Control, “Battery Replacement” in your
vehicle’s owner manual.
Browsing Audio
1. Select the Audio option through the menu
system displayed on the video screen.
340
ProCarManuals.com

Service........................................................ 412
Accessories and Modications................... 412
California Proposition 65 Warning.............. 413
Doing Your Own Service Work.................. 413
Adding Equipment to the Outside
of Your Vehicle...................................... 414
Fuel............................................................. 414
Gasoline Octane........................................ 414
Gasoline Specications.............................. 414
California Fuel........................................... 415
Additives................................................... 415
Fuels in Foreign Countries........................ 416
Filling the Tank......................................... 417
Filling a Portable Fuel Container............... 419
Checking Things Under the Hood.............. 420
Hood Release........................................... 421
Engine Compartment Overview.................. 422
Engine Oil................................................. 423
Engine Oil Life System.............................. 426
Engine Air Cleaner/Filter............................ 428
Automatic Transaxle Fluid......................... 430Engine Coolant.......................................... 432
Radiator Pressure Cap.............................. 435
Engine Overheating................................... 435
Overheated Engine Protection
Operating Mode..................................... 437
Cooling System......................................... 438
Power Steering Fluid ................................. 443
Windshield Washer Fluid........................... 444
Brakes...................................................... 445
Battery...................................................... 449
Jump Starting............................................ 450
Bulb Replacement....................................... 455
Halogen Bulbs........................................... 455
Headlamps and Sidemarker Lamps........... 456
Front Turn Signal, Parking and Daytime
Running Lamps (DRL)........................... 457
Taillamps, Turn Signal, Stoplamps and
Back-up Lamps...................................... 458
License Plate Lamp................................... 459
Replacement Bulbs................................... 460
Windshield Wiper Blade Replacement....... 460
Section 5 Service and Appearance Care
409
ProCarManuals.com

A. Underhood Fuse Block. SeeUnderhood Fuse
Block on page 514.
B. Remote Positive (+) Terminal. SeeJump
Starting on page 450.
C. Windshield Washer Fluid Reservoir. See
“Adding Washer Fluid” underWindshield
Washer Fluid on page 444.
D. Radiator Pressure Cap. SeeRadiator Pressure
Cap on page 435.
E. Power Steering Fluid Reservoir. SeePower
Steering Fluid on page 443.
F. Engine Oil Fill Cap. See “When to Add Engine
Oil” underEngine Oil on page 423.
G. Engine Oil Dipstick. See “Checking Engine Oil”
underEngine Oil on page 423.
H. Automatic Transaxle Fluid Dipstick. See
“Checking the Fluid Level” underAutomatic
Transaxle Fluid on page 430.
I. Brake Master Cylinder Reservoir. See “Brake
Fluid” underBrakes on page 445.
J. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 428.
K. Engine Coolant Recovery Tank. SeeCooling
System on page 438.Engine Oil
Checking Engine Oil
It is a good idea to check the engine oil every time
you get fuel. In order to get an accurate reading,
the oil must be warm and the vehicle must be
on level ground.
The engine oil dipstick handle is a yellow loop.
SeeEngine Compartment Overview on page 422
for the location of the engine oil dipstick.
1. Turn off the engine and give the oil
several minutes to drain back into the oil pan.
If you do not do this, the oil dipstick might
not show the actual level.
2. Pull out the dipstick and clean it with a paper
towel or cloth, then push it back in all the
way. Remove it again, keeping the tip down,
and check the level.
423
ProCarManuals.com

Battery
Your vehicle has a maintenance free battery.
When it is time for a new battery, get one that has
the replacement number shown on the original
battery’s label. We recommend an ACDelco
®
replacement battery.
Warning:Battery posts, terminals, and related
accessories contain lead and lead compounds,
chemicals known to the State of California
to cause cancer and reproductive harm.
Wash hands after handling.
Vehicle Storage
If you are not going to drive your vehicle
for 25 days or more, remove the black,
negative (−) cable from the battery. This will
help keep your battery from running down.
{CAUTION:
Batteries have acid that can burn you and
gas that can explode. You can be badly
hurt if you are not careful. SeeJump
Starting on page 450for tips on working
around a battery without getting hurt.
449
ProCarManuals.com

Jump Starting
If your vehicle’s battery has run down, you may
want to use another vehicle and some jumper
cables to start your vehicle. Be sure to use
the following steps to do it safely.
On vehicles equipped with the optional power
sliding door, a low-voltage battery or replacing
a battery may cause the system to become
inoperative. SeePower Sliding Door (PSD)
on page 121for more information.{CAUTION:
Batteries can hurt you. They can be
dangerous because:
They contain acid that can burn you.
They contain gas that can explode
or ignite.
They contain enough electricity to
burn you.
If you do not follow these steps exactly,
some or all of these things can hurt you.
Notice:Ignoring these steps could result
in costly damage to your vehicle that would
not be covered by your warranty.
450
ProCarManuals.com

Trying to start your vehicle by pushing or
pulling it will not work, and it could damage
your vehicle.
1. Check the other vehicle. It must have a
12-volt battery with a negative ground system.
Notice:If the other vehicle’s system is not a
12-volt system with a negative ground,
both vehicles can be damaged. Only use
vehicles with 12-volt systems with negative
grounds to jump start your vehicle.
2. Get the vehicles close enough so the jumper
cables can reach, but be sure the vehicles are
not touching each other. If they are, it could
cause a ground connection you do not
want. You would not be able to start your
vehicle, and the bad grounding could damage
the electrical systems.
To avoid the possibility of the vehicles rolling,
set the parking brake rmly on both vehicles
involved in the jump start procedure. Put
an automatic transaxle in PARK (P) or
a manual transaxle in NEUTRAL before
setting the parking brake.Notice:If you leave your radio or other
accessories on during the jump starting
procedure, they could be damaged. The repairs
would not be covered by your warranty.
Always turn off your radio and other
accessories when jump starting your vehicle.
3. Turn off the ignition on both vehicles.
Unplug unnecessary accessories plugged into
the cigarette lighter or the accessory power
outlet. Turn off the radio and all lamps that are
not needed. This will avoid sparks and help
save both batteries. And it could save
the radio!
4. Open the hoods and locate the batteries.
Find the positive (+) and negative (−)
terminal locations on each vehicle.
You will not need to access your battery for
jump starting. Your vehicle has a remote
positive (+) jump starting terminal for
that purpose.
451
ProCarManuals.com

9. Connect the other end of the negative (−)
cable at least 18 inches (45 cm) away from
the dead battery, but not near engine
parts that move. The electrical connection
is just as good there, and the chance of
sparks getting back to the battery is
much less.
10. Now start the vehicle with the good battery
and run the engine for a while.
11. Try to start the vehicle that had the dead
battery. If it will not start after a few tries,
it probably needs service.
Notice:If the jumper cables are connected
or removed in the wrong order, electrical
shorting may occur and damage the vehicle.
The repairs would not be covered by your
warranty. Always connect and remove
the jumper cables in the correct order,
making sure that the cables do not touch
each other or other metal.A. Heavy, Unpainted Metal Engine Part or
Remote Negative (−) Terminal
B. Good Battery or Remote Positive (+) Terminal
and Remote Negative (−) Terminals
C. Dead Battery or Remote Positive (+) Terminal
Jumper Cable Removal
454
ProCarManuals.com

Who is Covered?
Roadside Assistance coverage is for the vehicle
operator, regardless of ownership. A person driving
this vehicle without the consent of the owner is
not eligible for coverage.
The following services are provided in the U.S.
during the Bumper-to-Bumper warranty period and
in Canada, during the Base Warranty coverage
period of the New Vehicle Limited Warranty, up to
a maximum coverage of $100.
Fuel Delivery:Delivery of enough fuel for the
customer to get to the nearest service station
(approximately $5 in the U.S. and 10 litres
in Canada). Service to provide diesel may
be restricted. For safety reasons, propane
and other alternative fuels will not be provided
through this service.
Lock-out Service:To ensure security, the
driver must present the vehicle registration and
personal ID before lock-out service is provided.
Lock-out service will be covered at no charge if
you are unable to gain entry into your vehicle.If you vehicle will not start, Roadside
Assistance will arrange to have your vehicle
towed to the nearest authorized retailer. In the
U.S., replacement keys made at the customer’s
expense will be delivered within 10 miles.
Emergency Tow From a Public Roadway
or Highway:Tow to the nearest Saturn retailer
for warranty service or in the event of a
vehicle-disabling accident. Winch-out
assistance provided when the vehicle is mired
in sand, mud, or snow.
Flat Tire Change:If your vehicle has a spare
time, installation of that tire, in good condition,
will be covered at no charge. The customer is
responsible for the repair or replacement of the
tire if not covered by a warrantable failure.
Jump Start:No-start occurrences which
require a battery jump start will be covered
at no charge.
544
ProCarManuals.com

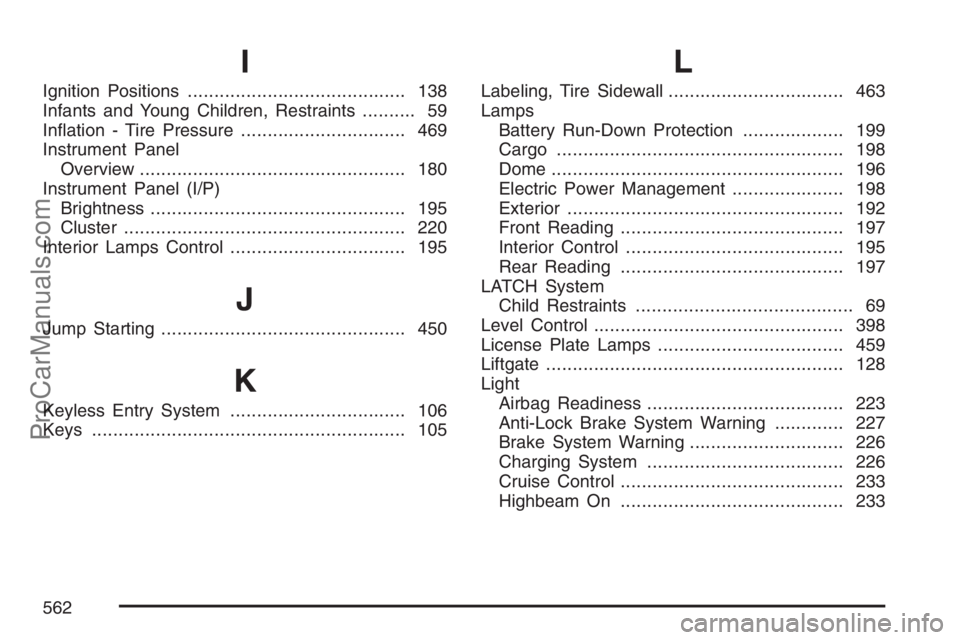

I
Ignition Positions......................................... 138
Infants and Young Children, Restraints.......... 59
Ination - Tire Pressure............................... 469
Instrument Panel
Overview.................................................. 180
Instrument Panel (I/P)
Brightness................................................ 195
Cluster..................................................... 220
Interior Lamps Control................................. 195
J
Jump Starting.............................................. 450
K
Keyless Entry System................................. 106
Keys........................................................... 105
L
Labeling, Tire Sidewall................................. 463
Lamps
Battery Run-Down Protection................... 199
Cargo...................................................... 198
Dome....................................................... 196
Electric Power Management..................... 198
Exterior.................................................... 192
Front Reading.......................................... 197
Interior Control......................................... 195
Rear Reading.......................................... 197
LATCH System
Child Restraints......................................... 69
Level Control............................................... 398
License Plate Lamps................................... 459
Liftgate........................................................ 128
Light
Airbag Readiness..................................... 223
Anti-Lock Brake System Warning............. 227
Brake System Warning............................. 226
Charging System..................................... 226
Cruise Control.......................................... 233
Highbeam On.......................................... 233
562
ProCarManuals.com
