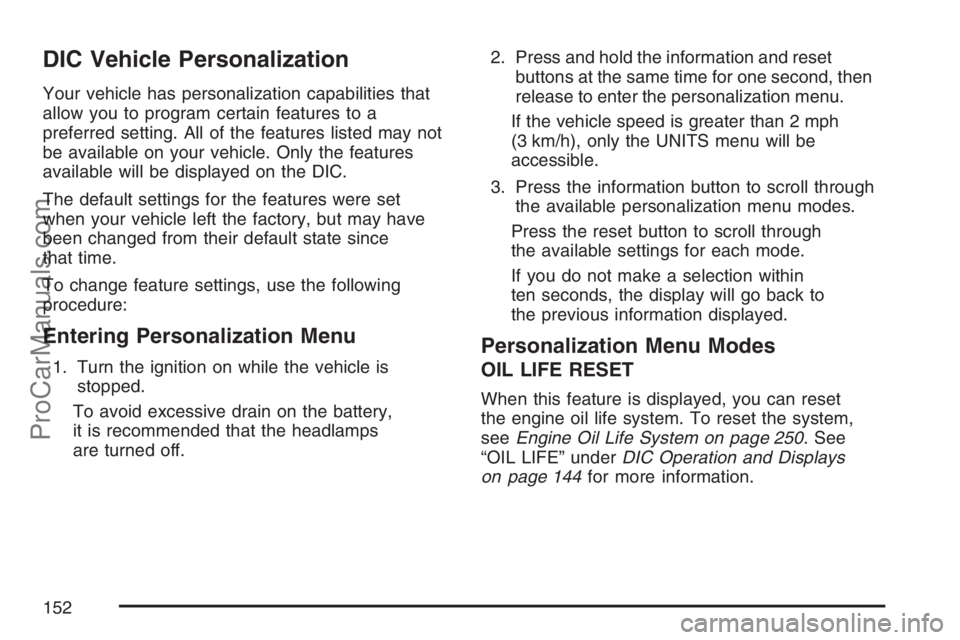

DIC Vehicle Personalization
Your vehicle has personalization capabilities that
allow you to program certain features to a
preferred setting. All of the features listed may not
be available on your vehicle. Only the features
available will be displayed on the DIC.
The default settings for the features were set
when your vehicle left the factory, but may have
been changed from their default state since
that time.
To change feature settings, use the following
procedure:
Entering Personalization Menu
1. Turn the ignition on while the vehicle is
stopped.
To avoid excessive drain on the battery,
it is recommended that the headlamps
are turned off.2. Press and hold the information and reset
buttons at the same time for one second, then
release to enter the personalization menu.
If the vehicle speed is greater than 2 mph
(3 km/h), only the UNITS menu will be
accessible.
3. Press the information button to scroll through
the available personalization menu modes.
Press the reset button to scroll through
the available settings for each mode.
If you do not make a selection within
ten seconds, the display will go back to
the previous information displayed.
Personalization Menu Modes
OIL LIFE RESET
When this feature is displayed, you can reset
the engine oil life system. To reset the system,
seeEngine Oil Life System on page 250. See
“OIL LIFE” underDIC Operation and Displays
on page 144for more information.
152
ProCarManuals.com

Remember: Any Anti-Lock Brake System (ABS)
helps avoid only the braking skid.
If the ABS is ever disabled, in a braking skid,
where the wheels are no longer rolling, release
enough pressure on the brakes to get the wheels
rolling again. This restores steering control.
Push the brake pedal down steadily when you
have to stop suddenly. As long as the wheels are
rolling, you will have steering control.
Driving at Night
Night driving is more dangerous than day driving.
One reason is that some drivers are likely to
be impaired — by alcohol or drugs, with night
vision problems, or by fatigue.
Here are some tips on night driving.
Drive defensively.
Do not drink and drive.
Adjust the inside rearview mirror to reduce the
glare from headlamps behind you.
Since you cannot see as well, you may need
to slow down and keep more space between
you and other vehicles.
Slow down, especially on higher speed roads.
Your vehicle’s headlamps can light up only so
much road ahead.
In remote areas, watch for animals.
If you are tired, pull off the road in a safe
place and rest.
No one can see as well at night as in the daytime.
But as we get older these differences increase.
A 50-year-old driver may require at least twice as
much light to see the same thing at night as a
20-year-old.
What you do in the daytime can also affect your
night vision. For example, if you spend the
day in bright sunshine you are wise to wear
sunglasses. Your eyes will have less trouble
adjusting to night. But if you are driving, do not
wear sunglasses at night. They may cut down on
glare from headlamps, but they also make a
lot of things invisible.
You can be temporarily blinded by approaching
headlamps. It can take a second or two, or
even several seconds, for your eyes to re-adjust
to the dark.
209
ProCarManuals.com

When you are faced with severe glare, as from a
driver who does not lower the high beams, or
a vehicle with misaimed headlamps, slow down a
little. Avoid staring directly into the approaching
headlamps.
Keep the windshield and all the glass on your
vehicle clean — inside and out. Glare at night is
made much worse by dirt on the glass. Even
the inside of the glass can build up a lm caused
by dust. Dirty glass makes lights dazzle and
ash more than clean glass would, making the
pupils of your eyes contract repeatedly.
Remember that the headlamps light up far less of a
roadway when you are in a turn or curve. Keep your
eyes moving; that way, it is easier to pick out dimly
lighted objects. Just as the headlamps should be
checked regularly for proper aim, so should your
eyes be examined regularly. Some drivers suffer
from night blindness — the inability to see in dim
light — and are not even aware of it.Driving in Rain and on Wet Roads
Rain and wet roads can mean driving trouble. On a
wet road, you cannot stop, accelerate, or turn as
well because your tire-to-road traction is not as
good as on dry roads. And, if your tires do not have
much tread left, you will get even less traction. It is
always wise to go slower and be cautious if rain
starts to fall while you are driving. The surface may
get wet suddenly when your reexes are tuned for
driving on dry pavement.
210
ProCarManuals.com

{CAUTION:
Snow can trap exhaust gases under your
vehicle. This can cause deadly CO (carbon
monoxide) gas to get inside. CO could
overcome you and kill you. You cannot see
it or smell it, so you might not know it is in
your vehicle. Clear away snow from around
the base of your vehicle, especially any
that is blocking your exhaust pipe. And
check around again from time to time to be
sure snow does not collect there.
Open a window just a little on the side of
the vehicle that is away from the wind.
This will help keep CO out.Run your engine only as long as you must. This
saves fuel. When you run the engine, make it go
a little faster than just idle. That is, push the
accelerator slightly. This uses less fuel for the heat
that you get and it keeps the battery charged.
You will need a well-charged battery to restart the
vehicle, and possibly for signaling later on with
your headlamps. Let the heater run for a while.
Then, shut the engine off and close the window
almost all the way to preserve the heat. Start
the engine again and repeat this only when you
feel really uncomfortable from the cold. But do it as
little as possible. Preserve the fuel as long as
you can. To help keep warm, you can get out of
the vehicle and do some fairly vigorous exercises
every half hour or so until help comes.
223
ProCarManuals.com

Service........................................................ 233
Accessories and Modications................... 233
California Proposition 65 Warning.............. 234
Doing Your Own Service Work.................. 234
Adding Equipment to the Outside
of Your Vehicle...................................... 235
Fuel............................................................. 235
Gasoline Octane........................................ 235
Gasoline Specications.............................. 236
California Fuel........................................... 236
Additives................................................... 236
Fuels in Foreign Countries........................ 237
Filling the Tank......................................... 238
Filling a Portable Fuel Container............... 240
Checking Things Under the Hood.............. 240
Hood Release........................................... 241
Engine Compartment Overview.................. 242
Engine Oil................................................. 245
Engine Oil Life System.............................. 250
Engine Air Cleaner/Filter............................ 252
Automatic Transmission Fluid.................... 254
Manual Transmission Fluid........................ 254
Hydraulic Clutch........................................ 254Engine Coolant.......................................... 255
Coolant Surge Tank Pressure Cap............ 258
Engine Overheating................................... 258
Cooling System......................................... 260
Power Steering Fluid ................................. 266
Windshield Washer Fluid........................... 267
Brakes...................................................... 268
Battery...................................................... 271
Jump Starting............................................ 272
Rear Axle.................................................... 278
Headlamp Aiming........................................ 278
Bulb Replacement....................................... 279
Halogen Bulbs........................................... 279
Headlamps and Parking Lamps................. 279
Front Turn Signal, Parking and
Fog Lamps............................................ 280
Taillamps, Turn Signal, Stoplamps
and Sidemarker Lamps.......................... 281
Back-Up Lamps......................................... 282
License Plate Lamp................................... 282
Replacement Bulbs................................... 283
Windshield Wiper Blade Replacement....... 283
Section 5 Service and Appearance Care
231
ProCarManuals.com

Tires............................................................ 284
Winter Tires.............................................. 286
Tire Sidewall Labeling............................... 287
Tire Terminology and Denitions............... 289
Ination - Tire Pressure............................. 292
Tire Inspection and Rotation...................... 294
When It Is Time for New Tires.................. 296
Buying New Tires...................................... 296
Different Size Tires and Wheels................ 298
Uniform Tire Quality Grading..................... 299
Wheel Alignment and Tire Balance............ 300
Wheel Replacement.................................. 300
Tire Chains............................................... 303
If a Tire Goes Flat.................................... 303
Tire Inator Kit.......................................... 304
Appearance Care........................................ 315
Cleaning the Inside of Your Vehicle.......... 315
Fabric/Carpet............................................. 316
Leather...................................................... 317
Instrument Panel, Vinyl, and
Other Plastic Surfaces........................... 317
Care of Safety Belts.................................. 318
Weatherstrips............................................ 318
Washing Your Vehicle............................... 318Cleaning Exterior Lamps/Lenses................ 319
Finish Care............................................... 319
Windshield and Wiper Blades.................... 319
Convertible Top......................................... 320
Aluminum or Chrome-Plated Wheels......... 320
Tires......................................................... 321
Sheet Metal Damage................................. 321
Finish Damage.......................................... 322
Underbody Maintenance............................ 322
Chemical Paint Spotting............................ 322
Vehicle Care/Appearance Materials............ 323
Vehicle Identication.................................. 324
Vehicle Identication Number (VIN)........... 324
Service Parts Identication Label............... 324
Electrical System........................................ 325
Add-On Electrical Equipment..................... 325
Headlamp Wiring....................................... 325
Power Windows and Other
Power Options....................................... 325
Fuses and Circuit Breakers....................... 325
Floor Console Fuse Block......................... 326
Underhood Fuse Block.............................. 328
Capacities and Specications.................... 331
Section 5 Service and Appearance Care
232
ProCarManuals.com

Rear Axle
When to Check Lubricant
It is not necessary to regularly check rear axle
uid unless you suspect there is a leak or you hear
an unusual noise. A uid loss could indicate a
problem. Have it inspected and repaired.
How to Check Lubricant
To get an accurate reading, the vehicle should be
on a level surface.If the level is below the bottom of the ller plug
hole, located on the rear axle, you’ll need to add
some lubricant. Add enough lubricant to raise
the level to the bottom of the ller plug hole.
What to Use
Refer to the Maintenance Schedule to determine
what kind of lubricant to use. SeeRecommended
Fluids and Lubricants on page 345.
Headlamp Aiming
Headlamp aim has been preset at the factory and
should need no further adjustment.
If your vehicle is damaged in an accident, the
headlamp aim may be affected. Aim adjustment to
the low-beam headlamps may be necessary if it
is difficult to see the lane markers (for horizontal
aim), or if oncoming drivers ash their high-beam
headlamps at you (for vertical aim). If you
believe your headlamps need to be re-aimed, we
recommend that you take your vehicle to your
retailer for service.
278
ProCarManuals.com

Bulb Replacement
For the type of bulb to use, seeReplacement
Bulbs on page 283.
For any bulb changing procedure not listed in
this section, contact your retailer.
Halogen Bulbs
{CAUTION:
Halogen bulbs have pressurized gas
inside and can burst if you drop or
scratch the bulb. You or others could be
injured. Be sure to read and follow the
instructions on the bulb package.
Headlamps and Parking Lamps
A. High-beam Headlamp
B. Low-beam Headlamp
C. Parking Lamp
279
ProCarManuals.com

To replace one of these bulbs, do the following:
1. Open the hood. SeeHood Release
on page 241for more information.
2. Remove the bulb access cover from the bulb
(high or low-beam only) you need to change.
3. Turn the bulb socket counterclockwise and
pull it from the headlamp assembly.
4. Remove the electrical connector from the
bulb socket.
5. Holding the base of the socket, pull the old
bulb from the socket.
6. Install a new bulb.
7. Reverse Steps 2 through 5 to reinstall.Front Turn Signal, Parking and
Fog Lamps
A. Front Turn Signal/
Parking Lamp
B. Fog Lamp
To replace one of these bulbs, do the following:
1. Open the hood. SeeHood Release on
page 241for more information.
2. Reach underneath the front bumper and
locate the bulb assembly.
3. Turn the bulb socket counterclockwise and
pull out the bulb assembly.
4. Disconnect the bulb socket from the electrical
connector.
5. Install a new bulb.
6. Reverse the steps to reinstall.
280
ProCarManuals.com

Replacement Bulbs
Exterior Lamp Bulb Number
Back-Up, Stoplamp,
Taillamp and Turn Signal3157K
Fog Lamp H11
Front Parking Lamp
(In Headlamp Assembly)W5W-B50X2
Front Parking/Turn Signal Lamp
(Below Headlamp Assembly)5702KA
Front and Rear Sidemarker Lamp 194
License Plate Lamp 168
Headlamps
High-Beam H9
Low-Beam H11
For replacement bulbs not listed here, contact
your retailer.
Windshield Wiper Blade
Replacement
Windshield wiper blades should be inspected for
wear and cracking. SeeScheduled Maintenance
on page 336for more information.
Replacement blades come in different types and
are removed in different ways. For proper type and
length, seeNormal Maintenance Replacement
Parts on page 347.
To replace the windshield wiper blade assembly
do the following:
1. Lift the wiper arm away from the windshield.
283
ProCarManuals.com
