7. Push and pull the child restraint in different
directions to be sure it is secure.
8. If the airbag is off, the off indicator on the
instrument panel will be lit and stay lit
when the vehicle is started.
If a child restraint has been installed and the on
indicator is lit, turn the vehicle off. Remove
the child restraint from the vehicle and reinstall
the child restraint.
If, after reinstalling the child restraint and restarting
the vehicle, the on indicator is still lit, check to
make sure that the vehicle’s seatback is not
pressing the child restraint into the seat cushion.
If this happens, slightly recline the vehicle’s
seatback and adjust the seat cushion if possible.A thick layer of additional material such as a
blanket, or aftermarket equipment such as seat
covers, seat heaters and seat massagers, located
between the seat cushion and the child restraint
or small occupant, can affect how the passenger
sensing system operates. Remove any additional
material from the seat cushion before reinstalling
or securing the child restraint and before a
small occupant, including a small adult, sits in
the passenger position.
If the on indicator is still lit, do not install a child
restraint in this vehicle and check with your retailer.
To remove the child restraint, just unbuckle the
vehicle’s safety belt and let it go back all the way.
The safety belt will move freely again and be
ready to work for an adult or larger child
passenger.
42
ProCarManuals.com

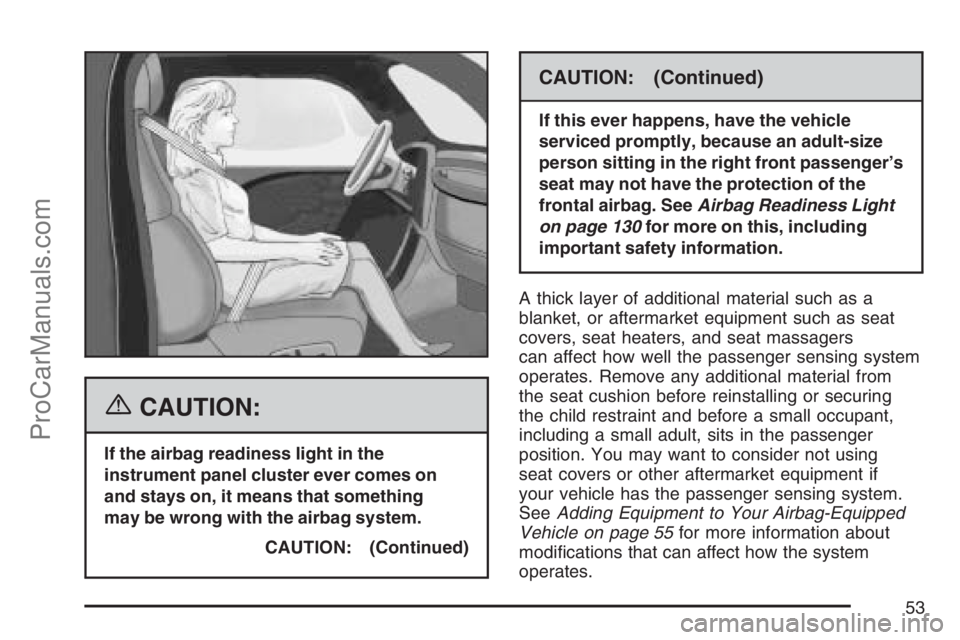

{CAUTION:
If the airbag readiness light in the
instrument panel cluster ever comes on
and stays on, it means that something
may be wrong with the airbag system.
CAUTION: (Continued)
CAUTION: (Continued)
If this ever happens, have the vehicle
serviced promptly, because an adult-size
person sitting in the right front passenger’s
seat may not have the protection of the
frontal airbag. SeeAirbag Readiness Light
on page 130for more on this, including
important safety information.
A thick layer of additional material such as a
blanket, or aftermarket equipment such as seat
covers, seat heaters, and seat massagers
can affect how well the passenger sensing system
operates. Remove any additional material from
the seat cushion before reinstalling or securing
the child restraint and before a small occupant,
including a small adult, sits in the passenger
position. You may want to consider not using
seat covers or other aftermarket equipment if
your vehicle has the passenger sensing system.
SeeAdding Equipment to Your Airbag-Equipped
Vehicle on page 55for more information about
modications that can affect how the system
operates.
53
ProCarManuals.com

{CAUTION:
Snow can trap exhaust gases under your
vehicle. This can cause deadly CO (carbon
monoxide) gas to get inside. CO could
overcome you and kill you. You cannot see
it or smell it, so you might not know it is in
your vehicle. Clear away snow from around
the base of your vehicle, especially any
that is blocking your exhaust pipe. And
check around again from time to time to be
sure snow does not collect there.
Open a window just a little on the side of
the vehicle that is away from the wind.
This will help keep CO out.Run your engine only as long as you must. This
saves fuel. When you run the engine, make it go
a little faster than just idle. That is, push the
accelerator slightly. This uses less fuel for the heat
that you get and it keeps the battery charged.
You will need a well-charged battery to restart the
vehicle, and possibly for signaling later on with
your headlamps. Let the heater run for a while.
Then, shut the engine off and close the window
almost all the way to preserve the heat. Start
the engine again and repeat this only when you
feel really uncomfortable from the cold. But do it as
little as possible. Preserve the fuel as long as
you can. To help keep warm, you can get out of
the vehicle and do some fairly vigorous exercises
every half hour or so until help comes.
223
ProCarManuals.com

Engine Coolant
The cooling system in your vehicle is lled with
DEX-COOL®engine coolant. This coolant is
designed to remain in your vehicle for ve years
or 150,000 miles (240 000 km), whichever
occurs rst, if you add only DEX-COOL
®extended
life coolant.
The following explains your cooling system and
how to add coolant when it is low. If you have
a problem with engine overheating, seeEngine
Overheating on page 258.
A 50/50 mixture of clean, drinkable water and
DEX-COOL
®coolant will:
Give freezing protection down to−34°F (−37°C).
Give boiling protection up to 265°F (129°C).
Protect against rust and corrosion.
Help keep the proper engine temperature.
Let the warning lights and gages work as they
should.
Notice:Using coolant other than DEX-COOL
®
may cause premature engine, heater core,
or radiator corrosion. In addition, the engine
coolant may require changing sooner, at
the rst maintenance service after each
30,000 miles (50 000 km) or 24 months,
whichever occurs rst. Any repairs would
not be covered by your warranty. Always use
DEX-COOL
®(silicate-free) coolant in your
vehicle.
255
ProCarManuals.com

What to Use
Use a mixture of one-half clean, drinkable water
and one-half DEX-COOL®coolant which will
not damage aluminum parts. If you use this coolant
mixture, you do not need to add anything else.
{CAUTION:
Adding only plain water to your cooling
system can be dangerous. Plain water, or
some other liquid such as alcohol, can
boil before the proper coolant mixture will.
Your vehicle’s coolant warning system is
set for the proper coolant mixture. With
plain water or the wrong mixture, your
engine could get too hot but you would
not get the overheat warning. Your engine
could catch re and you or others could
be burned. Use a 50/50 mixture of clean,
drinkable water and DEX-COOL
®coolant.Notice:If you use an improper coolant
mixture, your engine could overheat and be
badly damaged. The repair cost would not be
covered by your warranty. Too much water
in the mixture can freeze and crack the engine,
radiator, heater core, and other parts.
If you have to add coolant more than four times
a year, have your retailer check your cooling
system.
Notice:If you use extra inhibitors and/or
additives in your vehicle’s cooling system,
you could damage your vehicle. Use only
the proper mixture of the engine coolant
listed in this manual for the cooling system.
SeeRecommended Fluids and Lubricants
on page 345for more information.
256
ProCarManuals.com

If Steam Is Coming From Your Engine
{CAUTION:
Steam from an overheated engine can
burn you badly, even if you just open the
hood. Stay away from the engine if you
see or hear steam coming from it. Just
turn it off and get everyone away from
the vehicle until it cools down. Wait until
there is no sign of steam or coolant
before you open the hood.
If you keep driving when your engine is
overheated, the liquids in it can catch re.
You or others could be badly burned.
Stop your engine if it overheats, and get
out of the vehicle until the engine is cool.
Notice:If your engine catches re because
you keep driving with no coolant, your vehicle
can be badly damaged. The costly repairs
would not be covered by your warranty.
If No Steam Is Coming From
Your Engine
An engine coolant temperature warning can
indicate a serious problem. SeeEngine Coolant
Temperature Warning Light on page 137.
If you get an engine coolant temperature warning,
but see or hear no steam, the problem may not
be too serious. Sometimes the engine can
get a little too hot when you:
Climb a long hill on a hot day.
Stop after high-speed driving.
Idle for long periods in traffic.
If you get the engine coolant temperature warning
with no sign of steam, try this for a minute or so:
1. If your air conditioner is on, turn it off.
2. In heavy traffic, let the engine idle in
NEUTRAL (N) while stopped. If it is safe to
do so, pull off the road, shift to PARK (P)
or NEUTRAL (N) and let the engine idle.
3. Turn on your heater to full hot at the highest fan
speed and open the windows as necessary.
259
ProCarManuals.com

The coolant level should be at the COLD FILL line.
If it is not, you may have a leak at the pressure cap
or in the radiator hoses, heater hoses, radiator,
water pump, or somewhere in the cooling system.
{CAUTION:
Heater and radiator hoses, and other
engine parts, can be very hot. Do not
touch them. If you do, you can be burned.
Do not run the engine if there is a leak.
If you run the engine, it could lose all
coolant. That could cause an engine re,
and you could be burned. Get any leak
xed before you drive the vehicle.
If there seems to be no leak, with the engine on,
check to see if the electric engine cooling fan
are running. If the engine is overheating, the fan
should be running. If they are not, your vehicle
needs service.
Notice:Engine damage from running your
engine without coolant is not covered by your
warranty.Notice:Using coolant other than DEX-COOL
®
may cause premature engine, heater core,
or radiator corrosion. In addition, the engine
coolant could require changing sooner,
at 30,000 miles (50 000 km) or 24 months,
whichever occurs rst. Any repairs would
not be covered by your warranty. Always use
DEX-COOL
®(silicate-free) coolant in your
vehicle.
How to Add Coolant to the Coolant
Surge Tank
Notice:Your engine has a specic cooling
system drain and ll procedure. Failure
to follow this procedure could cause your
engine to overheat and be severely damaged.
If your engine’s cooling system needs to
be drained and re-lled, please see your dealer.
If you have not found a problem yet, check to
see if coolant is visible in the coolant surge tank.
262
ProCarManuals.com

If coolant is visible but the coolant level is not at
the COLD FILL line, add a 50/50 mixture of clean,
drinkable water and DEX-COOL
®coolant at the
coolant surge tank, but be sure the cooling system,
including the coolant surge tank pressure cap, is
cool before you do it. SeeEngine Coolant on
page 255for more information.
If no coolant is visible in the coolant surge tank,
add coolant as follows:
{CAUTION:
Steam and scalding liquids from a hot
cooling system can blow out and burn
you badly. They are under pressure, and if
you turn the coolant surge tank pressure
cap — even a little — they can come out at
high speed. Never turn the cap when the
cooling system, including the coolant
surge tank pressure cap, is hot. Wait for
the cooling system and coolant surge
tank pressure cap to cool if you ever have
to turn the pressure cap.
{CAUTION:
Adding only plain water to your cooling
system can be dangerous. Plain water, or
some other liquid such as alcohol, can
boil before the proper coolant mixture will.
Your vehicle’s coolant warning system is
set for the proper coolant mixture. With
plain water or the wrong mixture, your
engine could get too hot but you would
not get the overheat warning. Your engine
could catch re and you or others could
be burned. Use a 50/50 mixture of clean,
drinkable water and DEX-COOL
®coolant.
Notice:In cold weather, water can freeze and
crack the engine, radiator, heater core and
other parts. Use the recommended coolant and
the proper coolant mixture.
263
ProCarManuals.com

Floor Console Fuse Block
The oor console fuse block is located on the
passenger’s side of the vehicle under the carpet.
Remove the fuse block cover to access the
fuses. Use the fuse puller to remove fuses.
After re-installing the fuse block cover, be sure to
tuck the carpet under the heater oor outlets.
Fuses Usage
1 Fuse Puller
2 Empty
3 Empty
4 Empty
5 Empty
326
ProCarManuals.com

Fuel............................................................ 235
Additives.................................................. 236
California Fuel.......................................... 236
Filling a Portable Fuel Container.............. 240
Filling Your Tank...................................... 238
Fuels in Foreign Countries....................... 237
Gage....................................................... 143
Gasoline Octane...................................... 235
Gasoline Specications............................ 236
Low Warning Light................................... 143
Fuses
Floor Console Fuse Block........................ 326
Fuses and Circuit Breakers...................... 325
Underhood Fuse Block............................. 328
G
Gage
Fuel......................................................... 143
Speedometer........................................... 129
Tachometer.............................................. 129
Gasoline
Octane..................................................... 235
Specications........................................... 236Glove Box..................................................... 99
GM Mobility Reimbursement Program.......... 359
H
Hazard Warning Flashers............................ 110
Headlamp
Aiming..................................................... 278
Headlamp Wiring......................................... 325
Headlamps.................................................. 118
Bulb Replacement.................................... 279
Daytime Running Lamps.......................... 119
Flash-to-Pass........................................... 112
Front Turn Signal, Parking and Fog
Lamps.................................................. 280
Halogen Bulbs......................................... 279
Headlamps and Parking Lamps................ 279
High/Low Beam Changer ......................... 112
On Reminder........................................... 119
Heater......................................................... 122
Height Adjuster, Driver Seat............................ 9
Highbeam On Light..................................... 142
Highway Hypnosis....................................... 216
Hill and Mountain Roads............................. 216
376
ProCarManuals.com
