Page 105 of 384
Instrument Panel Overview........................ 108
Hazard Warning Flashers.......................... 110
Other Warning Devices............................. 110
Horn.......................................................... 110
Tilt Wheel.................................................. 110
Turn Signal/Multifunction Lever.................. 111
Turn and Lane-Change Signals................. 112
Headlamp High/Low-Beam Changer.......... 112
Flash-to-Pass............................................ 112
Windshield Wipers..................................... 113
Windshield Washer.................................... 114
Cruise Control........................................... 115
Headlamps................................................ 118
Headlamps on Reminder........................... 119
Daytime Running Lamps (DRL)................. 119
Fog Lamps................................................ 120
Instrument Panel Brightness...................... 120
Entry/Exit Lighting...................................... 120
Mirror Reading Lamps............................... 120
Battery Run-Down Protection..................... 121
Accessory Power Outlet(s)........................ 121
Ashtray(s) and Cigarette Lighter................ 122Climate Controls......................................... 122
Climate Control System............................. 122
Outlet Adjustment...................................... 126
Warning Lights, Gages, and Indicators..... 127
Instrument Panel Cluster........................... 128
Speedometer and Odometer...................... 129
Tachometer............................................... 129
Safety Belt Reminder Light........................ 129
Passenger Safety Belt Reminder Light....... 130
Airbag Readiness Light............................. 130
Passenger Airbag Status Indicator............. 131
Charging System Light.............................. 133
Brake System Warning Light..................... 134
Anti-Lock Brake System Warning Light...... 135
Electronic Stability Control (ESC)/
Traction Control System (TCS) Indicator/
Warning Light (2.0L Engine Only)............. 136
Engine Coolant Temperature
Warning Light........................................ 137
Malfunction Indicator Lamp........................ 138
Oil Pressure Light..................................... 141
Section 3 Instrument Panel
105
ProCarManuals.com
Page 109 of 384
The main components of your instrument panel are the following:
A. Side Window Outlets. SeeClimate Control
System on page 122.
B. Air Outlets. SeeOutlet Adjustment on page 126.
C. Turn Signal/Multifunction Lever. SeeTurn
Signal/Multifunction Lever on page 111.
D. Cruise Control Buttons (If Equipped).
SeeCruise Control on page 115.
E. Instrument Panel Cluster. SeeInstrument
Panel Cluster on page 128.
F. Audio Steering Wheel Controls (If Equipped).
SeeAudio Steering Wheel Controls on
page 188.
G. Hazard Warning Flashers Button. SeeHazard
Warning Flashers on page 110.
H. Fog Lamp Button. SeeFog Lamps on page 120.
I. Instrument Panel Brightness Control. See
Instrument Panel Brightness on page 120.
J. Driver Information Center (DIC) Controls. See
Driver Information Center (DIC) on page 144.
K. Horn. SeeHorn on page 110.
L. Windshield Wiper/Washer Controls. See
Windshield Wipers on page 113and
Windshield Washer on page 114.M. Climate Controls. SeeClimate Control System
on page 122.
N. Passenger Air Bag Status Indicator. See
Passenger Airbag Status Indicator on page 131.
O. Shift Lever. SeeManual Transmission
Operation on page 85. SeeAutomatic
Transmission Operation on page 82
(If Equipped).
P. Parking Brake Lever. SeeParking Brake
on page 86.
Q. Audio System. SeeAudio System(s) on
page 158.
R. Electronic Stability Control/Traction Control
System Button. SeeElectronic Stability Control
on page 201.
S. Cigarette Lighter (If Equipped). Accessory
Power Outlet (If Equipped). SeeAshtray(s) and
Cigarette Lighter on page 122andAccessory
Power Outlet(s) on page 121.
T. Cupholder. SeeCupholder(s) on page 99.
U. Trunk Release. SeeTrunk on page 68.
V. Glove Box. SeeGlove Box on page 99.
109
ProCarManuals.com
Page 115 of 384
Cruise Control
With cruise control, your vehicle can maintain a
speed of about 25 mph (40 km/h) or more without
keeping your foot on the accelerator. This can
really help on long trips. Cruise control does not
work at speeds below 25 mph (40 km/h).
{CAUTION:
Cruise control can be dangerous where
you cannot drive safely at a steady speed.
So, do not use your cruise control on
winding roads or in heavy traffic.
Cruise control can be dangerous on
slippery roads. On such roads, fast
changes in tire traction can cause
excessive wheel slip, and you could lose
control. Do not use cruise control on
slippery roads.
Setting Cruise Control
{CAUTION:
If you leave your cruise control on when
you are not using cruise, you might hit a
button and go into cruise when you do not
want to. You could be startled and even
lose control. Keep the cruise control switch
off until you want to use cruise control.
The cruise control
buttons are located on
the left side of the
steering wheel.
J(On/Off):Press this button to turn the cruise
control system on and off. The LED indicator light
will turn on and off when this button is pressed.
115
ProCarManuals.com
Page 136 of 384
Electronic Stability Control (ESC)/
Traction Control System (TCS)
Indicator/Warning Light
(2.0L Engine Only)
This light is located in
the center of the
instrument panel cluster.
For vehicles that have the Electronic Stability
Control (ESC) system or the Traction Control
System (TCS), this warning light should come on
brie y when the engine is started.If the warning light does not come on then, have it
xed so it will be ready to warn you if there is a
problem. This light, along with the appropriate
Driver Information Center (DIC) messages,
indicates when the ESC system and the TCS are
working or are disabled.
If this light is on and not ashing, the TCS and
potentially the ESC system have been disabled.
Check your DIC messaging to determine
which feature(s) is no longer functioning and
whether it is because of the driver turning off the
feature(s), or the system may not be working
properly and your vehicle requires service. If the
TCS is disabled, wheel spin will not be limited.
If the ESC system is disabled, the system will not
aid in maintaining vehicle directional control. In
either case, adjust your driving accordingly.
136
ProCarManuals.com
Page 137 of 384
If the light is on and ashing, the TCS or the
ESC system is actively working. Check the
DIC messaging for details to determine which
system is working. If the LOW TRACTION
message appears, the system is limiting wheel
spin. If the ESC ACTIVE message appears,
the system is aiding in maintaining vehicle
directional control.
SeeElectronic Stability Control on page 201and
Traction Control System (TCS) on page 199
for more information.
SeeDIC Warnings and Messages on page 147
for more information on the messages associated
with this light.Engine Coolant Temperature
Warning Light
The engine coolant
temperature warning
light will come on
when the engine has
overheated.
If this happens you should pull over and turn off
the engine as soon as possible. SeeEngine
Overheating on page 258for more information.
Notice:Driving with the engine coolant
temperature warning light on could cause your
vehicle to overheat. SeeEngine Overheating
on page 258. Your vehicle could be damaged,
and it might not be covered by your warranty.
Never drive with the engine coolant
temperature warning light on.
This light will also come on brie y when starting
your vehicle. If it does not, have your vehicle
serviced.
137
ProCarManuals.com
Page 148 of 384
CHECK GAS CAP
This message displays if the fuel cap has not
been fully tightened. Recheck the fuel cap to make
sure that it is on properly. A few driving trips
with the cap properly installed should turn
the message off.
COMPETITIVE MODE
If your vehicle has this feature, this message
displays when the Competitive Driving mode is
selected. The Traction Control System (TCS) will
not be operating while in the Competitive
Driving mode and the ESC/TCS light on the
instrument panel cluster will be on solid. Adjust
your driving accordingly. SeeElectronic Stability
Control on page 201andElectronic Stability
Control (ESC)/Traction Control System (TCS)
Indicator/Warning Light (2.0L Engine Only)
on page 136for more information.
CRUISE ENGAGED
This message displays when the cruise control
system is active. SeeCruise Control on page 115
for more information.
DOOR AJAR
This message displays if one or more of the
vehicle’s doors are not closed properly. When this
message displays, make sure that the door(s)
are closed completely.
ENGINE DISABLED
This message displays if the starting of the engine
is disabled. Have your vehicle serviced by your
retailer immediately.
148
ProCarManuals.com
Page 149 of 384
ESC (Electronic Stability Control) ACTIVE
If your vehicle has Electronic Stability Control
(ESC), this message displays and the ESC/TCS
light on the instrument panel cluster ashes
when ESC is assisting you with directional control
of the vehicle. You may feel or hear the system
working and see this message displayed in
the DIC. Slippery road conditions may exist when
this message is displayed, so adjust your
driving accordingly. This message may stay on for
a few seconds after ESC stops assisting you
with directional control of the vehicle. This
is normal when the system is operating. See
Electronic Stability Control on page 201and
Electronic Stability Control (ESC)/Traction Control
System (TCS) Indicator/Warning Light (2.0L
Engine Only) on page 136for more information.
ESC (Electronic Stability Control) OFF
If your vehicle has Electronic Stability
Control (ESC), this message displays and the
ESC/TCS light on the instrument panel cluster
comes on solid when ESC is turned off. Adjust
your driving accordingly. SeeElectronic Stability
Control on page 201andElectronic Stability
Control (ESC)/Traction Control System (TCS)
Indicator/Warning Light (2.0L Engine Only)
on page 136for more information.
ICE POSSIBLE
This message displays when the outside air
temperature is cold enough to create icy road
conditions. Adjust your driving accordingly.
KEY FOB BATT (Battery) LOW
This message displays if the Remote Keyless
Entry (RKE) transmitter battery is low. Replace
the battery in the transmitter. See “Battery
Replacement” underRemote Keyless Entry (RKE)
System Operation on page 63.
149
ProCarManuals.com
Page 150 of 384
LOW COOLANT
This message displays when there is a low level
of engine coolant. Have the cooling system
serviced by your retailer as soon as possible.
SeeEngine Coolant on page 255for more
information.
LOW TRACTION
If your vehicle has the Traction Control
System (TCS), this message displays and the
ESC/TCS light on the instrument panel cluster
ashes when the system is actively limiting wheel
spin. Slippery road conditions may exist if this
message is displayed, so adjust your driving
accordingly. This message stays on for a few
seconds after the system stops limiting wheel spin.
SeeTraction Control System (TCS) on page 199
andElectronic Stability Control (ESC)/Traction
Control System (TCS) Indicator/Warning
Light (2.0L Engine Only) on page 136for more
information.
PARKING BRAKE
This message displays if the parking brake is left
engaged. SeeParking Brake on page 86for
more information.
SERVICE AIR BAG
This message displays when there is a problem
with the airbag system. Have your vehicle serviced
by your retailer immediately.
SERVICE ESC (ELECTRONIC STABILITY
CONTROL)
If your vehicle has Electronic Stability
Control (ESC), this message displays and a chime
sounds if there has been a problem detected with
ESC. The ESC/TCS light also appears on the
instrument panel cluster. This light stays on solid as
long as the detected problem remains present.
When this message displays, the system is not
working. Adjust your driving accordingly. See
Electronic Stability Control on page 201and
Electronic Stability Control (ESC)/Traction Control
System (TCS) Indicator/Warning Light (2.0L Engine
Only) on page 136for more information.
150
ProCarManuals.com
Page 151 of 384
If this message turns on while you are driving, pull
off the road as soon as possible and stop carefully.
Try resetting the system by turning the ignition off
and then back on. If this message still stays on or
turns back on again while you are driving, your
vehicle needs service. Have the ESC inspected by
your retailer as soon as possible.
SERVICE TRACTION
If your vehicle has the Traction Control
System (TCS), this message displays and a chime
sounds when the system is not functioning
properly. The ESC/TCS light also appears on the
instrument panel cluster. This light stays on
solid as long as the detected problem remains
present. When this message displays, the system
is not working. Adjust your driving accordingly.
SeeTraction Control System (TCS) on page 199
andElectronic Stability Control (ESC)/Traction
Control System (TCS) Indicator/Warning
Light (2.0L Engine Only) on page 136for more
information. Have the TCS serviced by your
retailer as soon as possible.
TRACTION OFF
If your vehicle has the Traction Control
System (TCS), this message displays and the
ESC/TCS light on the instrument panel cluster
comes on solid when the TCS is turned off. Adjust
your driving accordingly. SeeTraction Control
System (TCS) on page 199andElectronic Stability
Control (ESC)/Traction Control System (TCS)
Indicator/Warning Light (2.0L Engine Only)
on page 136for more information.
TRUNK AJAR
This message displays when the trunk lid is not
closed completely. Make sure that the trunk
lid is closed completely. SeeTrunk on page 68
andTrunk Ajar Light on page 142.
151
ProCarManuals.com
Page 158 of 384

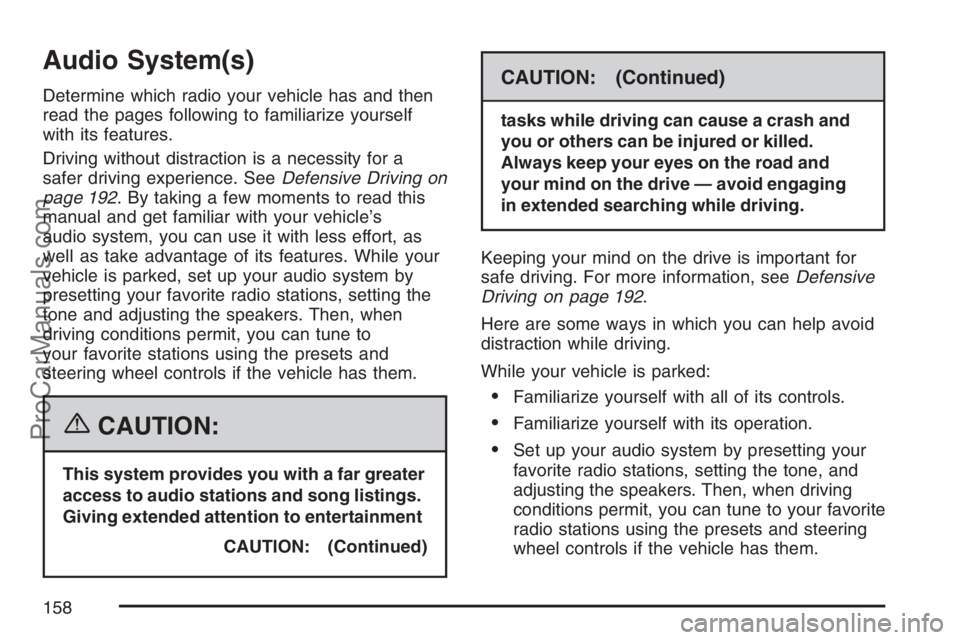

Audio System(s)
Determine which radio your vehicle has and then
read the pages following to familiarize yourself
with its features.
Driving without distraction is a necessity for a
safer driving experience. SeeDefensive Driving on
page 192. By taking a few moments to read this
manual and get familiar with your vehicle’s
audio system, you can use it with less effort, as
well as take advantage of its features. While your
vehicle is parked, set up your audio system by
presetting your favorite radio stations, setting the
tone and adjusting the speakers. Then, when
driving conditions permit, you can tune to
your favorite stations using the presets and
steering wheel controls if the vehicle has them.
{CAUTION:
This system provides you with a far greater
access to audio stations and song listings.
Giving extended attention to entertainment
CAUTION: (Continued)
CAUTION: (Continued)
tasks while driving can cause a crash and
you or others can be injured or killed.
Always keep your eyes on the road and
your mind on the drive — avoid engaging
in extended searching while driving.
Keeping your mind on the drive is important for
safe driving. For more information, seeDefensive
Driving on page 192.
Here are some ways in which you can help avoid
distraction while driving.
While your vehicle is parked:
Familiarize yourself with all of its controls.
Familiarize yourself with its operation.
Set up your audio system by presetting your
favorite radio stations, setting the tone, and
adjusting the speakers. Then, when driving
conditions permit, you can tune to your favorite
radio stations using the presets and steering
wheel controls if the vehicle has them.
158
ProCarManuals.com
