SATURN SKY 2008 Owners Manual

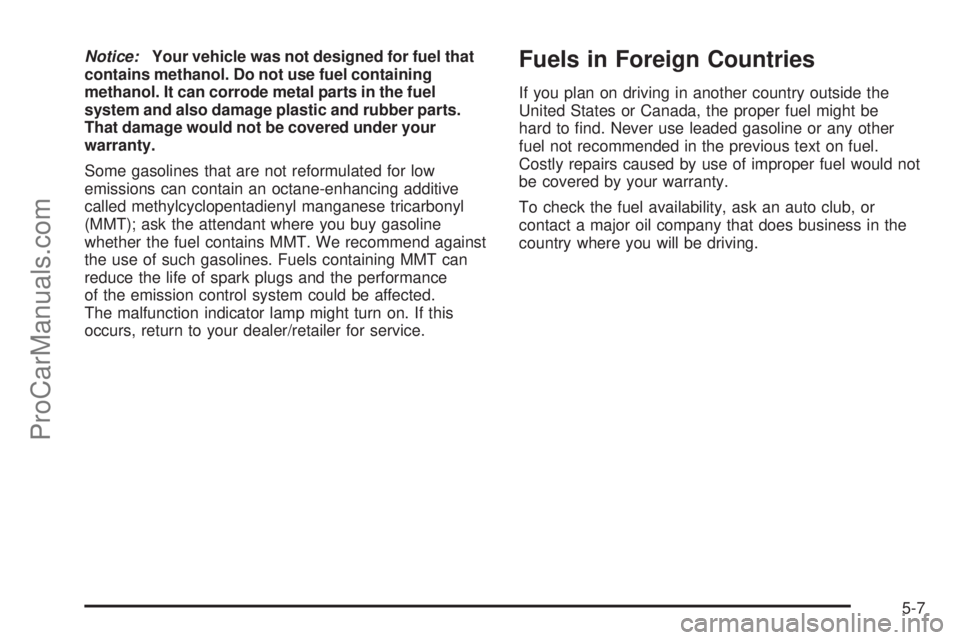

Notice:Your vehicle was not designed for fuel that
contains methanol. Do not use fuel containing
methanol. It can corrode metal parts in the fuel
system and also damage plastic and rubber parts.
That damage would not be covered under your
warranty.
Some gasolines that are not reformulated for low
emissions can contain an octane-enhancing additive
called methylcyclopentadienyl manganese tricarbonyl
(MMT); ask the attendant where you buy gasoline
whether the fuel contains MMT. We recommend against
the use of such gasolines. Fuels containing MMT can
reduce the life of spark plugs and the performance
of the emission control system could be affected.
The malfunction indicator lamp might turn on. If this
occurs, return to your dealer/retailer for service.Fuels in Foreign Countries
If you plan on driving in another country outside the
United States or Canada, the proper fuel might be
hard to nd. Never use leaded gasoline or any other
fuel not recommended in the previous text on fuel.
Costly repairs caused by use of improper fuel would not
be covered by your warranty.
To check the fuel availability, ask an auto club, or
contact a major oil company that does business in the
country where you will be driving.
5-7
ProCarManuals.com

Filling the Tank
{CAUTION:
Fuel vapor burns violently and a fuel re can
cause bad injuries. To help avoid injuries to you
and others, read and follow all the instructions
on the pump island. Turn off your engine when
you are refueling. Do not smoke if you are near
fuel or refueling your vehicle. Do not use
cellular phones. Keep sparks, ames, and
smoking materials away from fuel. Do not leave
the fuel pump unattended when refueling your
vehicle. This is against the law in some places.
Do not re-enter the vehicle while pumping fuel.
Keep children away from the fuel pump; never
let children pump fuel.The tethered fuel cap is located behind a hinged fuel
door on the driver side of the vehicle.
To remove the fuel cap, turn it slowly counterclockwise.
While refueling, hang the tethered fuel cap from the
hook on the fuel door.
5-8
ProCarManuals.com

{CAUTION:
Fuel can spray out on you if you open the fuel
cap too quickly. If you spill fuel and then
something ignites it, you could be badly burned.
This spray can happen if your tank is nearly full,
and is more likely in hot weather. Open the fuel
cap slowly and wait for any hiss noise to stop.
Then unscrew the cap all the way.
Be careful not to spill fuel. Do not top off or overll the
tank and wait a few seconds after you have nished
pumping before removing the nozzle. Clean fuel
from painted surfaces as soon as possible.
SeeWashing Your Vehicle on page 5-87.
When replacing the fuel cap, turn it clockwise until it
clicks. Make sure the cap is fully installed. The diagnostic
system can determine if the fuel cap has been left off or
improperly installed. This would allow fuel to evaporate
into the atmosphere. SeeMalfunction Indicator Lamp
on page 3-32.Your vehicle has a Driver Information Center (DIC).
The CHECK GAS CAP message displays if the fuel cap
is not properly installed. SeeDIC Warnings and
Messages on page 3-41for more information.
{CAUTION:
If a re starts while you are refueling, do not
remove the nozzle. Shut off the ow of fuel by
shutting off the pump or by notifying the
station attendant. Leave the area immediately.
Notice:If you need a new fuel cap, be sure to get
the right type. Your dealer/ retailer can get one
for you. If you get the wrong type, it may not
t properly. This may cause your malfunction
indicator lamp to light and may damage your fuel
tank and emissions system. SeeMalfunction
Indicator Lamp on page 3-32.
5-9
ProCarManuals.com

Filling a Portable Fuel Container
{CAUTION:
Never ll a portable fuel container while it is in
your vehicle. Static electricity discharge from
the container can ignite the fuel vapor. You can
be badly burned and your vehicle damaged if
this occurs. To help avoid injury to you and
others:
Dispense fuel only into approved
containers.
Do not ll a container while it is inside a
vehicle, in a vehicle’s trunk, pickup bed, or
on any surface other than the ground.
Bring the ll nozzle in contact with the
inside of the ll opening before operating
the nozzle. Contact should be maintained
until the lling is complete.
Do not smoke while pumping fuel.
Do not use a cellular phone while
pumping fuel.
Checking Things Under the
Hood
{CAUTION:
An electric fan under the hood can start up
and injure you even when the engine is not
running. Keep hands, clothing, and tools away
from any underhood electric fan.
{CAUTION:
Things that burn can get on hot engine parts
and start a re. These include liquids like fuel,
oil, coolant, brake uid, windshield washer and
other uids, and plastic or rubber. You or
others could be burned. Be careful not to drop
or spill things that will burn onto a hot engine.
5-10
ProCarManuals.com

Hood Release
To open the hood, do the following:
1. Locate the interior
hood release lever.
It is located below the
instrument panel
on the driver’s side of
the vehicle.2. Pull down on the rear
edge of the lever to
release the hood latch.
3. Go to the side of the vehicle and pull up on the
rear edge of the hood, near the windshield to
open the hood.
Notice:Closing the hood with the doors open may
damage the hood and/or doors. Always close the
doors before closing the hood.
Before closing the hood, be sure all the ller caps are
on properly. Then, pull the hood down and close it rmly.
5-11
ProCarManuals.com

Engine Compartment Overview
When you open the hood on the 2.4L L4 engine, this is what you will see:
5-12
ProCarManuals.com

A. Windshield Washer Fluid Reservoir. See “Adding
Washer Fluid” underWindshield Washer Fluid
on page 5-34.
B. Coolant Surge Tank and Pressure Cap. SeeCooling
System on page 5-28.
C. Brake Master Cylinder Reservoir. See “Brake Fluid”
underBrakes on page 5-35andHydraulic Clutch
on page 5-23.
D. Engine Oil Dipstick (Out of View). See “Checking
Engine Oil” underEngine Oil on page 5-15.
E. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 5-21.F. Engine Oil Fill Cap. See “When to Add Engine Oil”
underEngine Oil on page 5-15.
G. Power Steering Fluid Reservoir. SeePower Steering
Fluid on page 5-33.
H. Remote Negative (−) Ground (Out of View).
SeeJump Starting on page 5-39.
I. Battery (Out of View). SeeBattery on page 5-38.
J. Remote Positive (+) Terminal. SeeJump Starting on
page 5-39.
K. Underhood Fuse Block. SeeUnderhood Fuse Block
on page 5-96.
5-13
ProCarManuals.com

When you open the hood on the 2.0L L4 engine, this is what you will see:
5-14
ProCarManuals.com

A. Windshield Washer Fluid Reservoir. See “Adding
Washer Fluid” underWindshield Washer Fluid
on page 5-34.
B. Coolant Surge Tank and Pressure Cap. SeeCooling
System on page 5-28.
C. Brake Master Cylinder Reservoir. See “Brake Fluid”
underBrakes on page 5-35andHydraulic Clutch
on page 5-23.
D. Engine Oil Dipstick. See “Checking Engine Oil”
underEngine Oil on page 5-15.
E. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 5-21.
F. Engine Oil Fill Cap. See “When to Add Engine Oil”
underEngine Oil on page 5-15.
G. Power Steering Fluid Reservoir. SeePower Steering
Fluid on page 5-33.
H. Remote Negative (−) Ground (Out of View).
SeeJump Starting on page 5-39.
I. Battery (Out of View). SeeBattery on page 5-38.
J. Remote Positive (+) Terminal. SeeJump Starting on
page 5-39.
K. Underhood Fuse Block. SeeUnderhood Fuse Block
on page 5-96.Engine Oil
Checking Engine Oil
It is a good idea to check the engine oil every time you
get fuel. In order to get an accurate reading, the oil
must be warm and the vehicle must be on level ground.
The engine oil dipstick handle is a yellow loop.
SeeEngine Compartment Overview on page 5-12for
the location of the engine oil dipstick.
1. Turn off the engine and give the oil several minutes
to drain back into the oil pan. If you do not do this,
the oil dipstick might not show the actual level.
2. Pull the dipstick and clean it with a paper towel or
cloth, then push it back in all the way. Remove it
again, keeping the tip down and check the level.
When to Add Engine Oil
If the oil is below the MIN (minimum) mark, add at
least one quart/liter of the recommended oil.
5-15
ProCarManuals.com

This section explains what kind of oil to use.
For engine oil crankcase capacity, seeCapacities
and Specifications on page 5-99.
Notice:Do not add too much oil. If the engine has
so much oil that the oil level gets above the
upper mark that shows the proper operating range,
the engine could be damaged.
SeeEngine Compartment Overview on page 5-12for
the location of the engine oil ll cap.
Be sure to add enough oil to put the level somewhere in
the proper operating range. Push the dipstick all the
way back in when you are through.What Kind of Engine Oil to Use
For Vehicles With the 2.0L L4 Engine
Look for three things:
GM4718M
Your vehicle’s engine requires a special oil meeting
GM Standard GM4718M, such as Mobil 1
®or
equivalent. Oils meeting this standard may
be identied as synthetic. However, not all synthetic
oils will meet this GM standard. Look for and use
only an oil that meets GM Standard GM4718M. 2.4L L4 Engine
2.0L L4 Engine
