SATURN SKY 2008 Owners Manual
Manufacturer: SATURN, Model Year: 2008, Model line: SKY, Model: SATURN SKY 2008Pages: 342, PDF Size: 5.53 MB
Page 271 of 342
4. Attach the sealant lling hose (A) onto the tire valve
stem. Turn it clockwise until it is tight.
Make sure the sealant and compressor kit on/off
switch (B) is in the O (off) position.
5. Plug the air compressor accessory plug (C) into an
accessory power outlet in the vehicle. SeeAccessory
Power Outlet(s) on page 3-16for more information.
Do not slam door or close window on the
compressor accessory plug cord.
{CAUTION:
Idling the engine in a closed-in place or with
the climate control system off can cause
deadly carbon monoxide (CO). SeeEngine
Exhaust on page 2-27.
6. Start the vehicle. SeeStarting the Engine
(Key Access) on page 2-18for more information.
The vehicle must be running while using the
air compressor.
{CAUTION:
In ating something too much can make it
explode, and you or others could be injured.
Be sure to read the in ator instructions, and
in ate the tire to its recommended pressure.
Do not exceed 36 psi (248 kPa).
5-77
ProCarManuals.com
Page 272 of 342
7. Push the On/Off switch to the I (on) position.
The sealant and compressor kit injects sealant and
air into the tire. Sealant could leak from the
puncture until the vehicle is driven and the puncture
has sealed.
8. The pressure gage will initially show a high pressure
while the compressor pushes the sealant into the
tire. Once the sealant is completely dispersed in
the tire, the pressure will quickly drop and start to
rise again as the tire in ates.
9. In ate the tire to the recommended in ation
pressure, found on the Tire and Loading Information
label located on the vehicle’s center pillar (B-pillar)
below the vehicle’s door latch, using the air
pressure gage on the top of the unit.
The pressure gage reads high while the compressor
is running. Turn the compressor off to get an
accurate pressure reading.
Notice:If the recommended pressure cannot be
reached after 15 minutes, the vehicle should not be
driven. The tire is too severely damaged and
cannot be in ated or sealed with the tire sealant
and compressor kit. Remove the air compressor
accessory plug from the accessory power outlet and
unscrew the sealant lling hose from the tire
valve or tire pressure monitoring sensor valve.
SeeRoadside Assistance Program on page 7-7.10. Push the sealant and compressor kit switch to
the O (off) position.
11. The tire is not sealed and will continue to leak air
until the vehicle is driven and the sealant is
distributed in the tire.
Steps 12 through 20 must be done right after
Step 11.
12. Unplug the air compressor accessory plug from the
accessory power outlet in the vehicle.
13. Disconnect the sealant lling hose from the tire
valve stem, by turning it counterclockwise, and
replace the tire valve stem cap.
Be careful when handling the tire in ator
components as they could be hot after usage.
14. Wrap the sealant lling hose around the air
compressor channel to stow it in its original location.
5-78
ProCarManuals.com
Page 273 of 342
15. Stow the air compressor accessory plug back in the
air compressor. To do this, wrap the air compressor
accessory plug, snap in the plug, and then push
in the bottom and then the top of the wrapped
air compressor accessory plug.
16. If the at tire was able
to in ate to the
recommended in ation
pressure, remove
the maximum speed
label from the sealant
canister.
Place it in a highly visible location such as the
inside of the upper left corner of the windshield or
to the face of the radio/clock.
The maximum speed label reminds you to drive
cautiously and not to exceed 55 mph (90 km/h) until
you have the damaged tire inspected and repaired.
{CAUTION:
Storing the tire sealant and compressor kit or
other equipment in the passenger compartment
of the vehicle could cause injury. In a sudden
stop or collision, loose equipment could strike
someone. Store the tire sealant and compressor
kit in the proper place.
17. Return the equipment to the proper storage location
in the trunk of your vehicle. You might need to
loosen the retention strap to wrap it around
the sealant and compressor kit and foam container.
To do this, pull apart the strap and loosen the
strap at the quick release buckle. Then snap the
buckle together, pull the strap tight, and secure the
loose end of the strap by mating the ends.
18. Immediately drive the vehicle 5 miles (8 km) to
distribute the sealant evenly in the tire.
5-79
ProCarManuals.com
Page 274 of 342
19. Stop at a safe location and check the tire pressure,
refer to Steps 1 through 8 under “Using the Air
Compressor without Sealant” next in this section.
If the tire pressure has fallen more then
10 psi (68 kPa), below the recommended in ation
pressure, stop driving the vehicle. The tire is
too severely damaged and the tire sealant and
compressor cannot seal the tire. SeeRoadside
Assistance Program on page 7-7for more
information.
If the tire pressure has not dropped more than
10 psi (68 kPa) from the recommended in ation
pressure, in ate the tire back up to the
recommended in ation pressure.
20. Wipe off any sealant from the wheel, tire, and
vehicle with a rag.
21. Dispose of the sealant canister at a local
dealer/retailer or in accordance with local state
codes and practices.
After using the sealant canister, replace it with a
new canister from your dealer/retailer.
22. After temporarily sealing a tire with the tire sealant
and compressor kit, take your vehicle to your
dealer/retailer to have the tire inspected and
repaired.Using the Air Compressor without
Sealant to In ate an Underin ated Tire
(Not Punctured)
To use the air compressor to in ate a tire with air only
and not sealant, do the following:
1. Remove the air compressor in ating hose connector
from the bottom of the air compressor.
2. Unlock the air compressor hose from the sealant
canister by pulling up on the lever.
5-80
ProCarManuals.com
Page 275 of 342
3. Pull the air compressor in ator hose from the
sealant canister.
4. Push the air compressor in ator hose onto the tire
valve stem and push the lever down to secure in
place.
5. Plug the air compressor accessory plug into an
accessory power outlet in the vehicle. See
Accessory Power Outlet(s) on page 3-16for more
information.
{CAUTION:
Idling the engine in a closed-in place or with
the climate control system off can cause
deadly carbon monoxide (CO). SeeEngine
Exhaust on page 2-27.
6. Start the vehicle. SeeStarting the Engine
(Key Access) on page 2-18for more information.
The vehicle must be running while using the
air compressor.
{CAUTION:
In ating something too much can make it
explode, and you or others could be injured.
Be sure to read the in ator instructions, and
in ate the tire to its recommended pressure.
Do not exceed 36 psi (248 kPa).
7. Push the sealant and compressor kit switch to
the I (on) position.
8. In ate the tire up to the recommended in ation
pressure using the air pressure gage on the top
of the unit.
The pressure gage reads high while the compressor
is running. Turn the compressor off to get an
accurate reading. SeeInflation - Tire Pressure on
page 5-56for more information.
9. Turn off the air compressor by moving the switch to
the O (off) position.
5-81
ProCarManuals.com
Page 276 of 342
{CAUTION:
Storing the tire sealant and compressor kit or
other equipment in the passenger
compartment of the vehicle could cause injury.
In a sudden stop or collision, loose equipment
could strike someone. Store the tire sealant
and compressor kit in the proper place.
10. Disconnect the compressor in ator hose and wrap
the hose in the bottom of the sealant and
compressor kit.
11. Place the equipment in the original location in the
trunk of your vehicle.
Removal and Installation of the Sealant
Canister
To remove the sealant canister, do the following:
1. Unlock the air compressor in ator hose from the
sealant canister by pulling the lever up.
2. Disconnect the air compressor in ator hose from
the sealant canister.
3. Unwrap the sealant lling hose from the
compressor.
5-82
ProCarManuals.com
Page 277 of 342
4. Turn the sealant canister so the in ator lling hose
is aligned with the slot in the compressor.
5. Lift the sealant canister from the compressor and
replace with a new sealant canister. See your
dealer/retailer for more information.To install a new sealant canister, do the following:
1. Align the sealant lling hose with the slot in the
air compressor.
2. Push the sealant canister down and turn it
clockwise.
3. Wrap the sealant lling hose around the air
compressor channel to stow it in its original location.
4. Push the air compressor in ator hose onto the
sealant canister inlet and push the lever down.
5-83
ProCarManuals.com
Page 278 of 342

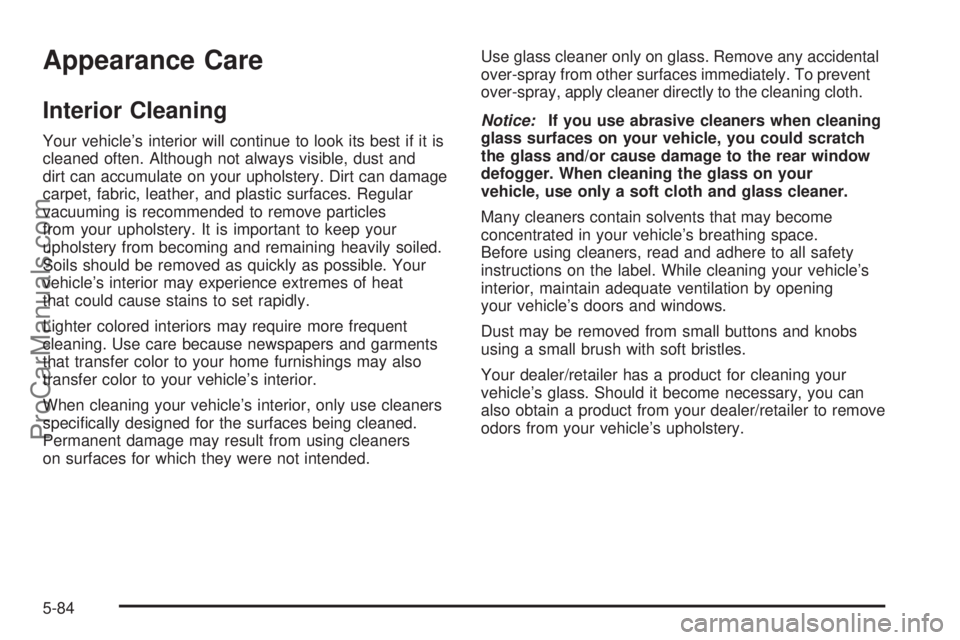

Appearance Care
Interior Cleaning
Your vehicle’s interior will continue to look its best if it is
cleaned often. Although not always visible, dust and
dirt can accumulate on your upholstery. Dirt can damage
carpet, fabric, leather, and plastic surfaces. Regular
vacuuming is recommended to remove particles
from your upholstery. It is important to keep your
upholstery from becoming and remaining heavily soiled.
Soils should be removed as quickly as possible. Your
vehicle’s interior may experience extremes of heat
that could cause stains to set rapidly.
Lighter colored interiors may require more frequent
cleaning. Use care because newspapers and garments
that transfer color to your home furnishings may also
transfer color to your vehicle’s interior.
When cleaning your vehicle’s interior, only use cleaners
speci cally designed for the surfaces being cleaned.
Permanent damage may result from using cleaners
on surfaces for which they were not intended.Use glass cleaner only on glass. Remove any accidental
over-spray from other surfaces immediately. To prevent
over-spray, apply cleaner directly to the cleaning cloth.
Notice:If you use abrasive cleaners when cleaning
glass surfaces on your vehicle, you could scratch
the glass and/or cause damage to the rear window
defogger. When cleaning the glass on your
vehicle, use only a soft cloth and glass cleaner.
Many cleaners contain solvents that may become
concentrated in your vehicle’s breathing space.
Before using cleaners, read and adhere to all safety
instructions on the label. While cleaning your vehicle’s
interior, maintain adequate ventilation by opening
your vehicle’s doors and windows.
Dust may be removed from small buttons and knobs
using a small brush with soft bristles.
Your dealer/retailer has a product for cleaning your
vehicle’s glass. Should it become necessary, you can
also obtain a product from your dealer/retailer to remove
odors from your vehicle’s upholstery.
5-84
ProCarManuals.com
Page 279 of 342
Do not clean your vehicle using the following cleaners
or techniques:
Never use a knife or any other sharp object to
remove a soil from any interior surface.
Never use a stiff brush. It can cause damage to
your vehicle’s interior surfaces.
Never apply heavy pressure or rub aggressively
with a cleaning cloth. Use of heavy pressure
can damage your interior and does not improve the
effectiveness of soil removal.
Use only mild, neutral-pH soaps. Avoid laundry
detergents or dishwashing soaps with degreasers.
Using too much soap will leave a residue that
leaves streaks and attracts dirt. For liquid cleaners,
about 20 drops per gallon (3.78 L) of water is a
good guide.
Do not heavily saturate your upholstery while
cleaning.
Damage to your vehicle’s interior may result from
the use of many organic solvents such as naptha,
alcohol, etc.
Fabric/Carpet
Use a vacuum cleaner with a soft brush attachment
frequently to remove dust and loose dirt. A canister
vacuum with a beater bar in the nozzle may only be used
on oor carpet and carpeted oor mats. For soils, always
try to remove them rst with plain water or club soda.
Before cleaning, gently remove as much of the soil as
possible using one of the following techniques:
For liquids: gently blot the remaining soil with a paper
towel. Allow the soil to absorb into the paper towel
until no more can be removed.
For solid dry soils: remove as much as possible and
then vacuum.
To clean, use the following instructions:
1. Saturate a lint-free, clean white cloth with water or
club soda.
2. Wring the cloth to remove excess moisture.
3. Start on the outside edge of the soil and gently rub
toward the center. Continue cleaning, using a clean
area of the cloth each time it becomes soiled.
4. Continue to gently rub the soiled area until the
cleaning cloth remains clean.
5. If the soil is not completely removed, use a mild
soap solution and repeat the cleaning process
that was used with plain water.
5-85
ProCarManuals.com
Page 280 of 342

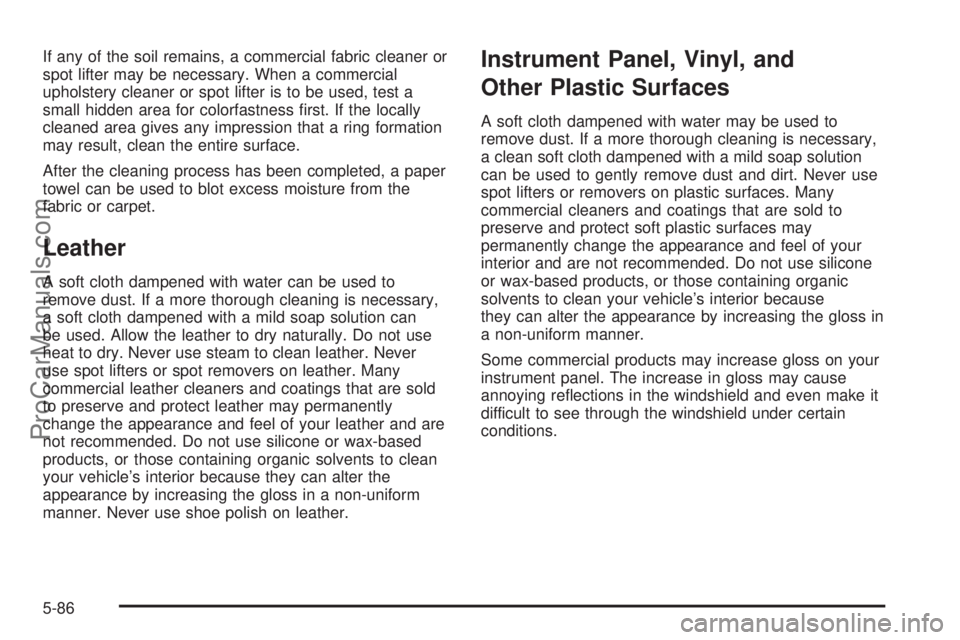

If any of the soil remains, a commercial fabric cleaner or
spot lifter may be necessary. When a commercial
upholstery cleaner or spot lifter is to be used, test a
small hidden area for colorfastness rst. If the locally
cleaned area gives any impression that a ring formation
may result, clean the entire surface.
After the cleaning process has been completed, a paper
towel can be used to blot excess moisture from the
fabric or carpet.
Leather
A soft cloth dampened with water can be used to
remove dust. If a more thorough cleaning is necessary,
a soft cloth dampened with a mild soap solution can
be used. Allow the leather to dry naturally. Do not use
heat to dry. Never use steam to clean leather. Never
use spot lifters or spot removers on leather. Many
commercial leather cleaners and coatings that are sold
to preserve and protect leather may permanently
change the appearance and feel of your leather and are
not recommended. Do not use silicone or wax-based
products, or those containing organic solvents to clean
your vehicle’s interior because they can alter the
appearance by increasing the gloss in a non-uniform
manner. Never use shoe polish on leather.
Instrument Panel, Vinyl, and
Other Plastic Surfaces
A soft cloth dampened with water may be used to
remove dust. If a more thorough cleaning is necessary,
a clean soft cloth dampened with a mild soap solution
can be used to gently remove dust and dirt. Never use
spot lifters or removers on plastic surfaces. Many
commercial cleaners and coatings that are sold to
preserve and protect soft plastic surfaces may
permanently change the appearance and feel of your
interior and are not recommended. Do not use silicone
or wax-based products, or those containing organic
solvents to clean your vehicle’s interior because
they can alter the appearance by increasing the gloss in
a non-uniform manner.
Some commercial products may increase gloss on your
instrument panel. The increase in gloss may cause
annoying re ections in the windshield and even make it
difficult to see through the windshield under certain
conditions.
5-86
ProCarManuals.com
