fuel SATURN VUE 2004 Owner's Guide

Underhood Fuse Block
The underhood fuse block is located in the forward part
of the engine compartment near the battery.
Fuses Usage
IGNITION Ignition switch
BATT FEED I/P Fuse Box
COOL 1 Cooling Fan Module
COOL
FAN HIGHCooling Fan High Relay
COOL
FAN LOWCooling Fan Low Relay
PWR WDW Power Window Relay and Sunroof
Fuses Usage
HVAC
BLOWERHVAC Blower Motor
ABS ABS Module
BRAKE Stop Lamps
A/C CLUTCHA/C Clutch Relay, Back Up
Lamps (3.5L V6 (L66))
SUNROOF Sunroof Module
RR WIPER Rear Wiper Relay
FRT WIPER Front Wiper Relay
IGN/INJEngine Ignition Module, Fuel
Injectors (2.2L L4 (L61))
ABS ABS Ignition
ABS ABS Battery
BACKUPLow Coolant Switch, Backup Lamps
(2.2L L4 (L61)), Vehicle Speed
Sensor (Manual), Transmission
Range Switch (2.2L L4 (L61))
PWRTRAINEngine Control Module (ECM),
Transmission Control Module (TCM),
Transmission
EMISSCanister Purge Solenoid, Canister
Vent Solenoid, Rear Heated O2,
Front Heated O2
ECM/TCMBattery Voltage to ECM, TCM, PCM
(3.5L V6 (L66))
5-100
ProCarManuals.com

Fuses Usage
ECM/CAM
(3.5L V6 (L66))Camshaft Sensor, Main Relay
Voltage To PCM, Ignition Coils 1-6
ETC (2.2L Four
Cylinder (L61))Engine Control Module (ECM),
Electronic Throttle Control
FUEL PUMP Fuel Pump Relay
CIGAR/AUX2 Cigar Lighter
AUX 1 OUTLET Front Auxiliary Power Outlet
FOG LP Fog Lamp Relay
REAR DEFOG Rear Defog Relay
HORN Horn Relay
LH HDLP Left Headlamp
RH HDLP Right Headlamp
INJECTORS
(3.5L V6 (L66))Fuel Injection
PREM AUD Premium Radio Amplier
HTD SEATS Heated SeatsRelays Usage
COOL FAN
HIGHCooling Fan Motor High
COOL FAN
LOWCooling Fan Motor Low
A/C CLUTCH A/C Clutch
PWR WDWPower Window Switch, Sunroof
Module
FRT WIPER Front Wiper System
RR WIPER Rear Wiper System
WIPER
SYSTEMWiper System
ENG MAIN ECM/CAM, EMISS, INJ, ETC
FUEL PUMP Fuel Pump System
DRL Daytime Running Lamps
REAR DEFOG Rear Defog System
HORN Horn
FOG LP Fog Lamps
5-101
ProCarManuals.com

Capacities and Specications
ApplicationCapacities
English Metric
Air Conditioning Refrigerant R134a
2.2L L4 (L61)
3.5L V6 (L66)1.5 lbs
1.75 lbs0.68 kg
0.79 kg
Cooling System
2.2L L4 (L61)
3.5L V6 (L66)7.4 quarts
9.7 quarts7.0 L
9.2 L
Engine Oil with Filter
2.2L L4 (L61)
3.5L V6 (L66)5.0 quarts
4.5 quarts4.7 L
4.3 L
Fuel Tank 16.5 gallons 62.4 L
Transaxle
Automatic, All-wheel drive
Automatic, Two-wheel drive
Manual
VTi Variable4.1 quarts
4.5 quarts
1.8 quarts
6.9 quarts3.9 L
4.3 L
1.7 L
6.5 L
Wheel Nut Torque 92 ft lb 125Y
All capacities are approximate. When adding, be sure to ll to the approximate level, as recommended in this
manual. Recheck uid level after lling.
5-102
ProCarManuals.com

Maintenance Schedule......................................6-2
Introduction...................................................6-2
Maintenance Requirements..............................6-2
Your Vehicle and the Environment....................6-2
Using Your Maintenance Schedule....................6-2
Scheduled Maintenance...................................6-4
Additional Required Services............................6-6
Maintenance Footnotes...................................6-9Owner Checks and Services..........................6-10
At Each Fuel Fill..........................................6-10
At Least Once a Month.................................6-11
At Least Once a Year...................................6-11
Recommended Fluids and Lubricants...............6-14
Normal Maintenance Replacement Parts..........6-16
Engine Drive Belt Routing..............................6-17
Maintenance Record.....................................6-18
Section 6 Maintenance Schedule
6-1
ProCarManuals.com

Maintenance Schedule
Introduction
Important: Keep engine oil at the proper level and
change as recommended.
Maintenance Requirements
Notice:Maintenance intervals, checks, inspections,
replacement parts and recommended uids and
lubricants as prescribed in this manual are
necessary to keep your vehicle in good working
condition. Any damage caused by failure to follow
scheduled maintenance may not be covered by
warranty.
Your Vehicle and the Environment
Proper vehicle maintenance not only helps to keep your
vehicle in good working condition, but also helps the
environment. All recommended maintenance is
important. Improper vehicle maintenance can even
affect the quality of the air we breathe. Improper uid
levels or the wrong tire ination can increase the level
of emissions from your vehicle. To help protect our
environment, and to keep your vehicle in good condition,
be sure to maintain your vehicle properly.
Using Your Maintenance Schedule
We at Saturn want to help you keep your vehicle in good
working condition. But we do not know exactly how
you will drive it. You may drive very short distances only
a few times a week. Or you may drive long distances
all the time in very hot, dusty weather. You may
use your vehicle in making deliveries. Or you may drive
it to work, to do errands or in many other ways.
Because of all the different ways people use their
vehicles, maintenance needs vary. You may need more
frequent checks and replacements. So please read
the following and note how you drive. If you have any
questions on how to keep your vehicle in good condition,
see your Saturn retailer.
This schedule is for vehicles that:
carry passengers and cargo within recommended
limits. You will nd these limits on the tire and
loading information label. SeeLoading Your Vehicle
on page 4-49.
are driven on reasonable road surfaces within legal
driving limits.
are driven off-road in the recommended manner.
SeeOperating Your All-Wheel-Drive Vehicle Off
Paved Roads on page 4-18.
use the recommended fuel. SeeGasoline Octane
on page 5-5.
6-2
ProCarManuals.com

Additional Required Services
The following services should be performed at the rst maintenance service (IorII) after the indicated
miles (kilometers) shown for each item.
Additional Required Services
Service and Miles (Kilometers)25,000
(41 500)50,000
(83 000)75,000
(125 000)100,000
(166 000)125,000
(207 500)150,000
(240 000)
Inspect fuel system for damage
or leaks.••••••
Inspect exhaust system for loose or
damaged components.••••••
Replace engine air cleaner lter. See
Engine Air Cleaner/Filter on page 5-21.
An Emission Control Service.••••••
VTi variable transaxle: Add DEX-CVT
additive.•••
L4 engine: Change VTi variable
transaxle uid (severe service).
See footnote (h).•••
L4 engine: Change VTi variable
transaxle uid (normal service).•
V6 engine: Change automatic
transaxle uid (severe service).
See footnote (h).••••••
6-6
ProCarManuals.com

(h)Severe service is when the vehicle is mainly driven
under one or more of these conditions:
In heavy city traffic where the outside temperature
regularly reaches 90°F (32°C) or higher.
In hilly or mountainous terrain.
When doing frequent trailer towing.
Uses such as found in taxi, police or delivery
service.
(i)Drain, ush and rell cooling system. See Engine
Coolant on page 5-28 for what to use. Inspect hoses.
Clean radiator, condenser, pressure cap and ller neck.
Pressure test the cooling system and pressure cap.
(j)A uid loss in any vehicle system could indicate a
problem. Have the system inspected and repaired and
the uid level checked. Add uid if needed.
(k)Or every 12 months, whichever occurs rst. If you
drive regularly under dusty conditions, the lter may
require replacement more often.
(m)Change the uid the rst time the vehicle is
serviced after 100,000 miles (166 000 km) and
when the vehicle is serviced after each subsequent
50,000 miles (83 000 km).(n)Severe service is when the vehicle is mainly driven
under one or more of these conditions:
In very high temperatures — over 110°F (43°C).
In very low temperatures — under -20°F (-29°C).
When doing frequent trailer towing.
Owner Checks and Services
These owner checks and services should be performed
at the intervals specied to help ensure the safety,
dependability and emission control performance of your
vehicle. Your Saturn retailer can assist you with these
checks and services.
Be sure any necessary repairs are completed at once.
Whenever any uids or lubricants are added to your
vehicle, make sure they are the proper ones, as shown
inRecommended Fluids and Lubricants on page 6-14.
At Each Fuel Fill
It is important to perform these underhood checks at
each fuel ll.
Engine Oil Level Check
Check the engine oil level and add the proper oil if
necessary. SeeEngine Oil on page 5-15for further
details.
6-10
ProCarManuals.com

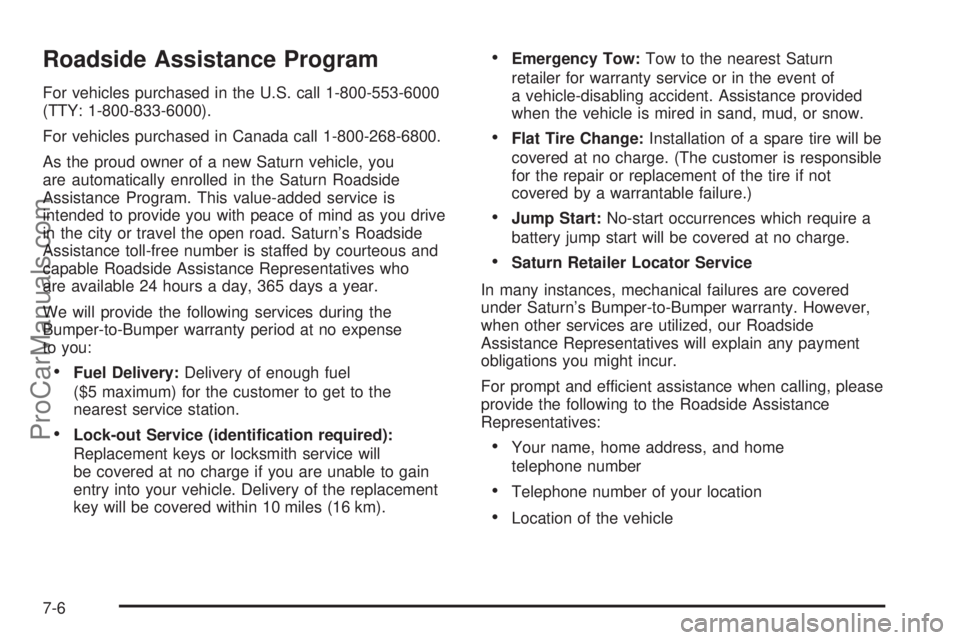

Roadside Assistance Program
For vehicles purchased in the U.S. call 1-800-553-6000
(TTY: 1-800-833-6000).
For vehicles purchased in Canada call 1-800-268-6800.
As the proud owner of a new Saturn vehicle, you
are automatically enrolled in the Saturn Roadside
Assistance Program. This value-added service is
intended to provide you with peace of mind as you drive
in the city or travel the open road. Saturn’s Roadside
Assistance toll-free number is staffed by courteous and
capable Roadside Assistance Representatives who
are available 24 hours a day, 365 days a year.
We will provide the following services during the
Bumper-to-Bumper warranty period at no expense
to you:
Fuel Delivery:Delivery of enough fuel
($5 maximum) for the customer to get to the
nearest service station.
Lock-out Service (identication required):
Replacement keys or locksmith service will
be covered at no charge if you are unable to gain
entry into your vehicle. Delivery of the replacement
key will be covered within 10 miles (16 km).
Emergency Tow:Tow to the nearest Saturn
retailer for warranty service or in the event of
a vehicle-disabling accident. Assistance provided
when the vehicle is mired in sand, mud, or snow.
Flat Tire Change:Installation of a spare tire will be
covered at no charge. (The customer is responsible
for the repair or replacement of the tire if not
covered by a warrantable failure.)
Jump Start:No-start occurrences which require a
battery jump start will be covered at no charge.
Saturn Retailer Locator Service
In many instances, mechanical failures are covered
under Saturn’s Bumper-to-Bumper warranty. However,
when other services are utilized, our Roadside
Assistance Representatives will explain any payment
obligations you might incur.
For prompt and efficient assistance when calling, please
provide the following to the Roadside Assistance
Representatives:
Your name, home address, and home
telephone number
Telephone number of your location
Location of the vehicle
7-6
ProCarManuals.com

Model, year, color, and license plate number
Mileage, Vehicle Identication Number and delivery
date of the vehicle
Description of the problem
While we hope you never have the occasion to use our
service, it is added security while traveling for you
and your family. Remember we are only a phone call
away. Saturn Roadside Assistance: 1-800-553-6000;
text telephone (TTY) users, call 1-800-833-6000.
Saturn reserves the right to limit services or
reimbursement to an owner or driver when, in Saturn’s
judgment, the claims become excessive in frequency
or type of occurrence.
Roadside Assistance is not part of or included in the
coverage provided by the New Vehicle Limited Warranty.
Saturn reserves the right to make any changes or
discontinue the Roadside Assistance program at any
time without notication.
Canadian Roadside Assistance
Vehicles purchased in Canada have an extensive
Saturn Roadside Assistance program accessible
from anywhere in Canada or the United States.
Please refer to the Warranty and Owner Assistance
Information book.
Vehicle Data Collection and Event
Data Recorders
Your vehicle, like other modern motor vehicles,
has a number of sophisticated computer systems that
monitor and control several aspects of the vehicle’s
performance. Your vehicle uses on-board vehicle
computers to monitor emission control components to
optimize fuel economy, to monitor conditions for air bag
deployment and, if so equipped, to provide anti-lock
braking and to help the driver control the vehicle
in difficult driving situations. Some information may be
stored during regular operations to facilitate repair
of detected malfunctions; other information is stored only
in a crash or near crash event by computer systems
commonly called event data recorders (EDR).
In a crash or near crash event, computer systems, such
as the Air Bag Sensing and Diagnostic Module (SDM)
in your vehicle may record information about the
condition of the vehicle and how it was operated, such
as engine speed, brake applications, throttle position,
vehicle speed, safety belt usage, air bag readiness, air
bag performance data, and the severity of a collision.
This information has been used to improve vehicle
crash performance and may be used to improve crash
performance of future vehicles and driving safety.
Unlike the data recorders on many airplanes, these
on-board systems do not record sounds, such as
conversation of vehicle occupants.
7-7
ProCarManuals.com

A
About Driving Your Vehicle.................................... ii
Accessory Power Outlets.................................3-20
Activating the Theft-Deterrent Feature................3-72
Adding a Snow Plow or Similar Equipment.........4-54
Adding Windshield Washer Fluid.......................5-40
Additives, Fuel................................................. 5-6
Add-On Electrical Equipment............................5-98
Adjusting the Speakers
(Balance/Fade)............................3-45, 3-47, 3-53
After Off-Road Driving.....................................4-30
Air Cleaner/Filter, Engine.................................5-21
Air Conditioning..............................................3-21
Airbag
Readiness Light..........................................3-28
Airbag Sensing and Diagnostic Module (SDM)...... 7-7
Airbag Systems..............................................1-48
Adding Equipment to Your Airbag-Equipped
Vehicle...................................................1-57
How Does an Airbag Restrain?......................1-54
Servicing Your Airbag-Equipped Vehicle..........1-56
What Makes an Airbag Inate?......................1-54
What Will You See After an
Airbag Inates?........................................1-55
When Should an Airbag Inate?....................1-53
Where Are the Airbags?...............................1-50All-Wheel Drive...............................................5-51
All-Wheel-Drive (AWD) System.........................4-12
AM ...............................................................3-74
AM-FM Radio.................................................3-43
Antenna, Fixed Mast.......................................3-75
Antenna, XM™ Satellite Radio
Antenna System..........................................3-75
Anti-lock Brake System (ABS)............................ 4-8
Anti-Lock Brake, System Warning Light..............3-31
Appearance Care............................................5-89
Care of Safety Belts....................................5-92
Chemical Paint Spotting...............................5-95
Cleaning the Inside of Your Vehicle................5-89
Cleaning the Outside of Your Vehicle..............5-92
Finish Damage............................................5-95
Sheet Metal Damage...................................5-95
Underbody Maintenance...............................5-95
Vehicle Care/Appearance Materials................5-96
Weatherstrips..............................................5-92
Approaching a Hill..........................................4-22
Audio Output..................................................3-64
Audio System(s).............................................3-42
AM-FM Radio.............................................3-43
Care of Your CD and DVD Player..................3-75
Care of Your CDs and DVDs........................3-75
Fixed Mast Antenna.....................................3-75
Radio with CD....................................3-45, 3-49
1
ProCarManuals.com
