Fuses Usage
ECM/CAM
(3.5L V6 (L66))Camshaft Sensor, Main Relay
Voltage To PCM, Ignition Coils 1-6
ETC (2.2L Four
Cylinder (L61))Engine Control Module (ECM),
Electronic Throttle Control
FUEL PUMP Fuel Pump Relay
CIGAR/AUX2 Cigar Lighter
AUX 1 OUTLET Front Auxiliary Power Outlet
FOG LP Fog Lamp Relay
REAR DEFOG Rear Defog Relay
HORN Horn Relay
LH HDLP Left Headlamp
RH HDLP Right Headlamp
INJECTORS
(3.5L V6 (L66))Fuel Injection
PREM AUD Premium Radio Amplier
HTD SEATS Heated SeatsRelays Usage
COOL FAN
HIGHCooling Fan Motor High
COOL FAN
LOWCooling Fan Motor Low
A/C CLUTCH A/C Clutch
PWR WDWPower Window Switch, Sunroof
Module
FRT WIPER Front Wiper System
RR WIPER Rear Wiper System
WIPER
SYSTEMWiper System
ENG MAIN ECM/CAM, EMISS, INJ, ETC
FUEL PUMP Fuel Pump System
DRL Daytime Running Lamps
REAR DEFOG Rear Defog System
HORN Horn
FOG LP Fog Lamps
5-101
ProCarManuals.com

Capacities and Specications
ApplicationCapacities
English Metric
Air Conditioning Refrigerant R134a
2.2L L4 (L61)
3.5L V6 (L66)1.5 lbs
1.75 lbs0.68 kg
0.79 kg
Cooling System
2.2L L4 (L61)
3.5L V6 (L66)7.4 quarts
9.7 quarts7.0 L
9.2 L
Engine Oil with Filter
2.2L L4 (L61)
3.5L V6 (L66)5.0 quarts
4.5 quarts4.7 L
4.3 L
Fuel Tank 16.5 gallons 62.4 L
Transaxle
Automatic, All-wheel drive
Automatic, Two-wheel drive
Manual
VTi Variable4.1 quarts
4.5 quarts
1.8 quarts
6.9 quarts3.9 L
4.3 L
1.7 L
6.5 L
Wheel Nut Torque 92 ft lb 125Y
All capacities are approximate. When adding, be sure to ll to the approximate level, as recommended in this
manual. Recheck uid level after lling.
5-102
ProCarManuals.com

Maintenance Schedule
Introduction
Important: Keep engine oil at the proper level and
change as recommended.
Maintenance Requirements
Notice:Maintenance intervals, checks, inspections,
replacement parts and recommended uids and
lubricants as prescribed in this manual are
necessary to keep your vehicle in good working
condition. Any damage caused by failure to follow
scheduled maintenance may not be covered by
warranty.
Your Vehicle and the Environment
Proper vehicle maintenance not only helps to keep your
vehicle in good working condition, but also helps the
environment. All recommended maintenance is
important. Improper vehicle maintenance can even
affect the quality of the air we breathe. Improper uid
levels or the wrong tire ination can increase the level
of emissions from your vehicle. To help protect our
environment, and to keep your vehicle in good condition,
be sure to maintain your vehicle properly.
Using Your Maintenance Schedule
We at Saturn want to help you keep your vehicle in good
working condition. But we do not know exactly how
you will drive it. You may drive very short distances only
a few times a week. Or you may drive long distances
all the time in very hot, dusty weather. You may
use your vehicle in making deliveries. Or you may drive
it to work, to do errands or in many other ways.
Because of all the different ways people use their
vehicles, maintenance needs vary. You may need more
frequent checks and replacements. So please read
the following and note how you drive. If you have any
questions on how to keep your vehicle in good condition,
see your Saturn retailer.
This schedule is for vehicles that:
carry passengers and cargo within recommended
limits. You will nd these limits on the tire and
loading information label. SeeLoading Your Vehicle
on page 4-49.
are driven on reasonable road surfaces within legal
driving limits.
are driven off-road in the recommended manner.
SeeOperating Your All-Wheel-Drive Vehicle Off
Paved Roads on page 4-18.
use the recommended fuel. SeeGasoline Octane
on page 5-5.
6-2
ProCarManuals.com

Scheduled Maintenance
When the CHANGE OIL SOON light comes on, it
means that service is required for your vehicle. Have
your vehicle serviced as soon as possible within the
next 600 miles (1 000 km). It is possible that, if you
are driving under the best conditions, the engine
oil life system may not indicate that vehicle service is
necessary for over a year. However, your engine oil
and lter must be changed at least once a year and
at this time the system must be reset. Your Saturn
retailer has Saturn-trained service technicians who will
perform this work using genuine Saturn parts and
reset the system.
If the engine oil life system is ever reset accidentally,
you must service your vehicle within 3,000 miles
(5 000 km) since your last service. Remember to reset
the oil life system whenever the oil is changed. See
Engine Oil on page 5-15for information on the Engine
Oil Life System and resetting the system.When the CHANGE OIL SOON light appears,
certain services, checks and inspections are required.
Required services are described in the following for
“MaintenanceI” and “MaintenanceII.” Generally,
it is recommended that your rst service be
MaintenanceI, your second service be MaintenanceII
and that you alternate MaintenanceIand MaintenanceII
thereafter. However, in some cases, MaintenanceII
may be required more often.
MaintenanceI— Use MaintenanceIif the CHANGE
OIL SOON light comes on within ten months since
vehicle was purchased or MaintenanceIIwas
performed.
MaintenanceII— Use MaintenanceIIif the previous
service performed was MaintenanceI. Always use
MaintenanceIIwhenever the light comes on ten months
or more since the last service or if the light has not
come on at all for one year.
6-4
ProCarManuals.com

Scheduled Maintenance
Service MaintenanceIMaintenanceII
Change engine oil and lter. Reset oil life system. SeeEngine Oil on
page 5-15.An Emission Control Service.••
Visually check for any leaks or damage.See footnote (j).••
Inspect engine air cleaner lter. If necessary, replace lter. SeeEngine Air
Cleaner/Filter on page 5-21.An Emission Control Service. See footnote †.••
Rotate tires and check ination pressures and wear. SeeTires on page 5-62.••
Inspect brake system.See footnote (a).••
Check engine coolant and windshield washer uid levels and add uid
as needed.••
Perform any needed additional services. See “Additional Required Services”
in this section.••
Inspect suspension and steering components.See footnote (b).•
Inspect engine cooling system.See footnote (c).•
Inspect wiper blades.See footnote (d).•
Inspect restraint system components.See footnote (e).•
Lubricate body components.See footnote (f).•
Replace passenger compartment air lter.See footnote (k).•
L4 engine: Inspect throttle system.See footnote (g).•
6-5
ProCarManuals.com

(h)Severe service is when the vehicle is mainly driven
under one or more of these conditions:
In heavy city traffic where the outside temperature
regularly reaches 90°F (32°C) or higher.
In hilly or mountainous terrain.
When doing frequent trailer towing.
Uses such as found in taxi, police or delivery
service.
(i)Drain, ush and rell cooling system. See Engine
Coolant on page 5-28 for what to use. Inspect hoses.
Clean radiator, condenser, pressure cap and ller neck.
Pressure test the cooling system and pressure cap.
(j)A uid loss in any vehicle system could indicate a
problem. Have the system inspected and repaired and
the uid level checked. Add uid if needed.
(k)Or every 12 months, whichever occurs rst. If you
drive regularly under dusty conditions, the lter may
require replacement more often.
(m)Change the uid the rst time the vehicle is
serviced after 100,000 miles (166 000 km) and
when the vehicle is serviced after each subsequent
50,000 miles (83 000 km).(n)Severe service is when the vehicle is mainly driven
under one or more of these conditions:
In very high temperatures — over 110°F (43°C).
In very low temperatures — under -20°F (-29°C).
When doing frequent trailer towing.
Owner Checks and Services
These owner checks and services should be performed
at the intervals specied to help ensure the safety,
dependability and emission control performance of your
vehicle. Your Saturn retailer can assist you with these
checks and services.
Be sure any necessary repairs are completed at once.
Whenever any uids or lubricants are added to your
vehicle, make sure they are the proper ones, as shown
inRecommended Fluids and Lubricants on page 6-14.
At Each Fuel Fill
It is important to perform these underhood checks at
each fuel ll.
Engine Oil Level Check
Check the engine oil level and add the proper oil if
necessary. SeeEngine Oil on page 5-15for further
details.
6-10
ProCarManuals.com

Notice:It is important to check your oil regularly
and keep it at the proper level. Failure to keep your
engine oil at the proper level can cause damage
to your engine not covered by your warranty.
Engine Coolant Level Check
Check the engine coolant level and add
DEX-COOL®coolant mixture if necessary.
SeeEngine Coolant on page 5-28for further details.
Windshield Washer Fluid Level Check
Check the windshield washer uid level in the windshield
washer tank and add the proper uid if necessary.
At Least Once a Month
Tire Ination Check
Visually inspect your tires and make sure tires are
inated to the correct pressures. Do not forget to check
your spare tire. SeeTires on page 5-62for further
details. Check to make sure the spare tire is stored
securely. Push, pull and then try to turn the spare tire.
If it moves, tighten it. SeeChanging a Flat Tire on
page 5-78.
At Least Once a Year
Starter Switch Check
{CAUTION:
When you are doing this inspection, the
vehicle could move suddenly. If the vehicle
moves, you or others could be injured.
1. Before you start, be sure you have enough room
around the vehicle.
2. Firmly apply both the parking brake and the regular
brake. SeeParking Brake on page 2-23if
necessary.
Do not use the accelerator pedal, and be ready to
turn off the engine immediately if it starts.
3. On automatic transaxle vehicles, try to start the
engine in each gear. The starter should work
only in PARK (P) or NEUTRAL (N). If the starter
works in any other position, contact your Saturn
retailer for service.
6-11
ProCarManuals.com

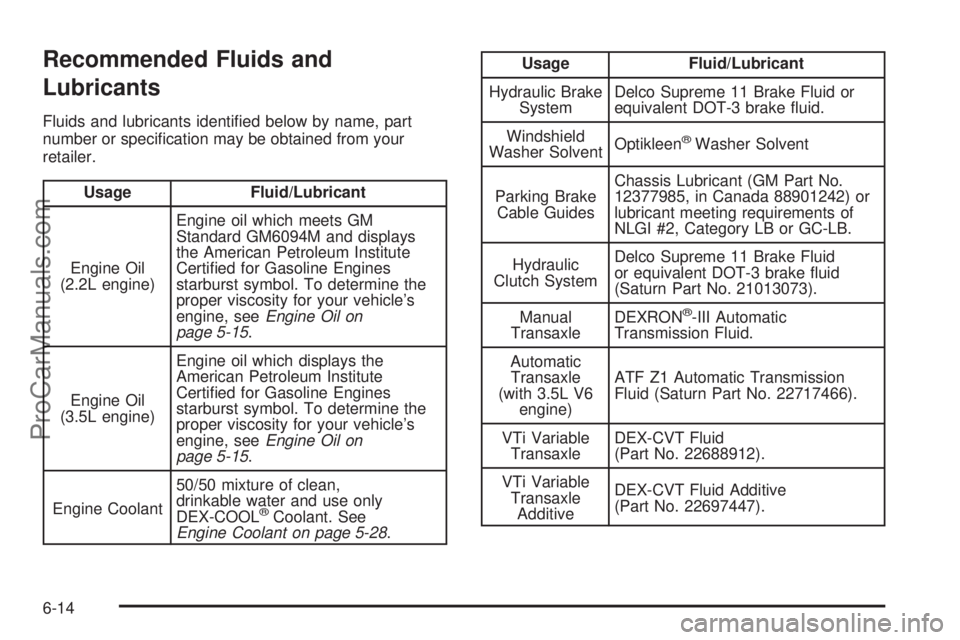

Recommended Fluids and
Lubricants
Fluids and lubricants identied below by name, part
number or specication may be obtained from your
retailer.
Usage Fluid/Lubricant
Engine Oil
(2.2L engine)Engine oil which meets GM
Standard GM6094M and displays
the American Petroleum Institute
Certied for Gasoline Engines
starburst symbol. To determine the
proper viscosity for your vehicle’s
engine, seeEngine Oil on
page 5-15.
Engine Oil
(3.5L engine)Engine oil which displays the
American Petroleum Institute
Certied for Gasoline Engines
starburst symbol. To determine the
proper viscosity for your vehicle’s
engine, seeEngine Oil on
page 5-15.
Engine Coolant50/50 mixture of clean,
drinkable water and use only
DEX-COOL
®Coolant. See
Engine Coolant on page 5-28.
Usage Fluid/Lubricant
Hydraulic Brake
SystemDelco Supreme 11 Brake Fluid or
equivalent DOT-3 brake uid.
Windshield
Washer SolventOptikleen
®Washer Solvent
Parking Brake
Cable GuidesChassis Lubricant (GM Part No.
12377985, in Canada 88901242) or
lubricant meeting requirements of
NLGI #2, Category LB or GC-LB.
Hydraulic
Clutch SystemDelco Supreme 11 Brake Fluid
or equivalent DOT-3 brake uid
(Saturn Part No. 21013073).
Manual
TransaxleDEXRON
®-III Automatic
Transmission Fluid.
Automatic
Transaxle
(with 3.5L V6
engine)ATF Z1 Automatic Transmission
Fluid (Saturn Part No. 22717466).
VTi Variable
TransaxleDEX-CVT Fluid
(Part No. 22688912).
VTi Variable
Transaxle
AdditiveDEX-CVT Fluid Additive
(Part No. 22697447).
6-14
ProCarManuals.com

Normal Maintenance Replacement Parts
Replacement parts identied below by name, part number, or specication can be obtained from your retailer.
Part Saturn Part Number ACDelco®Part Number
Engine Air Cleaner/Filter 22676970 —
Engine Oil Filter
2.2L L4 L61
3.5L V6 L6612579143
12582255—
Passenger Compartment Air Filter Element 22665802 —
Spark Plugs
2.2L L4 L61
3.5L V6 L6612569190
12582002—
Windshield Wiper Blades
Driver’s Side Length — 23.6 inches (60.0 cm)
Passenger’s Side Length — 18.7 inches
(47.5 cm)22703502
—8–2241
8–2191
Rear Wiper Blade — 11.0 inches (28.0 cm) 22665009 —
6-16
ProCarManuals.com

Care of
Safety Belts................................................5-92
Your CD and DVD Player.............................3-75
Your CDs and DVDs....................................3-75
Cargo Lamp...................................................3-19
CD Messages........................................3-49, 3-61
Center Console Storage Area...........................2-36
Center High-Mounted Stoplamp (CHMSL)...........5-58
Chains, Tire...................................................5-76
Changing a Tire When Trailer Towing................4-61
Check
Engine Light...............................................3-35
Checking Coolant............................................5-30
Checking Engine Oil........................................5-15
Checking Things Under the Hood......................5-10
Chemical Paint Spotting...................................5-95
Child Restraints
Child Restraint Systems...............................1-34
Infants and Young Children...........................1-31
Lower Anchorages and Top Tethers for
Children (LATCH System)..........................1-40
Older Children.............................................1-28
Securing a Child Restraint Designed
for the LATCH System..............................1-42
Securing a Child Restraint in a Rear
Seat Position...........................................1-42
Securing a Child Restraint in the Right
Front Seat Position...................................1-45Child Restraints (cont.)
Top Strap...................................................1-37
Top Strap Anchor Location............................1-39
Where to Put the Restraint...........................1-36
Cleaning
Inside of Your Vehicle..................................5-89
Outside of Your Vehicle................................5-92
Underbody Maintenance...............................5-95
Weatherstrips..............................................5-92
Cleaning Aluminum Wheels..............................5-94
Cleaning Exterior Lamps/Lenses.......................5-93
Cleaning Fabric/Carpet....................................5-89
Cleaning Glass Surfaces..................................5-91
Cleaning Interior Plastic Components.................5-91
Cleaning the DVD Player.................................3-71
Cleaning the Mirror.................................2-31, 2-33
Cleaning the Top of the Instrument Panel...........5-91
Cleaning the Video Screen...............................3-71
Cleaning Tires................................................5-94
Cleaning Vinyl................................................5-91
Cleaning Windshield and Wiper Blades..............5-94
Climate Control System...................................3-21
Air Filter, Passenger Compartment.................3-23
Clutch, Hydraulic.............................................5-28
Compact Spare Tire........................................5-88
Compass Calibration...............................2-30, 2-32
Compass Operation.........................................2-32
Compass Variance..................................2-30, 2-32
3
ProCarManuals.com
