air filter SATURN VUE 2004 Owners Manual

Instrument Panel Overview...............................3-4
Hazard Warning Flashers................................3-6
Horn.............................................................3-6
Tilt Wheel.....................................................3-7
Turn Signal/Multifunction Lever.........................3-7
Windshield Wiper Lever...................................3-9
Cruise Control (2.2L L4 Engine)......................3-11
Cruise Control (3.5L V6 Engine).....................3-14
Exterior Lamps.............................................3-17
Interior Lamps..............................................3-19
Accessory Power Outlets...............................3-20
Climate Controls............................................3-21
Climate Control System.................................3-21
Passenger Compartment Air Filter...................3-23
Warning Lights, Gages, and Indicators............3-25
Instrument Panel Cluster................................3-26
Speedometer and Odometer...........................3-27
Tachometer.................................................3-27
Safety Belt Reminder Light.............................3-28
Airbag Readiness Light..................................3-28
Battery Warning Light....................................3-29Up-Shift Light...............................................3-30
Brake System Warning Light..........................3-30
Anti-Lock Brake System Warning Light.............3-31
Traction Control System (TCS)
Warning Light...........................................3-32
Low Traction Light........................................3-33
Engine Coolant Temperature
Warning Light...........................................3-33
Engine Coolant Temperature Gage..................3-34
Low Coolant Warning Light............................3-34
Malfunction Indicator Lamp.............................3-35
Oil Pressure Light.........................................3-38
Change Engine Oil Light................................3-39
Security Light...............................................3-39
Reduced Engine Power Light.........................3-39
Daytime Running Lamps (DRL)
Indicator Light...........................................3-40
Gate Ajar Light.............................................3-40
Service Vehicle Soon Light............................3-40
Fuel Gage...................................................3-41
Low Fuel Warning Light.................................3-42
Section 3 Instrument Panel
3-1
ProCarManuals.com

Rear Window Defogger
The rear window defogger uses a warming grid to
remove fog from the rear window.
The rear window defogger will only work when the
ignition is in RUN.
<(Rear):Press the button to turn the rear window
defogger on or off. An indicator light above the
button will come on to let you know that the rear window
defogger is activated.
The rear window defogger will stay on for approximately
15 minutes after the button is pressed, unless the
ignition is turned to ACC or LOCK. If turned on again,
the defogger will only run for approximately ve minutes
before turning off. The defogger can also be turned
off by pressing the button again or by turning off
the engine.
Notice:Don’t use anything sharp on the inside of
the rear window. If you do, you could cut or damage
the warming grid, and the repairs wouldn’t be
covered by your warranty. Do not attach a temporary
vehicle license, tape, a decal or anything similar
to the defogger grid.
Outlet Adjustment
Use the louvers located on the air outlets to change
the direction of the airow.
Operation Tips

Clear away any ice, snow or leaves from the air
inlets at the base of the vehicle that may block
the ow of air into your vehicle.
Use of non-GM approved hood deectors may
adversely affect the performance of the system.
Keep the path under the front seats clear of objects
to help circulate the air inside of your vehicle more
effectively.
Passenger Compartment Air Filter
If your vehicle has this feature, the passenger
compartment air, both outside air and recirculated air,
is routed through a passenger compartment lter.
The lter removes certain particles from the air, including
pollen and dust particles. Reductions in airow, which
may occur more quickly in dusty areas, indicate that
the lter needs to be replaced early.
3-23
ProCarManuals.com

Service............................................................5-3
Doing Your Own Service Work.........................5-4
Adding Equipment to the Outside of
Your Vehicle..............................................5-5
Fuel................................................................5-5
Gasoline Octane............................................5-5
Gasoline Specications....................................5-5
California Fuel...............................................5-6
Additives.......................................................5-6
Fuels in Foreign Countries...............................5-7
Filling Your Tank............................................5-8
Filling a Portable Fuel Container.....................5-10
Checking Things Under the Hood....................5-10
Hood Release..............................................5-11
Engine Compartment Overview.......................5-12
Engine Oil...................................................5-15
Engine Air Cleaner/Filter................................5-21
Automatic Transaxle Fluid..............................5-25
Manual Transaxle Fluid..................................5-27
Hydraulic Clutch...........................................5-28
Engine Coolant.............................................5-28
Coolant Surge Tank Pressure Cap..................5-31
Engine Overheating.......................................5-31
Cooling System............................................5-34Windshield Washer Fluid................................5-40
Brakes........................................................5-41
Battery........................................................5-44
Jump Starting...............................................5-45
All-Wheel Drive..............................................5-51
Headlamp Aiming...........................................5-52
Bulb Replacement..........................................5-53
Halogen Bulbs..............................................5-53
Headlamps..................................................5-53
Front Turn Signal and Parking Lamps..............5-56
Fog Lamps..................................................5-57
Sidemarker Lamps........................................5-57
Center High-Mounted Stoplamp (CHMSL).........5-58
Taillamps, Turn Signal, Stoplamps and
Back-up Lamps.........................................5-59
Replacement Bulbs.......................................5-60
Windshield Wiper Blade Replacement..............5-60
Tires..............................................................5-62
Ination - Tire Pressure.................................5-69
Tire Inspection and Rotation...........................5-70
When It Is Time for New Tires.......................5-71
Buying New Tires.........................................5-72
Uniform Tire Quality Grading..........................5-73
Section 5 Service and Appearance Care
5-1
ProCarManuals.com

A. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 5-21.
B. Engine Oil Fill Cap. SeeEngine Oil on page 5-15.
C. Engine Oil Dipstick. SeeEngine Oil on page 5-15.
D. Brake/Clutch Cylinder Fluid. SeeBrakes on
page 5-41andHydraulic Clutch on page 5-28.
E. Engine Compartment Fuse Block. SeeFuses and
Circuit Breakers on page 5-98.F. Battery. SeeBattery on page 5-44.
G. Windshield Washer Fluid Reservoir. SeeWindshield
Washer Fluid on page 5-40.
H. Engine Coolant Recovery Tank. SeeEngine Coolant
on page 5-28.
Before closing the hood, be sure all ller caps are
on properly.
5-13
ProCarManuals.com

A. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 5-21.
B. Engine Oil Dipstick. SeeEngine Oil on page 5-15.
C. Engine Oil Fill Cap. SeeEngine Oil on page 5-15.
D. Battery. SeeBattery on page 5-44.
E. Engine Compartment Fuse Block. SeeFuses and
Circuit Breakers on page 5-98.
F. Engine Coolant Recovery Tank. SeeEngine Coolant
on page 5-28.
G. Windshield Washer Fluid Reservoir. SeeWindshield
Washer Fluid on page 5-40.
Before closing the hood, be sure all ller caps are
on properly.Engine Oil
Checking Engine Oil
It is a good idea to check your engine oil every time you
get fuel. In order to get an accurate reading, the oil
must be warm and the vehicle must be on level ground.
The engine oil dipstick handle is a yellow loop for the
2.2L L4 engine and an orange loop for the 3.5L V6
engine. SeeEngine Compartment Overview on
page 5-12for the location of the engine oil dipstick
Turn off the engine and give the oil several minutes to
drain back into the oil pan. If you do not do this, the
oil dipstick might not show the actual level.
Pull out the dipstick and clean it with a paper towel or
cloth, then push it back in all the way. Remove it again,
keeping the tip down, and check the level.
2.2L L4 (L61) Engine
5-15
ProCarManuals.com

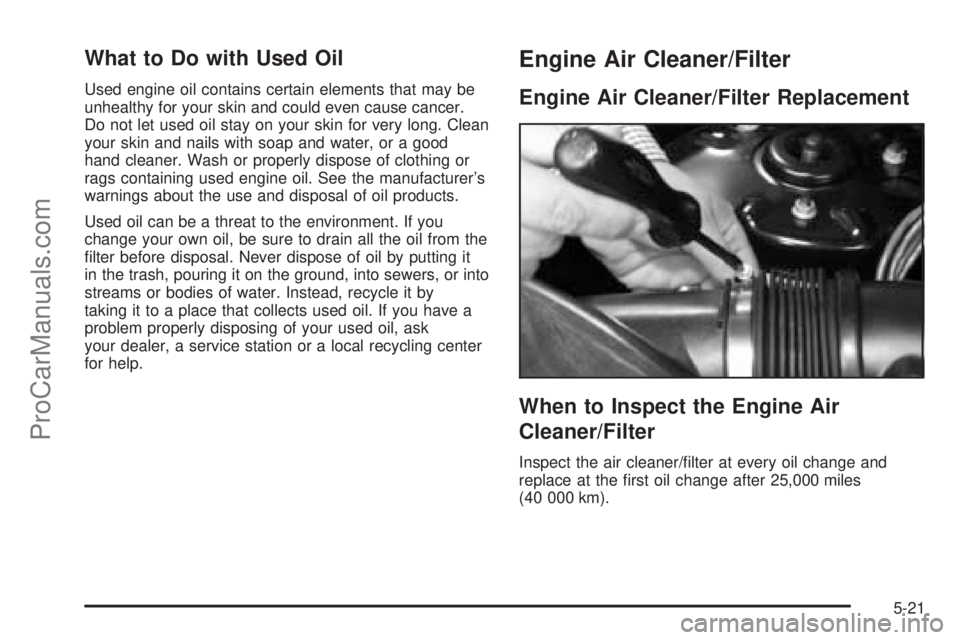

What to Do with Used Oil
Used engine oil contains certain elements that may be
unhealthy for your skin and could even cause cancer.
Do not let used oil stay on your skin for very long. Clean
your skin and nails with soap and water, or a good
hand cleaner. Wash or properly dispose of clothing or
rags containing used engine oil. See the manufacturer’s
warnings about the use and disposal of oil products.
Used oil can be a threat to the environment. If you
change your own oil, be sure to drain all the oil from the
lter before disposal. Never dispose of oil by putting it
in the trash, pouring it on the ground, into sewers, or into
streams or bodies of water. Instead, recycle it by
taking it to a place that collects used oil. If you have a
problem properly disposing of your used oil, ask
your dealer, a service station or a local recycling center
for help.
Engine Air Cleaner/Filter
Engine Air Cleaner/Filter Replacement
When to Inspect the Engine Air
Cleaner/Filter
Inspect the air cleaner/lter at every oil change and
replace at the rst oil change after 25,000 miles
(40 000 km).
5-21
ProCarManuals.com

How to Inspect the Engine Air
Cleaner/Filter
To inspect the air cleaner/lter, remove the lter from
the vehicle and lightly shake lter to release loose dust
and dirt. If the lter remains “caked” with dirt, a new
lter is required.
The engine air cleaner/lter is located in the engine
compartment on the passenger’s side of the vehicle.
SeeEngine Compartment Overview on page 5-12
for more information on location.
SeeScheduled Maintenance on page 6-4for information
on when to replace the engine air cleaner/lter.
{CAUTION:
Operating the engine with the air cleaner/lter
off can cause you or others to be burned.
The air cleaner not only cleans the air; it helps
to stop ame if the engine backres. If it is
not there and the engine backres, you could
be burned. Do not drive with it off, and be
careful working on the engine with the air
cleaner/lter off.Notice:If the air cleaner/lter is off, a backre can
cause a damaging engine re. And, dirt can
easily get into your engine, which will damage it.
Always have the air cleaner/lter in place when you
are driving.
To replace the engine air cleaner/lter, do the following:
1. Unscrew the clamp on the air duct hose.
5-22
ProCarManuals.com

Capacities and Specications
ApplicationCapacities
English Metric
Air Conditioning Refrigerant R134a
2.2L L4 (L61)
3.5L V6 (L66)1.5 lbs
1.75 lbs0.68 kg
0.79 kg
Cooling System
2.2L L4 (L61)
3.5L V6 (L66)7.4 quarts
9.7 quarts7.0 L
9.2 L
Engine Oil with Filter
2.2L L4 (L61)
3.5L V6 (L66)5.0 quarts
4.5 quarts4.7 L
4.3 L
Fuel Tank 16.5 gallons 62.4 L
Transaxle
Automatic, All-wheel drive
Automatic, Two-wheel drive
Manual
VTi Variable4.1 quarts
4.5 quarts
1.8 quarts
6.9 quarts3.9 L
4.3 L
1.7 L
6.5 L
Wheel Nut Torque 92 ft lb 125Y
All capacities are approximate. When adding, be sure to ll to the approximate level, as recommended in this
manual. Recheck uid level after lling.
5-102
ProCarManuals.com

Scheduled Maintenance
Service MaintenanceIMaintenanceII
Change engine oil and lter. Reset oil life system. SeeEngine Oil on
page 5-15.An Emission Control Service.••
Visually check for any leaks or damage.See footnote (j).••
Inspect engine air cleaner lter. If necessary, replace lter. SeeEngine Air
Cleaner/Filter on page 5-21.An Emission Control Service. See footnote †.••
Rotate tires and check ination pressures and wear. SeeTires on page 5-62.••
Inspect brake system.See footnote (a).••
Check engine coolant and windshield washer uid levels and add uid
as needed.••
Perform any needed additional services. See “Additional Required Services”
in this section.••
Inspect suspension and steering components.See footnote (b).•
Inspect engine cooling system.See footnote (c).•
Inspect wiper blades.See footnote (d).•
Inspect restraint system components.See footnote (e).•
Lubricate body components.See footnote (f).•
Replace passenger compartment air lter.See footnote (k).•
L4 engine: Inspect throttle system.See footnote (g).•
6-5
ProCarManuals.com

Additional Required Services
The following services should be performed at the rst maintenance service (IorII) after the indicated
miles (kilometers) shown for each item.
Additional Required Services
Service and Miles (Kilometers)25,000
(41 500)50,000
(83 000)75,000
(125 000)100,000
(166 000)125,000
(207 500)150,000
(240 000)
Inspect fuel system for damage
or leaks.••••••
Inspect exhaust system for loose or
damaged components.••••••
Replace engine air cleaner lter. See
Engine Air Cleaner/Filter on page 5-21.
An Emission Control Service.••••••
VTi variable transaxle: Add DEX-CVT
additive.•••
L4 engine: Change VTi variable
transaxle uid (severe service).
See footnote (h).•••
L4 engine: Change VTi variable
transaxle uid (normal service).•
V6 engine: Change automatic
transaxle uid (severe service).
See footnote (h).••••••
6-6
ProCarManuals.com
