Seats and Restraint Systems........................... 1-1
Front Seats
............................................... 1-2
Rear Seats
............................................... 1-8
Safety Belts
.............................................1-10
Child Restraints
.......................................1-28
Airbag Systems
........................................1-48
Restraint System Check
............................1-58
Features and Controls..................................... 2-1
Keys
........................................................ 2-2
Doors and Locks
....................................... 2-7
Windows
.................................................2-11
Theft-Deterrent Systems
............................2-13
Starting and Operating Your Vehicle
...........2-14
Mirrors
....................................................2-29
OnStar
®System
......................................2-35
Storage Areas
.........................................2-36
Sunroof
..................................................2-38
Instrument Panel............................................. 3-1
Instrument Panel Overview
.......................... 3-4
Climate Controls
......................................3-21
Warning Lights, Gages, and Indicators
........3-25
Audio System(s)
.......................................3-42Driving Your Vehicle....................................... 4-1
Your Driving, the Road, and Your Vehicle
..... 4-2
Towing
...................................................4-46
Service and Appearance Care.......................... 5-1
Service
..................................................... 5-3
Fuel
......................................................... 5-5
Checking Things Under the Hood
...............5-10
All-Wheel Drive
........................................5-51
Headlamp Aiming
.....................................5-52
Bulb Replacement
....................................5-53
Windshield Wiper Blade Replacement
.........5-60
Tires
......................................................5-62
Appearance Care
.....................................5-89
Vehicle Identi cation
.................................5-97
Electrical System
......................................5-98
Capacities and Speci cations
...................5-102
Maintenance Schedule..................................... 6-1
Maintenance Schedule
................................ 6-2
Customer Assistance and Information.............. 7-1
Customer Assistance and Information
........... 7-2
Reporting Safety Defects
............................ 7-8
Index................................................................ 1
2004 Saturn VUE Owner ManualM
ProCarManuals.com
Page 2 of 392
SATURN, the SATURN Emblem, and the name VUE
are registered trademarks of Saturn Corporation.
GENERAL MOTORS and GM are registered trademarks
of General Motors Corportation.
This manual includes the latest information at the time
it was printed. We reserve the right to make changes
after that time without further notice.
Keep this manual in the vehicle so it will be there if it
is needed. If the vehicle is sold, leave this manual in
the vehicle.
Canadian Owners
A French language copy of this manual can be obtained
from your dealer or from:
Helm, Incorporated
P.O. Box 07130
Detroit, MI 48207
About Driving Your Vehicle
As with other vehicles of this type, failure to operate
this vehicle correctly may result in loss of control
or an accident. Be sure to read the “on-pavement” and
“off-road” driving guidelines in this manual. SeeYour
Driving, the Road, and Your Vehicle on page 4-2
andOperating Your All-Wheel-Drive Vehicle Off Paved
Roads on page 4-18.
How to Use This Manual
Many people read the owner manual from beginning
to end when they rst receive their new vehicle.
If this is done, it can help you learn about the features
and controls for the vehicle. Pictures and words
work together in the owner manual to explain things.
Litho in U.S.A.
Part No. 04VUE B Second Edition
©2004 General Motors Corporation. All Rights Reserved.
ii
ProCarManuals.com
Page 17 of 392

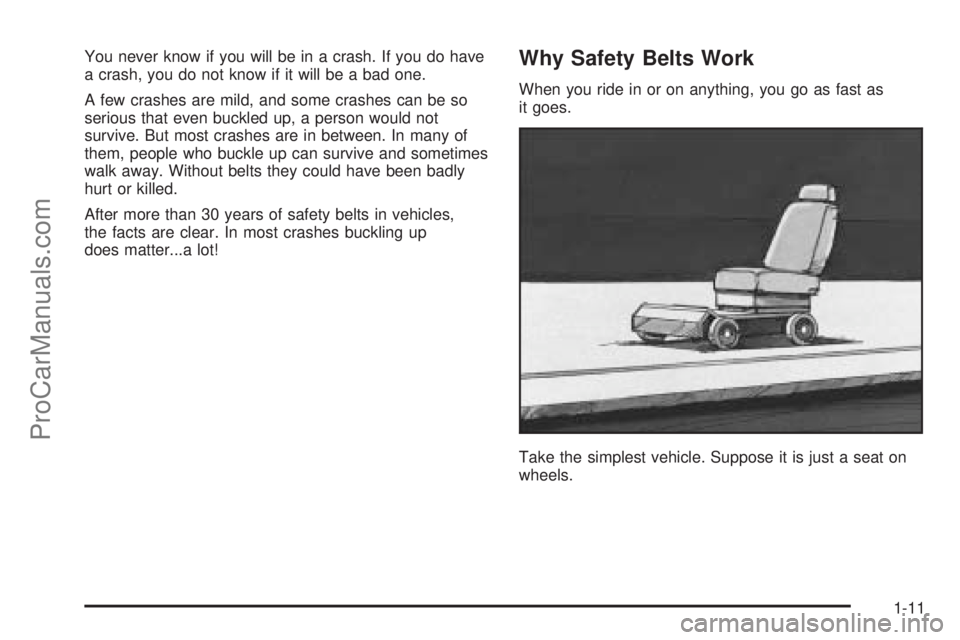

You never know if you will be in a crash. If you do have
a crash, you do not know if it will be a bad one.
A few crashes are mild, and some crashes can be so
serious that even buckled up, a person would not
survive. But most crashes are in between. In many of
them, people who buckle up can survive and sometimes
walk away. Without belts they could have been badly
hurt or killed.
After more than 30 years of safety belts in vehicles,
the facts are clear. In most crashes buckling up
does matter...a lot!Why Safety Belts Work
When you ride in or on anything, you go as fast as
it goes.
Take the simplest vehicle. Suppose it is just a seat on
wheels.
1-11
ProCarManuals.com
Page 56 of 392
There is an air bag
readiness light on the
instrument panel cluster,
which shows the air
bag symbol.
The system checks the air bag electrical system for
malfunctions. The light tells you if there is an electrical
problem. SeeAirbag Readiness Light on page 3-28
for more information.Where Are the Airbags?
The driver’s frontal airbag is in the middle of the
steering wheel.
1-50
ProCarManuals.com
Page 58 of 392
If your vehicle has a side impact airbag for the right
front passenger and the person seated directly behind
that passenger, it is in the ceiling above the side
windows.
{CAUTION:
If something is between an occupant and an
airbag, the bag might not in ate properly or it
might force the object into that person causing
severe injury or even death. The path of an
in ating airbag must be kept clear. Do not put
anything between an occupant and an airbag,
and do not attach or put anything on the
steering wheel hub or on or near any other
airbag covering. And, if your vehicle has
roof-mounted side impact airbags, never
secure anything to the roof of your vehicle
by routing the rope or tiedown through any
door or window opening. If you do, the path
of an in ating side impact airbag will be
blocked. The path of an in ating airbag must
be kept clear.
1-52
ProCarManuals.com
Page 60 of 392
In any particular crash, no one can say whether an
airbag should have in ated simply because of the
damage to a vehicle or because of what the repair
costs were. For frontal airbags, in ation is determined
by the angle of the impact and how quickly the
vehicle slows down in frontal and near-frontal impacts.
For side impact airbags, in ation is determined by
the location and severity of the impact.
What Makes an Airbag In ate?
In an impact of sufficient severity, the airbag sensing
system detects that the vehicle is in a crash. For
both frontal and side impact airbags, the sensing system
triggers a release of gas from the in ator, which
in ates the airbag. The in ator, airbag, and related
hardware are all part of the airbag modules inside the
steering wheel and in the instrument panel in front of
the right front passenger. For vehicles with side impact
airbags, the airbag modules are located in the ceiling
of the vehicle, near the side windows.
How Does an Airbag Restrain?
In moderate to severe frontal or near frontal collisions,
even belted occupants can contact the steering wheel
or the instrument panel. In moderate to severe side
collisions, even belted occupants can contact the inside
of the vehicle. The airbag supplements the protection
provided by safety belts. Airbags distribute the force of
the impact more evenly over the occupant’s upper
body, stopping the occupant more gradually. But the
frontal airbags would not help you in many types
of collisions, including rollovers, rear impacts, and many
side impacts, primarily because an occupant’s motion
is not toward the airbag. Side impact airbags would not
help you in many types of collisions, including frontal
or near frontal collisions, rollovers, and rear impacts,
primarily because an occupant’s motion is not toward
those airbags. Airbags should never be regarded
as anything more than a supplement to safety belts, and
then only in moderate to severe frontal or near-frontal
collisions for the driver’s and right front passenger’s
frontal airbags, and only in moderate to severe
side collisions for vehicles with a driver’s and right front
passenger’s side impact airbag.
1-54
ProCarManuals.com
Page 61 of 392
What Will You See After an
Airbag In ates?
After the airbag in ates, it quickly de ates, so quickly
that some people may not even realize the airbag
in ated. Some components of the airbag module will be
hot for a short time. These components include the
steering wheel hub for the driver’s frontal airbag and the
instrument panel for the right front passenger’s frontal
airbag. For vehicles with side impact airbags, the ceiling
of your vehicle near the side windows will be hot. The
parts of the bag that come into contact with you may
be warm, but not too hot to touch. There will be
some smoke and dust coming from the vents in the
de ated airbags. Airbag in ation does not prevent the
driver from seeing or being able to steer the vehicle,
nor does it stop people from leaving the vehicle.
{CAUTION:
When an airbag in ates, there is dust in the
air. This dust could cause breathing problems
for people with a history of asthma or other
breathing trouble. To avoid this, everyone in
the vehicle should get out as soon as it is
safe to do so. If you have breathing problems
but can not get out of the vehicle after an
airbag in ates, then get fresh air by opening a
window or a door. If you experience breathing
problems following an airbag deployment,
you should seek medical attention.
Your vehicle may have a feature that will automatically
unlock the doors, turn the interior dome lamp on
and ash the daytime running lights on and off when
the airbags in ate (if battery power is available). You can
lock the doors again and turn the interior lamps off by
using the door lock and interior lamp controls. You must
rst, however, turn your ignition key to the following
ignition switch positions:
1. Turn the ignition key to OFF.
2. Turn the ignition key to RUN.
3. Turn the ignition key to OFF.
1-55
ProCarManuals.com
Page 62 of 392
In many crashes severe enough to in ate an airbag,
windshields are broken by vehicle deformation.
Additional windshield breakage may also occur from
the right front passenger airbag.
Airbags are designed to in ate only once. After
an airbag in ates, you will need some new parts
for your airbag system. If you do not get them, the
airbag system will not be there to help protect
you in another crash. A new system will include
airbag modules and possibly other parts. The
service manual for your vehicle covers the need
to replace other parts.
Your vehicle is equipped with a crash sensing and
diagnostic module which records information after
a crash. SeeVehicle Data Collection and Event
Data Recorders on page 7-7.
Let only quali ed technicians work on your airbag
system. Improper service can mean that your
airbag system will not work properly. See your
Saturn retailer for service.Notice:If you damage the covering for the driver’s
or the right front passenger’s airbag, or the side
impact airbag covering on the ceiling near the
side windows, the airbag may not work properly.
You may have to replace the airbag module in
the steering wheel, both the airbag module and the
instrument panel for the right front passenger’s
airbag, or side impact airbag module and ceiling
covering for roof-mounted side impact airbags.
Do not open or break the airbag coverings.
Servicing Your Airbag-Equipped
Vehicle
Airbags affect how your vehicle should be serviced.
There are airbag system parts in several places around
your vehicle. You do not want the system to in ate
while someone is working on your vehicle. Your Saturn
retailer and the Saturn Service Manual have information
about servicing your vehicle and the airbag system.
To purchase a service manual, seeService Publications
Ordering Information on page 7-9.
1-56
ProCarManuals.com
Page 81 of 392
Notice:If your key seems stuck in LOCK and you
cannot turn it, be sure you are using the correct
key; if so, is it all the way in? If it is, then turn the
steering wheel left and right while you turn the
key hard. Turn the key only with your hand. Using a
tool to force it could break the key or the ignition
switch. If none of these works, then your vehicle
needs service.
{CAUTION:
If you have a manual transaxle removing the
key from the ignition switch will lock the
steering column and result in a loss of ability to
steer the vehicle. This could cause a collision.
If you need to turn the engine off while the
vehicle is moving, turn the key to ACC.
ACC (Accessory):This position operates some of your
electrical accessories. It unlocks the steering wheel
and ignition.
RUN:This is the position the switch returns to after you
start your engine and release the switch. The switch
stays in the RUN position when the engine is running.But even when the ignition is not running, you can use
RUN to operate your electrical accessories and to
display some warning and indicator lights.
rSTART:This position starts the engine. When the
engine starts, release the key. The ignition switch
will return to RUN for normal driving.
A warning tone will sound if you open the driver’s door
when the key has not been removed from the ignition.
Starting Your Engine
Automatic Transaxle
Move your shift lever to PARK (P) or NEUTRAL (N).
Your engine won’t start in any other position — that’s a
safety feature. To restart when you’re already moving,
use NEUTRAL (N) only.
Notice:Shifting into PARK (P) with the vehicle
moving could damage the transaxle. Shift into
PARK (P) only when your vehicle is stopped.
Manual Transaxle
The gear selector should be in NEUTRAL and the parking
brake engaged. Hold the clutch pedal to the oor and
start the engine. Your vehicle won’t start if the clutch
pedal is not all the way down – that’s a safety feature.
2-15
ProCarManuals.com
Page 84 of 392
Automatic Transaxle Operation
Five-Speed Automatic and VTi Variable
If your vehicle is equipped with either the ve-speed
automatic transaxle or the VTi variable automatic
transaxle, the shift lever is located on the console
between the seats.
There are several different positions for the automatic
transaxle.
PARK (P):This position locks your front wheels. It is
the best position to use when you start your engine
because your vehicle cannot move easily.
{CAUTION:
It is dangerous to get out of your vehicle if
the shift lever is not fully in PARK (P) with the
parking brake rmly set. Your vehicle can roll.
Do not leave your vehicle when the engine is
running unless you have to. If you have left
the engine running, the vehicle can move
suddenly. You or others could be injured.
To be sure your vehicle will not move, even
when you are on fairly level ground, always
set your parking brake and move the shift
lever to PARK (P). SeeShifting Into Park (P)
(Automatic Transaxle) on page 2-24.Ifyou
are pulling a trailer, seeTowing a Trailer on
page 4-55.
Ensure the shift lever is fully in PARK (P) before
starting the engine. Your vehicle has an automatic
transaxle shift lock control system. You have to
fully apply your regular brakes before you can shift
from PARK (P) when the ignition key is in RUN.
2-18
ProCarManuals.com
