Automatic Headlamp System
If your vehicle has this feature and when it is dark
enough outside, the headlamps will come on
automatically.
Your vehicle has a light
sensor located on top of
the instrument panel. Make
sure it is not covered, or
the headlamps will be
on when you don’t
need them.
The system may also turn on the headlamps when
driving through a parking garage or tunnel.
Fog Lamps
If your vehicle has this feature, use your fog lamps for
better visibility in foggy or misty conditions.
The button for your fog
lamps is located in the
instrument panel above
the radio.
Push the button to turn the fog lamps on or off.
When using fog lamps, the parking lamps or low-beam
headlamps must be on.
A light on the button will come on when the fog lamps
are actually on. Fog lamps will go off whenever the
high-beam headlamps come on. When the high-beam
headlamps go off, the fog lamps will come on again.
Some localities have laws that require the headlamps to
be on along with the fog lamps.
3-15
ProCarManuals.com

Interior Lamps
The liftgate lamps are located on the bottom left and
right corner of the liftgate. They will come on when the
liftgate or any door is opened. The liftgate lamps
can be controlled by the dome lamp switch. SeeDome
Lamp on page 3-16.
Instrument Panel Brightness
This feature controls the brightness of the instrument
panel lights.
The thumbwheel for this
feature is located on the
center of the instrument
panel.
Turn the thumbwheel to the right to brighten the lights
or to the left to dim them.
Dome Lamp
The dome lamp switch has three positions.
9(Off):The lamps will not come on as long as the
switch is in this position.
R(On):The lamps will stay on as long as the switch is
in this position.
AUTO:The lamps will come on when a door is opened.
SeeEntry Lighting on page 3-16for more information.
Entry Lighting
If the dome lamp is in the AUTO position, the lamps
inside your vehicle will come on when any door is
opened. In addition, the lights will come on when the
remote keyless entry unlock button is pressed. It will stay
on for 20 seconds or until a door is opened. After the door
is opened the lights will remain on and stay on for
20 seconds after the doors are closed, or until you put the
key in the ignition and turn the key to RUN. The lights will
then gradually dim until it is no longer lit.
Map Lamps
The lamps are located on the headliner above the
rearview mirror. To turn the lamps on, press the lens.
Press the lens again to turn them off.
3-16
ProCarManuals.com

Cargo Lamp
The cargo lamp is located over the rear compartment. It
will come on if any door is opened or the dome lamp
is in the on position. SeeDome Lamp on page 3-16.
Battery Run-Down Protection
Your vehicle is equipped with a battery saver feature
designed to protect your vehicle’s battery.
When any interior lamp is left on and the ignition is
turned off, the battery rundown protection system will
automatically turn the lamp off after 20 minutes. This will
avoid draining the battery.
Accessory Power Outlets
The accessory power outlets can be used to connect
electrical equipment such as a cellular phone or
CB radio.
The accessory power outlets are located on the
instrument panel near the climate controls and on the
rear of the center console.
To use the outlets, remove the cover. When not in use,
always cover the outlet with the protective cap.Notice:Leaving electrical equipment on for
extended periods will drain the battery. Always turn
off electrical equipment when not in use and do
not plug in equipment that exceeds the maximum
amperage rating.
Certain electrical accessories may not be compatible
with the accessory power outlet and could result
in blown vehicle or adapter fuses. If you experience a
problem, see your retailer for additional information
on the accessory power outlet.
Notice:Adding any electrical equipment to your
vehicle may damage it or keep other components
from working as they should. The repairs would not
be covered by your warranty. Check with your
retailer before adding electrical equipment.
When adding electrical equipment, be sure to follow the
installation instructions included with the equipment.
Notice:Improper use of the power outlet can cause
damage not covered by your warranty. Do not
hang any type of accessory or accessory bracket
from the plug because the power outlets are
designed for accessory power plugs only.
3-17
ProCarManuals.com

Climate Controls
Climate Control System
With this system you can control the heating, cooling
and ventilation for your vehicle.
Operation
To change the current mode, use the right knob to
select one of the following:
H(Vent):This mode directs air to the instrument
panel outlets.
)(Bi-Level):This mode directs air to the instrument
panel outlets and to the oor outlets. Cooler air is directed
to the upper outlets and warmer air to the oor outlets.
6(Floor):This mode directs most of the air to the
oor outlets with some air directed to the windshield.
When you select this mode, the system will turn
recirculation mode off automatically and will run the air
conditioning compressor unless the outside air is at
or below freezing. Recirculation mode cannot be
selected while in oor mode. This is designed to limit
fogging in your vehicle.
The right knob can also be used to select defog or
defrost mode. See “Defogging and Defrosting” later in
this section.
A(Fan):Turn the center knob clockwise or
counterclockwise to increase or decrease the fan speed.
To turn the fan off, turn the center knob all the way
counterclockwise. In any setting other than off, the fan
will run continuously with the ignition on. The fan
must be turned on to run the air conditioning
compressor.
Temperature Control:Turn the left knob clockwise or
counterclockwise to increase or decrease the
temperature inside your vehicle.
3-18
ProCarManuals.com

@(Recirculate):This mode keeps outside air from
coming in the vehicle. It can be used to prevent outside
air and odors from entering your vehicle or to help heat or
cool the air inside your vehicle more quickly. An indicator
light will come on in this mode. Operation in this mode
during periods of high humidity and cool outside
temperatures may result in increased window fogging. If
window fogging is experienced, select the defrost mode.
Recirculation mode is not available in oor, defog or
defrost modes and will shut off automatically and change
to outside air until a mode other than oor, defog or
defrost is selected. This is designed to limit fogging in
your vehicle.
#(Air Conditioning):Press this button to turn the air
conditioning system on or off. When this button is
pressed, an indicator light above the button will come
on to let you know the air conditioning is activated.
Air conditioning can be selected in any mode as long as
the fan switch is on.
On hot days, open the windows to let hot inside air
escape; then close them. This helps to reduce the time
it takes for your vehicle to cool down. It also helps
the system to operate more efficiently.
The air conditioning system removes moisture from the
air, so you may sometimes notice a small amount of
water dripping underneath your vehicle while idling
or after turning off the engine. This is normal.
Defogging and Defrosting
Fog on the inside of windows is a result of high humidity
(moisture) condensing on the cool window glass. This
can be minimized if the climate control system is used
properly. There are two modes to clear fog or frost from
your windshield and side windows. Use the defog mode
to clear the windows of fog or moisture and warm the
passengers. Use the defrost mode to remove fog or frost
from the windshield more quickly. For best results, clear
all snow and ice from the windshield before defrosting.
Turn the right knob to select the defog or defrost mode.
-(Defog):This mode directs air to the windshield,
side window outlets and oor outlets. When you select
this mode, the system will turn recirculation mode
off automatically and will run the air conditioning
compressor unless the outside air is at or below
freezing. Recirculation mode cannot be selected while in
defog mode. To defog the windows faster, turn the
temperature knob clockwise to the warmest setting.
0(Defrost):This mode directs most of the air to the
windshield, with some air directed to the side window
outlets and the oor outlets. When you select this mode,
the system will turn recirculation mode off automatically
and will run the air conditioning compressor unless
the outside air is at or below freezing. Recirculation
mode cannot be selected while in defrost mode.
To defrost the windows faster, turn the temperature
knob clockwise to the warmest setting.
3-19
ProCarManuals.com

Operation Tips
After the front window is clear of ice or fog, operating in
the mixing mode between bi-level and oor will help
clear the side windows. To do this, do the following:
Change the mode to a setting between oor
mode and bi-level mode.
Aim the outboard panel registers toward the side
windows.
Close the inboard panel registers.
Operate at blower two or three.
Adjust the temperature knob for best comfort.
Rear Window Defogger
The rear window defogger uses a warming grid to
remove fog from the rear window.
The rear window defogger will only work when the
ignition is in RUN.
<(Rear Window Defogger):Press the button to
turn the rear window defogger on or off. An indicator
light above the button will come on to let you know that
the rear window defogger is activated.
The rear window defogger will stay on for approximately
15 minutes after the button is pressed, unless the
ignition is turned to ACC or LOCK. If turned on again,the defogger will only run for approximately ve minutes
before turning off. The defogger can also be turned
off by pressing the button again or by turning off
the engine.
Notice:Do not use anything sharp on the inside of
the rear window. If you do, you could cut or
damage the warming grid, and the repairs would not
be covered by your warranty. Do not attach a
temporary vehicle license, tape, a decal or anything
similar to the defogger grid.
Outlet Adjustment
Use the louvers located on the air outlets to change the
direction of the airow.
Operation Tips

Clear away any ice, snow, or leaves from the air
inlets at the base of the vehicle that may block
the ow of air into your vehicle.
Use of non-GM approved hood deectors may
adversely affect the performance of the system.
Keep the path under the front seats clear of objects
to help circulate the air inside of your vehicle more
effectively.
3-20
ProCarManuals.com

Passenger Compartment Air Filter
If your vehicle has this feature, the passenger
compartment air, both outside air and recirculated air, is
routed through a passenger compartment lter. The
lter removes certain particles from the air, including
pollen and dust particles. Reductions in airow,
which may occur more quickly in dusty areas, indicate
that the lter needs to be replaced early.
The lter should be replaced as part of routine
scheduled maintenance. SeeScheduled Maintenance
on page 6-4for replacement intervals. To nd out
what type of lter to use, seeNormal Maintenance
Replacement Parts on page 6-16.
The passenger compartment air lter can be accessed
from under the hood.1. Remove the push pins
from the air lter
access panel.
2. Remove the air lter access panel.
3-21
ProCarManuals.com

3. Remove the air lter from the housing by pressing
the tab on the inboard side of the housing.4. Remove the lter by sliding it out of the housing.
5. Install the new air lter.
When installing a new air lter make sure the AIR
FLOW arrow is pointing rearward.
6. Reinstall the air lter access panel.
7. Reinstall the air lter access panel push pins.
3-22
ProCarManuals.com

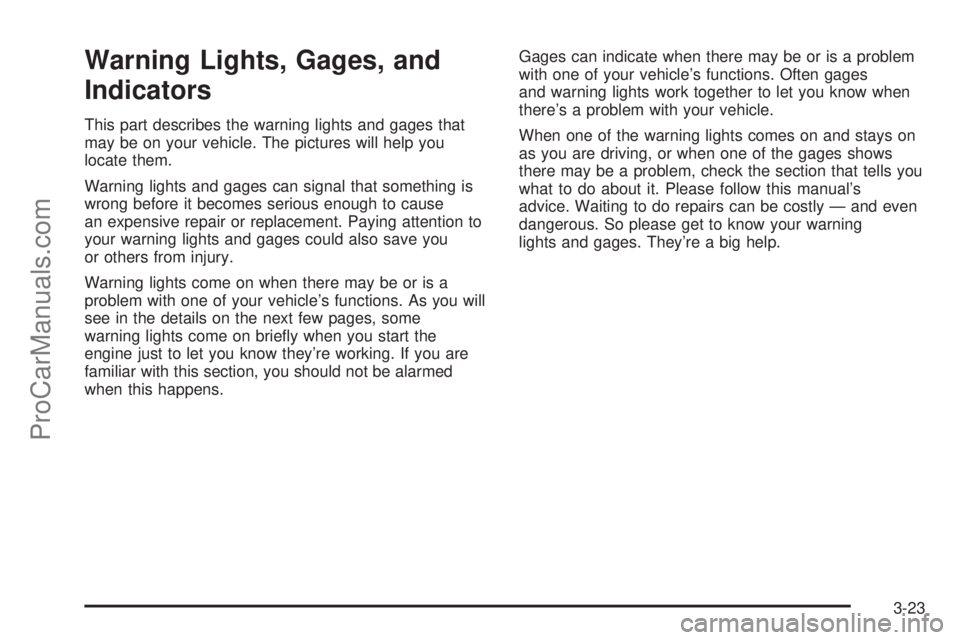

Warning Lights, Gages, and
Indicators
This part describes the warning lights and gages that
may be on your vehicle. The pictures will help you
locate them.
Warning lights and gages can signal that something is
wrong before it becomes serious enough to cause
an expensive repair or replacement. Paying attention to
your warning lights and gages could also save you
or others from injury.
Warning lights come on when there may be or is a
problem with one of your vehicle’s functions. As you will
see in the details on the next few pages, some
warning lights come on briey when you start the
engine just to let you know they’re working. If you are
familiar with this section, you should not be alarmed
when this happens.Gages can indicate when there may be or is a problem
with one of your vehicle’s functions. Often gages
and warning lights work together to let you know when
there’s a problem with your vehicle.
When one of the warning lights comes on and stays on
as you are driving, or when one of the gages shows
there may be a problem, check the section that tells you
what to do about it. Please follow this manual’s
advice. Waiting to do repairs can be costly — and even
dangerous. So please get to know your warning
lights and gages. They’re a big help.
3-23
ProCarManuals.com

Instrument Panel Cluster
The instrument cluster is designed to let you know at a glance how the vehicle is running. You will know how fast
you are going, about how much fuel you have used, and many other things you will need to know to drive safely and
economically.
United States version shown, Canada similar
3-24
ProCarManuals.com
