sunroof SATURN VUE 2005 Owners Manual

Seats and Restraint Systems........................... 1-1
Front Seats
............................................... 1-2
Rear Seats
............................................... 1-9
Safety Belts
.............................................1-10
Child Restraints
.......................................1-30
Airbag System
.........................................1-48
Restraint System Check
............................1-58
Features and Controls..................................... 2-1
Keys
........................................................ 2-2
Doors and Locks
....................................... 2-8
Windows
.................................................2-12
Theft-Deterrent Systems
............................2-14
Starting and Operating Your Vehicle
...........2-15
Mirrors
....................................................2-29
OnStar
®System
......................................2-35
Storage Areas
.........................................2-36
Sunroof
..................................................2-39
Instrument Panel............................................. 3-1
Instrument Panel Overview
.......................... 3-4
Climate Controls
......................................3-18
Warning Lights, Gages, and Indicators
........3-23
Audio System(s)
.......................................3-39Driving Your Vehicle....................................... 4-1
Your Driving, the Road, and Your Vehicle
..... 4-2
Towing
...................................................4-50
Service and Appearance Care.......................... 5-1
Service
..................................................... 5-3
Fuel
......................................................... 5-5
Checking Things Under the Hood
...............5-10
All-Wheel Drive
........................................5-45
Headlamp Aiming
.....................................5-47
Bulb Replacement
....................................5-47
Windshield Wiper Blade Replacement
.........5-54
Tires
......................................................5-55
Appearance Care
.....................................5-84
Vehicle Identication
.................................5-92
Electrical System
......................................5-93
Capacities and Specications
.....................5-99
Maintenance Schedule..................................... 6-1
Maintenance Schedule
................................ 6-2
Customer Assistance and Information.............. 7-1
Customer Assistance and Information
........... 7-2
Reporting Safety Defects
............................ 7-8
Index................................................................ 1
2005 Saturn VUE Owner ManualM
ProCarManuals.com

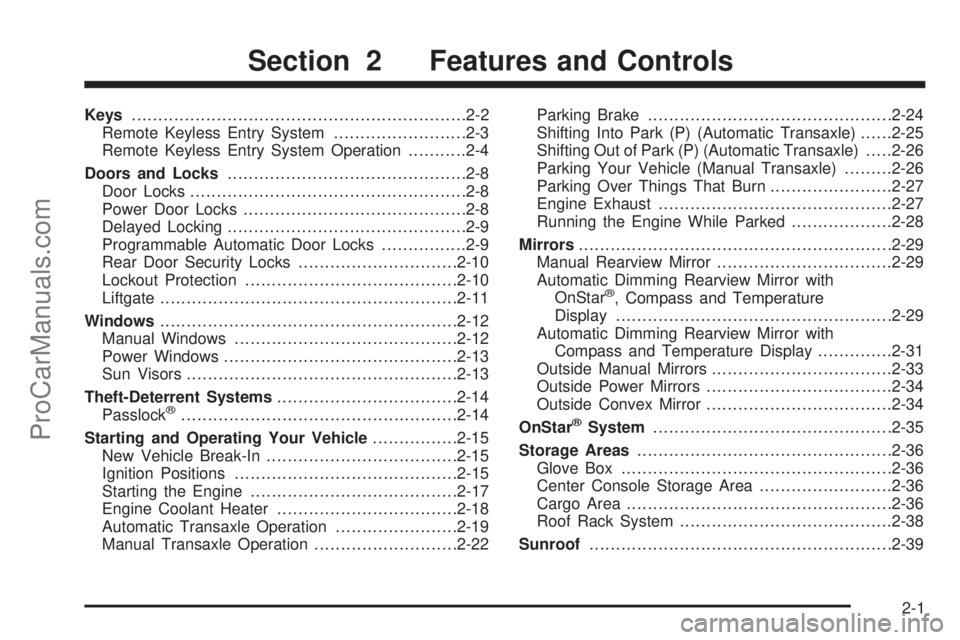

Keys...............................................................2-2
Remote Keyless Entry System.........................2-3
Remote Keyless Entry System Operation...........2-4
Doors and Locks.............................................2-8
Door Locks....................................................2-8
Power Door Locks..........................................2-8
Delayed Locking.............................................2-9
Programmable Automatic Door Locks................2-9
Rear Door Security Locks..............................2-10
Lockout Protection........................................2-10
Liftgate........................................................2-11
Windows........................................................2-12
Manual Windows..........................................2-12
Power Windows............................................2-13
Sun Visors...................................................2-13
Theft-Deterrent Systems..................................2-14
Passlock
®....................................................2-14
Starting and Operating Your Vehicle................2-15
New Vehicle Break-In....................................2-15
Ignition Positions..........................................2-15
Starting the Engine.......................................2-17
Engine Coolant Heater..................................2-18
Automatic Transaxle Operation.......................2-19
Manual Transaxle Operation...........................2-22Parking Brake..............................................2-24
Shifting Into Park (P) (Automatic Transaxle)......2-25
Shifting Out of Park (P) (Automatic Transaxle).....2-26
Parking Your Vehicle (Manual Transaxle).........2-26
Parking Over Things That Burn.......................2-27
Engine Exhaust............................................2-27
Running the Engine While Parked...................2-28
Mirrors...........................................................2-29
Manual Rearview Mirror.................................2-29
Automatic Dimming Rearview Mirror with
OnStar
®, Compass and Temperature
Display....................................................2-29
Automatic Dimming Rearview Mirror with
Compass and Temperature Display..............2-31
Outside Manual Mirrors..................................2-33
Outside Power Mirrors...................................2-34
Outside Convex Mirror...................................2-34
OnStar
®System.............................................2-35
Storage Areas................................................2-36
Glove Box...................................................2-36
Center Console Storage Area.........................2-36
Cargo Area..................................................2-36
Roof Rack System........................................2-38
Sunroof.........................................................2-39
Section 2 Features and Controls
2-1
ProCarManuals.com

Sunroof
If the vehicle has an express-open sunroof, the controls
to operate it are located on the headliner above the
rearview mirror. The ignition must be in RUN or ACC to
operate the sunroof. SeeIgnition Positions on
page 2-15.
To express-open the
sunroof glass panel and
sunshade, press the switch
rearward and release it.To stop the sunroof before it is completely open, press
the switch rearward again. The sunshade cannot be
closed with the sunroof open. To close the sunroof,
press forward on the switch until it stops.
To put the sunroof in the vent position, pull down on the
front of the switch. Push up on the front of the switch
to close it.
2-39
ProCarManuals.com

Care of Your CDs and DVDs
Handle discs carefully. Store them in their original cases
or other protective cases and away from direct sunlight
and dust. If the surface of a disc is soiled, dampen
a clean, soft cloth in a mild, neutral detergent solution
and clean it, wiping from the center to the edge.
Be sure never to touch the side without writing when
handling discs. Pick up discs by grasping the outer
edges or the edge of the hole and the outer edge.
Care of the CD and DVD Player
The use of CD lens cleaners for CDs is not advised,
due to the risk of contaminating the lens of the CD optics
with lubricants internal to the CD mechanism.
Fixed Mast Antenna
The xed mast antenna can withstand most car washes
without being damaged. If the mast should ever
become slightly bent, straighten it out by hand. If the
mast is badly bent, replace it.
Check occasionally to make sure the mast is still
tightened to the antenna base located on the hood of
the vehicle. If tightening is required, tighten by hand.
XM™ Satellite Radio Antenna
System
The XM™ Satellite Radio antenna is located on the roof
of your vehicle. Keep this antenna clear of snow and
ice build up for clear radio reception.
The performance of the XM™ system may be affected if
the sunroof is open.
Loading items onto the roof of your vehicle can interfere
with the performance of the XM™ system. Make sure
that the XM™ satellite antenna is not obstructed.
3-73
ProCarManuals.com

Instrument Panel Fuse Block
The instrument panel fuse block is located on the
passenger’s side of the lower console.
Fuses Usage
CRUISE Cruise Control Switch, Brake Switch
EPS Electronic Power Steering
IGN 1Instrument Cluster, BTSI Solenoid,
Traction Switch, Fog Lamp Switch
LOCK/MIRRORPower Door Locks, Power Mirror,
Entry Control
BCMBody Control Module, Front Wipers,
Windows, Sunroof
BCM (IGN 1) Body Control Module
AIR BAG SDM Module
RADIO (IGN)Radio, Power Mirror, Premium
Radio Amplier
TURN Turn Lamps
5-94
ProCarManuals.com

Underhood Fuse Block
The underhood fuse block is located in the forward part
of the engine compartment near the battery.
Fuses Usage
ECM/TCMBattery Voltage to ECM, TCM,
PCM (3.5L V6 (L66))
BATT FEED I/P Fuse Box
HORN Horn
ABS PWR ABS Battery
REAR DEFOG Rear Defogger
COOL HI (L4)/
COOL 1 (V6)Cooling Fans High (L4)/Cooling
Fan 1 (V6)
FOG LP Fog Lamps
LH HDLP Left Headlamp
RR WIPER Rear Wiper
ABS ABS Module
PWR WDW Power Window Relay and Sunroof
CIGAR/AUX2 Cigarette Lighter
5-96
ProCarManuals.com

Fuses Usage
HVAC
BLOWERHVAC Blower Motor
RH HDLP Right Headlamp
FRT WIPER Front Wiper
ETC (2.2L)Engine Control Module (ECM),
Electronic Throttle Control
SUNROOF Sunroof Module
BRAKE Stop Lamps
IGN Ignition switch
IGN/INJ (L4),
ECM/
CAM (V6)Engine Ignition Module, Fuel
Injectors (2.2L L4 (L61))
Camshaft Sensor, Main Relay
Voltage To PCM, Ignition Coils 1-6
INJECTORS
(3.5L V6 (L66))Fuel InjectionFuses Usage
PWR TRAINEngine Control Module (ECM),
Transmission Control Module
(TCM), Transmission
BACKUPLow Coolant Switch, Backup Lamps
(2.2L L4 (L61)), Vehicle Speed
Sensor (Manual), Transmission
Range Switch (2.2L L4 (L61))
HTD SEATS Heated Seats
COOL LO (L4)/
COOL 2 (V6)Cooling Fan Low (L4), Cooling
Fan (V6)
A/C CLUTCHA/C Clutch, Back Up Lamps
(3.5L V6 (L66))
FUEL PUMP Fuel Pump
AUX 1
OUTLETFront Auxiliary Power Outlet
PREM AUD Premium Radio Amplier
ABS ABS Ignition
PWR SEAT Power Seats
5-97
ProCarManuals.com

Relays Usage
FOG LP Fog Lamps
COOL FAN
HI (L4)Cooling Fan Motor High
ENG MAIN ECM/CAM, EMISS, INJ, ETC
REAR DEFOG Rear Defog System
HORN Horn
DRL Daytime Running Lamps
COOL
FAN 1 (V6)Cooling Fan
WIPER
SYSTEMWiper System
PRW WDOPower Window Switch, Sunroof
ModuleRelays Usage
FRT WIPER Front Wiper System
COOL FAN
LOW (L4)Cooling Fan Motor Low
A/C CLUTCH A/C Clutch
BACKUP
LAMPS (V6)Back-up Lamps (V6)
FUEL PUMP Fuel Pump System
RR WIPER Rear Wiper System
COOL
FAN 2 (V6)Cooling Fan (V6)
Misc. Usage
FUSE PULLER Fuse Puller
Diode Air Conditioning Diode
5-98
ProCarManuals.com

Maintenance Footnotes
†The U.S. Environmental Protection Agency or the
California Air Resources Board has determined that the
failure to perform this maintenance item will not nullify
the emission warranty or limit recall liability prior to
the completion of the vehicle’s useful life. We, however,
urge that all recommended maintenance services be
performed at the indicated intervals and the
maintenance be recorded.
(a)Visually inspect brake lines and hoses for proper
hook-up, binding, leaks, cracks, chang, etc. Inspect
disc brake pads for wear and rotors for surface
condition. Inspect drum brake linings/shoes for wear or
cracks. Inspect other brake parts, including drums,
wheel cylinders, calipers, parking brake, etc.
(b)Visually inspect front and rear suspension and
steering system for damaged, loose, or missing parts or
signs of wear.
(c)Visually inspect hoses and have them replaced if
they are cracked, swollen, or deteriorated. Inspect
all pipes, ttings, and clamps; replace with genuine
Saturn parts as needed. To help ensure proper
operation, a pressure test of the cooling system and
pressure cap and cleaning the outside of the radiator
and air conditioning condenser is recommended at least
once a year.(d)Visually inspect wiper blades for wear or cracking.
Replace wiper blades that appear worn or damaged
or that streak or miss areas of the windshield.
(e)Make sure the safety belt reminder light and all your
belts, buckles, latch plates, retractors, and anchorages
are working properly. Look for any other loose or
damaged safety belt system parts. If you see anything
that might keep a safety belt system from doing its
job, have it repaired. Have any torn or frayed safety belts
replaced. Also look for any opened or broken airbag
coverings, and have them repaired or replaced.
The airbag system does not need regular maintenance.
(f)Lubricate all key lock cylinders, door hinges and
latches, hood hinges and latches, glove box hinges,
sunroof (if equipped), and any folding seat hardware.
More frequent lubrication may be required when
exposed to a corrosive environment. Applying silicone
grease on weatherstrips with a clean cloth will make
them last longer, seal better, and not stick or squeak.
(g)Check system for interference or binding and
for damaged or missing parts. Replace parts as needed.
Replace any components that have high effort or
excessive wear.
6-9
ProCarManuals.com

Usage Fluid/Lubricant
VTi Variable
Transaxle
AdditiveDEX-CVT Fluid Additive
(Part No. 22697447).
Rear Drive
Module and
Power Transfer
Unit (except
with 3.5L V6
engine)VERSATRAK
®Fluid
(GM Part No. U.S. 12378514, in
Canada 88901045).
Rear Drive
Module (with
3.5L V6 engine)VERSATRAK
®Fluid
(GM Part No. U.S. 12378514, in
Canada 88901045).
Transfer Case
(with 3.5L V6
engine)Synthetic Axle Lubricant
(GM Part No. U.S. 12378261, in
Canada 10953455).
Key Lock
CylindersMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241, in
Canada 10953474).
Usage Fluid/Lubricant
Hood Latch
Assembly,
Secondary
Latch, Pivots,
Spring
Anchor, and
Release PawlLubriplate Lubricant Aerosol
(Saturn Part No. 21038869 or GM
Part No. U.S. 12346293, in
Canada 992723) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
Hood, Liftgate
Door, and rear
folding seat
HingesMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241, in
Canada 10953474).
Sunroof TrackLubriplate Lubricant Aerosol
(Saturn Part No. 21038869 or GM
Part No. U.S. 12346293, in
Canada 992723) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
Weatherstrip
ConditioningDielectric Silicone Grease
(GM Part No. U.S. 12345579, in
Canada 992887).
6-15
ProCarManuals.com
