SATURN VUE 2007 Owners Manual

How OnStar®Service Works
In order to provide you with OnStar®services,
your vehicle’s OnStar®system has the capability
of recording and transmitting vehicle information.
This information is automatically sent to an
OnStar
®Call Center at the time of an OnStar®
button press, Emergency button press or if
your airbags or AACN system deploys. The vehicle
information usually includes your GPS location
and, in the event of a crash, additional information
regarding the accident that your vehicle has
been involved in (e.g. the direction from which
your vehicle was hit). When you use the Virtual
Advisor feature of OnStar
®Hands-Free Calling,
your vehicle also sends OnStar®your GPS
location so that we can provide you with
location-based services.
OnStar
®service cannot work unless your vehicle is
in a place where OnStar®has an agreement with a
wireless service provider for service in that area.
OnStar
®service also cannot work unless you are
in a place where the wireless service provider
OnStar
®has hired for that area has coverage,
network capacity and reception when the service is
needed, and technology that is compatible with theOnStar
®service. Not all services are available
everywhere, particularly in remote or enclosed
areas, or at all times.
OnStar
®service that involves location information
about your vehicle cannot work unless GPS
satellite signals are unobstructed and available
in that place as well.
Your vehicle must have a working electrical
system (including adequate battery power) for the
OnStar
®equipment to operate. There are other
problems OnStar®cannot control that may prevent
OnStar®from providing OnStar®service to you
at any particular time or place. Some examples are
damage to important parts of your vehicle in an
accident, hills, tall buildings, tunnels, weather
or wireless phone network congestion.
Your Responsibility
You may need to increase the volume of your radio
to hear the OnStar®advisor. If the light next to the
OnStar®buttons is red, this means that your system
is not functioning properly and should be checked
by your dealer/retailer. If the light appears clear (no
light is appearing), your OnStar
®subscription has
expired. You can always press the OnStar®button
to conrm that your OnStar®equipment is active.
131
ProCarManuals.com

Storage Areas
Glove Box
To open the glove box, lift up on the lever.
Cupholder(s)
Your vehicle has a removable cupholder liner
and cupholder located inside the center console
storage area. To access, pull the cover towards
the rear of the vehicle. To remove the liner, pull it
out of the cupholder. To replace, push the liner
back in. To remove the cupholder, push the tab
in near the passenger’s seat and pull straight
up. To replace, slide the two tabs at the rear of
the cupholder into the slots at the rear of the
center console and push the cupholder gently
into place. There is additional storage underneath
the cupholders. There are two more cupholders
located at rear of the center console. Push
the button to access.
Floor Console Storage Area
Your vehicle may have a oor console storage
area. Push the button to open.
Center Console Storage Area
Your vehicle has a center console storage area.
To access, slide the cover back towards the rear
of the vehicle. It is equipped with two accessory
power outlets. One is located inside the storage
area and another hidden under the cupholders.
There is a hole in the storage area for a cellphone
wire to be routed through.
Cargo Area
Your vehicle has a cargo area organizer, which
is located in the rear of the vehicle. This storage
space is designed to hold small items and includes
integrated storage bins.
132
ProCarManuals.com

Use the following procedure to access and
assemble the rear cargo organizer.
1. Pull up on the latch of the rear panel lid of the
cargo organizer to open it.
2. Lift the front of the cargo organizer and fold
out the end panels.3. Turn the end panels forward and snap them
into the rear panel lid.
4. Pull the center divider out from the rear
panel lid.
133
ProCarManuals.com

5. Turn the center divider rearward and snap it
into the panel lid.
6. Reverse the above steps to stow the dividers
and close the cargo organizer.
Push rmly on the rear panel lid to engage
the latch of the organizer.
Roof Rack System
Your vehicle may be equipped with a roof rack
system. To adjust the crossrails, turn both knobs
on each side of the crossrail counterclockwise
until it moves freely. Once the crossrail is in place,
turn both knobs on each of side of the crossrail
clockwise until it is secure.
134
ProCarManuals.com

{CAUTION:
If you try to carry something on top of
your vehicle that is longer or wider than
the luggage carrier — like paneling,
plywood, a mattress and so forth — the
wind can catch it as you drive along. This
can cause you to lose control. What you
are carrying could be violently torn off,
and this could cause you or other drivers
to have a collision, and of course damage
your vehicle. You may be able to carry
something like this inside. But, never
carry something longer or wider than the
luggage carrier on top of your vehicle.Notice:Loading cargo on the luggage carrier
that weighs more than 100 lbs (45 kg) or
hangs over the rear or sides of the vehicle
may damage your vehicle. Load cargo so
that it rests on the slats as far forward
as possible and against the side rails,
making sure to fasten it securely.
Do not exceed the maximum vehicle capacity
when loading your vehicle. For more information
on vehicle capacity and loading, seeLoading Your
Vehicle on page 279.
To prevent damage or loss of cargo as you are
driving, check frequently to ensure your cargo
is securely fastened.
135
ProCarManuals.com

Sunroof
If your vehicle has a sunroof, the controls to
operate it are located on the headliner above the
rearview mirror. The ignition must be in RUN
or ACC to operate the sunroof. SeeIgnition
Positions on page 109.
To express-open the
sunroof glass panel and
sunshade, press the
switch rearward
and release it.To stop the sunroof before it is completely open,
press the switch rearward again. The sunshade
cannot be closed with the sunroof open. To close
the sunroof, press forward on the switch until it
stops. The sunshade must be manually closed.
To put the sunroof in the vent position, pull down
on the front of the switch. Push up on the front
of the switch to close it. The sunshade must
be manually opened and closed when the
sunroof is in the vent position.
136
ProCarManuals.com

Instrument Panel Overview........................ 140
Hazard Warning Flashers.......................... 142
Horn.......................................................... 142
Tilt Wheel.................................................. 142
Turn Signal/Multifunction Lever.................. 143
Turn and Lane-Change Signals................. 143
Headlamp High/Low-Beam Changer.......... 144
Flash-to-Pass............................................ 144
Windshield Wipers..................................... 144
Windshield Washer.................................... 145
Rear Window Wiper/Washer...................... 146
Cruise Control........................................... 146
Headlamps................................................ 149
Daytime Running Lamps (DRL)................. 150
Automatic Headlamp System..................... 151
Fog Lamps................................................ 152
Interior Lamps........................................... 152
Instrument Panel Brightness...................... 152
Dome Lamp.............................................. 153
Entry Lighting............................................ 153
Map Lamps............................................... 153
Footwell Lamps......................................... 153
Battery Run-Down Protection..................... 154
Accessory Power Outlet(s)........................ 154
Cigarette Lighter........................................ 155Climate Controls......................................... 155
Climate Control System............................. 155
Outlet Adjustment...................................... 159
Passenger Compartment Air Filter............. 159
Warning Lights, Gages, and Indicators..... 161
Instrument Panel Cluster........................... 162
Speedometer and Odometer...................... 163
Trip Odometer........................................... 163
Tachometer............................................... 164
Safety Belt Reminder Light........................ 164
Passenger Safety Belt Reminder Light....... 165
Airbag Readiness Light............................. 165
Passenger Airbag Status Indicator............. 166
Battery Warning Light................................ 169
Up-Shift Light............................................ 169
Brake System Warning Light..................... 170
Anti-Lock Brake System Warning Light...... 171
Traction Control System (TCS)
Warning Light........................................ 172
Low Traction Light..................................... 173
Engine Coolant Temperature
Warning Light........................................ 173
Engine Coolant Temperature Gage............ 174
Low Coolant Warning Light....................... 174
Section 3 Instrument Panel
137
ProCarManuals.com

Malfunction Indicator Lamp........................ 175
Oil Pressure Light..................................... 178
Change Engine Oil Light........................... 179
Security Light............................................ 179
Reduced Engine Power Light.................... 179
Highbeam On Light................................... 180
Daytime Running Lamps (DRL)
Indicator Light........................................ 180
Gate Ajar Light.......................................... 180
Service Vehicle Soon Light........................ 180
Fuel Gage................................................. 181
Low Fuel Warning Light............................ 181Audio System(s)......................................... 182
Setting the Time (Without Date Display).... 183
Setting the Time (With Date Display)......... 184
Radio with CD (Base)............................... 186
Radio with CD (MP3)................................ 192
Radio with CD and DVD........................... 202
Using an MP3........................................... 202
XM Radio Messages................................. 209
Rear Seat Entertainment System............... 211
Audio Steering Wheel Controls.................. 223
Radio Reception........................................ 224
Care of Your CDs and DVDs.................... 225
Care of the CD and DVD Player............... 225
Fixed Mast Antenna.................................. 225
XM™ Satellite Radio Antenna System....... 225
Section 3 Instrument Panel
138
ProCarManuals.com

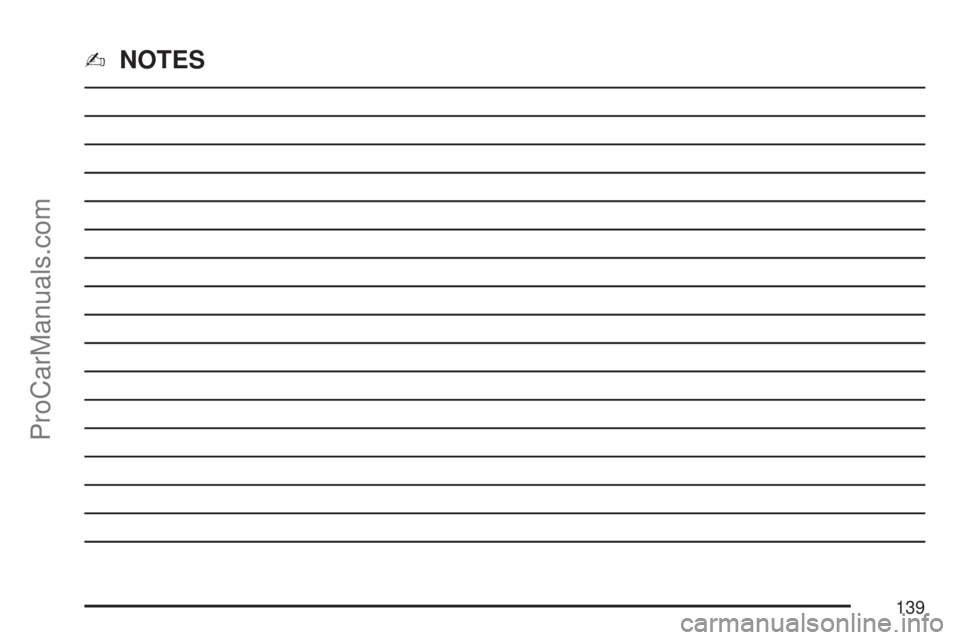

✍NOTES
139
ProCarManuals.com

Instrument Panel Overview
140
