fuel SATURN VUE 2007 Owner's Guide

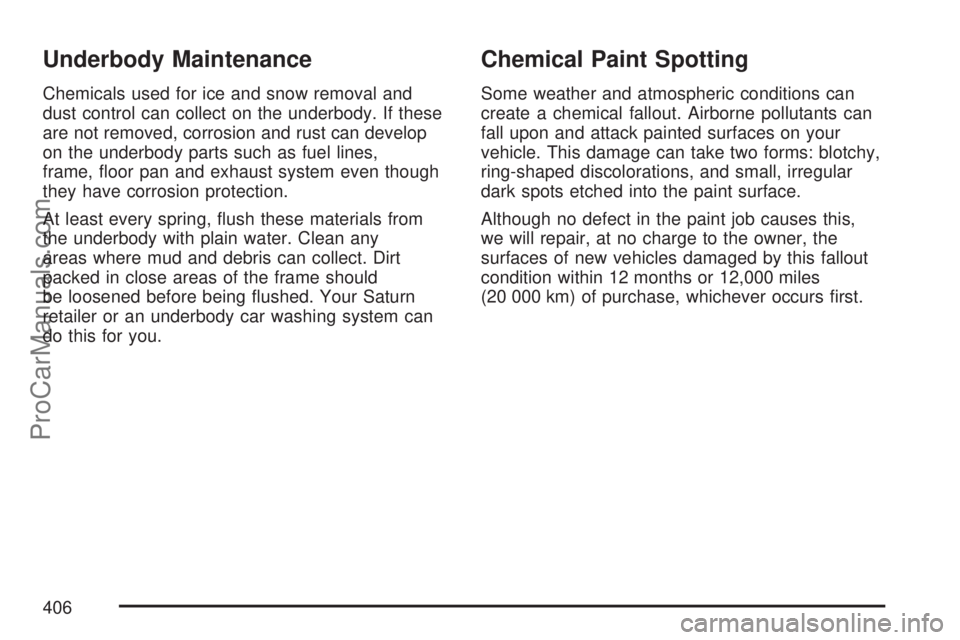

Underbody Maintenance
Chemicals used for ice and snow removal and
dust control can collect on the underbody. If these
are not removed, corrosion and rust can develop
on the underbody parts such as fuel lines,
frame, oor pan and exhaust system even though
they have corrosion protection.
At least every spring, ush these materials from
the underbody with plain water. Clean any
areas where mud and debris can collect. Dirt
packed in close areas of the frame should
be loosened before being ushed. Your Saturn
retailer or an underbody car washing system can
do this for you.
Chemical Paint Spotting
Some weather and atmospheric conditions can
create a chemical fallout. Airborne pollutants can
fall upon and attack painted surfaces on your
vehicle. This damage can take two forms: blotchy,
ring-shaped discolorations, and small, irregular
dark spots etched into the paint surface.
Although no defect in the paint job causes this,
we will repair, at no charge to the owner, the
surfaces of new vehicles damaged by this fallout
condition within 12 months or 12,000 miles
(20 000 km) of purchase, whichever occurs rst.
406
ProCarManuals.com

Fuses Usage
ABS PWR Anti-lock Brake System Battery
REAR DEFOG Rear Defogger
COOL HI (L4)/
COOL 1 (V6)Cooling Fans High (L4)/Cooling
Fan 1 (V6)
FOG LP Fog Lamps
LH HDLP Driver’s Side Headlamp
RR WIPER Rear Wiper
ABS Anti-lock Brake System Module
PWR WDW Power Window Relay and Sunroof
CIGAR/AUX2 Cigarette Lighter
HVAC
BLOWERHVAC Blower Motor
RH HDLP Right Headlamp
FRT WIPER Front Wiper
ETCEngine Control Module (ECM),
Electronic Throttle Control (V6)
SUNROOF Sunroof Module
BRAKE Stoplamps
IGN Ignition switchFuses Usage
IGN/INJ (L4),
ECM/
CAM (V6)Engine Ignition Module, Fuel
Injectors (2.2L L4 (L61))
Camshaft Sensor, Main Relay
Voltage To PCM, Ignition Coils 1-6
INJECTORS
(3.5L V6 (L66))Fuel Injection
PWR TRAINEngine Control Module (ECM),
Transaxle Control Module (TCM),
Transaxle, L66 Powertrain Control
Module (PCM)
BACKUPLow Coolant Switch, Backup Lamps
(2.2L L4 (L61)), Vehicle Speed
Sensor (Manual), Transaxle Range
Switch (2.2L L4 (L61))
HTD SEATS Heated Seats
COOL
LO (L4)/
COOL 2 (V6)Cooling Fan Low (L4), Cooling
Fan (V6)
A/C CLUTCHAir Conditioning Clutch, Back Up
Lamps (3.5L V6 (L66))
FUEL PUMP Fuel Pump
AUX 1
OUTLETFront Auxiliary Power Outlet
412
ProCarManuals.com

Fuses Usage
PREM AUD Premium Radio Amplier
ABS Anti-lock Brake System Ignition
PWR SEAT Power Seats
Relays Usage
FOG LP Fog Lamps
COOL FAN
HI (L4)Cooling Fan Motor High
ENG MAINEngine Control Module/CAM,
Emissions, Injectors, Electronic
Throttle Control
REAR DEFOG Rear Defog System
HORN Horn
DRL Daytime Running Lamps
COOL
FAN 1 (V6)Cooling Fan
WIPER
SYSTEMWiper System
Relays Usage
PRW WDOPower Window Switch, Sunroof
Module
FRT WIPER Front Wiper System
COOL FAN
LOW (L4)Cooling Fan Motor Low
A/C CLUTCH Air Conditioning Clutch
BACKUP
LAMPS (V6)Back-up Lamps (V6)
FUEL PUMP Fuel Pump System
RR WIPER Rear Wiper System
COOL
FAN 2 (V6)Cooling Fan (V6)
Misc. Usage
FUSE PULLER Fuse Puller
Diode Air Conditioning Diode
413
ProCarManuals.com

Capacities and Specications
ApplicationCapacities
English Metric
Air Conditioning Refrigerant R134aFor the air conditioning system refrigerant charge
amount, see the refrigerant caution label located
under the hood. See your dealer for more
information.
Cooling System
2.2L L4 Automatic Engine 8.8 qt 8.3 L
2.2L L4 Manual Engine 9.1 qt 8.6 L
3.5L V6 Engine 10.3 qt 9.7 L
Engine Oil with Filter
2.2L L4 Engine 5.0 qt 4.7 L
3.5L V6 Engine 4.5 qt 4.3 L
Fuel Tank 16.6 gal 62.8 L
Transaxle
Five-Speed Automatic 4.5 qt 4.3 L
Five-Speed Automatic AWD 4.1 qt 3.9 L
Four-Speed Automatic 7.0 qt 6.6 L
Five-Speed Manual 1.7 qt 1.6 L
Wheel Nut Torque 100 ft lb
140Y
All capacities are approximate. When adding, be sure to ll to the approximate level, as recommended in this
manual. Recheck uid level after lling.
414
ProCarManuals.com

Maintenance Schedule................................ 418
Introduction............................................... 418
Maintenance Requirements........................ 418
Your Vehicle and the Environment............ 418
Using the Maintenance Schedule............... 418
Scheduled Maintenance............................. 420
Additional Required Services..................... 423
Maintenance Footnotes.............................. 425Owner Checks and Services..................... 427
At Each Fuel Fill....................................... 428
At Least Once a Month............................. 428
At Least Once a Year............................... 429
Recommended Fluids and Lubricants........ 432
Normal Maintenance Replacement Parts.... 434
Engine Drive Belt Routing......................... 435
Maintenance Record.................................. 436
Section 6 Maintenance Schedule
417
ProCarManuals.com

Because of all the different ways people use
their vehicles, maintenance needs vary. You may
need more frequent checks and replacements.
So please read the following and note how
you drive. If you have any questions on how to
keep your vehicle in good condition, see your
Saturn retailer.
This schedule is for vehicles that:
carry passengers and cargo within
recommended limits. You will nd these limits
on the Tire and Loading Information label.
SeeLoading Your Vehicle on page 279.
are driven on reasonable road surfaces within
legal driving limits.
are driven off-road in the recommended
manner. SeeOff-Road Driving on page 247.
use the recommended fuel. SeeGasoline
Octane on page 306.
The services inScheduled Maintenance on
page 420should be performed when indicated.
SeeAdditional Required Services on page 423and
Maintenance Footnotes on page 425for further
information.
{CAUTION:
Performing maintenance work on a
vehicle can be dangerous. In trying to do
some jobs, you can be seriously injured.
Do your own maintenance work only if
you have the required know-how and the
proper tools and equipment for the job.
If you have any doubt, see your retailer to
have a qualied technician do the work.
SeeDoing Your Own Service Work on
page 305.
Some maintenance services can be complex.
So, unless you are technically qualied and have
the necessary equipment, you should have
your Saturn retailer do these jobs.
When you go to your Saturn retailer for your
service needs, you will know that Saturn-trained
and supported service technicians will perform the
work using genuine Saturn parts.
419
ProCarManuals.com

Additional Required Services
The following services should be performed at the rst maintenance service (IorII) after the indicated
miles (kilometers) shown for each item.
Additional Required Services
Service and Miles (Kilometers)25,000
(40 000)50,000
(80 000)75,000
(120 000)100,000
(160 000)125,000
(200 000)150,000
(240 000)
Inspect fuel system for damage
or leaks.• •••••
Inspect exhaust system for loose or
damaged components.• •••••
Replace engine air cleaner lter. See
Engine Air Cleaner/Filter on page 324.•••
L4 engine: Change automatic transaxle
uid (severe service).See footnote (h).•••
L4 engine: Change automatic transaxle
uid (normal service).•
V6 engine: Change automatic transaxle
uid (severe service).See footnote (h).• •••••
V6 engine: Change automatic transaxle
uid (normal service).See footnote (m).••
Replace spark plugs.An Emission
Control Service.•
423
ProCarManuals.com

At Each Fuel Fill
It is important to perform these underhood checks
at each fuel ll.
Engine Oil Level Check
Check the engine oil level and add the proper oil
if necessary. SeeEngine Oil on page 318for
further details.
Notice:It is important to check the engine
oil regularly and keep it at the proper level.
Failure to keep the engine oil at the proper level
can cause damage to the engine not covered
by your warranty.
Engine Coolant Level Check
Check the engine coolant level and add
DEX-COOL®coolant mixture if necessary. See
Engine Coolant on page 331for further details.
Windshield Washer Fluid Level Check
Check the windshield washer uid level in
the windshield washer uid reservoir and add
the proper uid if necessary.
At Least Once a Month
Tire Ination Check
Inspect your vehicle’s tires and make sure they
are inated to the correct pressures. Do not forget
to check the spare tire. SeeInation - Tire
Pressure on page 374. Check to make sure the
spare tire is stored securely. SeeChanging a Flat
Tire on page 386.
Tire Wear Inspection
Tire rotation may be required for high mileage
highway drivers prior to the Engine Oil Life System
service notication. Check the tires for wear
and, if necessary, rotate the tires. SeeTire
Inspection and Rotation on page 375.
428
ProCarManuals.com

The following services are provided in the U.S.
during the Bumper-to-Bumper warranty period and
in Canada, during the Base Warranty coverage
period of the New Vehicle Limited Warranty, up to
a maximum coverage of $100.
Fuel Delivery:Delivery of enough fuel for the
vehicle to get to the nearest service station
(approximately $5 Canada). Service to provide
diesel may be restricted. For safety reasons,
propane and other alternative fuels are
not provided through this service.
Lock-out Service:To ensure security, the
driver must present personal identication
before lock-out service is provided. In Canada,
the vehicle registration is also required.
Lock-out service is covered at no charge if
you are unable to gain entry into your vehicle.
A remote unlock may be available if you have
an active OnStar
®subscription.
Emergency Tow From a Public Roadway
or Highway:Tow to the nearest Saturn
retailer for warranty service or in the event
of a vehicle-disabling accident. Winch-out
assistance provided when the vehicle is mired
in sand, mud, or snow.
Flat Tire Change:Installation of a spare tire in
good condition, when equipped and properly
inated is covered at no charge. The customer
is responsible for the repair or replacement of
the tire if not covered by a warrantable failure.
Jump Start:No-start occurrences which
require a battery jump start are covered at no
charge.
Trip Routing Service (Canada only):Upon
request, Roadside Assistance will send you
detailed, computer personalized maps,
highlighting your choice of either the most
direct route or the most scenic route to your
destination, anywhere in North America, along
with helpful travel information pertaining to
your trip.
We make every attempt to send your
personalized trip routing as quickly as possible,
but it is best to allow three weeks before your
planned departure date. Trip routing requests
are limited to six per calendar year.
446
ProCarManuals.com

Vehicle Data Recording and
Privacy
Your GM vehicle has a number of sophisticated
computers that record information about the
vehicle’s performance and how it is driven.
For example, your vehicle uses computer modules
to monitor and control engine and transmission
performance, to monitor the conditions for airbag
deployment and deploy airbags in a crash and,
if so equipped, to provide anti-lock braking to help
the driver control the vehicle. These modules may
store data to help your dealer/retailer technician
service your vehicle. Some modules may also store
data about how you operate the vehicle, such as
rate of fuel consumption or average speed. These
modules may also retain the owner’s personal
preferences, such as radio pre-sets, seat positions,
and temperature settings.
Event Data Recorders
Some information about your vehicle’s performance
and how it is driven may be recorded on various
modules if a crash occurs. Some people refer to
these modules asevent data recorders (EDRs).
These modules may record several seconds of
pre-crash and crash data, such as data related
toengine speed, brake application, throttle
position, vehicle speed, yaw rate, steering
wheel angle, lateral acceleration, safety belt
usage, airbag readiness, airbag performance
andthe severity of the collision.Unlike the ight
data recorders on airplanes, these modules do not
record sounds or conversations.
To retrieve this data, special equipment and
access to the vehicle or the module that stores
the data are required. Certain data may also be
sent to or retrieved by OnStar
®(see below).
GM will not access this information or share it with
others except: with the consent of the vehicle owner
or, if the vehicle is leased, with the consent of the
lessee; in response to an official request of police or
455
ProCarManuals.com
