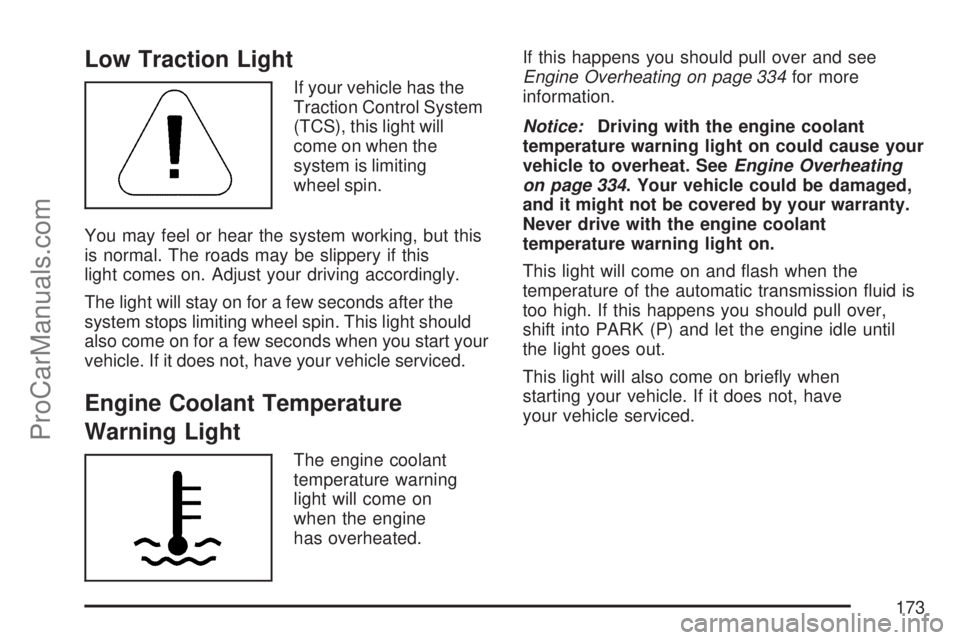

Low Traction Light
If your vehicle has the
Traction Control System
(TCS), this light will
come on when the
system is limiting
wheel spin.
You may feel or hear the system working, but this
is normal. The roads may be slippery if this
light comes on. Adjust your driving accordingly.
The light will stay on for a few seconds after the
system stops limiting wheel spin. This light should
also come on for a few seconds when you start your
vehicle. If it does not, have your vehicle serviced.
Engine Coolant Temperature
Warning Light
The engine coolant
temperature warning
light will come on
when the engine
has overheated.If this happens you should pull over and see
Engine Overheating on page 334for more
information.
Notice:Driving with the engine coolant
temperature warning light on could cause your
vehicle to overheat. SeeEngine Overheating
on page 334. Your vehicle could be damaged,
and it might not be covered by your warranty.
Never drive with the engine coolant
temperature warning light on.
This light will come on and ash when the
temperature of the automatic transmission uid is
too high. If this happens you should pull over,
shift into PARK (P) and let the engine idle until
the light goes out.
This light will also come on briey when
starting your vehicle. If it does not, have
your vehicle serviced.
173
ProCarManuals.com

Dinghy Towing
Front-wheel-drive vehicles equipped with a manual
transmission, four-speed automatic transmission
or ve-speed automatic transmission may be
dinghy towed from the front. These vehicles may
also be towed by putting the front wheels on a
dolly. See “Dolly Towing” later in this section.
All-wheel-drive vehicles with the ve-speed
automatic transmission can be dinghy towed from
the front. You can also tow these vehicles by
placing them on a platform trailer with all
four wheels off of the ground. These vehicles
cannot be towed using a dolly.To tow your vehicle from the front with all
four wheels on the ground, do the following:
1. Position and attach the vehicle to tow it behind
the recreational vehicle.
2. Turn the ignition key to ACC.
3. Turn fog lamps and all accessories off.
4. If your vehicle has the manual transmission,
shift your transmission to NEUTRAL and
let the engine run for three minutes, then
turn it off.
If your vehicle has the ve-speed automatic
transmission, shift your transmission from
DRIVE (D) to NEUTRAL (N) and let the engine
run for three minutes. Then turn it off.
Due to transmission uid drain back, the
transmission lubrication procedure in Step 4 is
required every seven hours after the initial
procedure has been completed, regardless of
the vehicle being towed or parked. Once the
procedure is performed, the transmission
is adequately lubricated and can be
recreational vehicle towed for seven hours
prior to repeating the lubrication procedure.
286
ProCarManuals.com

As an example, if you initially perform the
lubrication procedure and tow your vehicle for
three hours, then park for four hours, the
lubrication procedure will need to be performed
again, prior to dinghy towing the vehicle.
Notice:Towing your vehicle after shifting the
automatic transaxle (four-speed or ve-speed)
from anything other than DRIVE (D) to
NEUTRAL (N) can cause internal damage to
the automatic transaxle. Always shift the
automatic transaxle (four-speed or ve-speed)
from DRIVE (D) to NEUTRAL (N) as the last
shift before towing.
5. Locate and remove the large IGN fuse from
the underhood fuse block. SeeUnderhood
Fuse Block on page 411.
Notice:If you tow your vehicle without
performing each of the steps listed under
“Dinghy Towing,” you could damage the
automatic transmission. Be sure to follow all
steps of the dinghy towing procedure prior
to and after towing your vehicle.Notice:If your vehicle has a four-speed
automatic transmission, it can be dinghy towed
from the front for unlimited miles at 65 mph
(105 km/h). If you exceed 65 mph (105 km/h)
while towing your vehicle, it could be damaged.
The repairs would not be covered by your
warranty. Never exceed 65 mph (105 km/h)
while towing your vehicle.
Notice:If your vehicle has a ve-speed
automatic transmission and it is towed for
more than seven hours without performing
lubrication process or at speeds greater than
65 mph (105 km/h), you could damage the
automatic transmission. The repairs would
not be covered by your warranty. Do not tow
your vehicle for extended periods of time or at
speeds greater than 65 mph (105 km/h).
After seven hours, repeat Step 4 above for the
ve-speed automatic transmission.
287
ProCarManuals.com

Once you have reached your destination, do the
following:
1. Set the parking brake.
2. Shift the transmission to REVERSE (R) for a
manual transmission. Shift the transmission to
PARK (P) for an automatic transmission.
3. Turn the ignition key to LOCK and remove the
key from the ignition.
4. Reinstall the large IGN fuse.
Notice:Too much or too little uid can
damage the transmission. Be sure that the
transaxle uid is at the proper level before
towing with all four wheels on the ground.
Notice:Don’t tow a vehicle with the front drive
wheels on the ground if one of the front tires
is a compact spare tire. Towing with two
different tire sizes on the front of the vehicle
can cause severe damage to the transmission.Dolly Towing (All-Wheel-Drive Vehicles)
All-wheel-drive vehicles should not be towed with
two wheels on the ground. To properly tow
these vehicles, they should be placed on a
platform trailer with all four wheels off of the
ground or dinghy towed from the front.
Dolly Towing
(Front-Wheel-Drive Vehicles)
288
ProCarManuals.com

To tow your front-wheel-drive vehicle from the front
with two wheels on the ground, do the following:
1. Put the front wheels on a dolly.
2. If you have a ve-speed automatic
transmission or four-speed automatic
transmission, move the shift lever to
PARK (P). If you have a manual transmission,
move the shift lever to SECOND (2).
3.
Set the parking brake and then remove the key.
4. Clamp the steering wheel in a straight-ahead
position with a clamping device designed for
towing.
5. Release the parking brake.
Towing Your Vehicle From the Rear
Notice:Towing your vehicle from the rear
could damage it. Also, repairs would not
be covered by the warranty. Never have your
vehicle towed from the rear.
Do not tow your vehicle from the rear.
289
ProCarManuals.com

If You Do Decide to Pull a Trailer
If you do, here are some important points:
There are many different laws, including speed
limit restrictions, having to do with trailering.
Make sure your rig will be legal, not only where
you live but also where you’ll be driving.
A good source for this information can be
state or provincial police.
Consider using a sway control. See “Hitches”
later in this section.
Don’t tow a trailer at all during the rst
500 miles (805 km) your new vehicle is driven.
Your engine, axle or other parts could be
damaged. The repairs would not be covered
by your warranty.
Then, during the rst 500 miles (805 km) that
you tow a trailer, don’t drive over 50 mph
(80 km/h) and don’t make starts at full throttle.
This helps your engine and other parts of
your vehicle wear in at the heavier loads.
If you have an automatic transmission, you can
use INTERMEDIATE (I) or as you need to, a
lower gear which will minimize heat buildup and
extend the life of your transmission.
If you have a manual transmission, you should
not use FIFTH (5) gear. Drive in FOURTH (4)
gear or as you need to a lower gear.
Obey speed limit restrictions when towing a
trailer. Don’t drive faster than the maximum
posted speed for trailers, or no more than
55 mph (90 km/h), to save wear on your
vehicle’s parts.
Don’t tow a trailer when the outside
temperature is above 100°F (38°C).
Three important considerations have to do
with weight:
the weight of the trailer
the weight of the trailer tongue
and the total weight on your vehicle’s tires
291
ProCarManuals.com

Thus, you may think drivers behind you are seeing
your signal when they are not. It’s important to
check occasionally to be sure the trailer bulbs are
still working.
Driving on Grades
Notice:Do not tow on steep continuous
grades exceeding 6 miles (9.6 km). Extended,
higher than normal engine and transmission
temperatures may result and damage your
vehicle. Frequent stops are very important to
allow the engine and transmission to cool.
Reduce speed and shift to a lower gear before you
start down a long or steep downgrade. If you
don’t shift down, you might have to use your
brakes so much that they would get hot and no
longer work well.
On a long uphill grade, shift down and reduce
your speed to around 45 mph (70 km/h) to reduce
the possibility of the engine and the transmission
overheating. If your engine does overheat,
seeEngine Overheating on page 334.
Parking on Hills
{CAUTION:
You really should not park your vehicle,
with a trailer attached, on a hill.
If something goes wrong, your rig could
start to move. People can be injured, and
both your vehicle and the trailer can be
damaged.
But if you ever have to park your rig on a hill,
here’s how to do it:
1. Apply your regular brakes, but don’t shift into
PARK (P) for an automatic transmission, or
into gear for a manual transmission.
When parking uphill, turn your wheels away
from the curb. When parking downhill,
turn your wheels into the curb.
2. Have someone place chocks behind the
trailer wheels.
298
ProCarManuals.com

3. When the chocks are in place, release the
regular brakes until the chocks absorb
the load.
4. Reapply the regular brakes. Then apply your
parking brake and shift into PARK (P) for an
automatic transmission or REVERSE (R) for
a manual transmission.
5. Release the regular brakes.
When You Are Ready to Leave After
Parking on a Hill
1. Apply your regular brakes and hold the pedal
down while you:
start your engine,
shift into a gear, and
release the parking brake.
2. Let up on the brake pedal.
3. Drive slowly until the trailer is clear of the
chocks.
4. Stop and have someone pick up and store
the chocks.
Maintenance When Trailer Towing
Your vehicle will need service more often when
you’re pulling a trailer. SeeScheduled Maintenance
on page 420for more information. Things that
are especially important in trailer operation are
automatic transmission uid (don’t overll), engine
oil, axle lubricant, drive belt, cooling system and
brake system. Each of these is covered in this
manual, and the Index will help you nd them
quickly. If you’re trailering, it’s a good idea to
review this information before you start your trip.
Check periodically to see that all hitch nuts and
bolts are tight.
Engine Cooling When Trailer Towing
Your cooling system may temporarily overheat
during severe operating conditions. SeeEngine
Overheating on page 334.
Changing a Tire When Trailer Towing
If you get a at tire while towing a trailer, be
sure to secure the trailer and disconnect it from
the vehicle before changing the tire.
299
ProCarManuals.com

(F) Service Description:These characters
represent the load range and speed rating of the
tire. The load index represents the load carry
capacity a tire is certied to carry. The load index
can range from 1 to 279. The speed rating is
the maximum speed a tire is certied to carry a
load. Speed ratings range from A to Z.
Tire Terminology and Denitions
Air Pressure:The amount of air inside the tire
pressing outward on each square inch of the
tire. Air pressure is expressed in pounds
per square inch (psi) or kilopascal (kPa).
Accessory Weight:This means the combined
weight of optional accessories. Some examples of
optional accessories are, automatic transmission,
power steering, power brakes, power windows,
power seats, and air conditioning.
Aspect Ratio:The relationship of a tire’s height
to its width.
Belt:A rubber coated layer of cords that is
located between the plies and the tread. Cords
may be made from steel or other reinforcing
materials.Bead:The tire bead contains steel wires wrapped
by steel cords that hold the tire onto the rim.
Bias Ply Tire:A pneumatic tire in which the plies
are laid at alternate angles less than 90 degrees
to the centerline of the tread.
Cold Tire Pressure:The amount of air pressure
in a tire, measured in pounds per square inch
(psi) or kilopascals (kPa) before a tire has built up
heat from driving. SeeInation - Tire Pressure
on page 374.
Curb Weight:This means the weight of a motor
vehicle with standard and optional equipment
including the maximum capacity of fuel, oil, and
coolant, but without passengers and cargo.
DOT Markings:A code molded into the sidewall
of a tire signifying that the tire is in compliance
with the U.S. Department of Transportation (DOT)
motor vehicle safety standards. The DOT code
includes the Tire Identication Number (TIN),
an alphanumeric designator which can also identify
the tire manufacturer, production plant, brand,
and date of production.
GVWR:Gross Vehicle Weight Rating. See
Loading Your Vehicle on page 279.
371
ProCarManuals.com

Recommended Fluids and
Lubricants
Fluids and lubricants identied below by name,
part number, or specication can be obtained from
your retailer.
Usage Fluid/Lubricant
Engine Oil
(2.2L L4
engine)Engine oil which meets GM
Standard GM6094M and displays
the American Petroleum Institute
Certied for Gasoline Engines
starburst symbol. GM Goodwrench
®
oil meets all the requirements for
your vehicle. To determine the
proper viscosity for your vehicle’s
engine, seeEngine Oil on page 318.
Engine Oil
(3.5L V6
engine)Engine oil which displays the
American Petroleum Institute
Certied for Gasoline Engines
starburst symbol. GM Goodwrench
®
oil meets all the requirements for
your vehicle. To determine the
proper viscosity for your vehicle’s
engine, seeEngine Oil on page 318.
Usage Fluid/Lubricant
Engine Coolant50/50 mixture of clean, drinkable
water and use only DEX-COOL
®
Coolant. SeeEngine Coolant on
page 331.
Hydraulic Brake
SystemDelco
®Supreme 11 Brake Fluid or
equivalent DOT-3 brake uid.
Windshield
WasherOptikleen
®Washer Solvent
Parking Brake
Cable GuidesChassis Lubricant
(GM Part No. 12377985,
in Canada 88901242) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
Hydraulic
Clutch SystemDelco
®Supreme 11 Brake Fluid
or equivalent DOT-3 brake uid
(Saturn Part No. 21013073).
Manual
TransaxleManual Transmission Fluid
(GM Part No. U.S. 88861800,
in Canada 88861801).
Automatic
Transaxle (with
2.2L L4 engine)DEXRON
®-VI Automatic
Transmission Fluid.
432
ProCarManuals.com
