Key In the Ignition
Never leave your vehicle with the keys inside, as it
is an easy target for joy riders or thieves. If you
leave the key in the ignition and park your vehicle,
a chime will sound, when you open the driver’s
door. Always remember to remove your key from
the ignition and take it with you. This will lock
your ignition and transaxle. Also, always remember
to lock the doors.
The battery could be drained if you leave the
key in the ignition while your vehicle is parked.
You may not be able to start your vehicle after it
has been parked for an extended period of time.
Starting the Engine
Place the transaxle in the proper gear.
Automatic Transaxle
Move your shift lever to PARK (P) or
NEUTRAL (N). Your engine will not start
in any other position -- this is a safety feature.
To restart when you are already moving, use
NEUTRAL (N) only.
Notice:Shifting into PARK (P) with the vehicle
moving could damage the transaxle. Shift into
PARK (P) only when your vehicle is stopped.
Manual Transaxle
The shift lever should be in the neutral position and
the parking brake engaged. Hold the clutch pedal to
the oor and start the engine. Your vehicle will not
start if the clutch pedal is not all the way down. That
is a safety feature.
Starting Procedure
1. With your foot off the accelerator pedal, turn
the ignition key to START. When the engine
starts, let go of the key. The idle speed will
go down as your engine gets warm. Do
not race the engine immediately after starting
it. Operate the engine and transaxle gently
to allow the oil to warm up and lubricate
all moving parts.
Your vehicle has a Computer-Controlled
Cranking System. This feature assists in
starting the engine and protects components. If
the ignition key is turned to the START position,
and then released when the engine begins
cranking, the engine will continue cranking for
a few seconds or until the vehicle starts.
111
ProCarManuals.com

Manual Transaxle Operation
Five-Speed
This is your vehicle’s
shift pattern.
Here is how to operate your transaxle:
FIRST (1):Press the clutch pedal and shift into
FIRST (1). Then, slowly let up on the clutch pedal
as you press the accelerator pedal.
You can shift into FIRST (1) when you are going
less than 20 mph (32 km/h). If you have come to a
complete stop and it is hard to shift into FIRST (1),
put the shift lever in NEUTRAL and let up on the
clutch. Press the clutch pedal back down. Then shift
into FIRST (1).SECOND (2):Press the clutch pedal as you
let up on the accelerator pedal and shift into
SECOND (2). Then, slowly let up on the clutch
pedal as you press the accelerator pedal.
THIRD (3), FOURTH (4) and FIFTH (5):Shift into
THIRD (3), FOURTH (4) and FIFTH (5), the same
way you do for SECOND (2). Slowly let up on the
clutch pedal as you press the accelerator pedal.
To stop, let up on the accelerator pedal and press
the brake pedal. Just before the vehicle stops,
press the clutch pedal and the brake pedal, and
shift to NEUTRAL.
NEUTRAL:Use this position when you start or
idle your engine.
REVERSE (R):To back up, press down the
clutch pedal and shift into REVERSE (R). Let up
on the clutch pedal slowly while pressing the
accelerator pedal.
Notice:Shifting to REVERSE (R) while your
vehicle is moving forward could damage the
transaxle. The repairs would not be covered by
your warranty. Shift to REVERSE (R) only after
your vehicle is stopped.
Also, use REVERSE (R), along with the parking
brake, for parking your vehicle.
117
ProCarManuals.com

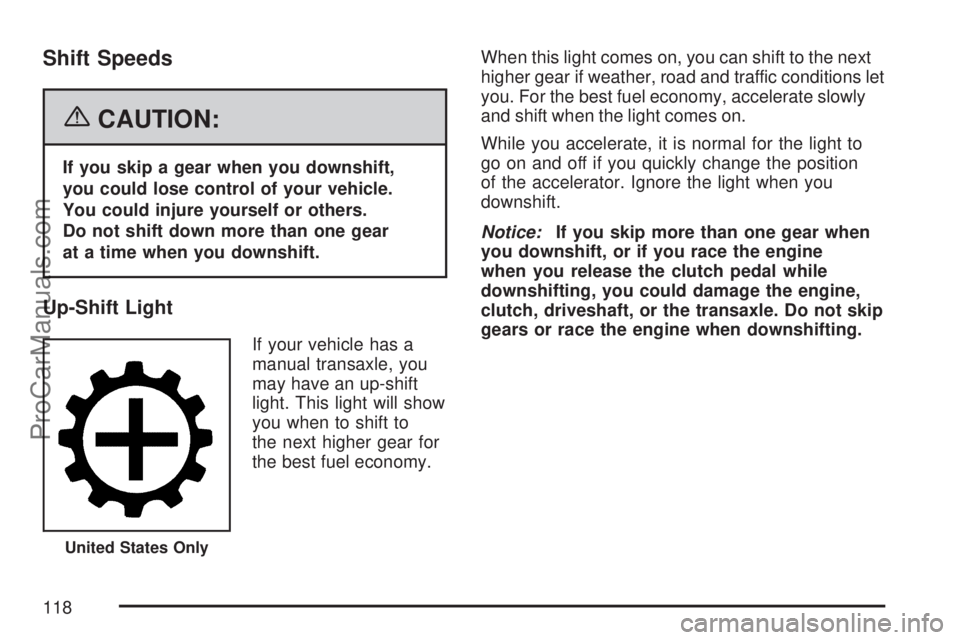

Shift Speeds
{CAUTION:
If you skip a gear when you downshift,
you could lose control of your vehicle.
You could injure yourself or others.
Do not shift down more than one gear
at a time when you downshift.
Up-Shift Light
If your vehicle has a
manual transaxle, you
may have an up-shift
light. This light will show
you when to shift to
the next higher gear for
the best fuel economy.When this light comes on, you can shift to the next
higher gear if weather, road and traffic conditions let
you. For the best fuel economy, accelerate slowly
and shift when the light comes on.
While you accelerate, it is normal for the light to
go on and off if you quickly change the position
of the accelerator. Ignore the light when you
downshift.
Notice:If you skip more than one gear when
you downshift, or if you race the engine
when you release the clutch pedal while
downshifting, you could damage the engine,
clutch, driveshaft, or the transaxle. Do not skip
gears or race the engine when downshifting.
United States Only
118
ProCarManuals.com

Shift Interlock By-Pass
Use the following steps, if for some reason the
shifter is not released when you apply the brake,
or if service or towing requires the car to be
shifted out of PARK (P) without running the engine.
1. Apply and maintain the regular brakes.
2. Turn the ignition to the ACC (Accessory)
position. SeeIgnition Positions on page 109
for more information.
3. Then, move the shift lever into NEUTRAL (N).
The vehicle can now be started normally.
Parking Your Vehicle
(Manual Transaxle)
Before leaving your vehicle, fully press the clutch
pedal in, move the shift lever into REVERSE (R),
and rmly apply the parking brake. Once the
shift lever has been placed in REVERSE (R)
with the clutch pedal pressed in, you can turn
the ignition key to LOCK, remove the key,
and release the clutch.
SeeManual Transaxle Operation on page 117.
Parking Over Things That Burn
{CAUTION:
Things that can burn could touch hot
exhaust parts under your vehicle and
ignite. Do not park over papers, leaves,
dry grass, or other things that can burn.
122
ProCarManuals.com

When going downhill, you may have to brake
or shift to a lower gear to keep the vehicle’s speed
down. Of course, applying the brakes ends
cruise control. Many drivers nd this to be too
much trouble and do not use cruise control
on steep hills.
Ending Cruise Control
There are three ways to disengage the
cruise control:
Step lightly on the brake pedal or clutch; when
cruise control disengages, the indicator light
on the cruise control button will go out.
Press the on/off button, this will turn off the
cruise control system.
Press the cancel button.
Erasing Speed Memory
When you turn off the cruise control or the
ignition, your cruise control set speed memory is
erased.
Headlamps
The exterior lamp control is located on the turn
signal/multifunction lever.
O(Exterior Lamp Control):Turn the control
with this symbol on it to operate the exterior lamps.
The exterior lamp control has the following
three positions:
AUTO (Automatic):Turn the control to this
position to put the headlamps in automatic mode.
AUTO mode will turn the exterior lamps on
and off depending upon how much light is
available outside of the vehicle.
149
ProCarManuals.com

Q:What should I do if my vehicle stalls, or is
about to stall, and I cannot make it up
the hill?
A:If this happens, there are some things you
should do, and there are some things you must
not do. First, here is what youshoulddo:
Push the brake pedal to stop the vehicle and
keep it from rolling backwards. Also, apply the
parking brake.
If the engine is still running, shift the transaxle
to REVERSE (R), release the parking brake,
and slowly back down the hill in REVERSE (R).
If the engine has stopped running, you will
need to restart it. With the brake pedal pressed
and the parking brake still applied, shift the
transaxle to PARK (P), or shift to NEUTRAL if
you have a manual transaxle, and restart the
engine. Then shift to REVERSE (R), release
the parking brake, and slowly back down the
hill as straight as possible in REVERSE (R).
As you are backing down the hill, put your left
hand on the steering wheel at the 12 o’clock
position. This way you will be able to tell if the
wheels are straight and maneuver as you back
down. It is best that you back down the hill with
the wheels straight rather than in the left or right
direction. Turning the wheel too far to the left or
right will increase the possibility of a rollover.
Here are some things youmust notdo if you stall,
or are about to stall, when going up a hill.
Never attempt to prevent a stall by shifting into
NEUTRAL (N), or pressing the clutch if you
have a manual transaxle, to rev-up the engine
and regain forward momentum. This will not
work. Your vehicle will roll backwards very
quickly and you could go out of control.
Instead, apply the regular brake to stop the
vehicle. Then apply the parking brake. Shift to
REVERSE (R), release the parking brake, and
slowly back straight down.
Never attempt to turn around if you are about to
stall when going up a hill. If the hill is steep
enough to stall your vehicle, it is steep enough
to cause it to roll over if you turn around. If you
cannot make it up the hill you must back
straight down the hill.
255
ProCarManuals.com

Service........................................................ 304
Accessories and Modications................... 304
California Proposition 65 Warning.............. 305
Doing Your Own Service Work.................. 305
Adding Equipment to the Outside of
Your Vehicle.......................................... 306
Fuel............................................................. 306
Gasoline Octane........................................ 306
Gasoline Specications.............................. 306
California Fuel........................................... 307
Additives................................................... 307
Fuels in Foreign Countries........................ 308
Filling the Tank......................................... 309
Filling a Portable Fuel Container............... 311
Checking Things Under the Hood.............. 312
Hood Release........................................... 313
Engine Compartment Overview.................. 314
Engine Oil................................................. 318
Engine Oil Life System.............................. 323
Engine Air Cleaner/Filter............................ 324
Automatic Transaxle Fluid
(2.2L L4 Engine).................................... 327Automatic Transaxle Fluid
(3.5L V6 Engine).................................... 328
Manual Transaxle Fluid............................. 330
Hydraulic Clutch........................................ 331
Engine Coolant.......................................... 331
Coolant Surge Tank Pressure Cap............ 334
Engine Overheating................................... 334
Cooling System......................................... 336
Windshield Washer Fluid........................... 341
Brakes...................................................... 343
Battery...................................................... 347
Jump Starting............................................ 348
All-Wheel Drive........................................... 353
Headlamp Aiming........................................ 355
Bulb Replacement....................................... 358
Halogen Bulbs........................................... 358
Headlamps................................................ 358
Front Turn Signal and Parking Lamps....... 361
Center High-Mounted Stoplamp (CHMSL) ... 362
Taillamps, Turn Signal, Stoplamps and
Back-up Lamps...................................... 363
License Plate Lamp................................... 364
Replacement Bulbs................................... 364
Section 5 Service and Appearance Care
301
ProCarManuals.com

A. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 324.
B. Engine Oil Dipstick. See “Checking Engine Oil”
underEngine Oil on page 318.
C. Engine Oil Fill Cap. See “When to Add Engine
Oil” underEngine Oil on page 318.
D. Remote Negative (−) Terminal. SeeJump
Starting on page 348.
E. Brake/Clutch Cylinder Fluid. SeeBrakes on
page 343andHydraulic Clutch on page 331.F. Underhood Fuse Block. SeeUnderhood Fuse
Block on page 411.
G. Battery. SeeBattery on page 347.
H. Remote Positive (+) Terminal. SeeJump
Starting on page 348.
I. Engine Coolant Surge Tank. See “Checking
Coolant” underEngine Coolant on page 331.
J. Windshield Washer Fluid Reservoir. See
“Adding Washer Fluid” underWindshield
Washer Fluid on page 341.
315
ProCarManuals.com

Hydraulic Clutch
The hydraulic clutch linkage in your vehicle is
self-adjusting. The hydraulic clutch system does
not have its own reservoir. The system receives
uid from the brake master cylinder reservoir. It is
lled with DOT-3 brake uid. SeeBrakes on
page 343for more information.
Engine Coolant
The cooling system in your vehicle is lled with
DEX-COOL®engine coolant. This coolant is
designed to remain in your vehicle for ve years
or 150,000 miles (240 000 km), whichever
occurs rst, if you add only DEX-COOL
®
extended life coolant.
The following explains your cooling system and
how to add coolant when it is low. If you have
a problem with engine overheating, seeEngine
Overheating on page 334.A 50/50 mixture of clean, drinkable water and
DEX-COOL
®coolant will:
Give freezing protection down to
−34°F (−37°C).
Give boiling protection up to 265°F (129°C).
Protect against rust and corrosion.
Help keep the proper engine temperature.
Let the warning lights and gages work as
they should.
Notice:Using coolant other than DEX-COOL
®
may cause premature engine, heater core, or
radiator corrosion. In addition, the engine
coolant may require changing sooner, at
the rst maintenance service after each
30,000 miles (50 000 km) or 24 months,
whichever occurs rst. Any repairs would
not be covered by your warranty. Always
use DEX-COOL
®(silicate-free) coolant in
your vehicle.
331
ProCarManuals.com

Fuses Usage
ABS PWR Anti-lock Brake System Battery
REAR DEFOG Rear Defogger
COOL HI (L4)/
COOL 1 (V6)Cooling Fans High (L4)/Cooling
Fan 1 (V6)
FOG LP Fog Lamps
LH HDLP Driver’s Side Headlamp
RR WIPER Rear Wiper
ABS Anti-lock Brake System Module
PWR WDW Power Window Relay and Sunroof
CIGAR/AUX2 Cigarette Lighter
HVAC
BLOWERHVAC Blower Motor
RH HDLP Right Headlamp
FRT WIPER Front Wiper
ETCEngine Control Module (ECM),
Electronic Throttle Control (V6)
SUNROOF Sunroof Module
BRAKE Stoplamps
IGN Ignition switchFuses Usage
IGN/INJ (L4),
ECM/
CAM (V6)Engine Ignition Module, Fuel
Injectors (2.2L L4 (L61))
Camshaft Sensor, Main Relay
Voltage To PCM, Ignition Coils 1-6
INJECTORS
(3.5L V6 (L66))Fuel Injection
PWR TRAINEngine Control Module (ECM),
Transaxle Control Module (TCM),
Transaxle, L66 Powertrain Control
Module (PCM)
BACKUPLow Coolant Switch, Backup Lamps
(2.2L L4 (L61)), Vehicle Speed
Sensor (Manual), Transaxle Range
Switch (2.2L L4 (L61))
HTD SEATS Heated Seats
COOL
LO (L4)/
COOL 2 (V6)Cooling Fan Low (L4), Cooling
Fan (V6)
A/C CLUTCHAir Conditioning Clutch, Back Up
Lamps (3.5L V6 (L66))
FUEL PUMP Fuel Pump
AUX 1
OUTLETFront Auxiliary Power Outlet
412
ProCarManuals.com
