lock SATURN VUE 2008 Owners Manual

Seats and Restraint Systems........................... 1-1
Head Restraints
......................................... 1-2
Front Seats
............................................... 1-4
Rear Seats
..............................................1-12
Safety Belts
.............................................1-14
Child Restraints
.......................................1-33
Airbag System
.........................................1-55
Restraint System Check
............................1-72
Features and Controls..................................... 2-1
Keys
........................................................ 2-3
Doors and Locks
....................................... 2-9
Windows
.................................................2-12
Theft-Deterrent Systems
............................2-14
Starting and Operating Your Vehicle
...........2-18
Mirrors
....................................................2-33
OnStar
®System
......................................2-35
Universal Home Remote System
................2-38
Storage Areas
.........................................2-43
Sunroof
..................................................2-49
Instrument Panel............................................. 3-1
Instrument Panel Overview
.......................... 3-4
Climate Controls
......................................3-19
Warning Lights, Gages, and Indicators
........3-30
Driver Information Center (DIC)
..................3-49
Audio System(s)
.......................................3-52Driving Your Vehicle....................................... 4-1
Your Driving, the Road, and Your Vehicle
..... 4-2
Towing
...................................................4-41
Service and Appearance Care.......................... 5-1
Service
..................................................... 5-3
Fuel
......................................................... 5-5
Checking Things Under the Hood
...............5-10
All-Wheel Drive
........................................5-41
Headlamp Aiming
.....................................5-43
Bulb Replacement
....................................5-46
Windshield Wiper Blade Replacement
.........5-50
Tires
......................................................5-51
Appearance Care
.....................................5-87
Vehicle Identication
.................................5-95
Electrical System
......................................5-96
Capacities and Specications
...................5-104
Maintenance Schedule..................................... 6-1
Maintenance Schedule
................................ 6-2
Customer Assistance Information.................... 7-1
Customer Assistance and Information
........... 7-2
Reporting Safety Defects
...........................7-14
Vehicle Data Recording and Privacy
...........7-16
Index................................................................ 1
2008 Saturn VUE Owner ManualM
ProCarManuals.com

Pull the head restraint
up to raise it. To lower
the head restraint,
press the button,
located on the top of
the seatback, and push
the restraint down.Push down on the head restraint after the button is
released to make sure that it is locked in place.
The vehicle’s head restraints are not designed to
be removed.
Active Head Restraint System
The vehicle has an active head restraint system in the
front outboard seating positions. These automatically
tilt forward to reduce the risk of neck injury if the vehicle
is hit from behind.
1-3
ProCarManuals.com

Front Seats
Manual Seats
{CAUTION:
You can lose control of the vehicle if you try to
adjust a manual driver’s seat while the vehicle
is moving. The sudden movement could startle
and confuse you, or make you push a pedal
when you do not want to. Adjust the driver’s
seat only when the vehicle is not moving.To move a manual seat forward or rearward:
1. Lift the bar to unlock
the seat.
2. Slide the seat to the
desired position and
release the bar.
Try to move the seat with your body to be sure the
seat is locked in place.
1-4
ProCarManuals.com

Manual Lumbar
If your vehicle has this
feature, the knob is
located on the inboard
side of the driver’s
seatback.
Turn the knob clockwise or counterclockwise to
increase or decrease the lumbar support.
Heated Seats
On vehicles with heated front seats the controls are
located on the center console. To operate the heated
seats the engine must be running.
M(Heated Seat):Press this button to turn on the
heated seat.
The light on the button will come on to indicate that the
feature is working. Press the button to cycle through
the temperature settings of high, medium, and low and
to turn the heat to the seat off. Indicator lights show
the level of heat selected: three for high, two for
medium, and one for low.
The passenger seat may take longer to heat up.
If your vehicle has remote vehicle start and is started
using the remote keyless entry transmitter, the front
heated seats will be turned on to the high setting if
it is cold outside. See “Remote Vehicle Start” under
Remote Keyless Entry (RKE) System Operation
on page 2-5. When the key is inserted into the ignition
and the ignition is turned on, the heated seat feature
will turn off. To turn the heated seat feature back
on, press the desired button.
1-6
ProCarManuals.com

Reclining Seatbacks
Manual Reclining Seatbacks
{CAUTION:
You can lose control of the vehicle if you try to
adjust a manual driver’s seat while the vehicle
is moving. The sudden movement could startle
and confuse you, or make you push a pedal
when you do not want to. Adjust the driver’s
seat only when the vehicle is not moving.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it
is locked.
On seats with manual
reclining seatbacks,
the lever used to operate
them is located on the
outboard side of the seat.
1-7
ProCarManuals.com

To recline the seatback:
1. Lift the recline lever.
2. Move the seatback to the desired position, then
release the lever to lock the seatback in place.
3. Push and pull on the seatback to make sure it
is locked.
To return the seatback to an upright position:
1. Lift the lever fully without applying pressure to
the seatback and the seatback returns to the
upright position.
2. Push and pull on the seatback to make sure it
is locked.Power Reclining Seatbacks
If the seats have power
reclining seatbacks,
the control used to recline
them is located on the
outboard side of the seat.
To recline the seatback, tilt the top of the control
rearward.
To bring the seatback forward, tilt the top of the
control forward.
1-8
ProCarManuals.com

Passenger Folding Seatback
The front passenger’s seatback may fold at.
{CAUTION:
If you fold the seatback forward to carry longer
objects, such as skis, be sure any such cargo
is not near an airbag. In a crash, an inating
airbag might force that object toward a person.
This could cause severe injury or even death.
Secure objects away from the area in which
an airbag would inate. For more information,
seeWhere Are the Airbags? on page 1-58and
Loading Your Vehicle on page 4-35.
{CAUTION:
Things you put on this seatback can strike
and injure people in a sudden stop or turn,
or in a crash. Remove or secure all items
before driving.
To fold the seatback, do the following:
1. Lower the head restraint all the way.
2. Lift the bar under the front of the seat to unlock it.
Slide the seat as far back as it will go and release
the bar. Try to move the seat back and forth to
make sure it is locked into place.
1-10
ProCarManuals.com

3. Lift the recliner lever, located on the outboard side
of the seat, up fully and fold the seatback forward
until it disengages.4. Continue to fold the seat forward until it locks in
the folded position.
5. Pull up on the seatback to be sure it is locked.
1-11
ProCarManuals.com

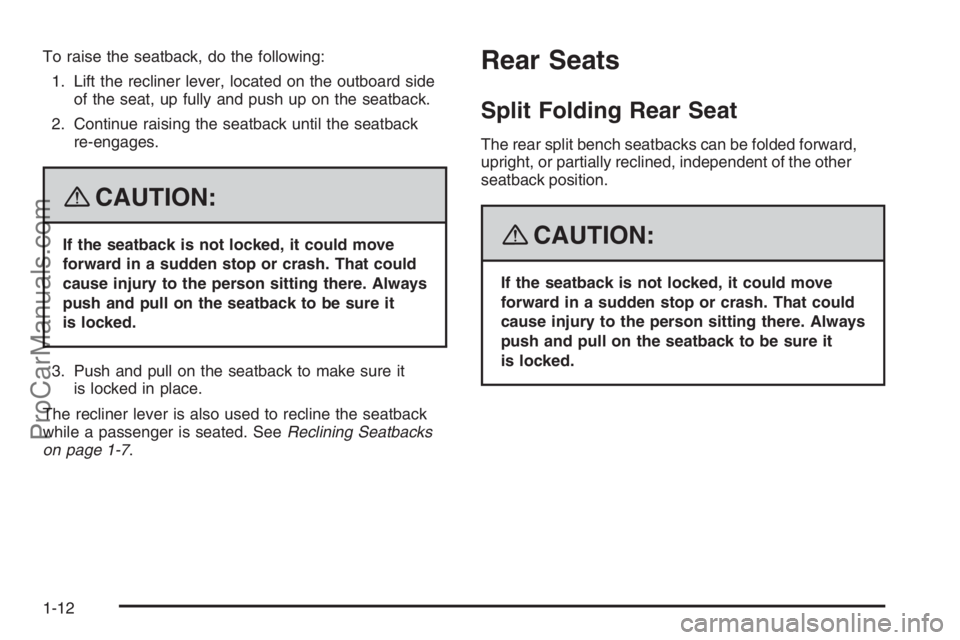

To raise the seatback, do the following:
1. Lift the recliner lever, located on the outboard side
of the seat, up fully and push up on the seatback.
2. Continue raising the seatback until the seatback
re-engages.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it
is locked.
3. Push and pull on the seatback to make sure it
is locked in place.
The recliner lever is also used to recline the seatback
while a passenger is seated. SeeReclining Seatbacks
on page 1-7.
Rear Seats
Split Folding Rear Seat
The rear split bench seatbacks can be folded forward,
upright, or partially reclined, independent of the other
seatback position.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it
is locked.
1-12
ProCarManuals.com

How to Wear Safety Belts Properly
This section is only for people of adult size.
Be aware that there are special things to know about
safety belts and children. And there are different
rules for smaller children and babies. If a child will be
riding in your vehicle, seeOlder Children on page 1-33
orInfants and Young Children on page 1-36. Follow
those rules for everyone’s protection.
It is very important for all occupants to buckle up.
Statistics show that unbelted people are hurt more often
in crashes than those who are wearing safety belts.
Occupants who are not buckled up can be thrown out
of the vehicle in a crash. And they can strike others
in the vehicle who are wearing safety belts.
First, before you or your passenger(s) wear a safety
belt, there is important information you should know.
Sit up straight and always keep your feet on the oor in
front of you. The lap part of the belt should be worn low
and snug on the hips, just touching the thighs. In a crash,
this applies force to the strong pelvic bones and you
would be less likely to slide under the lap belt. If you slid
under it, the belt would apply force on your abdomen.
This could cause serious or even fatal injuries. The
shoulder belt should go over the shoulder and across
the chest. These parts of the body are best able to take
belt restraining forces.
The shoulder belt locks if there is a sudden stop or crash.
1-19
