sunroof SATURN VUE 2008 Owners Manual

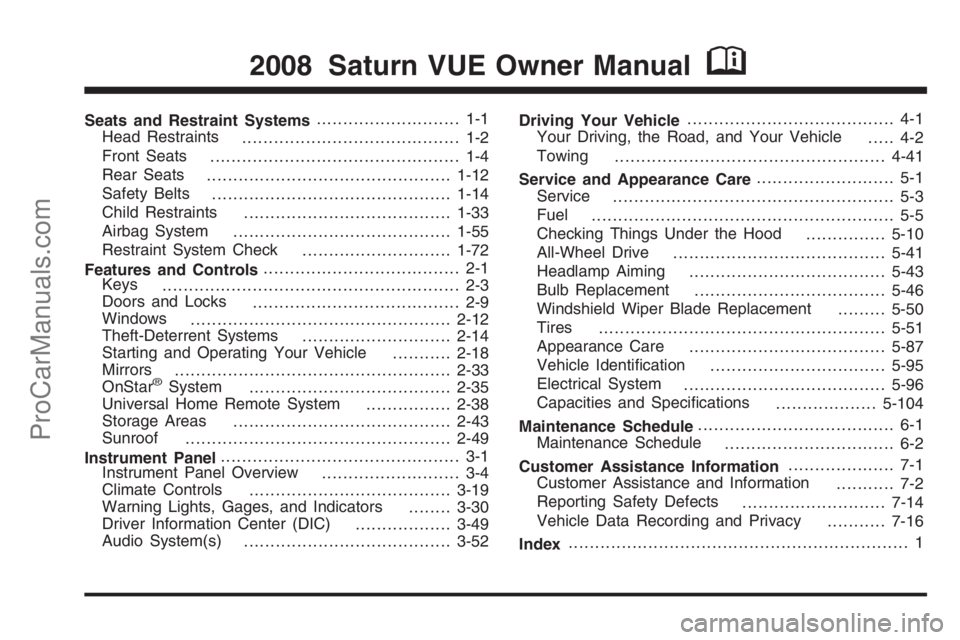

Seats and Restraint Systems........................... 1-1
Head Restraints
......................................... 1-2
Front Seats
............................................... 1-4
Rear Seats
..............................................1-12
Safety Belts
.............................................1-14
Child Restraints
.......................................1-33
Airbag System
.........................................1-55
Restraint System Check
............................1-72
Features and Controls..................................... 2-1
Keys
........................................................ 2-3
Doors and Locks
....................................... 2-9
Windows
.................................................2-12
Theft-Deterrent Systems
............................2-14
Starting and Operating Your Vehicle
...........2-18
Mirrors
....................................................2-33
OnStar
®System
......................................2-35
Universal Home Remote System
................2-38
Storage Areas
.........................................2-43
Sunroof
..................................................2-49
Instrument Panel............................................. 3-1
Instrument Panel Overview
.......................... 3-4
Climate Controls
......................................3-19
Warning Lights, Gages, and Indicators
........3-30
Driver Information Center (DIC)
..................3-49
Audio System(s)
.......................................3-52Driving Your Vehicle....................................... 4-1
Your Driving, the Road, and Your Vehicle
..... 4-2
Towing
...................................................4-41
Service and Appearance Care.......................... 5-1
Service
..................................................... 5-3
Fuel
......................................................... 5-5
Checking Things Under the Hood
...............5-10
All-Wheel Drive
........................................5-41
Headlamp Aiming
.....................................5-43
Bulb Replacement
....................................5-46
Windshield Wiper Blade Replacement
.........5-50
Tires
......................................................5-51
Appearance Care
.....................................5-87
Vehicle Identication
.................................5-95
Electrical System
......................................5-96
Capacities and Specications
...................5-104
Maintenance Schedule..................................... 6-1
Maintenance Schedule
................................ 6-2
Customer Assistance Information.................... 7-1
Customer Assistance and Information
........... 7-2
Reporting Safety Defects
...........................7-14
Vehicle Data Recording and Privacy
...........7-16
Index................................................................ 1
2008 Saturn VUE Owner ManualM
ProCarManuals.com

Storage Areas................................................2-43
Glove Box...................................................2-43
Cupholders..................................................2-44
Instrument Panel Storage...............................2-44
Sunglasses Storage Compartment...................2-44
Front Storage Area.......................................2-44
Center Console Storage.................................2-45Luggage Carrier...........................................2-46
Rear Seat Armrest........................................2-47
Convenience Net..........................................2-47
Cargo Cover................................................2-47
Cargo Tie Downs..........................................2-48
Cargo Management System...........................2-48
Sunroof.........................................................2-49
Section 2 Features and Controls
2-2
ProCarManuals.com

Sunroof
The sunroof control
switch is located
between the
sun visors.
To operate the sunroof, the ignition must be in
ON/RUN, ACC/ACCESSORY, or in Retained
Accessory Power (RAP). SeeRetained Accessory
Power (RAP) on page 2-19.Pull and release the switch quickly to express-open the
sunroof. Press and release the switch quickly to stop
the sunroof before it is completely open. The sun shade
automatically opens with the sunroof. The sunshade
cannot be closed with the sunroof open.
To close the sunroof, press the switch. The sunshade
must be closed manually.
Pull up on the switch to tilt the sunroof. Push down
on the switch to close it. The sunshade must be
manually opened and closed when the sunroof is
in the vent position.
2-49
ProCarManuals.com

4. Press the reset stem until the vehicle heading, for
example, N for North, is displayed in the DIC.
5. If calibration is necessary, calibrate the compass.
See “Compass Calibration Procedure” following.
Compass Calibration
The compass can be manually calibrated. Only calibrate
the compass in a magnetically clean and safe location,
such as an open parking lot, where driving the vehicle
in circles is not a danger. It is suggested to calibrate
away from tall buildings, utility wires, manhole covers,
or other industrial structures, if possible.
If CAL should ever appear in the DIC display, the
compass should be calibrated.
If the DIC display does not show a heading, for
example, N for North, or the heading does not change
after making turns, there may be a strong magnetic eld
interfering with the compass. Such interference may be
caused by a magnetic CB or cell phone antenna mount, a
magnetic emergency light, magnetic note pad holder, or
any other magnetic item. Turn off the vehicle, move the
magnetic item, then turn on the vehicle and calibrate the
compass.To calibrate the compass, use the following procedure:
Compass Calibration Procedure
1. Before calibrating the compass, make sure the
compass is set to the variance zone in which
the vehicle is located. See “Compass Variance
(Zone) Procedure” earlier in this section.
Do not operate any switches such as window,
sunroof, climate controls, seats, etc. during
the calibration procedure.
2. Press the reset stem until the C ## is displayed.
3. Once the appropriate variance zone is selected,
press the reset stem. A ashing C will display.
4. Drive the vehicle in tight circles at less than
5 mph (8 km/h) to complete the calibration.
When the calibration is complete, the vehicle
heading, for example, N for North, displays instead
of the C.
3-51
ProCarManuals.com

AM
The range for most AM stations is greater than for FM,
especially at night. The longer range can cause station
frequencies to interfere with each other. For better radio
reception, most AM radio stations boost the power levels
during the day, and then reduce these levels during the
night. Static can also occur when things like storms and
power lines interfere with radio reception. When this
happens, try reducing the treble on the radio.
FM Stereo
FM stereo gives the best sound, but FM signals only
reach about 10 to 40 miles (16 to 65 km). Tall buildings
or hills can interfere with FM signals, causing the
sound to fade in and out.
XM™ Satellite Radio Service
XM™ Satellite Radio Service gives digital radio
reception from coast-to-coast in the 48 contiguous
United States, and in Canada. Just as with FM, tall
buildings or hills can interfere with satellite radio signals,
causing the sound to fade in and out. In addition,
traveling or standing under heavy foliage, bridges,
garages, or through tunnels could cause loss of the
XM signal for a period of time. The radio may display
NO XM SIGNAL to indicate interference.
Fixed Mast Antenna
The xed mast antenna can withstand most car washes
without being damaged. If the mast should ever become
slightly bent, straighten it out by hand. If the mast is badly
bent, replace it.
Check occasionally to make sure the mast is still
tightened to the antenna base. If tightening is required,
tighten by hand.
XM™ Satellite Radio Antenna
System
The XM™ Satellite Radio antenna is located on the roof
of the vehicle. Keep this antenna clear of snow and
ice build up for clear radio reception.
If the vehicle has a sunroof, the performance of the
XM™ system may be affected if the sunroof is open.
Loading items onto the roof of the vehicle can interfere
with the performance of the XM™ system. Make
sure the XM™ Satellite Radio antenna is not obstructed.
3-71
ProCarManuals.com

Fuses Usage
PWR SEAT Power Seat
PASS P/WIN Passenger Side Power WindowFuses Usage
DRIV P/WIN Driver Side Power Window
S/ROOF Sunroof Module
5-98
ProCarManuals.com

Fuses Usage
ENG-3 Engine 3
ENG-2 Engine 2
ENG-1 Engine 1
HYBRID BEC Hybrid Auxiliary BEC
RUN Run
S/ROOF Sunroof Module
HTD/SEAT Heated Seat Control Module
BCM Body Control Module
STRTR Starter Motor
WPR Windshield Wiper
4WD/ESCM All-Wheel Drive System
ABS Antilock Brake System Module
A/C CLTCH Air Conditioning Compressor
BLWR MTR Blower Motor
AMP Amplier
HORN Horn
ABS Antilock Brake System ModuleFuses Usage
I/P BECInstrument Panel Bussed Electrical
Center
FRT FOG Front Fog Lamps
I/P BECInstrument Panel Bussed Electrical
Center
DRL Daytime Running Light
T/LAMP RT Right Turn and Parking Lamps
T/LAMP LT Left Turn and Parking Lamps
TRLR T/LAMP Trailer Parking Lamps
HDLPHILTPassenger Side High-Beam
Headlamp
STOP LP Stoplamps
DEFOG Defroster Fog
HDLP LO RT Driver Side Low-Beam Headlamp
HDLP LO LTPassenger Side Low-Beam
Headlamp
HDLP RT HI Driver Side High-Beam Headlamp
OSRVM HTR Outside Rearview Mirror Heating
5-102
ProCarManuals.com

Maintenance Footnotes
†The U.S. Environmental Protection Agency or the
California Air Resources Board has determined that the
failure to perform this maintenance item will not nullify
the emission warranty or limit recall liability prior to
the completion of the vehicle’s useful life. We, however,
urge that all recommended maintenance services
be performed at the indicated intervals and the
maintenance be recorded.
(a)Visually inspect brake lines and hoses for proper
hook-up, binding, leaks, cracks, chafing, etc. Inspect disc
brake pads for wear and rotors for surface condition.
Inspect other brake parts, including calipers, parking
brake, etc.
(b)Visually inspect front and rear suspension and
steering system for damaged, loose, or missing parts
or signs of wear.
(c)Visually inspect hoses and have them replaced if
they are cracked, swollen, or deteriorated. Inspect all
pipes, fittings, and clamps; replace with genuine parts as
needed. To help ensure proper operation, a pressure test
of the cooling system and pressure cap and cleaning the
outside of the radiator and air conditioning condenser is
recommended at least once a year.(d)Inspect wiper blades for wear, cracking, or
contamination. Clean the windshield and wiper blades,
if contaminated. Replace wiper blades that are worn
or damaged. See Windshield Wiper Blade Replacement
on page 5-50 and Windshield and Wiper Blades on
page 5-91 for more information.
(e)Make sure the safety belt reminder light and safety
belt assemblies are working properly. Look for any other
loose or damaged safety belt system parts. If you see
anything that might keep a safety belt system from doing
its job, have it repaired. Have any torn or frayed safety
belts replaced. Also see Checking the Restraint Systems
on page 1-72.
(f)Lubricate all key lock cylinders, door hinges and
latches, hood hinges and latches, glove box hinges,
sunroof (if equipped), and any folding seat hardware.
More frequent lubrication may be required when
exposed to a corrosive environment. Applying silicone
grease on weatherstrips with a clean cloth will make
them last longer, seal better, and not stick or squeak.
(g)Check system for interference or binding and
for damaged or missing parts. Replace parts as needed.
Replace any components that have high effort or
excessive wear.
6-8
ProCarManuals.com

Usage Fluid/Lubricant
Windshield
WasherOptikleen
®Washer Solvent
Hydraulic
Power Steering
SystemGM Power Steering Fluid
(GM Part No. U.S. 89021184,
in Canada 89021186).
Parking Brake
Cable GuidesChassis Lubricant
(GM Part No. 12377985,
in Canada 88901242) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
Automatic
TransmissionDEXRON
®-VI Automatic
Transmission Fluid.
Transfer CaseSynthetic Axle Lubricant
(GM Part No. U.S. 89021677,
in Canada 89021678).
Key Lock
CylindersMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241,
in Canada 10953474).
Usage Fluid/Lubricant
Hood Latch
Assembly,
Secondary
Latch,
Pivots, Spring
Anchor, and
Release PawlLubriplate Lubricant Aerosol
(Saturn Part No. 21038869 or
GM Part No. U.S. 12346293,
in Canada 992723) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
Hood, Liftgate
Door, and Rear
Folding Seat
HingesMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241,
in Canada 10953474).
Sunroof TrackLubriplate Lubricant Aerosol
(Saturn Part No. 21038869 or
GM Part No. U.S. 12346293,
in Canada 992723) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
Weatherstrip
ConditioningWeatherstrip Lubricant
(GM Part No. U.S. 3634770,
in Canada 10953518) or
Dielectric Silicone Grease
(GM Part No. U.S. 12345579,
in Canada 992887).
6-14
ProCarManuals.com

Storage Areas
Cargo Management System..........................2-48
Center Console Storage Area........................2-45
Convenience Net.........................................2-47
Cupholders.................................................2-44
Front Storage Area......................................2-44
Glove Box..................................................2-43
Instrument Panel Storage Area......................2-44
Luggage Carrier..........................................2-46
Rear Seat Armrest.......................................2-47
Sunglasses Storage Compartment..................2-44
Stuck in Sand, Mud, Ice, or Snow.....................4-34
Sun Visors.....................................................2-14
Sunroof.........................................................2-49
T
Tachometer....................................................3-32
Taillamps
Turn Signal, Stoplamps and Back-up Lamps....5-48
TCS Warning Light..........................................3-39
Theft-Deterrent Systems...................................2-14
Content Theft-Deterrent................................2-14
PASS-Key
®III+ Electronic Immobilizer............2-16
PASS-Key®III+ Electronic Immobilizer
Operation................................................2-16
Tilt Wheel........................................................ 3-6Time, Setting..................................................3-53
Tire
Pressure Light.............................................3-40
Tires.............................................................5-51
Aluminum Wheels, Cleaning..........................5-92
Buying New Tires........................................5-68
Chains.......................................................5-74
Changing a Flat Tire....................................5-76
Cleaning....................................................5-92
Compact Spare Tire.....................................5-86
Different Size..............................................5-70
High-Speed Operation..................................5-59
If a Tire Goes Flat.......................................5-75
Ination - Tire Pressure................................5-58
Inspection and Rotation................................5-65
Installing the Spare Tire................................5-79
Pressure Monitor Operation...........................5-62
Pressure Monitor System..............................5-60
Removing the Flat Tire.................................5-79
Removing the Spare Tire and Tools...............5-77
Storing a Flat or Spare Tire and Tools............5-85
Tire Sidewall Labeling..................................5-52
Tire Terminology and Denitions....................5-55
Uniform Tire Quality Grading.........................5-70
Wheel Alignment and Tire Balance.................5-72
Wheel Replacement.....................................5-73
When It Is Time for New Tires......................5-67
12
ProCarManuals.com
