2. If the engine does not start
after 5-10 seconds, especially in
very cold weather (below 0°F or
−18°C), it could be ooded with
too much gasoline. Try pushing
the accelerator pedal all the way
to the oor and holding it there as
you hold the key in START for up
to a maximum of 15 seconds.
Wait at least 15 seconds between
each try, to allow the cranking
motor to cool down. When the
engine starts, let go of the key
and accelerator. If the vehicle
starts briey but then stops again,
repeat these steps. This clears
the extra gasoline from the
engine. Do not race the engine
immediately after starting it.
Operate the engine and
transmission gently until the
oil warms up and lubricates
all moving parts.Notice:The engine is designed
to work with the electronics in
the vehicle. If you add electrical
parts or accessories, you could
change the way the engine
operates. Before adding electrical
equipment, check with your
dealer/retailer. If you do not,
the engine might not perform
properly. Any resulting damage
would not be covered by the
vehicle warranty.
Engine Coolant Heater
The engine coolant heater can
provide easier starting and better fuel
economy during engine warm-up in
cold weather conditions at or below
0°F (−18°C). Vehicles with an engine
coolant heater should be plugged in
at least four hours before starting.
Some models may have an internal
thermostat in the cord which will
prevent engine coolant heater
operation at temperatures above
0°F (−18°C).
To Use the Engine Coolant
Heater
1. Turn off the engine.
2. Open the hood and unwrap
the electrical cord. The engine
coolant heater cord is located
near the air cleaner box on the
passenger side of the engine
compartment. SeeEngine
Compartment Overview on
page 5-12for more information
on location.
3. Plug the cord into a normal,
grounded 110-volt AC outlet.
2-18 Features and Controls
ProCarManuals.com

Service and
Appearance Care
ServiceService................................5-3
Accessories and
Modications.......................5-3
California Proposition 65
Warning.............................5-4
California Perchlorate
Materials Requirements........5-4
Doing Your Own
Service Work......................5-4
Adding Equipment to the
Outside of the Vehicle...........5-5
FuelFuel....................................5-5
Gasoline Octane...................5-5
Gasoline Specications..........5-6
California Fuel......................5-6
Additives..............................5-6
Fuels in Foreign Countries......5-8
Filling the Tank.....................5-8
Filling a Portable Fuel
Container..........................5-10
Checking Things Under
the Hood
Checking Things Under
the Hood..........................5-10
Hood Release.....................5-11
Engine Compartment
Overview..........................5-12
Engine Oil..........................5-14
Engine Oil Life System.........5-16
Engine Air Cleaner/Filter.......5-17
Automatic Transmission
Fluid................................5-18
Cooling System...................5-19
Engine Coolant...................5-22
Coolant Surge Tank
Pressure Cap....................5-25
Engine Overheating.............5-25
Power Steering Fluid............5-26
Windshield Washer Fluid......5-27
Brakes...............................5-28
Battery...............................5-30
Jump Starting.....................5-31
All-Wheel DriveAll-Wheel Drive...................5-35
Headlamp AimingHeadlamp Aiming................5-36
Bulb ReplacementBulb Replacement...............5-39
Halogen Bulbs....................5-39
Headlamps.........................5-39
Front Turn Signal and
Parking Lamps..................5-40
Taillamps, Turn Signal,
Stoplamps and Back-up
Lamps..............................5-40
License Plate Lamp.............5-41
Replacement Bulbs..............5-41
Windshield Wiper Blade
Replacement
Windshield Wiper Blade
Replacement.....................5-42
TiresTires..................................5-43
Tire Sidewall Labeling..........5-44
Tire Terminology and
Denitions.........................5-46
Ination - Tire Pressure........5-49
High-Speed Operation..........5-50
Tire Pressure Monitor
System.............................5-51
Tire Pressure Monitor
Operation..........................5-53
Service and Appearance Care 5-1
ProCarManuals.com

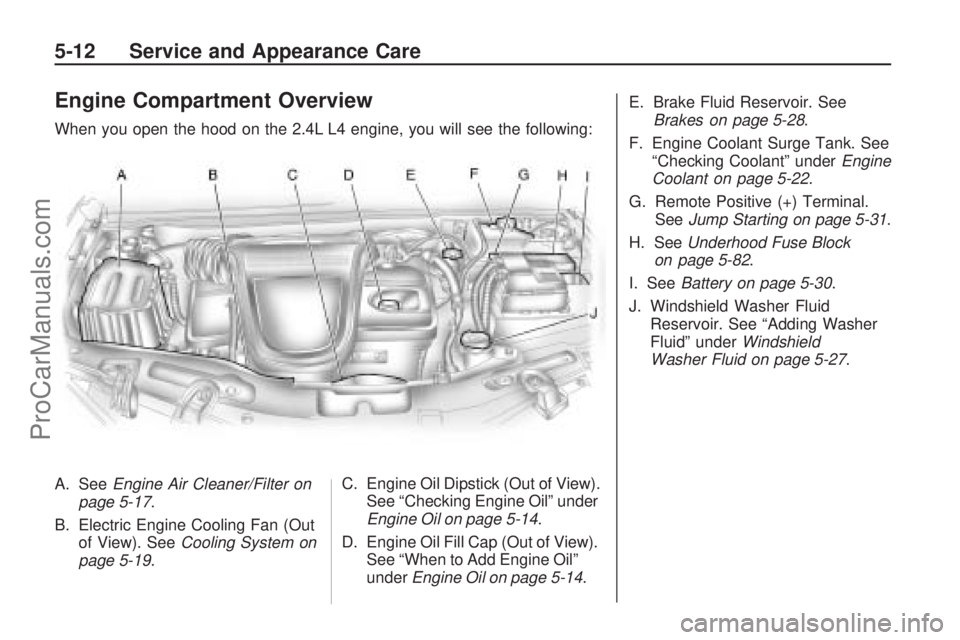

Engine Compartment Overview
When you open the hood on the 2.4L L4 engine, you will see the following:
A. SeeEngine Air Cleaner/Filter on
page 5-17.
B. Electric Engine Cooling Fan (Out of View). See Cooling System on
page 5-19. C. Engine Oil Dipstick (Out of View).
See “Checking Engine Oil” under
Engine Oil on page 5-14 .
D. Engine Oil Fill Cap (Out of View). See “When to Add Engine Oil”
under Engine Oil on page 5-14 .E. Brake Fluid Reservoir. See
Brakes on page 5-28 .
F. Engine Coolant Surge Tank. See “Checking Coolant” under Engine
Coolant on page 5-22 .
G. Remote Positive (+) Terminal. See Jump Starting on page 5-31 .
H. See Underhood Fuse Block
on page 5-82.
I. See Battery on page 5-30 .
J. Windshield Washer Fluid Reservoir. See “Adding Washer
Fluid” under Windshield
Washer Fluid on page 5-27 .
5-12 Service and Appearance Care
ProCarManuals.com

When you open the hood on the 3.5L V6 engine (3.6L V6 similar), you will
see the following:
A. SeeEngine Air Cleaner/Filter on
page 5-17.
B. Power Steering Fluid Reservoir (Out of View). See Power
Steering Fluid on page 5-26 .C. Electric Engine Cooling Fan (Out
of View). See Cooling System
on page 5-19.
D. Engine Oil Fill Cap. See “When to Add Engine Oil” under Engine
Oil on page 5-14. E. Engine Oil Dipstick (Out of View).
See “Checking Engine Oil” under
Engine Oil on page 5-14.
F. Automatic Transmission Fluid Dipstick (Out of View). See
“Checking the Fluid Level” under
Automatic Transmission Fluid
on page 5-18.
G. Brake Fluid Reservoir (Out of View). See Brakes on page 5-28 .
H. Engine Coolant Recovery Tank. See Cooling System on
page 5-19.
I. Remote Positive (+) Terminal. See Jump Starting on page 5-31 .
J. See Underhood Fuse Block
on page 5-82.
K. See Battery on page 5-30 .
L. Windshield Washer Fluid Reservoir. See “Adding Washer
Fluid” under Windshield
Washer Fluid on page 5-27 .
Service and Appearance Care 5-13
ProCarManuals.com

{CAUTION
Steam and scalding liquids from a
hot cooling system can blow out
and burn you badly. They are
under pressure, and if you turn
the coolant surge tank pressure
cap — even a little — they can
come out at high speed. Never
turn the cap when the cooling
system, including the coolant
surge tank pressure cap, is hot.
Wait for the cooling system and
coolant surge tank pressure cap
to cool if you ever have to turn
the pressure cap.
{CAUTION
Adding only plain water to the
cooling system can be dangerous.
Plain water, or some other liquid
such as alcohol, can boil before
the proper coolant mixture will.
The vehicle’s coolant warning
system is set for the proper
coolant mixture. With plain water
or the wrong mixture, the engine
could get too hot but you would
not get the overheat warning. The
engine could catch re and you or
others could be burned. Use a
50/50 mixture of clean, drinkable
water and DEX-COOL
®coolant.
Notice:In cold weather, water
can freeze and crack the engine,
radiator, heater core and other
parts. Use the recommended
coolant and the proper coolant
mixture.
{CAUTION
You can be burned if you spill
coolant on hot engine parts.
Coolant contains ethylene glycol
and it will burn if the engine parts
are hot enough. Do not spill
coolant on a hot engine.
1. You can remove the coolant
surge tank pressure cap when
the cooling system, including the
coolant surge tank pressure cap
and upper radiator hose, is no
longer hot.
Turn the pressure cap slowly
counterclockwise about
one-quarter of a turn. If you hear
a hiss, wait for that to stop.
Service and Appearance Care 5-21
ProCarManuals.com

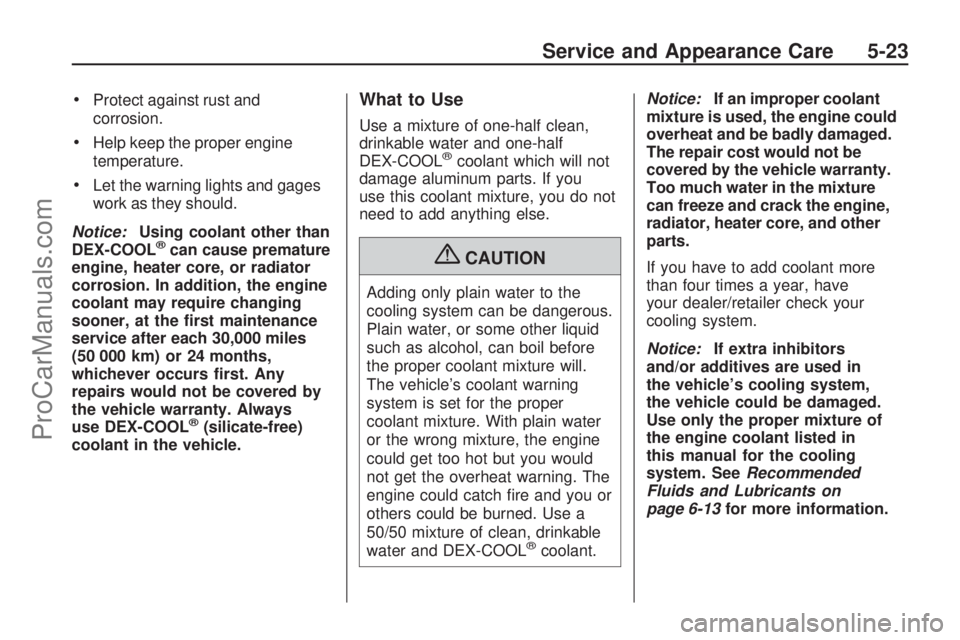

Protect against rust and
corrosion.
Help keep the proper engine
temperature.
Let the warning lights and gages
work as they should.
Notice:Using coolant other than
DEX-COOL
®can cause premature
engine, heater core, or radiator
corrosion. In addition, the engine
coolant may require changing
sooner, at the rst maintenance
service after each 30,000 miles
(50 000 km) or 24 months,
whichever occurs rst. Any
repairs would not be covered by
the vehicle warranty. Always
use DEX-COOL
®(silicate-free)
coolant in the vehicle.
What to Use
Use a mixture of one-half clean,
drinkable water and one-half
DEX-COOL
®coolant which will not
damage aluminum parts. If you
use this coolant mixture, you do not
need to add anything else.
{CAUTION
Adding only plain water to the
cooling system can be dangerous.
Plain water, or some other liquid
such as alcohol, can boil before
the proper coolant mixture will.
The vehicle’s coolant warning
system is set for the proper
coolant mixture. With plain water
or the wrong mixture, the engine
could get too hot but you would
not get the overheat warning. The
engine could catch re and you or
others could be burned. Use a
50/50 mixture of clean, drinkable
water and DEX-COOL
®coolant.Notice:If an improper coolant
mixture is used, the engine could
overheat and be badly damaged.
The repair cost would not be
covered by the vehicle warranty.
Too much water in the mixture
can freeze and crack the engine,
radiator, heater core, and other
parts.
If you have to add coolant more
than four times a year, have
your dealer/retailer check your
cooling system.
Notice:If extra inhibitors
and/or additives are used in
the vehicle’s cooling system,
the vehicle could be damaged.
Use only the proper mixture of
the engine coolant listed in
this manual for the cooling
system. SeeRecommended
Fluids and Lubricants on
page 6-13for more information.
Service and Appearance Care 5-23
