Vehicle Symbol Chart
Here are some additional symbols
that may be found on the vehicle
and what they mean. For more
information on the symbol, refer to
the index.
9:Airbag Readiness Light
#:Air Conditioning
!:Antilock Brake System (ABS)
g:Audio Steering Wheel
Controls or OnStar®
$:Brake System Warning Light
":Charging System
I:Cruise Control
B:Engine Coolant Temperature
O:Exterior Lamps
#:Fog Lamps
.:Fuel Gage
+:Fuses
i:Headlamp High/Low-Beam
Changer
j:LATCH System Child Restraints
*:Malfunction Indicator Lamp
::Oil Pressure
}:Power
/:Remote Vehicle Start
>:Safety Belt Reminders
7:Tire Pressure Monitor
F:Traction Control
M:Windshield Washer Fluid
iv Preface
ProCarManuals.com

To program the new key:
1. Verify that the new key has
a
1stamped on it.
2. Insert the already programmed
key in the ignition and start the
engine. If the engine does not
start, see your dealer/retailer for
service.
3. After the engine has started,
turn the key to LOCK/OFF,
and remove the key.
4. Insert the key to be programmed
and turn it to the ON/RUN
position within ve seconds of
the original key being turned
to the LOCK/OFF position.
The security light turns off once
the key has been programmed.
5. Repeat Steps 1 through 4
if additional keys are to be
programmed.
If the PASS-Key
®III+ key is lost or
damaged, see your dealer/retailer or
a locksmith to have a new key made.
Do not leave the key or device that
disarms or deactivates the theft
deterrent system in the vehicle.
Starting and
Operating Your
Vehicle
New Vehicle Break-In
Notice:The vehicle does
not need an elaborate break-in.
But it will perform better in
the long run if you follow these
guidelines:
Do not drive at any one
constant speed, fast or slow,
for the rst 500 miles (805 km).
Do not make full-throttle
starts. Avoid downshifting
to brake or slow the vehicle.
Avoid making hard stops for
the rst 200 miles (322 km) or
so. During this time the new
brake linings are not yet broken
in. Hard stops with new linings
can mean premature wear and
earlier replacement. Follow this
breaking-in guideline every
time you get new brake linings.
Do not tow a trailer during
break-in. SeeTowing a Trailer
on page 4-35for the trailer
towing capabilities of your
vehicle and more information.
Following break-in, engine speed
and load can be gradually
increased.
Features and Controls 2-15
ProCarManuals.com

Ignition Positions
The ignition switch has four different
positions.
To shift out of P (Park), turn the
ignition to ON/RUN and apply
the regular brake pedal.
Notice:Using a tool to force the
key to turn in the ignition could
cause damage to the switch or
break the key. Use the correct key,
make sure it is all the way in, and
turn it only with your hand. If the
key cannot be turned by hand,
see your dealer/retailer.LOCK/OFF:This position locks the
ignition. It also locks the steering
wheel and the transmission. The key
can only be removed in LOCK/OFF.
The shift lever must be in P (Park)
to turn the ignition switch to
LOCK/OFF.
The steering can bind with the
wheels turned off center. If this
happens, move the steering wheel
from right to left while turning the key
to ACC/ACCESSORY. If this doesn’t
work, the vehicle needs service.
ACC (ACC/ACCESSORY):This is
the position in which you can operate
the electrical accessories or items
plugged into the accessory power
outlets.
Use this position if the vehicle must
be pushed or towed.ON/RUN:This position can be used
to operate the electrical accessories
and to display some instrument
panel cluster warning and indicator
lights. The switch stays in this
position when the engine is running.
The transmission is also unlocked in
this position. If you leave the key in
the ACC/ACCESSORY or ON/RUN
positions with the engine off, the
battery could be drained. You may
not be able to start the vehicle if the
battery is allowed to drain for an
extended period of time.
START:This is the position that
starts the engine. When the engine
starts, release the key. The ignition
switch returns to ON/RUN for driving.
A warning tone will sound when the
driver door is opened, the ignition is
in ACC/ACCESSORY or LOCK/OFF
and the key is in the ignition.
2-16 Features and Controls
ProCarManuals.com

Manual Shift Mode (MSM)
(Automatic Transmission)
To use this feature, do the following:
1. Move the shift lever from
D (Drive) rearward to M (Manual).
The six-speed transmission will
downshift to a lower gear and the
instrument panel will display the
gear range selected. If equipped
with a 4-speed transmission it will
display a 3 for third gear range.
When coming to a stop in
the manual position, the vehicle
will automatically shift to
1 (First) gear.
2. Press the plus (+) button to
upshift or the minus (−) button
to downshift.While using the MSM feature
the vehicle will have sportier
performance. You can use this
when driving hilly roads to stay
in gear longer or to downshift for
more power or engine braking.
The transmission will only allow you
to shift into a gear range appropriate
for the vehicle speed.
The transmission will not
automatically shift to the next
higher gear range without
pressing the button on the
shifter handle.
The transmission will not allow
shifting to the next lower gear if
the vehicle speed is too high.
If the vehicle does not respond
to a gear change, or detects a
problem with the transmission, the
range of gears may be reduced and
the Malfunction Indicator Lamp will
come on. SeeMalfunction Indicator
Lamp on page 3-35.
Parking Brake
The parking brake lever is located
in the center console between
the front seats.
To set the parking brake, hold the
brake pedal down and pull up on the
parking brake lever. If the ignition
is in ON/RUN, the brake system
warning light will come on.
2-24 Features and Controls
ProCarManuals.com

To release the parking brake,
hold the brake pedal down. Pull the
parking brake lever up until you can
press the release button. Hold the
release button in as you move the
brake lever all the way down.
Release the parking brake before
driving the vehicle.
Notice:Driving with the parking
brake on can overheat the brake
system and cause premature wear
or damage to brake system parts.
Make sure that the parking brake
is fully released and the brake
warning light is off before driving.Shifting Into Park
(Automatic Transmission)
{CAUTION
It can be dangerous to get out of
the vehicle if the shift lever is not
fully in P (Park) with the parking
brake rmly set. The vehicle can
roll. If you have left the engine
running, the vehicle can move
suddenly. You or others could be
injured. To be sure the vehicle will
not move, even when you are on
fairly level ground, use the steps
that follow. If you are pulling a
trailer, seeTowing a Trailer on
page 4-35.To shift into P (Park):
1. Hold the brake pedal down
and set the parking brake.
SeeParking Brake on page 2-24
for more information.
2. Move the shift lever into P (Park)
by holding in the button on the
shift lever and pushing the lever
all the way toward the front of the
vehicle.
3. Turn the ignition key to
LOCK/OFF.
Features and Controls 2-25
ProCarManuals.com

{CAUTION
It can be dangerous to get out
of the vehicle if the automatic
transmission shift lever is not fully
in P (Park) with the parking brake
rmly set. The vehicle can roll.
Do not leave the vehicle when
the engine is running unless you
have to. If you have left the engine
running, the vehicle can move
suddenly. You or others could be
injured. To be sure the vehicle will
not move, even when you are on
fairly level ground, always set the
parking brake and move the shift
lever to P (Park).
Follow the proper steps to be
sure the vehicle will not move.
SeeShifting Into Park (Automatic
Transmission) on page 2-25.
If parking on a hill and pulling a
trailer, seeTowing a Trailer
on page 4-35.
Mirrors
Manual Rearview Mirror
If the vehicle has the manual
rearview mirror, it can be adjusted
by holding the mirror in the center
to move it for a clearer view behind
your vehicle. Reduce the glare of
headlamps from behind by pushing
the lever forward or pulling it back
for daytime/nighttime use.
Automatic Dimming
Rearview Mirror
The vehicle may have an automatic
dimming inside rearview mirror.
Vehicles with OnStar
®have three
additional control buttons for the
OnStar
®system. See your dealer/
retailer for more information about
OnStar
®and how to subscribe to it.
SeeOnStar®System on page 2-33
for more information about the
services OnStar
®provides.
O(On/Off):Press to turn the
dimming feature on or off.Your vehicle may also have a Rear
Vision Camera. SeeRear Vision
Camera (RVC) on page 2-31
for more information.
Automatic Dimming Mirror
Operation
The automatic dimming mirror
reduces the glare from the
headlamps of the vehicle behind you.
The dimming feature comes on and
the indicator light illuminates each
time the ignition is turned to start.
Outside Power Mirrors
Controls for the outside power
mirrors are located on the driver door.
Features and Controls 2-29
ProCarManuals.com

Instrument Panel
Instrument Panel OverviewInstrument Panel Overview.....3-4
Hazard Warning Flashers.......3-5
Horn....................................3-5
Tilt Wheel............................3-6
Turn Signal/Multifunction
Lever.................................3-6
Turn and Lane-Change
Signals...............................3-6
Headlamp High/Low-Beam
Changer.............................3-7
Flash-to-Pass........................3-7
Windshield Wipers.................3-7
Rainsense™ II Wipers...........3-8
Windshield Washer................3-8
Rear Window Wiper/Washer. . . .3-9
Cruise Control......................3-9
Exterior Lamps....................3-12
Wiper Activated
Headlamps........................3-12Daytime Running
Lamps (DRL)....................3-13
Automatic Headlamp
System.............................3-13
Fog Lamps.........................3-14
Instrument Panel
Brightness.........................3-14
Dome Lamp........................3-14
Entry Lighting......................3-14
Reading Lamps...................3-15
Electric Power
Management.....................3-15
Battery Run-Down
Protection.........................3-16
Accessory Power Outlet(s). . . .3-16
Climate ControlsClimate Control System........3-17
Automatic Climate
Control System..................3-20
Outlet Adjustment................3-24
Passenger Compartment
Air Filter...........................3-24
Warning Lights, Gages,
and Indicators
Warning Lights, Gages,
and Indicators...................3-26
Instrument Panel Cluster.......3-27
Speedometer and
Odometer.........................3-28
Trip Odometer.....................3-28
Tachometer........................3-28
Safety Belt Reminders..........3-28
Airbag Readiness Light.........3-29
Passenger Airbag
Status Indicator.................3-30
Charging System Light.........3-31
Brake System
Warning Light....................3-31
Antilock Brake System
(ABS) Warning Light...........3-32
Power Steering
Warning Lights..................3-33
Traction Control System
(TCS) Warning Light...........3-33
StabiliTrak
®Indicator Light. . . .3-33
Instrument Panel 3-1
ProCarManuals.com

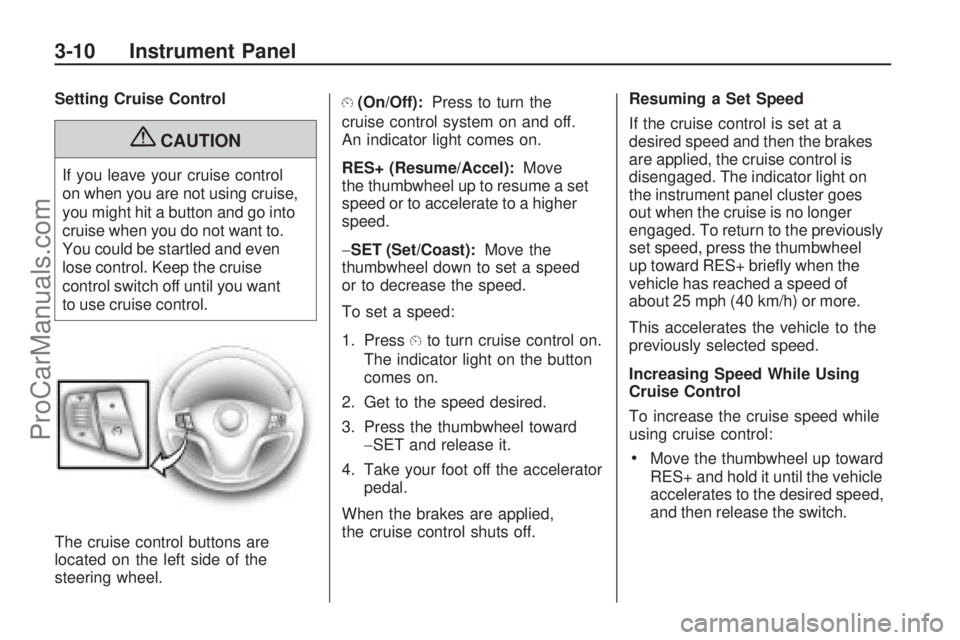

Setting Cruise Control
{CAUTION
If you leave your cruise control
on when you are not using cruise,
you might hit a button and go into
cruise when you do not want to.
You could be startled and even
lose control. Keep the cruise
control switch off until you want
to use cruise control.
The cruise control buttons are
located on the left side of the
steering wheel.
E(On/Off):Press to turn the
cruise control system on and off.
An indicator light comes on.
RES+ (Resume/Accel):Move
the thumbwheel up to resume a set
speed or to accelerate to a higher
speed.
−SET (Set/Coast):Move the
thumbwheel down to set a speed
or to decrease the speed.
To set a speed:
1. Press
Eto turn cruise control on.
The indicator light on the button
comes on.
2. Get to the speed desired.
3. Press the thumbwheel toward
−SET and release it.
4. Take your foot off the accelerator
pedal.
When the brakes are applied,
the cruise control shuts off.Resuming a Set Speed
If the cruise control is set at a
desired speed and then the brakes
are applied, the cruise control is
disengaged. The indicator light on
the instrument panel cluster goes
out when the cruise is no longer
engaged. To return to the previously
set speed, press the thumbwheel
up toward RES+ briey when the
vehicle has reached a speed of
about 25 mph (40 km/h) or more.
This accelerates the vehicle to the
previously selected speed.
Increasing Speed While Using
Cruise Control
To increase the cruise speed while
using cruise control:
Move the thumbwheel up toward
RES+ and hold it until the vehicle
accelerates to the desired speed,
and then release the switch.
3-10 Instrument Panel
ProCarManuals.com

To increase the speed in small
amounts, move the thumbwheel
up toward RES+ briey and then
release it. Each time this is done,
the vehicle goes about 1 mph
(1.6 km/h) faster.
Use the accelerator pedal to
reach the desired speed and
move the thumbwheel towards
−SET. The new desired speed
must be greater than the previous
set speed by a least 5 mph.
Reducing Speed While Using
Cruise Control
If the cruise control system is
already engaged,
Move the thumbwheel toward
−SET and hold until the desired
lower speed is reached, then
release it.
To slow down in very small
amounts, move the thumbwheel
toward−SET briey. Each time
this is done, the vehicle goes
about 1 mph (1.6 km/h) slower.Passing Another Vehicle While
Using Cruise Control
Use the accelerator pedal to
increase the vehicle’s speed.
When you take your foot off the
pedal, the vehicle will slow down
to the previously set cruise control
speed.
Using Cruise Control on Hills
How well the cruise control works
on hills depends upon the vehicle’s
speed, load, and the steepness of
the hills. When going up steep hills,
you might have to step on the
accelerator pedal to maintain the
vehicle’s speed. When going
downhill, you might have to brake or
shift to a lower gear to maintain the
vehicle’s speed. For some vehicles
the transmission may automatically
downshift when going down hills to
help maintain the vehicle’s speed.
When the brakes are applied the
cruise control shuts off.Ending Cruise Control
There are three ways to disengage
the cruise control:
Step lightly on the brake pedal
or clutch; when cruise control
disengages, the indicator light
on the instrument panel cluster
goes out.
PressEto turn off the cruise
control system.
Erasing Speed Memory
The cruise control set speed
memory is erased when the
cruise control or the ignition is
turned off.
Instrument Panel 3-11
ProCarManuals.com

If, after several seconds, both
status indicator lights remain on,
or if there are no lights at all, there
may be a problem with the lights
or the passenger sensing system.
See your dealer/retailer for service.
{CAUTION
If the airbag readiness light ever
comes on and stays on, it means
that something may be wrong with
the airbag system. To help avoid
injury to yourself or others, have
the vehicle serviced right away.
SeeAirbag Readiness Light on
page 3-29for more information,
including important safety
information.
Charging System Light
The charging system light comes on
briey when the ignition is turned on,
but the engine is not running, as a
check to show the light is working.
It should go out when the engine is
started.
If the light stays on, or comes
on while driving, there could be a
problem with the electrical charging
system. Have it checked by your
dealer/retailer. Driving while this light
is on could drain the battery.
If a short distance must be driven
with the light on, be sure to turn
off all accessories, such as the
radio and air conditioner.
Brake System Warning
Light
The brake indicator light should
come on briey as the engine
is started. If it does not come
on have the vehicle serviced
by your dealer/retailer.
When the ignition is on, the
brake system warning light comes
on when the parking brake is set.
The light stays on if the parking
brake does not fully release.
United StatesCanada
Instrument Panel 3-31
ProCarManuals.com
