Page 217 of 386
Off-Road Driving
Vehicles with all-wheel drive can be
used for off-road driving. Vehicles
without all-wheel drive should not be
driven off-road except on a level,
solid surface.
Many of the vehicle design features
that help make the vehicle more
responsive on paved roads during
poor weather conditions also help
make it better suited for off-road
use than conventional passenger
vehicles. The vehicle does not
have features usually thought to be
necessary for extended or severe
off-road use such as special
underbody shielding and transfer
case low gear range.
The airbag system is designed to
work properly under a wide range of
conditions, including off-road usage.
Always wear your safety belt and
observe safe driving speeds,
especially on rough terrain.Drinking and driving can be very
dangerous on any road and this is
certainly true for off-road driving.
At the very time you need special
alertness and driving skills, your
re exes, perceptions, and judgment
can be affected by even a small
amount of alcohol. You could have a
serious — or even fatal — accident if
you drink and drive or ride with a
driver who has been drinking.
Off-roading can be great fun but has
some de nite hazards. The greatest
of these is the terrain itself. When
off-road driving, traffic lanes are not
marked, curves are not banked, and
there are no road signs. Surfaces
can be slippery, rough, uphill, or
downhill.
Avoid sharp turns and abrupt
maneuvers. Failure to operate the
vehicle correctly off-road could result
in loss of vehicle control or vehicle
rollover.Off-roading involves some new skills.
That is why it is very important that
you read these driving tips and
suggestions to help make off-road
driving safer and more enjoyable.
Before You Go Off-Roading
Have all necessary maintenance
and service work done.
Make sure there is enough fuel,
that uid levels are where they
should be, and that the spare tire
is fully in ated.
Be sure to read all the
information about all-wheel-drive
vehicles in this manual.
Make sure all underbody shields,
if the vehicle has them, are
properly attached.
Know the local laws that apply to
off-roading where you will be
driving or check with law
enforcement people in the area.
Be sure to get the necessary
permission if you will be on
private land.
Driving Your Vehicle 4-13
ProCarManuals.com
Page 237 of 386
To tow the vehicle from the front
with all four wheels on the ground:
1. Position the vehicle that will
be towed and secure it to
the towing vehicle.
2. Turn the ignition key to
ACC/ACCESSORY.
3. Shift the transmission to
N (Neutral).
4. Turn fog lamps and all
accessories off.5. To prevent the battery from
draining while the vehicle is
being towed, remove the 2 amp
IGN SW fuse from the instrument
panel fuse block and store it in a
safe location. SeeInstrument
Panel Fuse Block on page 5-80
Notice:If the vehicle is towed
without performing each of the
steps listed under “Dinghy
Towing,” the automatic
transmission could be damaged.
Be sure to follow all steps of the
dinghy towing procedure prior to
and after towing the vehicle.
Notice:If the vehicle has
a four-speed automatic
transmission, it can be dinghy
towed from the front for unlimited
miles at 65 mph (105 km/h).
The vehicle could be damaged If
65 mph (105 km/h) is exceeded
while towing the vehicle. The
repairs would not be covered
by the vehicle warranty. Never
exceed 65 mph (105 km/h) while
towing the vehicle.Once the destination has been
reached:
1. Set the parking brake.
2. Shift the transmission to
P (Park).
3. Reinstall the 2 amp IGN SW fuse
to the instrument panel fuse
block.
4. Turn the ignition key to LOCK/
OFF and remove the key from
the ignition.
Notice:Too much or too
little uid can damage the
transmission. Be sure that the
transmission uid is at the proper
level before towing with all four
wheels on the ground.
Notice:Do not tow a vehicle
with the front drive wheels on the
ground if one of the front tires is a
compact spare tire. Towing with
two different tire sizes on the front
of the vehicle can cause severe
damage to the transmission.
Driving Your Vehicle 4-33
ProCarManuals.com
Page 250 of 386
Tire Inspection and
Rotation............................5-56
When It Is Time for
New Tires.........................5-57
Buying New Tires................5-58
Different Size Tires and
Wheels.............................5-59
Uniform Tire Quality
Grading............................5-60
Wheel Alignment and
Tire Balance.....................5-61
Wheel Replacement.............5-62
Tire Chains.........................5-62
If a Tire Goes Flat...............5-63
Changing a Flat Tire............5-64
Removing the Spare
Tire and Tools...................5-65
Removing the Flat Tire and
Installing the Spare Tire.......5-66
Storing a Flat or Spare
Tire and Tools...................5-70
Compact Spare Tire.............5-71Appearance CareInterior Cleaning..................5-72
Fabric/Carpet......................5-73
Leather..............................5-74
Instrument Panel, Vinyl, and
Other Plastic Surfaces.........5-74
Care of Safety Belts............5-74
Weatherstrips......................5-75
Washing Your Vehicle..........5-75
Cleaning Exterior
Lamps/Lenses...................5-75
Finish Care.........................5-76
Windshield and Wiper
Blades..............................5-76
Aluminum Wheels................5-77
Tires..................................5-77
Sheet Metal Damage...........5-78
Finish Damage....................5-78
Underbody Maintenance.......5-78
Chemical Paint Spotting........5-78Vehicle Identi cationVehicle Identi cation
Number (VIN)....................5-79
Service Parts Identi cation
Label...............................5-79
Electrical SystemAdd-On Electrical
Equipment........................5-79
Windshield Wiper Fuses.......5-80
Power Windows and
Other Power Options..........5-80
Fuses and Circuit
Breakers...........................5-80
Instrument Panel
Fuse Block.......................5-80
Underhood Fuse Block.........5-82
Capacities and
Speci cations
Capacities and
Speci cations....................5-86
5-2 Service and Appearance Care
ProCarManuals.com
Page 292 of 386
Tire Sidewall Labeling
Useful information about a tire is
molded into its sidewall. The
examples below show a typical
passenger vehicle tire and a
compact spare tire sidewall.
(A) Tire Size
:The tire size is a
combination of letters and
numbers used to de ne a
particular tire’s width, height,
aspect ratio, construction
type, and service description.See the “Tire Size” illustration
later in this section for more
detail.
(B) TPC Spec (Tire
Performance Criteria
Speci cation)
:Original
equipment tires designed to
GM’s speci c tire performance
criteria have a TPC speci cation
code molded onto the sidewall.
GM’s TPC speci cations meet
or exceed all federal safety
guidelines.
(C) DOT (Department
of Transportation)
:The
Department of Transportation
(DOT) code indicates that the
tire is in compliance with the U.S.
Department of Transportation
Motor Vehicle Safety Standards.
(D) Tire Identi cation Number
(TIN)
:The letters and numbers
following DOT (Department
of Transportation) code is the
Tire Identi cation Number (TIN).The TIN shows the manufacturer
and plant code, tire size, and
date the tire was manufactured.
The TIN is molded onto both
sides of the tire, although only
one side may have the date of
manufacture.
(E) Tire Ply Material
:The type
of cord and number of plies in the
sidewall and under the tread.
(F) Uniform Tire Quality
Grading (UTQG)
:Tire
manufacturers are required to
grade tires based on three
performance factors: treadwear,
traction, and temperature
resistance. For more information
seeUniform Tire Quality
Grading on page 5-60.
(G) Maximum Cold In ation
Load Limit
:Maximum load that
can be carried and the maximum
pressure needed to support
that load. Passenger (P-Metric) Tire
Example
5-44 Service and Appearance Care
ProCarManuals.com
Page 293 of 386
(A) Temporary Use Only:The
compact spare tire or temporary
use tire has a tread life of
approximately 3,000 miles
(5 000 km) and should not be
driven at speeds over 65 mph
(105 km/h). The compact spare
tire is for emergency use when a
regular road tire has lost air and
gone at. If your vehicle has a
compact spare tire, seeCompact
Spare Tire on page 5-71andIf a
Tire Goes Flat on page 5-63.(B) Tire Ply Material
:The type
of cord and number of plies in the
sidewall and under the tread.
(C) Tire Identi cation Number
(TIN)
:The letters and numbers
following the DOT (Department
of Transportation) code is the
Tire Identi cation Number (TIN).
The TIN shows the manufacturer
and plant code, tire size, and
date the tire was manufactured.
The TIN is molded onto both
sides of the tire, although only
one side may have the date of
manufacture.
(D) Maximum Cold In ation
Load Limit
:Maximum load that
can be carried and the maximum
pressure needed to support
that load.
(E) Tire In ation
:The
temporary use tire or compact
spare tire should be in ated
to 60 psi (420 kPa). For more
information on tire pressure and
in ation seeInflation - Tire
Pressure on page 5-49.(F) Tire Size
:A combination of
letters and numbers de ne a
tire’s width, height, aspect ratio,
construction type, and service
description. The letter T as the
rst character in the tire size
means the tire is for temporary
use only.
(G) TPC Spec (Tire
Performance Criteria
Speci cation)
:Original
equipment tires designed to
GM’s speci c tire performance
criteria have a TPC speci cation
code molded onto the sidewall.
GM’s TPC speci cations meet
or exceed all federal safety
guidelines. Compact Spare Tire Example
Service and Appearance Care 5-45
ProCarManuals.com
Page 298 of 386
When to Check
Check your tires once a month
or more. Do not forget to check
the compact spare tire, it should
be at 60 psi (420 kPa). For
additional information regarding
the compact spare tire, see
Compact Spare Tire on
page 5-71.
How to Check
Use a good quality pocket-type
gage to check tire pressure.
You cannot tell if your tires
are properly in ated simply by
looking at them. Radial tires may
look properly in ated even when
they are under-in ated. Check
the tire’s in ation pressure when
the tires are cold. Cold means
your vehicle has been sitting for
at least three hours or driven no
more than 1 mile (1.6 km).Remove the valve cap from the
tire valve stem. Press the tire
gage rmly onto the valve to
get a pressure measurement.
If the cold tire in ation pressure
matches the recommended
pressure on the Tire and Loading
Information label, no further
adjustment is necessary. If the
in ation pressure is low, add air
until you reach the recommended
amount.
If you over ll the tire, release air
by pushing on the metal stem
in the center of the tire valve.
Re-check the tire pressure with
the tire gage.
Be sure to put the valve caps
back on the valve stems.
They help prevent leaks by
keeping out dirt and moisture.High-Speed Operation
{CAUTION
Driving at high speeds, 100 mph
(160 km/h) or higher, puts an
additional strain on tires. Sustained
high-speed driving causes
excessive heat build up and can
cause sudden tire failure. You
could have a crash and you or
others could be killed. Some
high-speed rated tires require
in ation pressure adjustment for
high speed operation. When speed
limits and road conditions are such
that a vehicle can be driven at high
speeds, make sure the tires are
rated for high speed operation, in
excellent condition, and set to the
correct cold tire in ation pressure
for the vehicle load.
5-50 Service and Appearance Care
ProCarManuals.com
Page 299 of 386
If your vehicle has P235/55R18 size
tires, they will require in ation
pressure adjustment when driving
your vehicle at speeds of 100 mph
(160 km/h) or higher. Set the cold
in ation pressure to the maximum
in ation pressure shown on the
tire sidewall, or 38 psi (262 kPa),
whichever is lower. See the example
following. When you end this
high-speed driving, return the tires to
the cold tire in ation pressure shown
on the Tire and Loading Information
label. SeeLoading the Vehicle on
page 4-28andInflation - Tire
Pressure on page 5-49.
Example:
You will nd the maximum load
and in ation pressure molded on
the tire’s sidewall, in small letters,
near the rim ange. It will read
something like this: Maximum load
690 kg (1521 lbs) 300 kPa (44 psi)
Max. Press.
For this example, you would set the
in ation pressure for high-speed
driving at 38 psi (262 kPa).Tire Pressure Monitor
System
The Tire Pressure Monitor System
(TPMS) uses radio and sensor
technology to check tire pressure
levels. The TPMS sensors monitor
the air pressure in your vehicle’s tires
and transmit tire pressure readings to
a receiver located in the vehicle.
Each tire, including the spare
(if provided), should be checked
monthly when cold and in ated to the
in ation pressure recommended by
the vehicle manufacturer on the
vehicle placard or tire in ation
pressure label. (If your vehicle has
tires of a different size than the size
indicated on the vehicle placard or
tire in ation pressure label, you
should determine the proper tire
in ation pressure for those tires.)As an added safety feature, your
vehicle has been equipped with
a tire pressure monitoring system
(TPMS) that illuminates a low
tire pressure telltale when one or
more of your tires is signi cantly
under-in ated.
Accordingly, when the low tire
pressure telltale illuminates, you
should stop and check your tires as
soon as possible, and in ate them
to the proper pressure. Driving on
a signi cantly under-in ated tire
causes the tire to overheat and can
lead to tire failure. Under-in ation
also reduces fuel efficiency and tire
tread life, and may affect the
vehicle’s handling and stopping
ability.
Please note that the TPMS is
not a substitute for proper tire
maintenance, and it is the driver’s
responsibility to maintain correct tire
pressure, even if under-in ation
has not reached the level to trigger
illumination of the TPMS low tire
pressure telltale.
Service and Appearance Care 5-51
ProCarManuals.com
Page 301 of 386

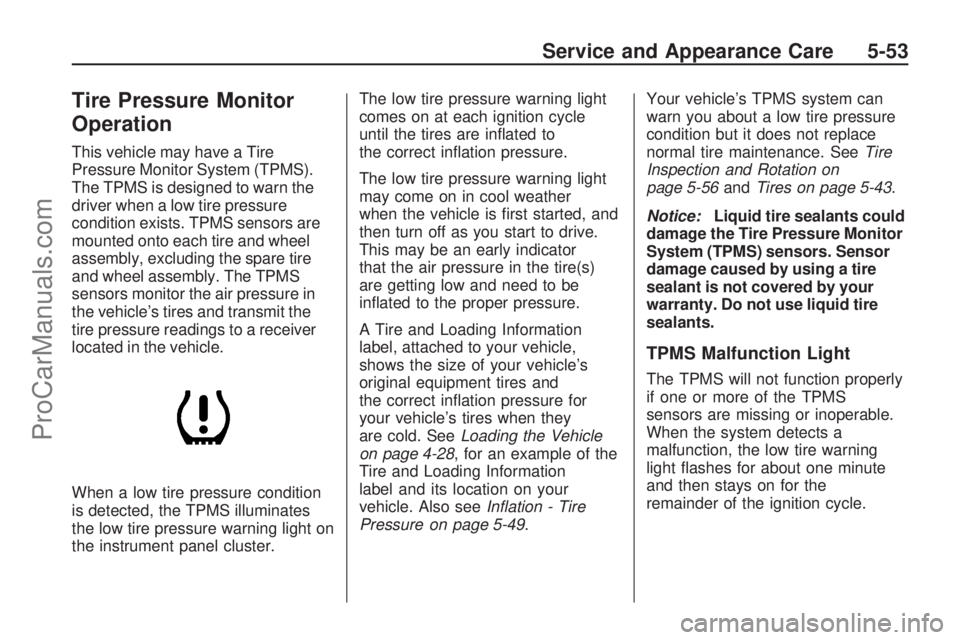

Tire Pressure Monitor
Operation
This vehicle may have a Tire
Pressure Monitor System (TPMS).
The TPMS is designed to warn the
driver when a low tire pressure
condition exists. TPMS sensors are
mounted onto each tire and wheel
assembly, excluding the spare tire
and wheel assembly. The TPMS
sensors monitor the air pressure in
the vehicle’s tires and transmit the
tire pressure readings to a receiver
located in the vehicle.
When a low tire pressure condition
is detected, the TPMS illuminates
the low tire pressure warning light on
the instrument panel cluster.The low tire pressure warning light
comes on at each ignition cycle
until the tires are in ated to
the correct in ation pressure.
The low tire pressure warning light
may come on in cool weather
when the vehicle is rst started, and
then turn off as you start to drive.
This may be an early indicator
that the air pressure in the tire(s)
are getting low and need to be
in ated to the proper pressure.
A Tire and Loading Information
label, attached to your vehicle,
shows the size of your vehicle’s
original equipment tires and
the correct in ation pressure for
your vehicle’s tires when they
are cold. SeeLoading the Vehicle
on page 4-28, for an example of the
Tire and Loading Information
label and its location on your
vehicle. Also seeInflation - Tire
Pressure on page 5-49.Your vehicle’s TPMS system can
warn you about a low tire pressure
condition but it does not replace
normal tire maintenance. SeeTire
Inspection and Rotation on
page 5-56andTires on page 5-43.
Notice:Liquid tire sealants could
damage the Tire Pressure Monitor
System (TPMS) sensors. Sensor
damage caused by using a tire
sealant is not covered by your
warranty. Do not use liquid tire
sealants.
TPMS Malfunction Light
The TPMS will not function properly
if one or more of the TPMS
sensors are missing or inoperable.
When the system detects a
malfunction, the low tire warning
light ashes for about one minute
and then stays on for the
remainder of the ignition cycle.
Service and Appearance Care 5-53
ProCarManuals.com
Page 302 of 386
The TPMS malfunction light comes
on at each ignition cycle until the
problem is corrected. Some of
the conditions that can cause the
malfunction light to come on are:
One of the road tires has been
replaced with the spare tire. The
spare tire does not have a TPMS
sensor. The TPMS malfunction
light should go off once you
re-install the road tire containing
the TPMS sensor.
The TPMS sensor matching
process was started but not
completed or not completed
successfully after rotating the
vehicle’s tires. The TPMS
malfunction light should go
off once the TPMS sensor
matching process is performed
successfully. See “TPMS Sensor
Matching Process” later in this
section.
One or more TPMS sensors are
missing or damaged. The TPMS
malfunction light should go
off when the TPMS sensors
are installed and the sensor
matching process is performed
successfully. See your dealer/
retailer for service.
Replacement tires or wheels do
not match your vehicle’s original
equipment tires or wheels. Tires
and wheels other than those
recommended for your vehicle
could prevent the TPMS from
functioning properly. SeeBuying
New Tires on page 5-58.
Operating electronic devices or
being near facilities using radio
wave frequencies similar to the
TPMS could cause the TPMS
sensors to malfunction.
TPMS Sensor Matching
Process
Each TPMS sensor has a unique
identi cation code. Any time you
replace one or more of the TPMS
sensors or rotate the vehicle’s tires,
the identi cation codes will need to
be matched to the new tire/wheel
position. The sensors are matched,
to the tire/wheel positions, in the
following order: driver side front tire,
passenger side front tire, passenger
side rear tire, and driver side rear tire
using a TPMS diagnostic tool. See
your dealer/retailer for service.
The TPMS sensors can also be
matched to each tire/wheel position
by increasing or decreasing the
tire’s air pressure. When increasing
the tire’s pressure, do not exceed
the maximum in ation pressure
indicated on the tire’s sidewall.
5-54 Service and Appearance Care
ProCarManuals.com
Page 304 of 386
Tire Inspection and
Rotation
We recommend that you
regularly inspect the vehicle’s
tires, including the spare tire, for
signs of wear or damage.
SeeWhen It Is Time for New
Tires on page 5-57for more
information.
Tires should be rotated every
5,000 to 8,000 miles (8 000
to 13 000 km). SeeScheduled
Maintenance on page 6-3.
The purpose of a regular tire
rotation is to achieve a uniform
wear for all tires on the
vehicle. This will ensure that the
vehicle continues to perform
most like it did when the
tires were new.
Any time you notice unusual
wear, rotate the tires as soon
as possible and check wheel
alignment. Also check for
damaged tires or wheels.SeeWhen It Is Time for New
Tires on page 5-57andWheel
Replacement on page 5-62.
When rotating the vehicle’s tires,
always use the correct rotation
pattern shown here.
Do not include the compact
spare tire in the tire rotation.
After the tires have been rotated,
adjust the front and rear in ation
pressures as shown on the Tire
and Loading Information label.SeeInflation - Tire Pressure on
page 5-49andLoading the
Vehicle on page 4-28.
Reset the Tire Pressure Monitor
System. SeeTire Pressure
Monitor Operation on page 5-53.
Make certain that all wheel nuts
are properly tightened. See
“Wheel Nut Torque” under
Capacities and Specifications
on page 5-86.
{CAUTION
Rust or dirt on a wheel, or
on the parts to which it is
fastened, can make wheel
nuts become loose after time.
The wheel could come off
and cause an accident.
(Continued)
5-56 Service and Appearance Care
ProCarManuals.com
