Service and Maintenance 11-7
Recommended Fluids, Lubricants, and Parts
Recommended Fluids and Lubricants
UsageFluid/Lubricant
Engine Oil Engine oil which meets GM Standard GM6094M and displays the
American Petroleum Institute Certified for Gasoline Engines starburst
symbol. To determine the proper viscosity for the vehicle's engine, see
Engine Oil on page 10‑8.
Engine Coolant 50/50 mixture of clean, drinkable water and use only DEX-COOL
®Coolant.
See Engine Coolant on page 10‑15.
Hydraulic Brake System DOT 3 Hydraulic Brake Fluid (GM Part No. U.S. 88863461, in
Canada 88863462).
Windshield Washer Optikleen
®Washer Solvent.
Hydraulic Power Steering System GM Power Steering Fluid (GM Part No. U.S. 89021184, in
Canada 89021186).
Parking Brake Cable Guides Chassis Lubricant (GM Part No. 12377985, in Canada 88901242) or
lubricant meeting requirements of NLGI #2, Category LB or GC‐LB.
Automatic Transmission DEXRON
®-VI Automatic Transmission Fluid.
Transfer Case and Carrier Assembly - Differential SAE 75W-90 Synthetic Axle Lubricant (GM Part No. U.S. 89021677, in
Canada 89021678).
ProCarManuals.com

11-8 Service and Maintenance
UsageFluid/Lubricant
Key Lock Cylinders Multi-Purpose Lubricant, Superlube (GM Part No. U.S. 12346241, in
Canada 10953474).
Hood Latch Assembly, Secondary Latch, Pivots, Spring Anchor, and Release Pawl Lubriplate Lubricant Aerosol (GM Part No. U.S. 12346293, in
Canada 992723) or lubricant meeting requirements of NLGI #2,
Category LB or GC-LB.
Hood, Liftgate Door, and Rear Folding Seat Hinges Multi-Purpose Lubricant, Superlube (GM Part No. U.S. 12346241, in
Canada 10953474).
Sunroof Track Lubriplate Lubricant Aerosol (Saturn Part No. 21038869 or
GM Part No. U.S. 12346293, in Canada 992723) or lubricant meeting
requirements of NLGI #2, Category LB or GC-LB.
Weatherstrip Conditioning Weatherstrip Lubricant (GM Part No. U.S. 3634770, in Canada 10953518)
or Dielectric Silicone Grease (GM Part No. U.S. 12345579, in
Canada 992887).
ProCarManuals.com

Service and Maintenance 11-9
Maintenance Replacement Parts
Replacement parts identified below by name, part number, or specification can be obtained from your retailer.Part GM Part Number ACDelco Part Number
Engine Air Cleaner/Filter 96815102 —
Engine Oil Filter 2.4L L4 Engine 12605566 PF457G
3.5L V6 Engine 89017342 PF61
3.6L V6 Engine 89017524 PF48
Passenger Compartment Air Filter Element 19130294 —
Spark Plugs 2.4L L4 Engine 12625058 41-103
3.5L V6 Engine 12591131 41-100
3.6L V6 Engine 12622561 41-109
Wiper Blades Driver Side –60.0 cm (24.0 in) 25925618 —
Passenger Side –40.0 cm (16.0 in) 25925620 —
Rear –30.0 cm (12.0 in) 96624648 —
⁐⁲⁃⁡⁲⁍⁡⁵⁡⁳‮⁣

11-10 Service and Maintenance

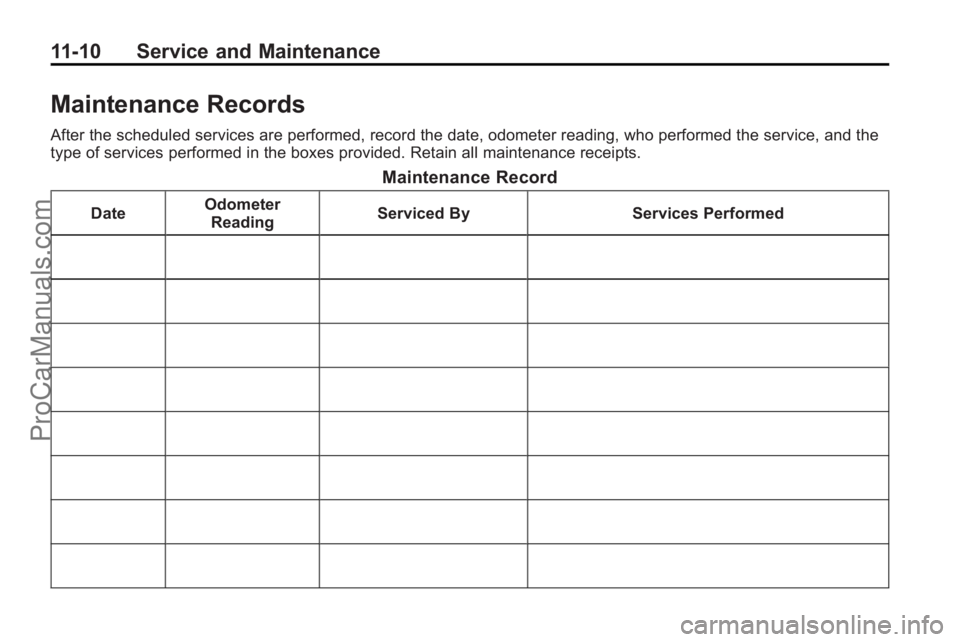

Maintenance Records
After the scheduled services are performed, record the date, odometer reading, who performed the service, and the
type of services performed in the boxes provided. Retain all maintenance receipts.
Maintenance Record
DateOdometer
Reading Serviced By Services Performed
ProCarManuals.com

Service and Maintenance 11-11

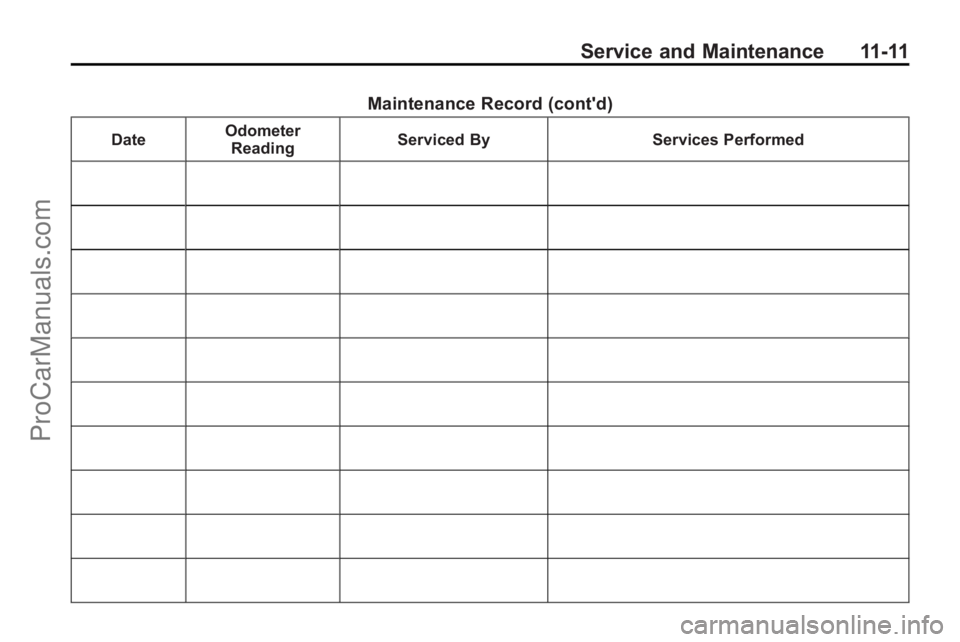

Maintenance Record (cont'd)
DateOdometer
Reading Serviced By Services Performed
ProCarManuals.com

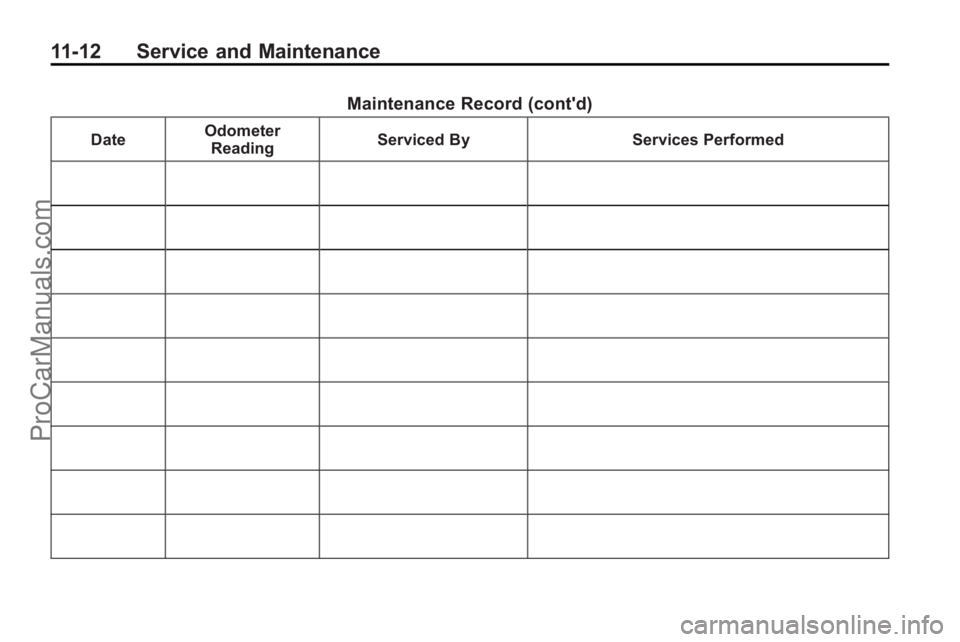

11-12 Service and Maintenance
Maintenance Record (cont'd)
DateOdometer
Reading Serviced By Services Performed
ProCarManuals.com

Technical Data 12-1
Technical Data
Vehicle Identification
Vehicle IdentificationNumber (VIN) . . . . . . . . . . . . . . 12-1
Service Parts Identification Label . . . . . . . . . . . . . . . . . . . . . . . 12-1
Vehicle Data
Capacities andSpecifications . . . . . . . . . . . . . . 12-2
Engine Drive Belt Routing . . . 12-4
Vehicle Identification
Vehicle Identification
Number (VIN)
This legal identifier is in the front
corner of the instrument panel, on
the left side of the vehicle. It can be
seen through the windshield from
outside. The VIN also appears on
the Vehicle Certification and Service
Parts labels and certificates of title
and registration.
Engine Identification
The eighth character in the VIN is
the engine code. This code
identifies the vehicle's engine,
specifications, and replacement
parts. See “Engine Specifications”
under Capacities and Specifications
on page 12‑2for the vehicle's
engine code.
Service Parts
Identification Label
This label, on the inside of the glove
box, has the following information:
.Vehicle Identification
Number (VIN)
.Model designation
.Paint information
.Production options and special
equipment
Do not remove this label from the
vehicle.
ProCarManuals.com

12-2 Technical Data
Vehicle Data
Capacities and Specifications
ApplicationCapacities
Metric English
Air Conditioning Refrigerant R134a For the air conditioning system refrigerant charge
amount, see the refrigerant caution label located
under the hood. See your dealer/retailer for more
information.
Engine Cooling System 2.4L L4 Engine 8.5 L 9.0 qt
3.5L V6 Engine 10.4 L 11.0 qt
3.6L V6 Engine 10.9 L 11.5 qt
Engine Oil with Filter 2.4L L4 Engine 4.7 L 5.0 qt
3.5L V6 Engine 3.8 L 4.0 qt
3.6L V6 Engine 5.2 L 5.5 qt
ProCarManuals.com

Technical Data 12-3
ApplicationCapacities
Metric English
Fuel Tank
All Wheel Drive 63.0 L 16.7 gal
Front Wheel Drive 73.0 L 19.2 gal
Transmission Fluid*
Four-Speed Automatic (Bottom Pan Removal) 6.5 L 6.9 qt
Six-Speed Automatic (Drain and Refill) 9.0 L 9.5 qt
Wheel Nut Torque 140 Y100 ft lb
*See Automatic Transmission Fluid
on page 10‑12for information on checking fluid level.
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this
manual. Recheck fluid level after filling.
Engine Specifications
Engine VIN CodeTransmission Spark Plug Gap
2.4L L4 (LE5) 1Automatic 1.01 mm (0.040 in)
3.5L V6 (LZ4) NAutomatic 1.01 mm (0.040 in)
3.6L V6 (LY7) 7Automatic 1.1 mm (0.044 in)
ProCarManuals.com

12-4 Technical Data

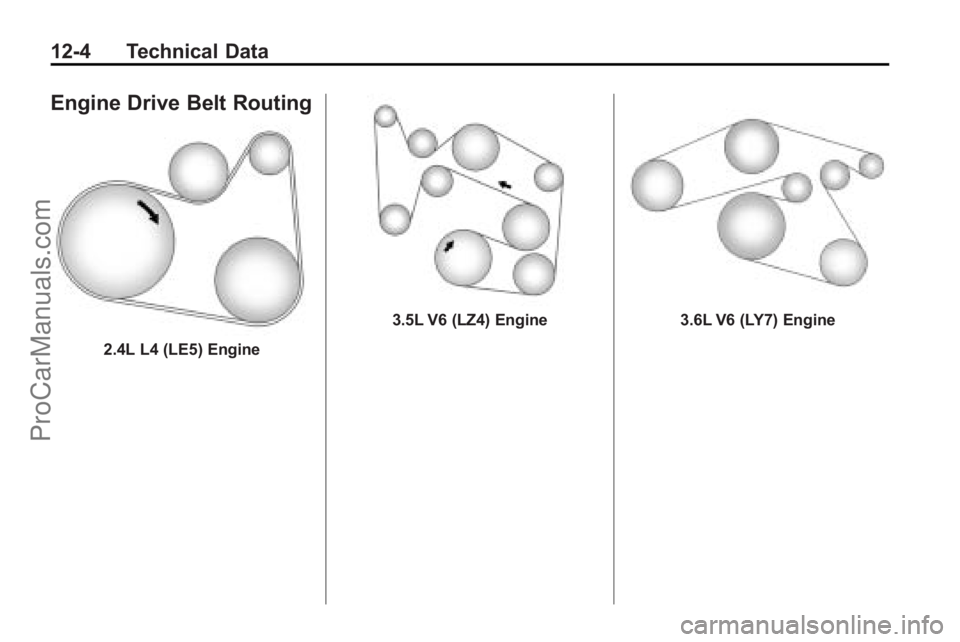

Engine Drive Belt Routing
2.4L L4 (LE5) Engine
3.5L V6 (LZ4) Engine3.6L V6 (LY7) Engine
