Speedometer and Odometer
The speedometer lets you see your speed in both miles
per hour (mph) and kilometers per hour (km/h).
The odometer shows how far your vehicle has been
driven, in either miles or kilometers.
Your vehicle has a tamper-resistant odometer. If your
vehicle needs a new odometer installed, the new one will
be set to the mileage total of the old odometer. If this is
not possible, it will be set at zero and a label must be
put on the driver’s door to show the old mileage reading
when the new odometer was installed. If the mileage
is unknown, the label should then indicate “previous
mileage unknown”.
Trip Odometer
Your trip odometer is located on the instrument panel
and shows how far your vehicle has been driven since the
trip odometer was last reset. To reset the trip odometer
to zero, press and hold the trip/reset button on the
speedometer for about two seconds. Press the trip/reset
button to switch between the trip odometer and odometer.
Tachometer
The tachometer
displays the engine
speed in revolutions
per minute (rpm).
The auto stop indicator is located at the bottom of the
tachometer. For more information seeAuto Stop Mode
on page 3-42. U.S. shown,
Canada similar
3-27
ProCarManuals.com

Charge/Assist Gage
The CHARGE/ASSIST
gage displays the charge
(current) into and out
of the hybrid battery.
While the electric motor is performing an automatic
restart of the engine, or while it is assisting the engine,
as in maximum acceleration, the needle moves to the
ASSIST range, located on the right side of the gage.
The needle moves to the CHARGE range when the
electric motor operates as a generator to perform
regenerative braking, as the vehicle slows down.
SeeRegenerative Braking on page 2-26for more
information. The needle also moves into the CHARGE
range if the hybrid control system identies it is an
efficient time to charge the hybrid battery.If the hybrid battery or other hybrid components are
very hot or cold, the CHARGE and ASSIST functions
may be suspended until the component temperatures
are normal.
Fuel Economy Light
This light comes on when
the vehicle is achieving fuel
economy close to its rated
performance.
Driving habits that improve fuel economy increases the
time that the fuel economy light is on.
To turn the fuel economy light off or on, press the
trip/reset button until the HOLD STEM TO SET ECO
(Economy) DIC message is displayed. Then press and
hold the trip/reset button until off or on is selected.
For more information seeTrip Odometer on page 3-27
andDIC Operation and Displays on page 3-44.
3-43
ProCarManuals.com

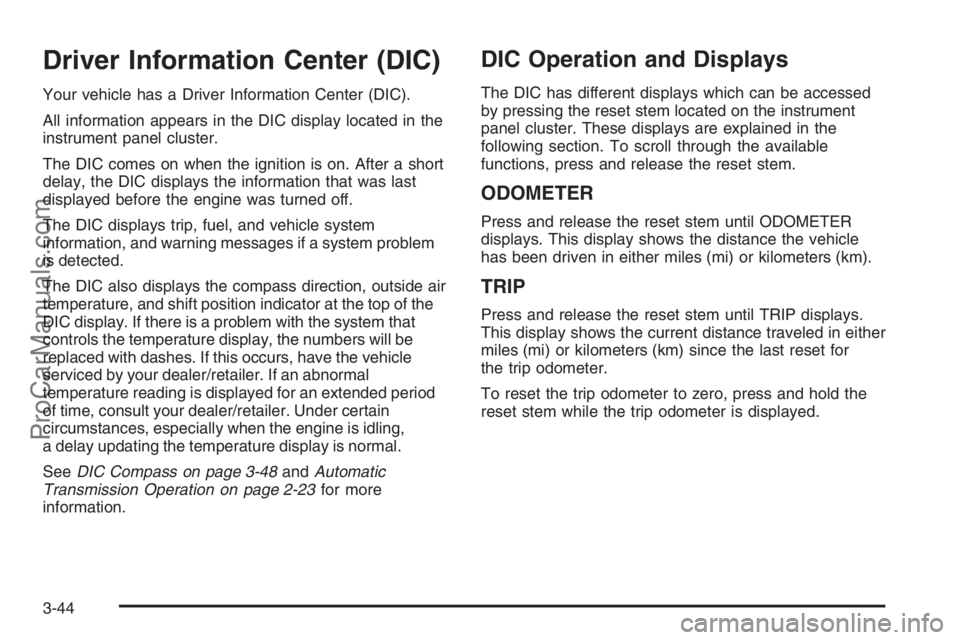

Driver Information Center (DIC)
Your vehicle has a Driver Information Center (DIC).
All information appears in the DIC display located in the
instrument panel cluster.
The DIC comes on when the ignition is on. After a short
delay, the DIC displays the information that was last
displayed before the engine was turned off.
The DIC displays trip, fuel, and vehicle system
information, and warning messages if a system problem
is detected.
The DIC also displays the compass direction, outside air
temperature, and shift position indicator at the top of the
DIC display. If there is a problem with the system that
controls the temperature display, the numbers will be
replaced with dashes. If this occurs, have the vehicle
serviced by your dealer/retailer. If an abnormal
temperature reading is displayed for an extended period
of time, consult your dealer/retailer. Under certain
circumstances, especially when the engine is idling,
a delay updating the temperature display is normal.
SeeDIC Compass on page 3-48andAutomatic
Transmission Operation on page 2-23for more
information.
DIC Operation and Displays
The DIC has different displays which can be accessed
by pressing the reset stem located on the instrument
panel cluster. These displays are explained in the
following section. To scroll through the available
functions, press and release the reset stem.
ODOMETER
Press and release the reset stem until ODOMETER
displays. This display shows the distance the vehicle
has been driven in either miles (mi) or kilometers (km).
TRIP
Press and release the reset stem until TRIP displays.
This display shows the current distance traveled in either
miles (mi) or kilometers (km) since the last reset for
the trip odometer.
To reset the trip odometer to zero, press and hold the
reset stem while the trip odometer is displayed.
3-44
ProCarManuals.com

Wheel Alignment and Tire Balance
The tires and wheels on your vehicle were aligned and
balanced carefully at the factory to give you the longest
tire life and best overall performance. Adjustments to
wheel alignment and tire balancing will not be necessary
on a regular basis. However, if you notice unusual tire
wear or your vehicle pulling to one side or the other, the
alignment might need to be checked. If you notice your
vehicle vibrating when driving on a smooth road, the tires
and wheels might need to be rebalanced. See your
dealer/retailer for proper diagnosis.
Wheel Replacement
Replace any wheel that is bent, cracked, or badly rusted
or corroded. If wheel nuts keep coming loose, the wheel,
wheel bolts, and wheel nuts should be replaced. If the
wheel leaks air, replace it (except some aluminum
wheels, which can sometimes be repaired). See your
dealer/retailer if any of these conditions exist.
Your dealer/retailer will know the kind of wheel
you need.
Each new wheel should have the same load-carrying
capacity, diameter, width, offset and be mounted
the same way as the one it replaces.
{CAUTION:
Using the wrong replacement wheels, wheel
bolts, or wheel nuts on your vehicle can be
dangerous. It could affect the braking and
handling of your vehicle, make your tires lose
air and make you lose control. You could have
a collision in which you or others could be
injured. Always use the correct wheel, wheel
bolts, and wheel nuts for replacement.
If you need to replace any of your wheels, wheel bolts,
or wheel nuts, replace them only with new Saturn
original equipment parts. This way, you will be sure
to have the right wheel, wheel bolts, and wheel nuts
for your vehicle.
Notice:The wrong wheel can also cause problems
with bearing life, brake cooling, speedometer or
odometer calibration, headlamp aim, bumper height,
vehicle ground clearance, and tire clearance to
the body and chassis.
5-64
ProCarManuals.com

Engine Drive Belt Routing
The engine drive belt on this hybrid vehicle is under a
higher tension than the engine drive belt on a non-hybrid
vehicle and requires the use of a special kind of tool
to service. See your dealer/retailer for service.
Maintenance Record
After the scheduled services are performed, record the
date, odometer reading, who performed the service,
and the type of services performed in the boxes
provided. SeeMaintenance Requirements on page 6-2.
Any additional information fromOwner Checks and
Services on page 6-8can be added on the following
record pages. You should retain all maintenance
receipts.
