seats SATURN VUE HYBRID 2008 Owners Manual

Seats and Restraint Systems........................... 1-1
Head Restraints
......................................... 1-2
Front Seats
............................................... 1-4
Rear Seats
..............................................1-10
Safety Belts
.............................................1-12
Child Restraints
.......................................1-31
Airbag System
.........................................1-53
Restraint System Check
............................1-70
Features and Controls..................................... 2-1
Keys
........................................................ 2-3
Doors and Locks
....................................... 2-7
Windows
.................................................2-10
Theft-Deterrent Systems
............................2-13
Starting and Operating Your Vehicle
...........2-16
Mirrors
....................................................2-31
OnStar
®System
......................................2-33
Universal Home Remote System
................2-36
Storage Areas
.........................................2-41
Sunroof
..................................................2-44
Instrument Panel............................................. 3-1
Instrument Panel Overview
.......................... 3-4
Climate Controls
......................................3-18
Warning Lights, Gages, and Indicators
........3-25
Driver Information Center (DIC)
..................3-44
Audio System(s)
.......................................3-59Driving Your Vehicle....................................... 4-1
Your Driving, the Road, and Your Vehicle
........ 4-2
Towing
...................................................4-28
Service and Appearance Care.......................... 5-1
Service
..................................................... 5-3
Fuel
......................................................... 5-5
Checking Things Under the Hood
...............5-10
Headlamp Aiming
.....................................5-39
Bulb Replacement
....................................5-41
Windshield Wiper Blade Replacement
.........5-46
Tires
......................................................5-47
Appearance Care
.....................................5-79
Vehicle Identication
.................................5-87
Electrical System
......................................5-88
Capacities and Specications
.....................5-98
Maintenance Schedule..................................... 6-1
Maintenance Schedule
................................ 6-2
Customer Assistance Information.................... 7-1
Customer Assistance and Information
........... 7-2
Reporting Safety Defects
...........................7-13
Vehicle Data Recording and Privacy
...........7-15
Index................................................................ 1
2008 Saturn VUE Green Line Hybrid Owner ManualM
ProCarManuals.com

Head Restraints...............................................1-2
Front Seats......................................................1-4
Manual Seats................................................1-4
Seat Height Adjuster.......................................1-5
Power Seat...................................................1-5
Manual Lumbar..............................................1-6
Heated Seats.................................................1-6
Manual Reclining Seatbacks.............................1-7
Passenger Folding Seatback............................1-9
Rear Seats.....................................................1-10
Split Folding Rear Seat.................................1-10
Safety Belts...................................................1-12
Safety Belts: They Are for Everyone................1-12
How to Wear Safety Belts Properly.................1-17
Lap-Shoulder Belt.........................................1-25
Safety Belt Use During Pregnancy..................1-30
Safety Belt Extender.....................................1-30
Child Restraints.............................................1-31
Older Children..............................................1-31
Infants and Young Children............................1-34
Child Restraint Systems.................................1-37Where to Put the Restraint.............................1-39
Lower Anchors and Tethers for
Children (LATCH)......................................1-41
Securing a Child Restraint in a
Rear Seat Position....................................1-47
Securing a Child Restraint in the
Right Front Seat Position............................1-49
Airbag System...............................................1-53
Where Are the Airbags?................................1-56
When Should an Airbag Inate?.....................1-59
What Makes an Airbag Inate?.......................1-61
How Does an Airbag Restrain?.......................1-61
What Will You See After an Airbag Inates?.....1-62
Passenger Sensing System............................1-63
Servicing Your Airbag-Equipped Vehicle...........1-68
Adding Equipment to Your Airbag-Equipped
Vehicle....................................................1-68
Restraint System Check..................................1-70
Checking the Restraint Systems......................1-70
Replacing Restraint System Parts
After a Crash............................................1-71
Section 1 Seats and Restraint Systems
1-1
ProCarManuals.com

Head Restraints
The vehicle’s front and rear seats have adjustable
head restraints in the outboard seating positions.
{CAUTION:
With head restraints that are not installed and
adjusted properly, there is a greater chance
that occupants will suffer a neck/spinal
injury in a crash. Do not drive until the head
restraints for all occupants are installed
and adjusted properly.
Adjust the head restraint so that the top of the restraint
is at the same height as the top of the occupant’s
head. This position reduces the chance of a neck injury
in a crash.
1-2
ProCarManuals.com

Front Seats
Manual Seats
{CAUTION:
You can lose control of the vehicle if you try to
adjust a manual driver’s seat while the vehicle
is moving. The sudden movement could startle
and confuse you, or make you push a pedal
when you do not want to. Adjust the driver’s
seat only when the vehicle is not moving.To move a manual seat forward or rearward:
1. Lift the bar to unlock
the seat.
2. Slide the seat to the
desired position and
release the bar.
Try to move the seat with your body to be sure the seat
is locked in place.
1-4
ProCarManuals.com

Manual Lumbar
If your vehicle has this
feature, the knob is
located on the inboard
side of the driver’s
seatback.
Turn the knob clockwise or counterclockwise to increase
or decrease the lumbar support.
Heated Seats
On vehicles with heated front seats the controls are
located on the center console. To operate the heated
seats the engine must be running.
M(Heated Seat):Press this button to turn on the
heated seat.
The light on the button will come on to indicate that the
feature is working. Press the button to cycle through
the temperature settings of high, medium, and low and
to turn the heat to the seat off. Indicator lights show
the level of heat selected: three for high, two for
medium, and one for low.
The passenger seat may take longer to heat up.
1-6
ProCarManuals.com

4. Continue to fold the seat forward until it locks in
the folded position.
5. Pull up on the seatback to be sure it is locked.
To raise the seatback, do the following:
1. Lift up fully on the recliner lever, located on the
outboard side of the seat, and push up on the
seatback.
2. Continue raising the seatback until the seatback
re-engages.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.
3. Push and pull on the seatback to make sure it is
locked in place.
The recliner lever is also used to recline the seatback
while a passenger is seated. SeeManual Reclining
Seatbacks on page 1-7.
Rear Seats
Split Folding Rear Seat
The rear split bench seatbacks can be folded forward,
upright, or partially reclined, independent of the
other seatback position.
1-10
ProCarManuals.com

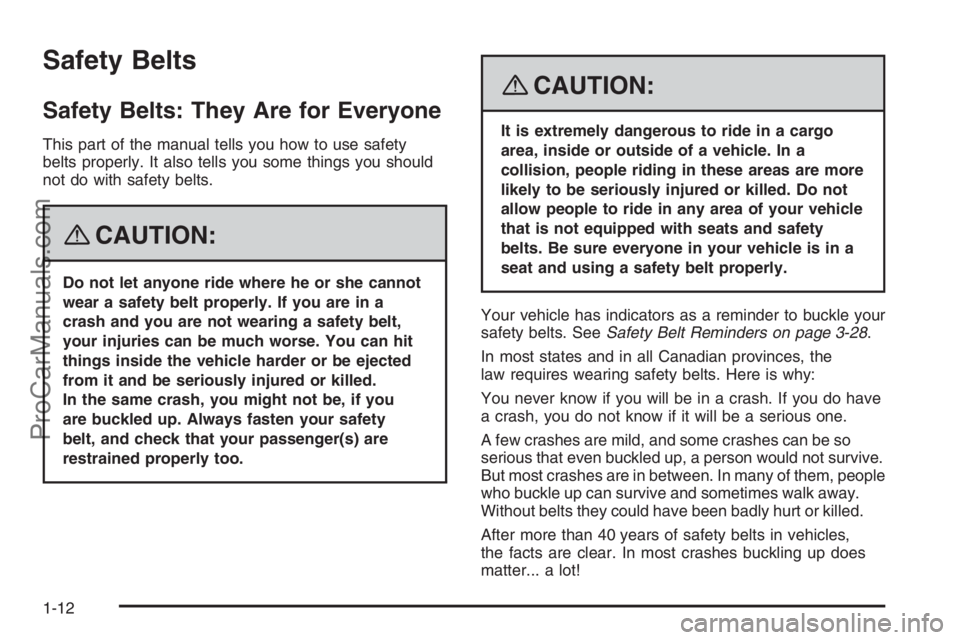

Safety Belts
Safety Belts: They Are for Everyone
This part of the manual tells you how to use safety
belts properly. It also tells you some things you should
not do with safety belts.
{CAUTION:
Do not let anyone ride where he or she cannot
wear a safety belt properly. If you are in a
crash and you are not wearing a safety belt,
your injuries can be much worse. You can hit
things inside the vehicle harder or be ejected
from it and be seriously injured or killed.
In the same crash, you might not be, if you
are buckled up. Always fasten your safety
belt, and check that your passenger(s) are
restrained properly too.
{CAUTION:
It is extremely dangerous to ride in a cargo
area, inside or outside of a vehicle. In a
collision, people riding in these areas are more
likely to be seriously injured or killed. Do not
allow people to ride in any area of your vehicle
that is not equipped with seats and safety
belts. Be sure everyone in your vehicle is in a
seat and using a safety belt properly.
Your vehicle has indicators as a reminder to buckle your
safety belts. SeeSafety Belt Reminders on page 3-28.
In most states and in all Canadian provinces, the
law requires wearing safety belts. Here is why:
You never know if you will be in a crash. If you do have
a crash, you do not know if it will be a serious one.
A few crashes are mild, and some crashes can be so
serious that even buckled up, a person would not survive.
But most crashes are in between. In many of them, people
who buckle up can survive and sometimes walk away.
Without belts they could have been badly hurt or killed.
After more than 40 years of safety belts in vehicles,
the facts are clear. In most crashes buckling up does
matter... a lot!
1-12
ProCarManuals.com

Lap-Shoulder Belt
All seating positions in your vehicle have a
lap-shoulder belt.
Here is how to wear a lap-shoulder belt properly.
1. Adjust the seat, if the seat is adjustable, so you
can sit up straight. To see how, see “Seats” in
the Index.
2. Pick up the latch plate and pull the belt across you.
Do not let it get twisted.
The lap-shoulder belt may lock if you pull the belt
across you very quickly. If this happens, let the
belt go back slightly to unlock it. Then pull the belt
across you more slowly.
If you ever pull the shoulder portion of a passenger
belt out all the way, you may engage the child
restraint locking feature. If this happens, just let
the belt go back all the way and start again.
Engaging the child restraint locking feature
may affect the passenger sensing system.
SeePassenger Sensing System on page 1-63.3. Push the latch plate into the buckle until it clicks.
Pull up on the latch plate to make sure it is secure.
If the belt is not long enough, seeSafety Belt
Extender on page 1-30.
Make sure the release button on the buckle is
positioned so you would be able to unbuckle the
safety belt quickly if necessary.
4. If equipped with a shoulder belt height adjuster,
move it to the height that is right for you. Improper
shoulder belt height adjustment could reduce
the effectiveness of the safety belt in a crash.
See “Shoulder Belt Height Adjustment” later in
this section.
1-25
ProCarManuals.com

Rear Safety Belt Comfort Guides
Rear shoulder belt comfort guides may provide added
safety belt comfort for older children who have outgrown
booster seats and for some adults. When installed on
a shoulder belt, the comfort guide positions the belt
away from the neck and head.
There is one guide for each outboard passenger
position in the rear seat. Here is how to install a
comfort guide to the safety belt:
1. Remove the guide from its storage location,
which is a pocket on the side of the seat.
2. Place the guide over the belt, and insert the
two edges of the belt into the slots of the guide.3. Be sure that the belt is not twisted and it lies at.
The elastic cord must be under the belt and the
guide on top.
1-28
ProCarManuals.com

Safety Belt Use During Pregnancy
Safety belts work for everyone, including pregnant
women. Like all occupants, they are more likely to be
seriously injured if they do not wear safety belts.
A pregnant woman should wear a lap-shoulder belt,
and the lap portion should be worn as low as possible,
below the rounding, throughout the pregnancy.The best way to protect the fetus is to protect the
mother. When a safety belt is worn properly, it is more
likely that the fetus will not be hurt in a crash. For
pregnant women, as for anyone, the key to making
safety belts effective is wearing them properly.
Safety Belt Extender
If the safety belt will fasten around you, you should use it.
But if a safety belt is not long enough, your dealer/retailer
will order you an extender. When you go in to order it,
take the heaviest coat you will wear, so the extender will
be long enough for you. To help avoid personal injury,
do not let someone else use it, and use it only for the seat
it is made to t. The extender has been designed for
adults. Never use it for securing child seats. To wear it,
attach it to the regular safety belt. For more information,
see the instruction sheet that comes with the extender.
1-30
ProCarManuals.com
