14. Replace the sealant/air hose (F),
and the power plug (C) back in
their original location.
15. If the at tire was able to inate
to the recommended ination
pressure, remove the maximum
speed label from the sealant
canister (B) and place it
in a highly visible location.
The label is a reminder not to
exceed 55 mph (90 km/h)
until the damaged tire is
repaired or replaced.
16. Return the equipment to its
original storage location in
the vehicle.17. Immediately drive the vehicle
5 miles (8 km) to distribute the
sealant in the tire.
18. Stop at a safe location and
check the tire pressure.
Refer to Steps 1 through 11
under “Using the Tire Sealant
and Compressor Kit without
Sealant to Inate a Tire
(Not Punctured).”
If the tire pressure has fallen
more than 10 psi (68 kPa) below
the recommended ination
pressure, stop driving the
vehicle. The tire is too severely
damaged and the tire sealant
cannot seal the tire. See
Roadside Assistance Program
on page 7-5.
If the tire pressure has not
dropped more than 10 psi
(68 kPa) from the recommended
ination pressure, inate the
tire to the recommended
ination pressure.19. Wipe off any sealant from the
wheel, tire or vehicle.
20. Dispose of the used sealant
canister (B) and sealant/air
hose (F) assembly at a
local dealer/retailer or in
accordance with local state
codes and practices.
21. Replace it with a new canister
available from your
dealer/retailer.
22. After temporarily sealing a tire
using the tire sealant and
compressor kit, take the vehicle
to an authorized dealer/retailer
within a 100 miles (161 km)
of driving to have the tire
repaired or replaced.
Service and Appearance Care 5-63
ProCarManuals.com

Using the Tire Sealant and
Compressor Kit without
Sealant to Inate a Tire (Not
Punctured)
To use the air compressor to inate
a tire with air only and not sealant:
Always do a safety check rst. See
If a Tire Goes Flat on page 5-58.
1. Remove the tire sealant and
compressor kit from its storage
location. SeeTire Sealant and
Compressor Kit Storage on
page 5-66.2. Unlock the air only hose (F) from
the sealant canister (B) by
pulling up on the lever.
3. Pull the air only hose (F) from
the sealant canister (B).
4. Remove the power plug (C) from
the air compressor (A).
5. Place the kit on the ground.
Make sure the tire valve
stem is positioned close to the
ground so the hose will reach it.
6. Remove the tire valve stem cap
by turning it counterclockwise.
7. Attach the air only hose (F) onto
the tire valve stem and press the
lever down to secure it.
8. Plug the power plug (C) into the
accessory power outlet in the
vehicle. Unplug all items
from other accessory power
outlets. SeeAccessory Power
Outlet(s) on page 3-16.
If the vehicle has an accessory
power outlet, do not use the
cigarette lighter.If the vehicle only has a cigarette
lighter, use the cigarette lighter.
Do not pinch the power plug
cord in the door or window.
9. Start the vehicle. The vehicle
must be running while using
the air compressor.
10. Press the on/off (D) button to
turn the compressor on.
The compressor will inate the
tire with air only.
11. Inate the tire to the
recommended ination pressure
using the pressure gage (E).
The recommended ination
pressure can be found on the
Tire and Loading Information
label. SeeInflation - Tire
Pressure on page 5-43.
The pressure gage (E) may
read higher than the actual tire
pressure while the compressor
is on. Turn the compressor
off to get an accurate reading.
The compressor may be
turned on/off until the correct
pressure is reached.
5-64 Service and Appearance Care
ProCarManuals.com

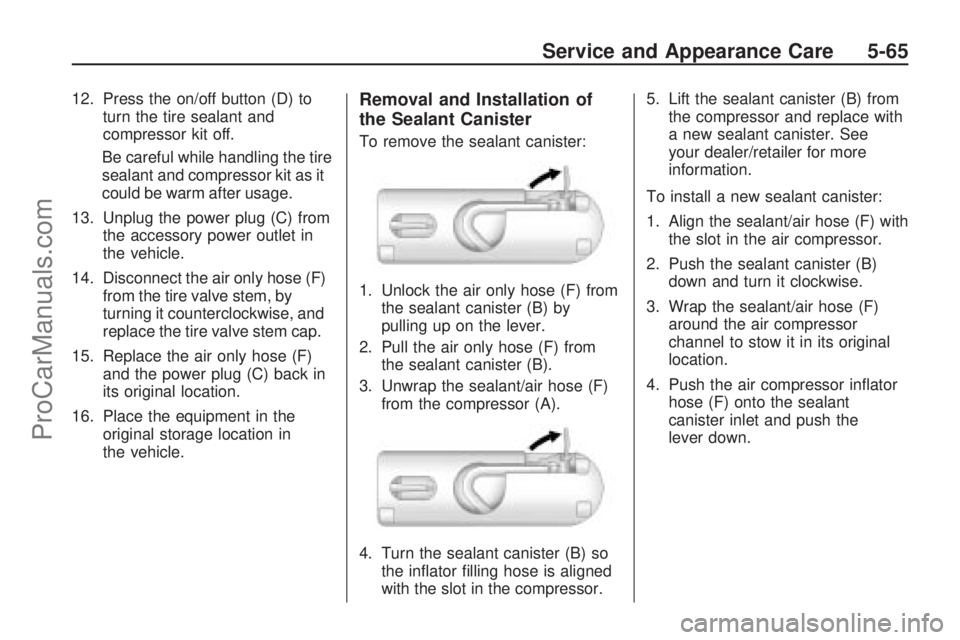

12. Press the on/off button (D) to
turn the tire sealant and
compressor kit off.
Be careful while handling the tire
sealant and compressor kit as it
could be warm after usage.
13. Unplug the power plug (C) from
the accessory power outlet in
the vehicle.
14. Disconnect the air only hose (F)
from the tire valve stem, by
turning it counterclockwise, and
replace the tire valve stem cap.
15. Replace the air only hose (F)
and the power plug (C) back in
its original location.
16. Place the equipment in the
original storage location in
the vehicle.Removal and Installation of
the Sealant Canister
To remove the sealant canister:
1. Unlock the air only hose (F) from
the sealant canister (B) by
pulling up on the lever.
2. Pull the air only hose (F) from
the sealant canister (B).
3. Unwrap the sealant/air hose (F)
from the compressor (A).
4. Turn the sealant canister (B) so
the inator lling hose is aligned
with the slot in the compressor.5. Lift the sealant canister (B) from
the compressor and replace with
a new sealant canister. See
your dealer/retailer for more
information.
To install a new sealant canister:
1. Align the sealant/air hose (F) with
the slot in the air compressor.
2. Push the sealant canister (B)
down and turn it clockwise.
3. Wrap the sealant/air hose (F)
around the air compressor
channel to stow it in its original
location.
4. Push the air compressor inator
hose (F) onto the sealant
canister inlet and push the
lever down.
Service and Appearance Care 5-65
ProCarManuals.com

Tire Sealant and
Compressor Kit Storage
To access the tire sealant and
compressor kit:
1. Open the liftgate. SeeLiftgate on
page 2-8.2. Push in the levers and lift the
load oor up.
3. Turn the retainer
counterclockwise and
remove the tire sealant
and compressor kit.
To store the tire sealant and
compressor kit, reverse the steps.
Appearance Care
Interior Cleaning
The vehicle’s interior will continue to
look its best if it is cleaned often.
Although not always visible,
dust and dirt can accumulate on the
upholstery. Dirt can damage
carpet, fabric, leather, and plastic
surfaces. Regular vacuuming
is recommended to remove particles
from the upholstery. It is important
to keep the upholstery from
becoming and remaining heavily
soiled. Soils should be removed as
quickly as possible. The vehicle’s
interior may experience extremes of
heat that could cause stains to
set rapidly.
Lighter colored interiors may require
more frequent cleaning. Use care
because newspapers and garments
that transfer color to home
furnishings may also transfer color
to the vehicle’s interior.
5-66 Service and Appearance Care
ProCarManuals.com

When cleaning the vehicle’s interior,
only use cleaners specically
designed for the surfaces being
cleaned. Permanent damage may
result from using cleaners on
surfaces for which they were not
intended. Use glass cleaner only on
glass. Remove any accidental
over-spray from other surfaces
immediately. To prevent over-spray,
apply cleaner directly to the
cleaning cloth.
Notice:Using abrasive cleaners
when cleaning glass surfaces on
the vehicle, could scratch the
glass and/or cause damage to the
rear window defogger. When
cleaning the glass on the vehicle,
use only a soft cloth and glass
cleaner.Many cleaners contain solvents that
may become concentrated in the
vehicle’s breathing space. Before
using cleaners, read and adhere to
all safety instructions on the
label. While cleaning the vehicle’s
interior, maintain adequate
ventilation by opening the vehicle’s
doors and windows.
Dust may be removed from small
buttons and knobs using a small
brush with soft bristles.
Products that remove odors from
the vehicle’s upholstery and
clean the vehicle’s glass can be
obtained from your dealer/retailer.
Do not clean the vehicle using:
A knife or any other sharp object
to remove a soil from any interior
surface.
A stiff brush. It can cause
damage to the vehicle’s interior
surfaces.
Heavy pressure or aggressive
rubbing with a cleaning cloth.
Use of heavy pressure can
damage the interior and does not
improve the effectiveness of
soil removal.
Laundry detergents or
dishwashing soaps with
degreasers can leave residue
that streaks and attracts dirt. For
liquid cleaners, about 20 drops
per gallon (3.78 L) of water
is a good guide. Use only mild,
neutral-pH soaps.
Too much cleaner that saturates
the upholstery.
Organic solvents such as naptha,
alcohol, etc. that can damage the
vehicle’s interior.
Service and Appearance Care 5-67
ProCarManuals.com

Fabric/Carpet
Use a vacuum cleaner with a soft
brush attachment frequently to
remove dust and loose dirt.
A canister vacuum with a beater bar
in the nozzle may only be used
on oor carpet and carpeted oor
mats. For any soil, always try
to remove it rst with plain water or
club soda. Before cleaning,
gently remove as much of the soil
as possible using one of the
following techniques:
For liquids: gently blot the
remaining soil with a paper towel.
Allow the soil to absorb into
the paper towel until no more can
be removed.
For solid dry soils: remove as
much as possible and then
vacuum.
To clean:
1. Saturate a lint-free, clean white
cloth with water or club soda.
2. Wring the cloth to remove excess
moisture.3. Start on the outside edge of the
soil and gently rub toward the
center. Continue cleaning, using
a clean area of the cloth each
time it becomes soiled.
4. Continue to gently rub the soiled
area until the cleaning cloth
remains clean.
5. If the soil is not completely
removed, use a mild soap
solution and repeat the cleaning
process that was used with
plain water.
If any of the soil remains, a
commercial fabric cleaner or spot
lifter may be necessary. When a
commercial upholstery cleaner or
spot lifter is to be used, test a small
hidden area for colorfastness rst. If
the locally cleaned area gives any
impression that a ring formation may
result, clean the entire surface.
After the cleaning process has been
completed, a paper towel can be
used to blot excess moisture
from the fabric or carpet.
Leather
A soft cloth dampened with water
can be used to remove dust. If
a more thorough cleaning is
necessary, a soft cloth dampened
with a mild soap solution can
be used. Allow the leather to dry
naturally. Do not use heat to
dry. Never use steam to clean
leather. Never use spot lifters or
spot removers on leather. Many
commercial leather cleaners
and coatings that are sold to
preserve and protect leather may
permanently change the appearance
and feel of the leather and are not
recommended. Do not use
silicone or wax-based products, or
those containing organic solvents to
clean the vehicle’s interior because
they can alter the appearance
by increasing the gloss in a
non-uniform manner. Never use
shoe polish on leather.
5-68 Service and Appearance Care
ProCarManuals.com

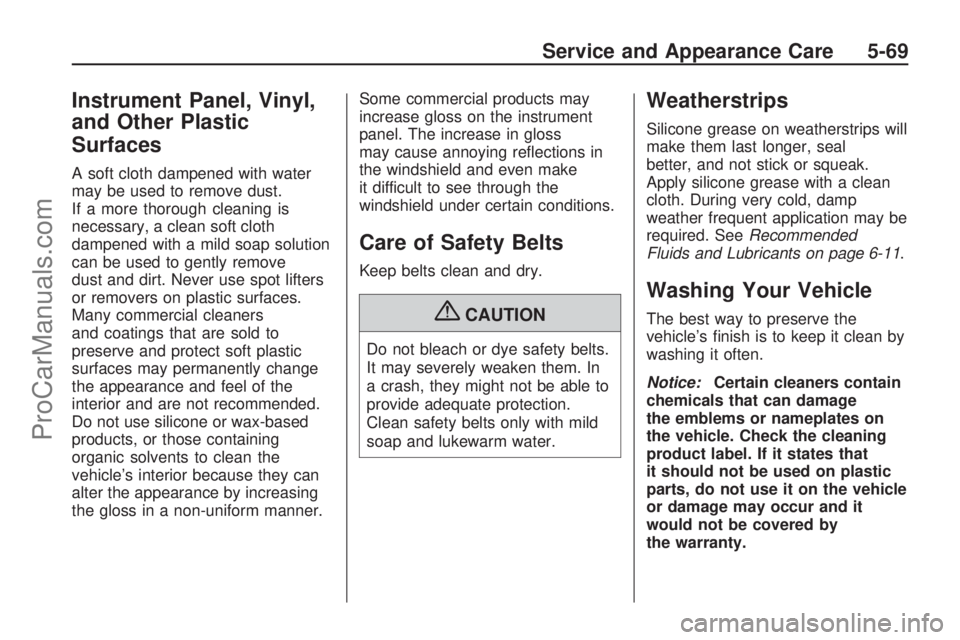

Instrument Panel, Vinyl,
and Other Plastic
Surfaces
A soft cloth dampened with water
may be used to remove dust.
If a more thorough cleaning is
necessary, a clean soft cloth
dampened with a mild soap solution
can be used to gently remove
dust and dirt. Never use spot lifters
or removers on plastic surfaces.
Many commercial cleaners
and coatings that are sold to
preserve and protect soft plastic
surfaces may permanently change
the appearance and feel of the
interior and are not recommended.
Do not use silicone or wax-based
products, or those containing
organic solvents to clean the
vehicle’s interior because they can
alter the appearance by increasing
the gloss in a non-uniform manner.Some commercial products may
increase gloss on the instrument
panel. The increase in gloss
may cause annoying reections in
the windshield and even make
it difficult to see through the
windshield under certain conditions.
Care of Safety Belts
Keep belts clean and dry.
{CAUTION
Do not bleach or dye safety belts.
It may severely weaken them. In
a crash, they might not be able to
provide adequate protection.
Clean safety belts only with mild
soap and lukewarm water.
Weatherstrips
Silicone grease on weatherstrips will
make them last longer, seal
better, and not stick or squeak.
Apply silicone grease with a clean
cloth. During very cold, damp
weather frequent application may be
required. SeeRecommended
Fluids and Lubricants on page 6-11.
Washing Your Vehicle
The best way to preserve the
vehicle’s nish is to keep it clean by
washing it often.
Notice:Certain cleaners contain
chemicals that can damage
the emblems or nameplates on
the vehicle. Check the cleaning
product label. If it states that
it should not be used on plastic
parts, do not use it on the vehicle
or damage may occur and it
would not be covered by
the warranty.
Service and Appearance Care 5-69
ProCarManuals.com

Do not wash the vehicle in direct
sunlight. Use a car washing
soap. Do not use cleaning agents
that are petroleum based or
that contain acid or abrasives, as
they can damage the paint, metal or
plastic on the vehicle. Approved
cleaning products can be obtained
from your dealer/retailer. Follow
all manufacturers’ directions
regarding correct product usage,
necessary safety precautions
and appropriate disposal of any
vehicle care product.
Rinse the vehicle well, before
washing and after to remove all
cleaning agents completely. If they
are allowed to dry on the surface,
they could stain.Dry the nish with a soft, clean
chamois or an all-cotton towel to
avoid surface scratches and
water spotting.
High pressure car washes may
cause water to enter the vehicle.
Avoid using high pressure washes
closer than 12 inches (30 cm)
to the surface of the vehicle. Use
of power washers exceeding
1,200 psi (8 274 kPa) can result in
damage or removal of paint and
decals.
Cleaning Exterior
Lamps/Lenses
Use only lukewarm or cold water, a
soft cloth and a car washing
soap to clean exterior lamps and
lenses. Follow instructions
underWashing Your Vehicle on
page 5-69.
Finish Care
Occasional waxing or mild polishing
of the vehicle by hand may be
necessary to remove residue from
the paint nish. Approved cleaning
products can be obtained from
your dealer/retailer.
If the vehicle has a
basecoat/clearcoat paint nish, the
clearcoat gives more depth and
gloss to the colored basecoat.
Always use waxes and polishes that
are non-abrasive and made for a
basecoat/clearcoat paint nish.
Notice:Machine compounding
or aggressive polishing on a
basecoat/clearcoat paint nish
may damage it. Use only
non-abrasive waxes and polishes
that are made for a
basecoat/clearcoat paint nish on
the vehicle.
5-70 Service and Appearance Care
ProCarManuals.com

Foreign materials such as calcium
chloride and other salts, ice
melting agents, road oil and tar, tree
sap, bird droppings, chemicals
from industrial chimneys, etc., can
damage the vehicle’s nish if
they remain on painted surfaces.
Wash the vehicle as soon as
possible. If necessary, use
non-abrasive cleaners that are
marked safe for painted surfaces to
remove foreign matter.
Exterior painted surfaces are
subject to aging, weather and
chemical fallout that can take their
toll over a period of years. To
help keep the paint nish looking
new, keep the vehicle garaged
or covered whenever possible.Protecting Exterior Bright Metal
Parts
Bright metal parts should be
cleaned regularly to keep their
luster. Washing with water is all that
is usually needed. However,
chrome polish may be used on
chrome or stainless steel trim, if
necessary.
Use special care with aluminum
trim. To avoid damaging protective
trim, never use auto or chrome
polish, steam or caustic soap
to clean aluminum. A coating of
wax, rubbed to high polish, is
recommended for all bright metal
parts.Windshield and Wiper
Blades
Clean the outside of the windshield
with glass cleaner.
Clean the rubber blades using a lint
free cloth or paper towel soaked
with windshield washer uid
or a mild detergent. Wash the
windshield thoroughly when cleaning
the blades. Bugs, road grime,
sap, and a buildup of vehicle
wash/wax treatments may cause
wiper streaking. Replace the
wiper blades if they are worn or
damaged.
Wipers can be damaged by:
Extreme dusty conditions
Sand and salt
Heat and sun
Snow and ice, without proper
removal
Service and Appearance Care 5-71
ProCarManuals.com

Aluminum Wheels
Notice:Chrome wheels and
other chrome trim may be
damaged if the vehicle is not
washed after driving on roads
that have been sprayed with
magnesium, calcium or sodium
chloride. These chlorides are
used on roads for conditions
such as ice and dust. Always
wash the vehicle’s chrome with
soap and water after exposure.
Notice:Using strong soaps,
chemicals, abrasive polishes,
cleaners, brushes, or cleaners that
contain acid on aluminum or
chrome-plated wheels, could
damage the surface of the
wheel(s). The repairs would not be
covered by the warranty. Use only
approved cleaners on aluminum
or chrome-plated wheels.Keep the wheels clean using a soft
clean cloth with mild soap and
water. Rinse with clean water. After
rinsing thoroughly, dry with a soft
clean towel. A wax may then
be applied.
Notice:Using chrome polish on
aluminum wheels could damage
the wheels. The repairs would not
be covered by the warranty.
Use chrome polish on chrome
wheels only.
The surface of these wheels is
similar to the painted surface of the
vehicle. Do not use strong soaps,
chemicals, abrasive polishes,
abrasive cleaners, cleaners with
acid, or abrasive cleaning brushes
on them because the surface
could be damaged. Do not use
chrome polish on aluminum wheels.Notice:Driving the vehicle
through an automatic car wash
that has silicone carbide tire
cleaning brushes, could damage
the aluminum or chrome-plated
wheels. The repairs would not be
covered by the warranty. Never
drive a vehicle equipped with
aluminum or chrome-plated
wheels through an automatic car
wash that uses silicone carbide
tire cleaning brushes.
Tires
To clean the tires, use a stiff brush
with tire cleaner.
Notice:Using petroleum-based
tire dressing products on the
vehicle may damage the paint
nish and/or tires. When applying
a tire dressing, always wipe off
any overspray from all painted
surfaces on the vehicle.
5-72 Service and Appearance Care
ProCarManuals.com
