Seats and
Restraint System
Head Restraints
Head Restraints..................1-2
Front Seats
Manual Seats.....................1-3
Seat Height Adjuster...........1-4
Power Seat........................1-4
Manual Lumbar..................1-5
Heated Seats.....................1-5
Reclining Seatbacks...........1-5
Passenger Folding
Seatback...........................1-7
Rear Seats
Split Folding Rear Seat......1-9
Safety Belts
Safety Belts: They Are
for Everyone...................1-10
How to Wear Safety
Belts Properly..................1-13
Lap-Shoulder Belt.............1-17
Safety Belt Use During
Pregnancy.......................1-22
Safety Belt Extender.........1-22
Child Restraints
Older Children..................1-22
Infants and Young
Children..........................1-25
Child Restraint Systems. . . .1-27
Where to Put the
Restraint.........................1-29
Lower Anchors and
Tethers for Children
(LATCH)
..........................1-31
Securing a Child
Restraint in a Rear
Seat Position
...................1-36
Securing a Child
Restraint in the Right
Front Seat Position
.........1-38
Airbag System
Airbag System..................1-41
Where Are the Airbags?. . .1-44
When Should an Airbag
Inate?............................1-45
What Makes an Airbag
Inate?............................1-47
How Does an Airbag
Restrain?........................1-47
What Will You See After
an Airbag Inates?..........1-48
Passenger Sensing
System............................1-49
Servicing Your
Airbag-Equipped
Vehicle
............................1-54
Adding Equipment to
Your Airbag-Equipped
Vehicle
............................1-55
Restraint System Check
Checking the Restraint
Systems..........................1-56
Replacing Restraint
System Parts After a
Crash
..............................1-57
Seats and Restraint System 1-1
ProCarManuals.com

Do not have a seatback reclined if
the vehicle is moving.
Passenger Folding
Seatback
The front passenger seatback may
fold at.
{CAUTION
If you fold the seatback forward to
carry longer objects, such as skis,
be sure any such cargo is not
near an airbag. In a crash, an
inating airbag might force that
object toward a person. This
could cause severe injury or even
death. Secure objects away from
the area in which an airbag would
inate. For more information, see
Where Are the Airbags? on
page 1-44andLoading the
Vehicle on page 4-18.
{CAUTION
Things you put on this seatback
can strike and injure people in a
sudden stop or turn, or in a crash.
Remove or secure all items
before driving.
To fold the seatback:
1. Lower the head restraint all
the way.
2. Lift the bar under the front of the
seat to unlock it. Slide the seat
as far back as it will go and
release the bar. Try to move the
seat back and forth to make
sure it is locked into place.
Seats and Restraint System 1-7
ProCarManuals.com

or the instrument panel...
or the safety belts!With safety belts, you slow down as
the vehicle does. You get more
time to stop. You stop over more
distance, and your strongest bones
take the forces. That is why
safety belts make such good sense.
Questions and Answers
About Safety Belts
Q:
Will I be trapped in the vehicle
after a crash if I am wearing a
safety belt?
A:Youcouldbe — whether you are
wearing a safety belt or not. But
your chance of being conscious
during and after an accident, so
youcanunbuckle and get out, is
muchgreater if you are belted.
And you can unbuckle a safety
belt, even if you are upside down.
Q:If my vehicle has airbags, why
should I have to wear safety
belts?
A:Airbags are supplemental
systems only; so they workwith
safety belts — not instead of
them. Whether or not an airbag
is provided, all occupants
still have to buckle up to get the
most protection. That is true
not only in frontal collisions, but
especially in side and other
collisions.
1-12 Seats and Restraint System
ProCarManuals.com

Safety Belt Pretensioners
This vehicle has safety belt
pretensioners for the front outboard
occupants. Although the safety
belt pretensioners cannot be seen,
they are part of the safety belt
assembly. They can help tighten the
safety belts during the early
stages of a moderate to severe
frontal, near frontal, or rear crash if
the threshold conditions for
pretensioner activation are met.
And, for vehicles with side impact
airbags, safety belt pretensioners
can help tighten the safety belts in a
side crash or a rollover event.
Pretensioners work only once. If the
pretensioners activate in a crash,
they will need to be replaced,
and probably other new parts for the
vehicle’s safety belt system. See
Replacing Restraint System
Parts After a Crash on page 1-57.
Rear Safety Belt Comfort
Guides
Rear shoulder belt comfort guides
may provide added safety belt
comfort for older children who have
outgrown booster seats and for
some adults. When installed on a
shoulder belt, the comfort guide
positions the shoulder belt away
from the neck and head.
There is one guide for each
outboard passenger position in the
rear seat. Here is how to install
a comfort guide to the safety belt:
1. Remove the guide from its
storage location, which is a
pocket on the side of the seat.2. Place the guide over the belt and
insert the two edges of the belt
into the slots of the guide.
1-20 Seats and Restraint System
ProCarManuals.com

Infants and Young
Children
Everyone in a vehicle needs
protection! This includes infants and
all other children. Neither the
distance traveled nor the age and
size of the traveler changes the
need, for everyone, to use safety
restraints. In fact, the law in
every state in the United States and
in every Canadian province says
children up to some age must
be restrained while in a vehicle.
{CAUTION
Children can be seriously injured
or strangled if a shoulder belt is
wrapped around their neck and
the safety belt continues to
tighten. Never leave children
unattended in a vehicle and never
allow children to play with the
safety belts.Airbags plus lap-shoulder belts offer
protection for adults and older
children, but not for young children
and infants. Neither the vehicle’s
safety belt system nor its airbag
system is designed for them. Every
time infants and young children
ride in vehicles, they should have
the protection provided by
appropriate child restraints.
Children who are not restrained
properly can strike other people, or
can be thrown out of the vehicle.
{CAUTION
Never do this.
Never hold an infant or a child
while riding in a vehicle. Due to
crash forces, an infant or a child
will become so heavy it is not
possible to hold it during a crash.
(Continued)
CAUTION (Continued)
For example, in a crash at only
25 mph (40 km/h), a 12 lb (5.5 kg)
infant will suddenly become a
240 lb (110 kg) force on a
person’s arms. An infant should
be secured in an appropriate
restraint.
Seats and Restraint System 1-25
ProCarManuals.com

{CAUTION
Never do this.
Children who are up against, or
very close to, any airbag when it
inates can be seriously injured or
killed. Never put a rear-facing
child restraint in the right front
seat. Secure a rear-facing child
restraint in a rear seat. It is also
better to secure a forward-facing
child restraint in a rear seat. If you
must secure a forward-facing child
restraint in the right front seat,
always move the front passenger
seat as far back as it will go.
Q:What are the different types of
add-on child restraints?
A:Add-on child restraints, which
are purchased by the vehicle’s
owner, are available in four
basic types. Selection of a
particular restraint should take
into consideration not only the
child’s weight, height, and age but
also whether or not the restraint
will be compatible with the motor
vehicle in which it will be used.For most basic types of child
restraints, there are many
different models available. When
purchasing a child restraint,
be sure it is designed to be used
in a motor vehicle. If it is, the
restraint will have a label saying
that it meets federal motor
vehicle safety standards.
The restraint manufacturer’s
instructions that come with the
restraint state the weight and
height limitations for a particular
child restraint. In addition, there
are many kinds of restraints
available for children with special
needs.
1-26 Seats and Restraint System
ProCarManuals.com

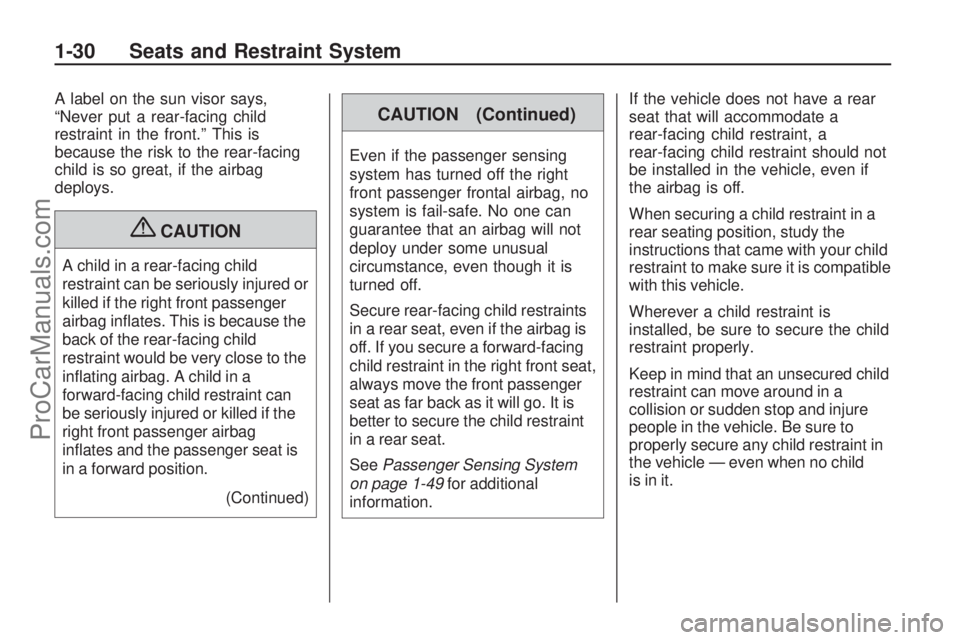

A label on the sun visor says,
“Never put a rear-facing child
restraint in the front.” This is
because the risk to the rear-facing
child is so great, if the airbag
deploys.
{CAUTION
A child in a rear-facing child
restraint can be seriously injured or
killed if the right front passenger
airbag inates. This is because the
back of the rear-facing child
restraint would be very close to the
inating airbag. A child in a
forward-facing child restraint can
be seriously injured or killed if the
right front passenger airbag
inates and the passenger seat is
in a forward position.
(Continued)
CAUTION (Continued)
Even if the passenger sensing
system has turned off the right
front passenger frontal airbag, no
system is fail-safe. No one can
guarantee that an airbag will not
deploy under some unusual
circumstance, even though it is
turned off.
Secure rear-facing child restraints
in a rear seat, even if the airbag is
off. If you secure a forward-facing
child restraint in the right front seat,
always move the front passenger
seat as far back as it will go. It is
better to secure the child restraint
in a rear seat.
SeePassenger Sensing System
on page 1-49for additional
information.If the vehicle does not have a rear
seat that will accommodate a
rear-facing child restraint, a
rear-facing child restraint should not
be installed in the vehicle, even if
the airbag is off.
When securing a child restraint in a
rear seating position, study the
instructions that came with your child
restraint to make sure it is compatible
with this vehicle.
Wherever a child restraint is
installed, be sure to secure the child
restraint properly.
Keep in mind that an unsecured child
restraint can move around in a
collision or sudden stop and injure
people in the vehicle. Be sure to
properly secure any child restraint in
the vehicle — even when no child
is in it.
1-30 Seats and Restraint System
ProCarManuals.com

5. To tighten the belt, push down
on the child restraint, pull the
shoulder portion of the belt
to tighten the lap portion of the
belt and feed the shoulder
belt back into the retractor. When
installing a forward-facing child
restraint, it may be helpful to use
your knee to push down on
the child restraint as you tighten
the belt.6. If the child restraint has a top
tether, follow the child restraint
manufacturer’s instructions
regarding the use of the top
tether. SeeLower Anchors and
Tethers for Children (LATCH)
on page 1-31for more
information.
7. Push and pull the child restraint
in different directions to be sure
it is secure.
To remove the child restraint,
unbuckle the vehicle safety belt and
let it return to the stowed position.
If the top tether is attached to a top
tether anchor, disconnect it.
Securing a Child
Restraint in the Right
Front Seat Position
The vehicle has airbags. A rear seat
is a safer place to secure a
forward-facing child restraint. See
Where to Put the Restraint on
page 1-29.
In addition, the vehicle has a
passenger sensing system which is
designed to turn off the right
front passenger frontal airbag under
certain conditions. SeePassenger
Sensing System on page 1-49
andPassenger Airbag Status
Indicator on page 3-26for more
information, including important
safety information.
A label on the sun visor says,
“Never put a rear-facing child seat
in the front.” This is because the risk
to the rear-facing child is so great,
if the airbag deploys.
1-38 Seats and Restraint System
ProCarManuals.com
