Engine Coolant Heater
The engine coolant heater can
provide easier starting and better
fuel economy during engine
warm-up in cold weather conditions
at or below 0°F (−18°C). Vehicles
with an engine coolant heater should
be plugged in at least four hours
before starting. Some models
may have an internal thermostat
in the cord which will prevent engine
coolant heater operation at
temperatures above 0°F (−18°C).
To Use the Engine Coolant
Heater
1. Turn off the engine.
2. Open the hood and unwrap the
electrical cord. The engine
coolant heater cord is located
near the air cleaner box on
the passenger side of the engine
compartment. SeeEngine
Compartment Overview on
page 5-10for more information
on location.
3. Plug the cord into a normal,
grounded 110-volt AC outlet.
{CAUTION
Plugging the cord into an
ungrounded outlet could cause an
electrical shock. Also, the wrong
kind of extension cord could
overheat and cause a re. You
could be seriously injured. Plug
the cord into a properly grounded
three-prong 110-volt AC outlet.
If the cord will not reach, use a
heavy-duty three-prong extension
cord rated for at least 15 amps.
4. Before starting the engine, be
sure to unplug and store the
cord as it was before to keep
it away from moving engine
parts. If you do not, it could be
damaged.
The length of time the heater should
remain plugged in depends on
several factors. Ask a dealer/retailer
in the area where you will be
parking the vehicle for the best
advice on this.
Features and Controls 2-19
ProCarManuals.com

FUEL LEVEL LOW
This message displays when your
vehicle is low on fuel. Rell the
fuel tank as soon as possible. See
Fuel Gage on page 3-34and
Filling the Tank on page 5-7for
more information.
HOOD OPEN
This message displays on some
vehicles when the hood is not closed
properly. Close the hood completely.
SeeHood Release on page 5-9.
ICE POSSIBLE DRIVE
WITH CARE
This message displays when the
outside air temperature is cold
enough to create icy road
conditions. Adjust your driving
accordingly.
LIFTGATE OPEN
This message displays when the
liftgate is not closed completely.
Close the liftgate completely. See
Liftgate on page 2-8.
OIL PRESSURE LOW STOP
ENGINE
Notice:If you drive your vehicle
while the engine oil pressure
is low, severe engine damage
may occur. If a low oil pressure
warning appears on the Driver
Information Center (DIC), stop the
vehicle as soon as possible.
Do not drive the vehicle until the
cause of the low oil pressure
is corrected. SeeEngine Oil on
page 5-11for more information.
This message displays when
the vehicle’s engine oil pressure is
low. The oil pressure light also
appears on the instrument panel
cluster. SeeOil Pressure Light
on page 3-33.
Stop the vehicle immediately, as
engine damage can result from
driving a vehicle with low oil
pressure. Have the vehicle serviced
by your dealer/retailer as soon as
possible when this message is
displayed.
PASSENGER DOOR OPEN
This message displays when one or
more of the passenger doors are
not closed properly. Close the doors
completely.
REMOTE KEY LEARNING
ACTIVE
This message displays while
matching a Remote Keyless Entry
(RKE) transmitter to your vehicle.
See “MATCHING TRANSMITTERS
TO YOUR VEHICLE” under
Remote Keyless Entry (RKE)
System Operation on page 2-4and
DIC Operation and Displays on
page 3-36for more information.
Instrument Panel 3-45
ProCarManuals.com

Fuel
Use of the recommended fuel is an
important part of the proper
maintenance of this vehicle. To help
keep the engine clean and
maintain optimum vehicle
performance, we recommend the
use of gasoline advertised as
TOP TIER Detergent Gasoline.
Gasoline Octane
Use regular unleaded gasoline with
a posted octane rating of 87 or
higher. If the octane rating is less
than 87, you might notice an audible
knocking noise when you drive,
commonly referred to as spark
knock. If this occurs, use a gasoline
rated at 87 octane or higher as
soon as possible. If you are using
gasoline rated at 87 octane or higher
and you hear heavy knocking, the
engine needs service.
Gasoline Specications
At a minimum, gasoline should
meet ASTM specication D 4814 in
the United States or CAN/CGSB-3.5
or 3.511 in Canada. Some
gasolines contain an
octane-enhancing additive called
methylcyclopentadienyl manganese
tricarbonyl (MMT). We recommend
against the use of gasolines
containing MMT. SeeAdditives on
page 5-5for additional information.
California Fuel
If the vehicle is certied to meet
California Emissions Standards, it is
designed to operate on fuels that
meet California specications. See
the underhood emission control
label. If this fuel is not available in
states adopting California emissions
standards, the vehicle will operate
satisfactorily on fuels meeting federal
specications, but emission control
system performance might be
affected. The malfunction indicator
lamp could turn on and the vehiclemight fail a smog-check test. See
Malfunction Indicator Lamp on
page 3-30. If this occurs, return to
your authorized dealer/retailer for
diagnosis. If it is determined that the
condition is caused by the type of
fuel used, repairs might not be
covered by the vehicle warranty.
Additives
To provide cleaner air, all gasolines
in the United States are now
required to contain additives that
help prevent engine and fuel system
deposits from forming, allowing
the emission control system to work
properly. In most cases, you
should not have to add anything to
the fuel. However, some gasolines
contain only the minimum amount of
additive required to meet U.S.
Environmental Protection Agency
regulations. To help keep fuel
injectors and intake valves clean, or
if the vehicle experiences problems
due to dirty injectors or valves,
look for gasoline that is advertised
as TOP TIER Detergent Gasoline.
Service and Appearance Care 5-5
ProCarManuals.com

Checking Things
Under the Hood
{CAUTION
An electric fan under the hood can
start up and injure you even when
the engine is not running. Keep
hands, clothing, and tools away
from any underhood electric fan.
{CAUTION
Things that burn can get on hot
engine parts and start a re.
These include liquids like fuel, oil,
coolant, brake uid, windshield
washer and other uids, and
plastic or rubber. You or others
could be burned. Be careful not to
drop or spill things that will burn
onto a hot engine.
Hood Release
To open the hood, do the following:
1. Pull the handle with this symbol
on it. It is located under the
instrument panel on the driver
side of the vehicle.
2. Then go to the front of the
vehicle and lift up on the
secondary hood release lever.
3. Lift the hood.
Before closing the hood, be sure
all the ller caps are on properly.
Then pull the hood down and close
it rmly.
Service and Appearance Care 5-9
ProCarManuals.com

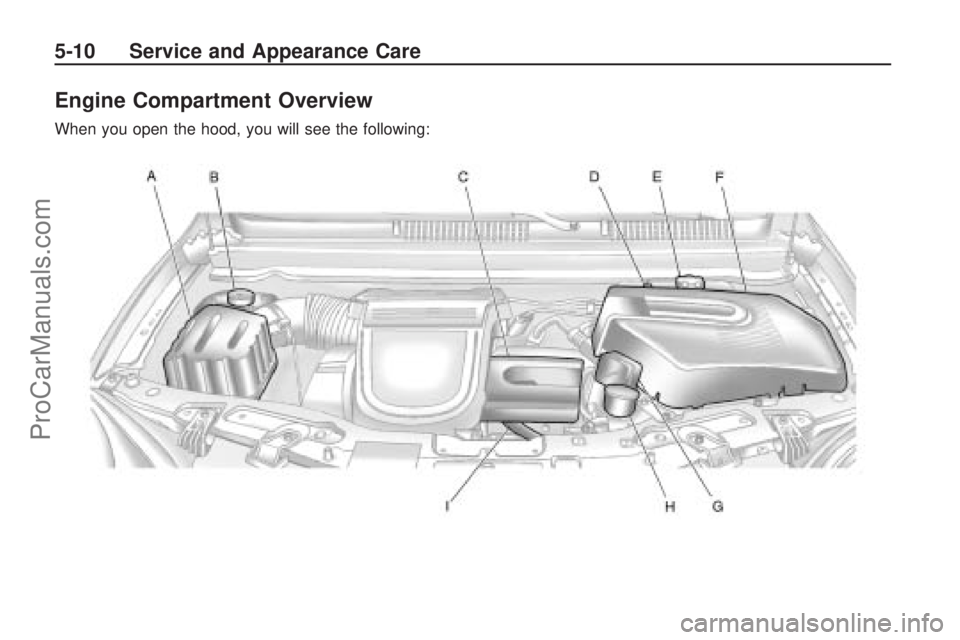

Engine Compartment Overview
When you open the hood, you will see the following:
5-10 Service and Appearance Care
ProCarManuals.com

Engine Overheating
There is a coolant temperature
warning light on your vehicle’s
instrument panel. SeeEngine
Coolant Temperature Warning Light
on page 3-29.
If Steam Is Coming From Your
Engine
{CAUTION
Steam from an overheated engine
can burn you badly, even if you
just open the hood. Stay away
from the engine if you see or hear
steam coming from it. Just turn it
off and get everyone away from
the vehicle until it cools down.
Wait until there is no sign of
steam or coolant before you
open the hood.
(Continued)
CAUTION (Continued)
If you keep driving when your
engine is overheated, the liquids
in it can catch re. You or others
could be badly burned. Stop your
engine if it overheats, and get
out of the vehicle until the engine
is cool.
Notice:If the engine catches re
because of being driven with
no coolant, your vehicle can be
badly damaged. The costly
repairs would not be covered by
the vehicle warranty.
If No Steam Is Coming From
Your Engine
If you get an engine overheat
warning, but see or hear no steam,
the problem may not be too serious.
Sometimes the engine can get a little
too hot when you:
Climb a long hill on a hot day.
Stop after high-speed driving.
Idle for long periods in traffic.
Tow a trailer.
If you get the overheat warning with
no sign of steam, try this for a
minute or so:
1. If you have an air conditioner
and it is on, turn it off.
2. Turn on your heater to full hot at
the highest fan speed and open
the windows as necessary.
3. Try to minimize engine load.
If you are in a traffic jam,
shift to N (Neutral); otherwise,
shift to the highest gear possible
while driving.
Service and Appearance Care 5-23
ProCarManuals.com

If you no longer have the overheat
warning, you can drive. Just to
be safe, drive slower for about
ten minutes. If the warning does
not come back on, you can drive
normally.
If the warning continues and you
have not stopped, pull over, stop,
and park your vehicle right away.
If there is still no sign of steam, idle
the engine for three minutes
while you are parked. If the warning
continues, turn off the engine and
get everyone out of the vehicle until
it cools down.
You may decide not to lift the hood
but to get service help right away.Windshield Washer Fluid
What to Use
When you need windshield or rear
window washer uid, be sure to
read the manufacturer’s instructions
before use. If you will be operating
your vehicle in an area where
the temperature may fall below
freezing, use a uid that has
sufficient protection against freezing.
Adding Windshield Washer
Fluid
Open the cap with the washer
symbol on it. Add washer uid until
the tank is full. SeeEngine
Compartment Overview on
page 5-10for reservoir location.Notice:
When using concentrated
washer uid, follow the
manufacturer’s instructions
for adding water.
Do not mix water with
ready-to-use washer uid.
Water can cause the solution
to freeze and damage your
washer uid tank and other
parts of the washer system.
Also, water does not clean as
well as washer uid.
Fill the washer uid tank only
three-quarters full when it is
very cold. This allows for uid
expansion if freezing occurs,
which could damage the tank if
it is completely full.
Do not use engine coolant
(antifreeze) in your windshield
washer. It can damage the
vehicle’s windshield washer
system and paint.
5-24 Service and Appearance Care
ProCarManuals.com

Notice:Ignoring these steps
could result in costly damage to
the vehicle that would not be
covered by the warranty.
Trying to start the vehicle by
pushing or pulling it will not work,
and it could damage the vehicle.
1. Check the other vehicle. It
must have a 12-volt battery with
a negative ground system.
Notice:If the other vehicle’s
system is not a 12-volt system
with a negative ground, both
vehicles can be damaged. Only
use vehicles with 12-volt systems
with negative grounds to jump
start your vehicle.
2. Get the vehicles close enough so
the jumper cables can reach, but
be sure the vehicles are not
touching each other. If they are, it
could cause a ground connection
you do not want. You would not
be able to start your vehicle, and
the bad grounding could damage
the electrical systems.To avoid the possibility of the
vehicles rolling, set the parking
brake rmly on both vehicles
involved in the jump start
procedure. Put an automatic
transmission in P (Park) or
a manual transmission in
N (Neutral) before setting the
parking brake.
Notice:If you leave the radio or
other accessories on during
the jump starting procedure, they
could be damaged. The repairs
would not be covered by the
warranty. Always turn off
the radio and other accessories
when jump starting the vehicle.
3. Turn off the ignition on both
vehicles. Unplug unnecessary
accessories plugged into the
cigarette lighter or the accessory
power outlet. Turn off the radio
and all lamps that are not needed.
This will avoid sparks and help
save both batteries. And it could
save the radio!4. Open each vehicle’s hood and
locate the positive (+) and
negative (−) terminal locations of
the other vehicle. Your vehicle
has a remote positive (+) 12-volt
jump starting terminal (B) and
a remote negative (−) jump
starting terminal (A). You should
always use these remote
terminals instead of the terminals
on the battery. The remote
positive (+) terminal is located
inside the junction box located
above the engine cover. To
access the remote positive (+)
terminal, unlatch the box cover.
Service and Appearance Care 5-29
ProCarManuals.com

Headlamp Aiming
The headlamp aiming system has
been preset at the factory.
If the vehicle is damaged in an
accident, the aim of the headlamps
may be affected and adjustment
may be necessary.
It is recommended that a
dealer/retailer adjust the headlamps.
To re-aim the headlamps yourself,
use the following procedure.
The vehicle should be properly
prepared as follows:
The vehicle should be placed so
the headlamps are 25 ft. (7.6 m)
from a light colored wall.
The vehicle must have all four
tires on a level surface which
is level all the way to the wall.
The vehicle should be placed so
it is perpendicular to the wall or
other at surface.
The vehicle should not have any
snow, ice, or mud on it.
The vehicle should be fully
assembled and all other
work stopped while headlamp
aiming is being performed.
The vehicle should be
normally loaded with a full
tank of fuel and one person or
160 lbs (75 kg) sitting on the
driver’s seat.
Tires should be properly inated.
Headlamp aiming is done with
the vehicle’s low-beam headlamps.
The high-beam headlamps will
be correctly aimed if the low-beam
headlamps are aimed properly.To adjust the vertical aim, do the
following:
1. Open the hood. SeeHood
Release on page 5-9for
more information.
2. Locate the aim dot on the lens of
the low-beam headlamp.
3. Measure the distance from the
ground to the aim dot on the
low-beam headlamp. Record the
distance.
Service and Appearance Care 5-33
ProCarManuals.com

Bulb Replacement
For the proper type of replacement
bulbs, seeReplacement Bulbs
on page 5-37.
For any bulb changing procedure
not listed in this section, contact
your dealer/retailer.
Halogen Bulbs
{CAUTION
Halogen bulbs have pressurized
gas inside and can burst if you
drop or scratch the bulb. You or
others could be injured. Be sure
to read and follow the instructions
on the bulb package.
Headlamps
To replace one of the headlamp
bulbs, use the following procedure.
To replace the parking/turn signal
lamp bulb, seeFront Turn Signal
and Parking Lamps on page 5-36.
1. Open the hood. SeeHood
Release on page 5-9for
more information.
2. Remove the two screws from the
top of the front fascia and grille.
They are inboard of the
headlamp assembly.
3. Remove the three screws
retaining the headlamp assembly.
4. Insert a at blade tool through the
opening in the top. Make sure the
tool ts through the opening in the
headlamp bracket lower arm.
5. Push the locking tab toward
the rear of the vehicle with the
tool to lift the headlamp bracket
lower arm.6. Pull back on the front fascia and
then pull the headlamp assembly
out from the vehicle. Another
person might be needed to assist
with this step.
7. Disconnect the electrical
connector from the bulb
assembly.
8. Turn the bulb assembly
counterclockwise to remove it
from the housing.
9. Replace the old bulb with a
new one.
10. Reverse Steps 1 through 8 to
reinstall.
Service and Appearance Care 5-35
ProCarManuals.com
