octane Seat Alhambra 2007 Owner's Manual

Checking and refilling levels207
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
PetrolPetrol types
The correct petrol types are listed on a sticker inside the fuel
tank flap.Only unleaded petrol, corresponding to the standard DIN EN 228 , may be
used for vehicles with catalytic converters (EN = “European Norm”).
Petrol types are categorised according to their octane number, e. g. 91, 95,
98 or 99 octanes You may use petrol with a higher octane number than the
one recommended for your engine. Howe ver this has no advantage in terms
of fuel consumption and engine power.
Caution
If you must drive with fuel of a lower octane rating than recommended then
avoid driving at high engine speeds or putting demand on your engine.
Otherwise engine damage may occur. Fill up with petrol with the correct
octane number as soon as possible.
For the sake of the environment
Just one full tank of leaded fuel would seriously impair the efficiency of the
catalytic converter.Petrol additivesThe quality of the petrol influences running behaviour, performance and
service life of the engine. For this reason you should use good quality petrol
containing additives. These additives will help to prevent corrosion, keep the
fuel system clean and prevent deposits from building up in the engine. If good quality petrol with additives is not available, this may cause engine
problems (e.g. engine does not run
smoothly or problems occur when
starting).
DieselDiesel*Diesel fuel must correspond to DIN EN 590 (EN = “European standard”). It
must have a cetane number (CN) of at least 51. The cetane number indicates
the ignition quality of the diesel fuel.
Notes on filling with fuel ⇒page 206.RME fuel*
Only vehicles fitted with special equipment may drive with
biodiesel fuel in accordance with standard DIN EN 14214.The biodiesel fuel must comply wi th the DIN EN 14.214 (FAME) Standard.•
Biodiesel is a methylester obtained from rapeseed oil.
• DIN is a German abbrev iation for “ Deuts c
hes I
nstitut für N ormung e.V.”,
the German standards institute.
•
EN means European Norm.
•
FAME is the English abbreviation “ Fatty Acid Methyl E ster”
If the date sticker of the vehicle in cludes the number PR 2G0 optional equip-
ment) this means that that vehicle has been prepared for biodiesel use.
alhambra ingles.book Seite 207 Donnerstag, 19. April 2007 4:04 16

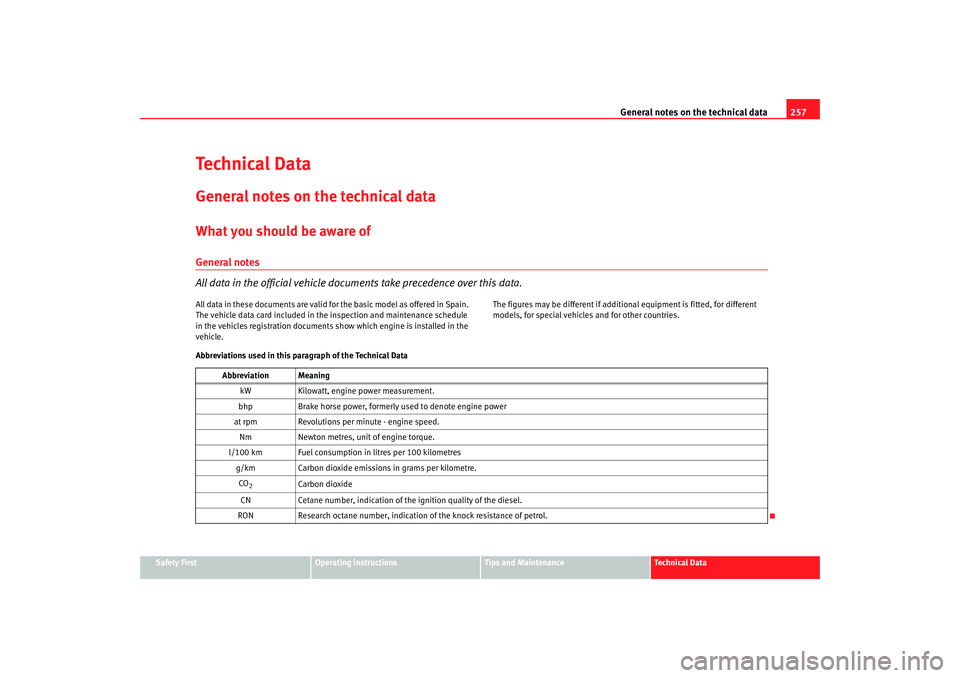

General notes on the technical data 257
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Te c h n i c a l D a t aGeneral notes on the technical dataWhat you should be aware ofGeneral notes
All data in the official vehicle documents take precedence over this data.All data in these documents are valid for the basic model as offered in Spain.
The vehicle data card included in the inspection and maintenance schedule
in the vehicles registration documents show which engine is installed in the
vehicle. The figures may be different if addition
al equipment is fitted, for different
models, for special vehicles and for other countries.
Abbreviations used in this paragraph of the Technical Data Abbreviation MeaningkW Kilowatt, engine power measurement.
bhp Brake horse power, formerly used to denote engine power
at rpm Revolutions per minute - engine speed. Nm Newton metres, unit of engine torque.
l/100 km Fuel consumption in litres per 100 kilometres g/km Carbon dioxide emission s in grams per kilometre.
CO
2
Carbon dioxide
CN Cetane number, indication of the ignition quality of the diesel.
RON Research octane number, indication of the knock resistance of petrol.
alhambra ingles.book Seite 257 Donnerstag, 19. April 2007 4:04 16

Technical Data263
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

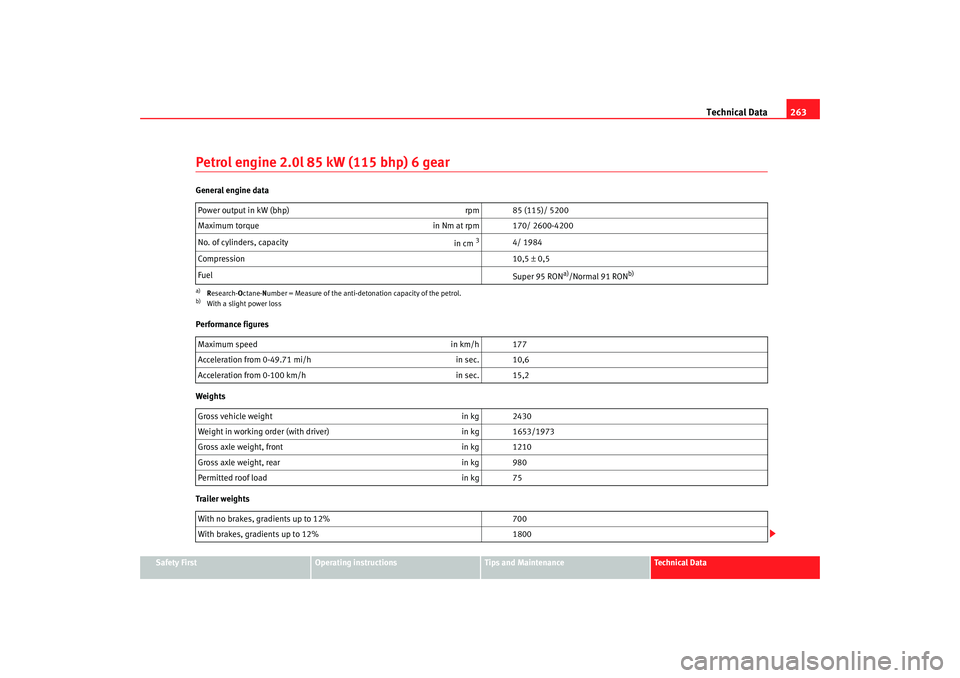

Petrol engine 2.0l 85 kW (115 bhp) 6 gearGeneral engine data
Performance figures
Weights
Trailer weightsPower output in kW (bhp)
rpm 85 (115)/ 5200
Maximum torque in Nm at rpm 170/ 2600-4200
No. of cylinders, capacity in cm
3
4/ 1984
Compression 10,5 ± 0,5
Fuel Super 95 RON
a)/Normal 91 RON
b)
a)Research- Octane- Number = Measure of the anti-detonation capacity of the petrol.b)With a slight power lossMaximum speed in km/h 177
Acceleration from 0- 49.71 mi/h in sec. 10,6
Acceleration from 0-100 km/h in sec. 15,2
Gross vehicle weight in kg 2430
Weight in working order (with driver) in kg 1653/1973
Gross axle weight, front in kg 1210
Gross axle weight, rear in kg 980
Permitted roof load in kg 75
With no brakes, gradients up to 12% 700
With brakes, gradients up to 12% 1800
alhambra ingles.book Seite 263 Donnerstag, 19. April 2007 4:04 16

Technical Data

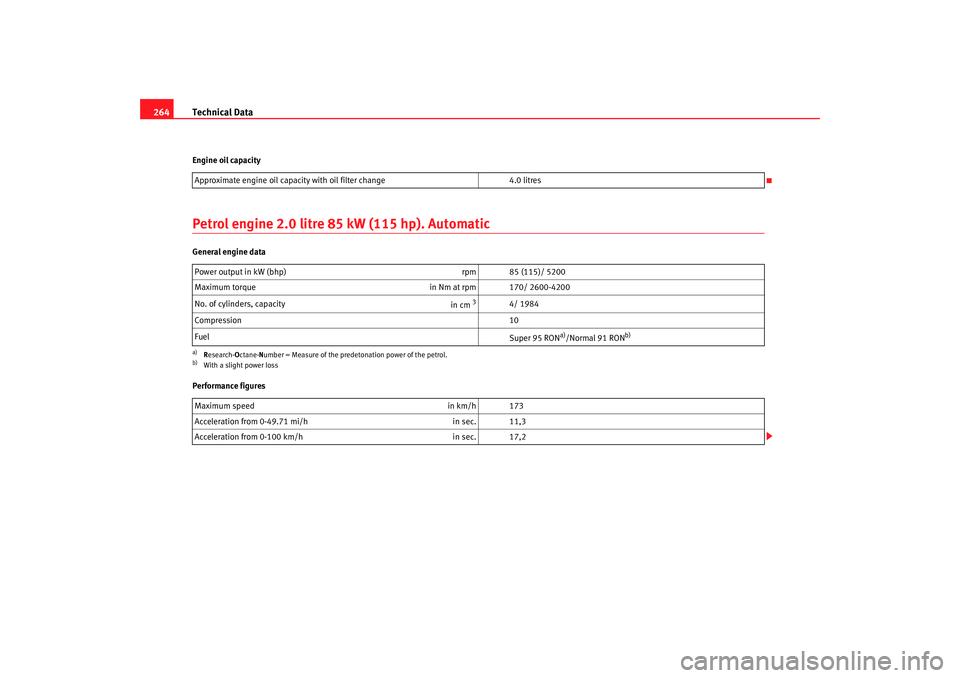

264Engine oil capacityPetrol engine 2.0 litre 85 kW (115 hp). AutomaticGeneral engine data
Performance figures Approximate engine oil capacity with oil filter change
4.0 litres
Power output in kW (bhp) rpm 85 (115)/ 5200
Maximum torque in Nm at rpm 170/ 2600-4200
No. of cylinders, capacity in cm
3
4/ 1984
Compression 10
Fuel Super 95 RON
a)/Normal 91 RON
b)
a)Research- Octane- Number = Measure of the predetonation power of the petrol.b)With a slight power lossMaximum speed in km/h 173
Acceleration from 0-49.71 mi/h in sec. 11,3
Acceleration from 0-100 km/h in sec. 17,2
alhambra ingles.book Seite 264 Donnerstag, 19. April 2007 4:04 16

Technical Data265
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

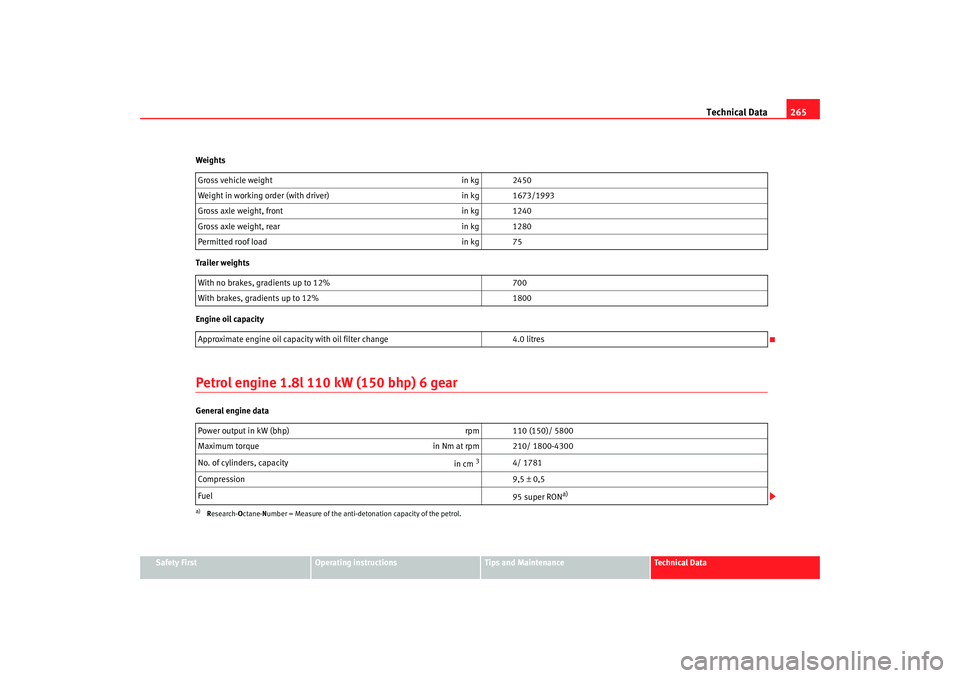

Weights
Trailer weights
Engine oil capacity
Petrol engine 1.8l 110 kW (150 bhp) 6 gearGeneral engine data
Gross vehicle weight
in kg 2450
Weight in working order (with driver) in kg 1673/1993
Gross axle weight, front in kg 1240
Gross axle weight, rear in kg 1280
Permitted roof load in kg 75
With no brakes, gradients up to 12% 700
With brakes, gradients up to 12% 1800
Approximate engine oil capacity with oil filter change 4.0 litres
Power output in kW (bhp) rpm 110 (150)/ 5800
Maximum torque in Nm at rpm 210/ 1800-4300
No. of cylinders, capacity in cm
3
4/ 1781
Compression 9,5 ± 0,5
Fuel 95 super RON
a)
a)Research- Octane- Number = Measure of the anti-detonation capacity of the petrol.
alhambra ingles.book Seite 265 Donnerstag, 19. April 2007 4:04 16

Technical Data267
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

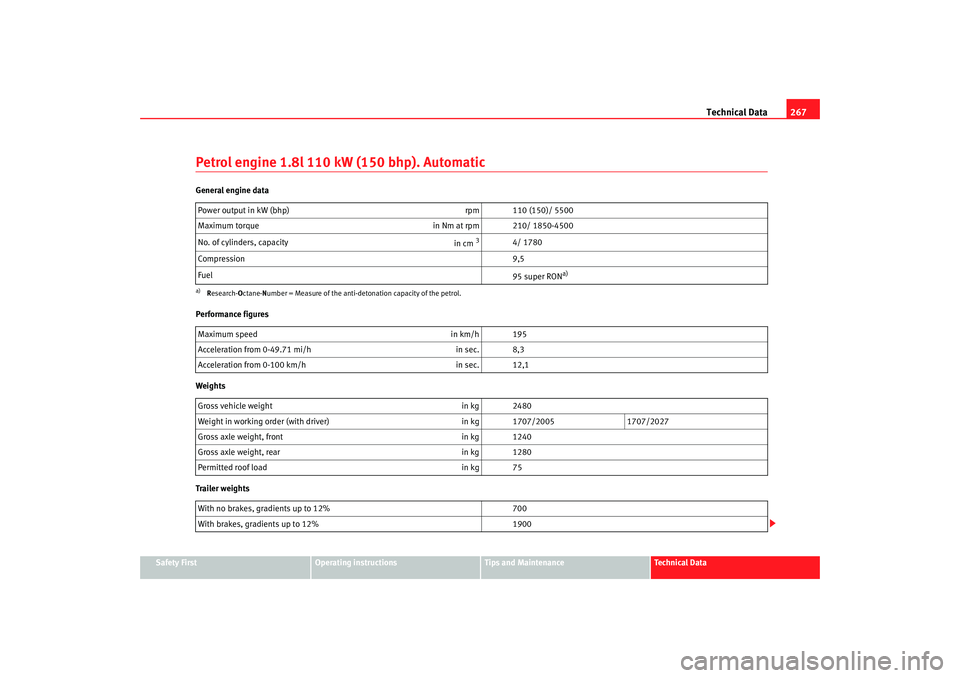

Petrol engine 1.8l 110 kW (150 bhp). AutomaticGeneral engine data
Performance figures
Weights
Trailer weightsPower output in kW (bhp)
rpm 110 (150)/ 5500
Maximum torque in Nm at rpm 210/ 1850-4500
No. of cylinders, capacity in cm
3
4/ 1780
Compression 9,5
Fuel 95 super RON
a)
a)Research- Octane- Number = Measure of the anti-detonation capacity of the petrol.Maximum speed in km/h 195
Acceleration from 0-49.71 mi/h in sec. 8,3
Acceleration from 0-100 km/h in sec. 12,1
Gross vehicle weight in kg 2480
Weight in working order (with driver) in kg 1707/20051707/2027
Gross axle weight, front in kg 1240
Gross axle weight, rear in kg 1280
Permitted roof load in kg 75
With no brakes, gradients up to 12% 700
With brakes, gradients up to 12% 1900
alhambra ingles.book Seite 267 Donnerstag, 19. April 2007 4:04 16

Technical Data

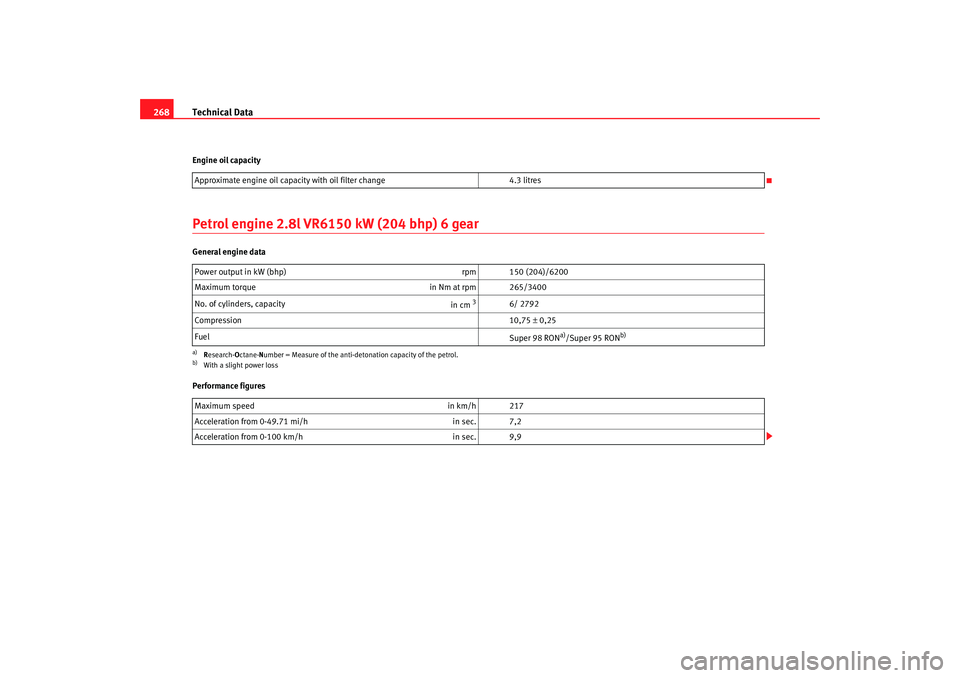

268Engine oil capacityPetrol engine 2.8l VR61 50 kW (204 bhp) 6 gearGeneral engine data
Performance figuresApproximate engine oil capacity with oil filter change
4.3 litres
Power output in kW (bhp) rpm 150 (204)/6200
Maximum torque in Nm at rpm 265/3400
No. of cylinders, capacity in cm
3
6/ 2792
Compression 10,75 ± 0,25
Fuel Super 98 RON
a)/Super 95 RON
b)
a)Research- Octane- Number = Measure of the anti-detonation capacity of the petrol.b)With a slight power lossMaximum speed in km/h 217
Acceleration from 0-49.71 mi/h in sec. 7,2
Acceleration from 0-100 km/h in sec. 9,9
alhambra ingles.book Seite 268 Donnerstag, 19. April 2007 4:04 16

Technical Data269
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

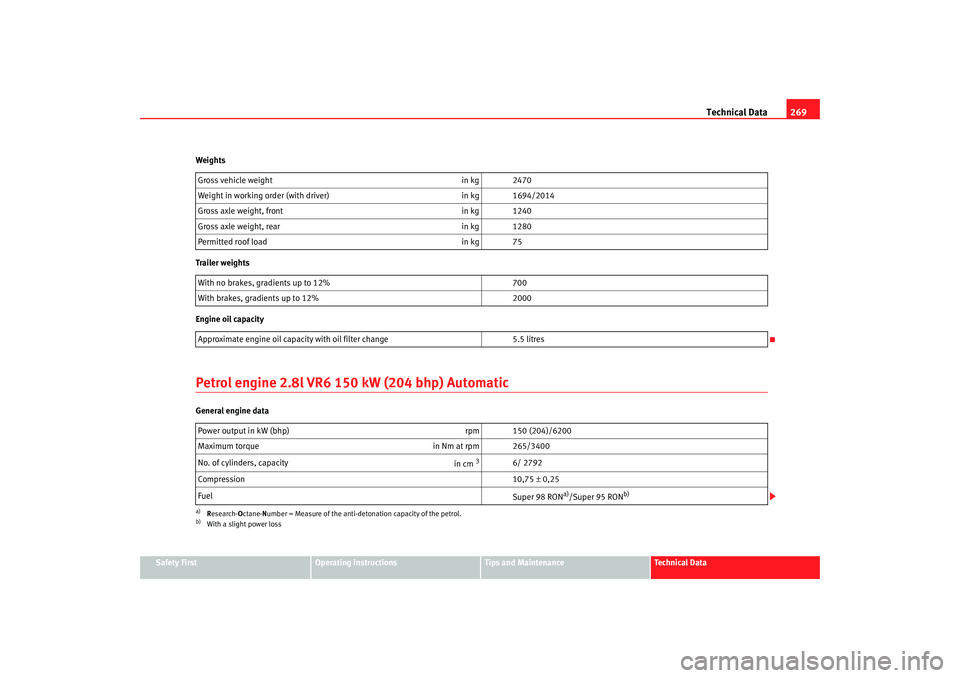

Weights
Trailer weights
Engine oil capacity
Petrol engine 2.8l VR6 150 kW (204 bhp) AutomaticGeneral engine data
Gross vehicle weight
in kg 2470
Weight in working order (with driver) in kg 1694/2014
Gross axle weight, front in kg 1240
Gross axle weight, rear in kg 1280
Permitted roof load in kg 75
With no brakes, gradients up to 12% 700
With brakes, gradients up to 12% 2000
Approximate engine oil capacity with oil filter change 5.5 litres
Power output in kW (bhp) rpm 150 (204)/6200
Maximum torque in Nm at rpm 265/3400
No. of cylinders, capacity in cm
3
6/ 2792
Compression 10,75 ± 0,25
Fuel Super 98 RON
a)/Super 95 RON
b)
a)Research- Octane- Number = Measure of the anti-detonation capacity of the petrol.b)With a slight power loss
alhambra ingles.book Seite 269 Donnerstag, 19. April 2007 4:04 16

Technical Data271
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

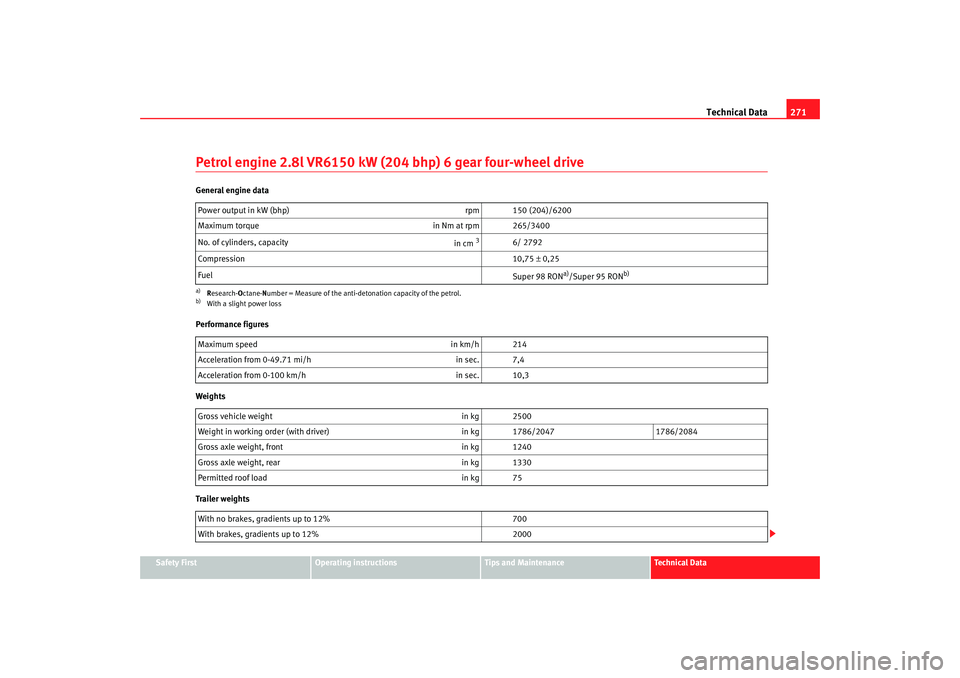

Petrol engine 2.8l VR6150 kW (204 bhp) 6 gear four-wheel driveGeneral engine data
Performance figures
Weights
Trailer weightsPower output in kW (bhp)
rpm 150 (204)/6200
Maximum torque in Nm at rpm 265/3400
No. of cylinders, capacity in cm
3
6/ 2792
Compression 10,75 ± 0,25
Fuel Super 98 RON
a)/Super 95 RON
b)
a)Research- Octane- Number = Measure of the anti-detonation capacity of the petrol.b)With a slight power lossMaximum speed in km/h 214
Acceleration from 0-49.71 mi/h in sec. 7,4
Acceleration from 0-100 km/h in sec. 10,3
Gross vehicle weight in kg 2500
Weight in working order (with driver) in kg 1786/20471786/2084
Gross axle weight, front in kg 1240
Gross axle weight, rear in kg 1330
Permitted roof load in kg 75
With no brakes, gradients up to 12% 700
With brakes, gradients up to 12% 2000
alhambra ingles.book Seite 271 Donnerstag, 19. April 2007 4:04 16

Index
284Mobile phone . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Modifications . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Multifunction steering wheel . . . . . . . . . . . . . . . 84NNavigation system* . . . . . . . . . . . . . . . . . . . . . . . 83
Net bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Number of seats . . . . . . . . . . . . . . . . . . . . . . . . . 17OObservations . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Octane number . . . . . . . . . . . . . . . . . . . . . . . . . 207
Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Oil change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Oil properties . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
On board computer with multifunction display*
Check working . . . . . . . . . . . . . . . . . . . . . . . . 79
Message on display . . . . . . . . . . . . . . . . . . . 79
One-touch closing and opening electric windows . . . . . . . . . . . . . . . . . . . . . 101
Overview Control lamps . . . . . . . . . . . . . . . . . . . . . . . . 70
Instrument panel . . . . . . . . . . . . . . . . . . . . . . 61
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Multifunction steering wheel . . . . . . . . . . . . 84
Warning lamps . . . . . . . . . . . . . . . . . . . . . . . 70
PPaintworkPolishing . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Waxing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Parking aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Parking distance warning system . . . . . . . . . . 173
Parking lights . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Parts replacement . . . . . . . . . . . . . . . . . . . . . . . 202
Passenger compartment Climatronic . . . . . . . . . . . . . . . . . . . . . . . . . 155
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207 Trips to foreign countries . . . . . . . . . . . . . . 187
Petrol additives . . . . . . . . . . . . . . . . . . . . . . . . . 207
Physical principles of a frontal collision . . . . . . 19
Plastic key tab . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Plastic parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Pollution filter . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Power steering . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Preheating system indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73RRaising the vehicle with the vehicle tool kit jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239
Reading lights . . . . . . . . . . . . . . . . . . . . . . . . . . 113 Rear door
driving with the tailgate open . . . . . . . . . . . 98
Rear fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . 108 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 73
warning light . . . . . . . . . . . . . . . . . . . . . . . . 108
Rear seats characteristics of seat equipment . . . . . . . 126
moving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
safety instructions . . . . . . . . . . . . . . . . . . . 131
Rear window heating . . . . . . . . . . . . . . . . . . . . 115 Heating element wires . . . . . . . . . . . . . . . . 197
Rear window wiper . . . . . . . . . . . . . . . . . . . . . . 117
Rear-view mirror . . . . . . . . . . . . . . . . . . . . . . . . 118
Refilling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
Remote control key Replacing the battery . . . . . . . . . . . . . . . . . . 94
Synchronising . . . . . . . . . . . . . . . . . . . . . . . . 94
Repairs Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Replacement keys . . . . . . . . . . . . . . . . . . . . . . . . 86
Replacing the battery Remote control key . . . . . . . . . . . . . . . . . . . . 94
Replacing tyres Four-wheel drive . . . . . . . . . . . . . . . . . . . . . 184
Retractor See Automatic belt retractor . . . . . . . . . . . . . 22
Retrofitting a towing bracket . . . . . . . . . . . . . . 204
Rev counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Reverse gear Automatic gearbox . . . . . . . . . . . . . . . . . . . 169
Manual gearbox . . . . . . . . . . . . . . . . . . . . . 165
alhambra ingles.book Seite 284 Donnerstag, 19. April 2007 4:04 16
