four wheel drive Seat Alhambra 2008 Owner's Manual

Contents
4Accessories, parts replacement and
modifications
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Accessories and parts . . . . . . . . . . . . . . . . . . . . .
Modifications . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Roof aerial* . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mobile telephones and two-way radios . . . . . . .
Retrofitting a towing bracket . . . . . . . . . . . . . . .
Checking and refilling levels
. . . . . . . . . . . . . .
Refilling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Petrol types . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Working in the engine compartment . . . . . . . . .
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Washer fluid and windscreen wiper blades . . . .
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If and when
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vehicle tools*, spare wheel*, breakdown set* and
towing bracket . . . . . . . . . . . . . . . . . . . . . . . . . . .
Breakdown set* . . . . . . . . . . . . . . . . . . . . . . . . . .
Components . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Preparation of anti-puncture kit . . . . . . . . . . . . .
Sealing and inflating tyres . . . . . . . . . . . . . . . . .
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . .
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Changing a light . . . . . . . . . . . . . . . . . . . . . . . . .
Jump-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Towing and tow-starting . . . . . . . . . . . . . . . . . . .
Lifting the vehicle . . . . . . . . . . . . . . . . . . . . . . . .
Te c h n i c a l D a t a
. . . . . . . . . . . . . . . . . . . . . . .
General notes on the technical data
. . . . . . .
What you should be aware of . . . . . . . . . . . . . . .
How are the figures measured? . . . . . . . . . . . . .
Towing a trailer . . . . . . . . . . . . . . . . . . . . . . . . . .
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Te ch n ica l D ata
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking fluid levels . . . . . . . . . . . . . . . . . . . . . .
Petrol engine 2.0l 85 kW (115 bhp) 6 gear . . . .
Petrol engine 2.0 litre 85 kW (115 hp). Automatic
Petrol engine 1.8l 110 kW (150 bhp) 6 gear . . .
Petrol engine 1.8l 110 kW (150 bhp). Automatic
Petrol engine 2.8l VR6150 kW (204 bhp) 6 gear
Petrol engine 2.8l VR6 150 kW (204 bhp)
Automatic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Petrol engine 2.8l VR6150 kW (204 bhp) 6 gear
four-wheel drive . . . . . . . . . . . . . . . . . . . . . . . . .
Diesel engine 1.9l TDI 85 kW (115 bhp) 6 gears
four-wheel drive . . . . . . . . . . . . . . . . . . . . . . . . .
Diesel engine 1.9l TDI 85 kW (115 bhp) 6 gears
Diesel engine 1.9 TDI 85 kW (115 bhp).
Automatic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Diesel engine 2.0l TDI 103 kW (140 bhp) 6 gears
Diesel engine 2.0 TDI 103 kW (140 bhp) 6 gears.
Ecomotive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dimensions and capacities . . . . . . . . . . . . . . . .
Index
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
202
202
202
203
203
204
206
206
207
207
209
212
216
218
221
223
225
231
231
234
234
234
235
236
241
245
249
252
255 257
257
257
259
260
260
262
262
263
264
266
267
269
270
272
273
275
276
278
279
281
283
alhambra_ingles_0708 Seite 4 Mittwoch, 10. September 2008 10:55 10

Airbag system
36Front airbagsDescription of front airbags
The airbag system is not a substitute for the seat belts.
The front airbag for the driver is located in the steering wheel ⇒fig. 22 and
the airbag for the front passenger is located in the dash panel ⇒fig. 23 .
Airbags are identified by the text “AIRBAG”.
In conjunction with the seat belts, the front airbag system gives the front
occupants additional protection for the head and chest in the event of a
severe frontal collision ⇒page 37.
In addition to their normal function of restraining the occupants, the seat
belts also hold the driver and front passenger in a position where the airbags
can provide maximum protection in a frontal collision.
The airbag system is not a substitute for seat belts, but is an integral part of
the vehicle's overall passive safety system. Please bear in mind that the
airbag system can only work effectively when the occupants are wearing their
seat belts. For this reason, it is most important to wear the seat belts at all
times, not only because this is required by law in most countries, but also for
your safety
The main parts of the front airbag system are:•
an electronic control and monitoring system (control unit),
•
the two front airbags (airbag with gas generator) for the driver and front
passenger,
•
a warning lamp
 in the dash panel insert.
The functionality of the airbag system is monitored electronically. The airbag
warning lamp will light up for a few seconds every time the ignition is
switched on (self-diagnosis).
There is a fault in the system if the warning lamp

•
does not come on when the ignition is switched on ⇒page 33,
•
does not go off after four seconds, after switching on the ignition,
•
goes out and then comes on again after the ignition is switched on,
•
or if it comes on or flickers while the car is moving.
Fig. 22 Driver airbag
located in steering wheelFig. 23 Front passenger
airbag located in dash
panel
alhambra_ingles_0708 Seite 36 Mittwoch, 10. September 2008 10:55 10

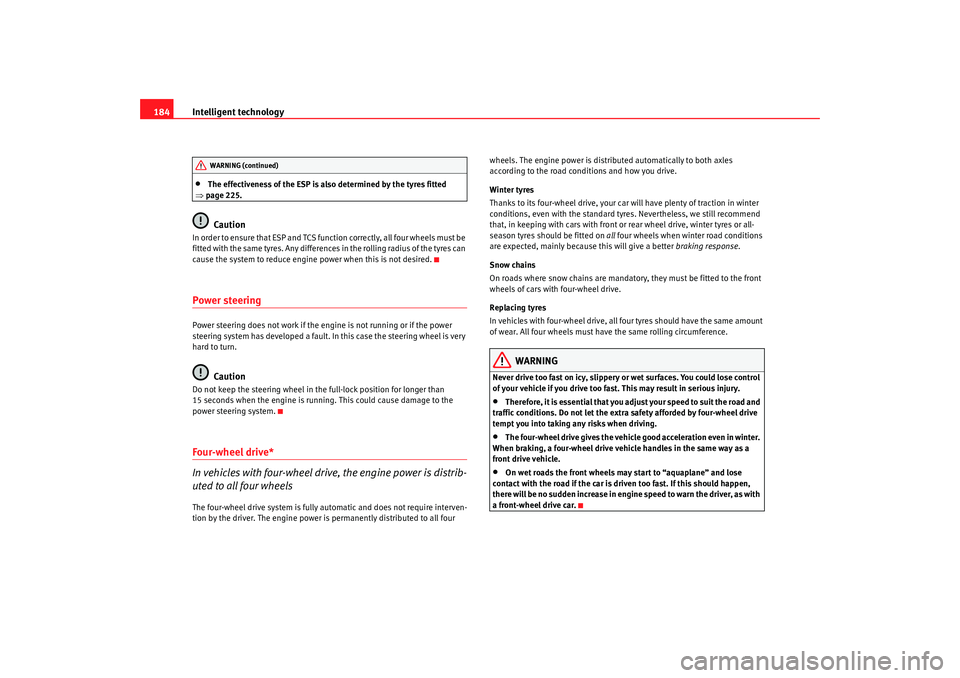

Intelligent technology
184•
The effectiveness of the ESP is also determined by the tyres fitted
⇒ page 225.Caution
I n o rd e r to e nsu r e tha t ES P a n d TCS fu n ct io n cor re c tl y, a ll fou r w h e el s m u st b e
fitted with the same tyres. Any differences in the rolling radius of the tyres can
cause the system to reduce engine power when this is not desired.Power steeringPower steering does not work if the engine is not running or if the power
steering system has developed a fault. In this case the steering wheel is very
hard to turn.
Caution
Do not keep the steering wheel in the full-lock position for longer than
15 seconds when the engine is running. This could cause damage to the
power steering system.Four-wheel drive*
In vehicles with four-wheel drive, the engine power is distrib-
uted to all four wheelsThe four-wheel drive system is fully automatic and does not require interven-
tion by the driver. The engine power is permanently distributed to all four wheels. The engine power is distributed automatically to both axles
according to the road conditions and how you drive.
Winter tyres
Thanks to its four-wheel drive, your car will have plenty of traction in winter
conditions, even with the standard tyres. Nevertheless, we still recommend
that, in keeping with cars with front or rear wheel drive, winter tyres or all-
season tyres should be fitted on
all four wheels when winter road conditions
are expected, mainly because this will give a better braking response.
Snow chains
On roads where snow chains are mandatory, they must be fitted to the front
wheels of cars with four-wheel drive.
Replacing tyres
In vehicles with four-wheel drive, all four tyres should have the same amount
of wear. All four wheels must have the same rolling circumference.
WARNING
Never drive too fast on icy, slippery or wet surfaces. You could lose control
of your vehicle if you drive too fast. This may result in serious injury.•
Therefore, it is essential that you adjust your speed to suit the road and
traffic conditions. Do not let the extra safety afforded by four-wheel drive
tempt you into taking any risks when driving.
•
The four-wheel drive gives the vehicle good acceleration even in winter.
When braking, a four-wheel drive vehicle handles in the same way as a
front drive vehicle.
•
On wet roads the front wheels may start to “aquaplane” and lose
contact with the road if the car is driven too fast. If this should happen,
there will be no sudden increase in engine speed to warn the driver, as with
a front-wheel drive car.
WARNING (continued)
alhambra_ingles_0708 Seite 184 Mittwoch, 10. September 2008 10:55 10

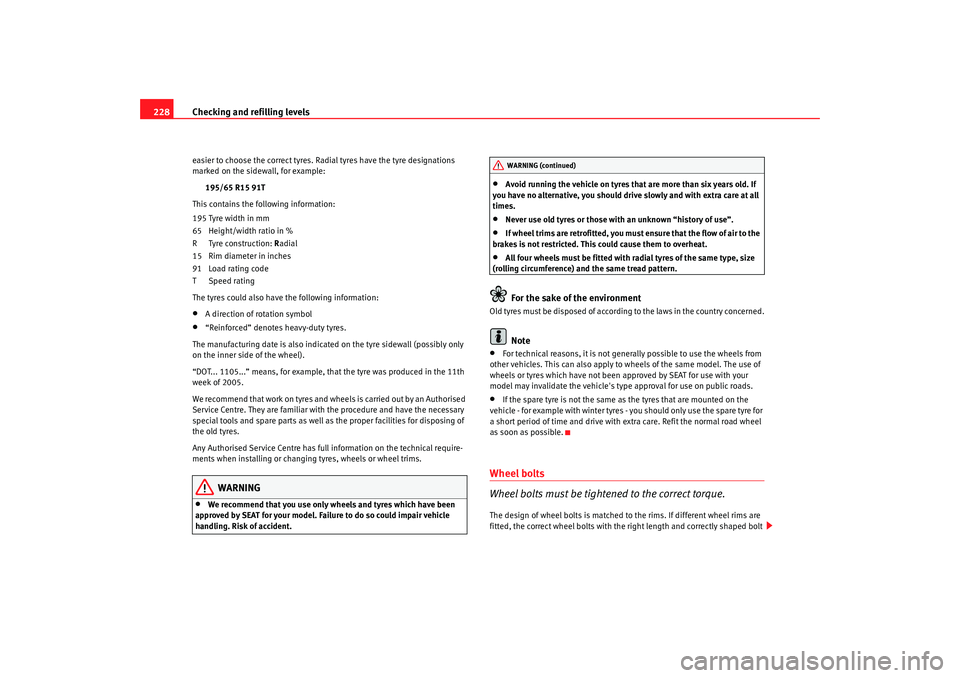

Checking and refilling levels
228easier to choose the correct tyres. Radial tyres have the tyre designations
marked on the sidewall, for example:
195/65 R15 91T
This contains the following information:
195 Tyre width in mm
65 Height/width ratio in %
R Tyre construction: Radial
15 Rim diameter in inches
91 Load rating code
T Speed rating
The tyres could also have the following information:•
A direction of rotation symbol
•
“Reinforced” denotes heavy-duty tyres.
The manufacturing date is also indicated on the tyre sidewall (possibly only
on the inner side of the wheel).
“DOT... 1105...” means, for example, that the tyre was produced in the 11th
week of 2005.
We recommend that work on tyres and wheels is carried out by an Authorised
Service Centre. They are familiar with the procedure and have the necessary
special tools and spare parts as well as the proper facilities for disposing of
the old tyres.
Any Authorised Service Centre has full information on the technical require-
ments when installing or changing tyres, wheels or wheel trims.
WARNING
•
We recommend that you use only wheels and tyres which have been
approved by SEAT for your model. Failure to do so could impair vehicle
handling. Risk of accident.
•
Avoid running the vehicle on tyres that are more than six years old. If
you have no alternative, you should drive slowly and with extra care at all
times.
•
Never use old tyres or those with an unknown “history of use”.
•
If wheel trims are retrofitted, you must ensure that the flow of air to the
brakes is not restricted. This could cause them to overheat.
•
All four wheels must be fitted with radial tyres of the same type, size
(rolling circumference) and the same tread pattern.For the sake of the environment
Old tyres must be disposed of according to the laws in the country concerned.
Note
•
For technical reasons, it is not generally possible to use the wheels from
other vehicles. This can also apply to wheels of the same model. The use of
wheels or tyres which have not been approved by SEAT for use with your
model may invalidate the vehicle's type approval for use on public roads.
•
If the spare tyre is not the same as the tyres that are mounted on the
vehicle - for example with winter tyres - you should only use the spare tyre for
a short period of time and drive with extra care. Refit the normal road wheel
as soon as possible.
Wheel bolts
Wheel bolts must be tightened to the correct torque.The design of wheel bolts is matched to the rims. If different wheel rims are
fitted, the correct wheel bolts with the right length and correctly shaped bolt
WARNING (continued)
alhambra_ingles_0708 Seite 228 Mittwoch, 10. September 2008 10:55 10

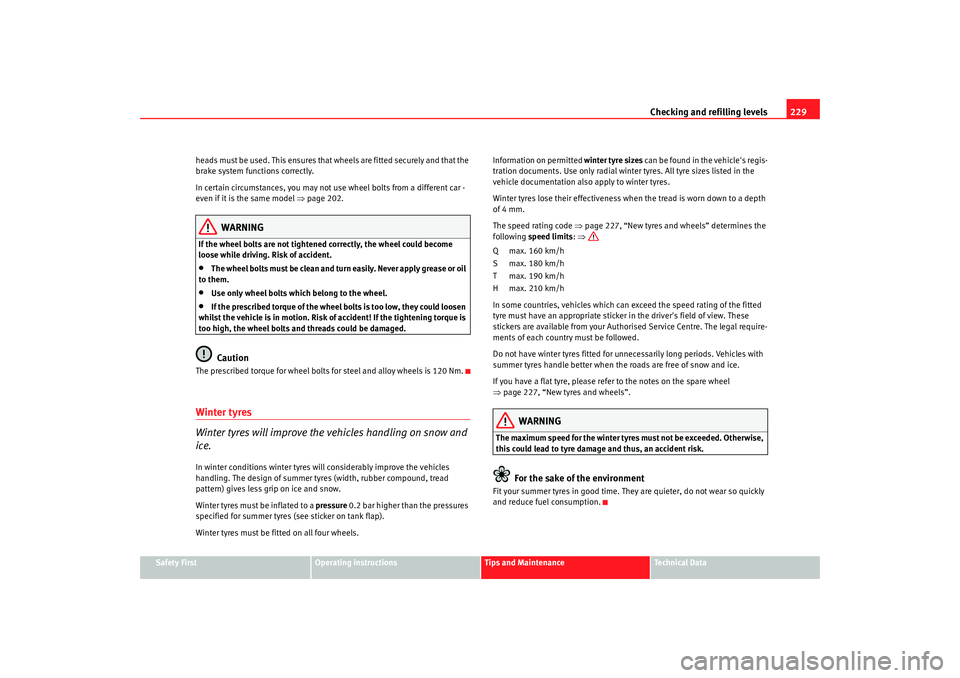

Checking and refilling levels229
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
heads must be used. This ensures that wheels are fitted securely and that the
brake system functions correctly.
In certain circumstances, you may not use wheel bolts from a different car -
even if it is the same model
⇒page 202.
WARNING
If the wheel bolts are not tightened correctly, the wheel could become
loose while driving. Risk of accident.•
The wheel bolts must be clean and turn easily. Never apply grease or oil
to them.
•
Use only wheel bolts which belong to the wheel.
•
If the prescribed torque of the wheel bolts is too low, they could loosen
whilst the vehicle is in motion. Risk of accident! If the tightening torque is
too high, the wheel bolts and threads could be damaged.Caution
The prescribed torque for wheel bolts for steel and alloy wheels is 120 Nm.Winter tyres
Winter tyres will improve the vehicles handling on snow and
ice.In winter conditions winter tyres will considerably improve the vehicles
handling. The design of summer tyres (width, rubber compound, tread
pattern) gives less grip on ice and snow.
Winter tyres must be inflated to a pressure 0.2 bar higher than the pressures
specified for summer tyres (see sticker on tank flap).
Winter tyres must be fitted on all four wheels. Information on permitted
winter tyre sizes can be found in the vehicle's regis-
tration documents. Use only radial winter tyres. All tyre sizes listed in the
vehicle documentation also apply to winter tyres.
Winter tyres lose their effectiveness when the tread is worn down to a depth
of 4 mm.
The speed rating code ⇒page 227, “New tyres and wheels” determines the
following speed limits : ⇒
Q max. 160 km/h
S max. 180 km/h
T max. 190 km/h
H max. 210 km/h
In some countries, vehicles which can exceed the speed rating of the fitted
tyre must have an appropriate sticker in the driver's field of view. These
stickers are available from your Authorised Service Centre. The legal require-
ments of each country must be followed.
Do not have winter tyres fitted for unnecessarily long periods. Vehicles with
summer tyres handle better when the roads are free of snow and ice.
If you have a flat tyre, please refer to the notes on the spare wheel
⇒ page 227, “New tyres and wheels”.
WARNING
The maximum speed for the winter tyres must not be exceeded. Otherwise,
this could lead to tyre damage and thus, an accident risk.
For the sake of the environment
Fit your summer tyres in good time. They are quieter, do not wear so quickly
and reduce fuel consumption.
alhambra_ingles_0708 Seite 229 Mittwoch, 10. September 2008 10:55 10

Technical Data
272Petrol engine 2.8l VR6150 kW (204 bhp) 6 gear four-wheel driveGeneral engine data
Performance figures
Consumption (litres/100 km)/ CO
2 (g/km)
Power output in kW (bhp)
rpm 150 (204)/6200
Maximum torque in Nm at rpm 265/3400
No. of cylinders, capacity in cm
3
6/ 2792
Compression 10,75 ± 0,25
Fuel Super 98 RON
a)/Super 95 RON
b)
a)Research- Octane- Number = Measure of the predetonation power of the petrol.b)With a slight power lossMaximum speed in km/h 214
Acceleration from 0-80 km/h in sec. 7,4
Acceleration from 0-100 km/h in sec. 10,3
Urban cycle 14,9/357
Extra urban cycle 8,7/210
Combined 11,0/265
alhambra_ingles_0708 Seite 272 Mittwoch, 10. September 2008 10:55 10

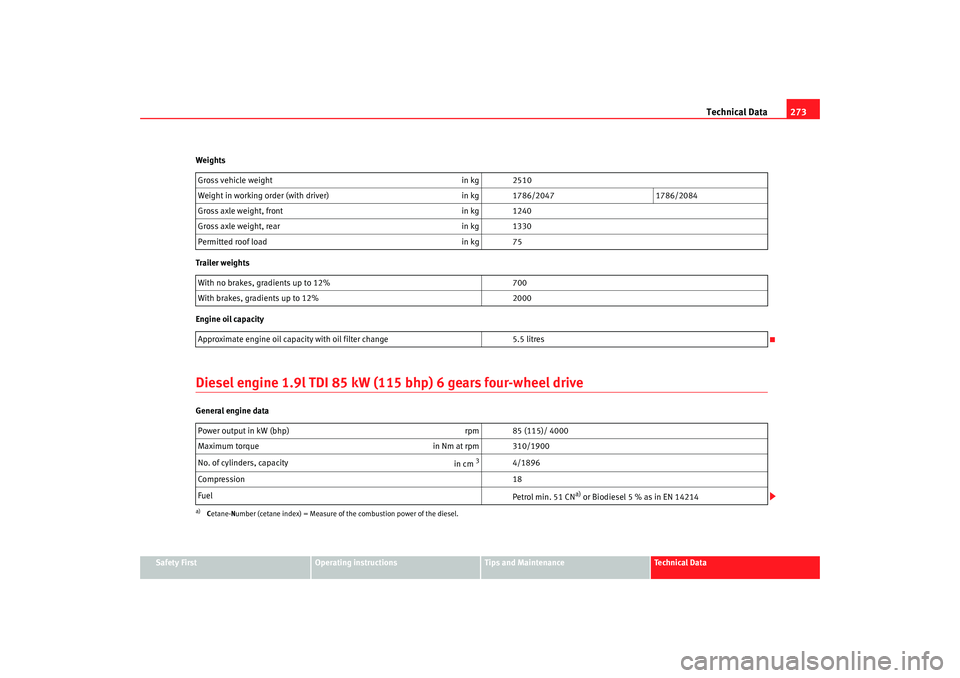

Technical Data273
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Weights
Trailer weights
Engine oil capacity
Diesel engine 1.9l TDI 85 kW (115 bhp) 6 gears four-wheel driveGeneral engine data
Gross vehicle weight
in kg 2510
Weight in working order (with driver) in kg 1786/20471786/2084
Gross axle weight, front in kg 1240
Gross axle weight, rear in kg 1330
Permitted roof load in kg 75
With no brakes, gradients up to 12% 700
With brakes, gradients up to 12% 2000
Approximate engine oil capacity with oil filter change 5.5 litres
Power output in kW (bhp) rpm 85 (115)/ 4000
Maximum torque in Nm at rpm 310/1900
No. of cylinders, capacity in cm
3
4/1896
Compression 18
Fuel Petrol min. 51 CN
a) or Biodiesel 5 % as in EN 14214
a)Cetane- Number (cetane index) = Measure of the combustion power of the diesel.
alhambra_ingles_0708 Seite 273 Mittwoch, 10. September 2008 10:55 10

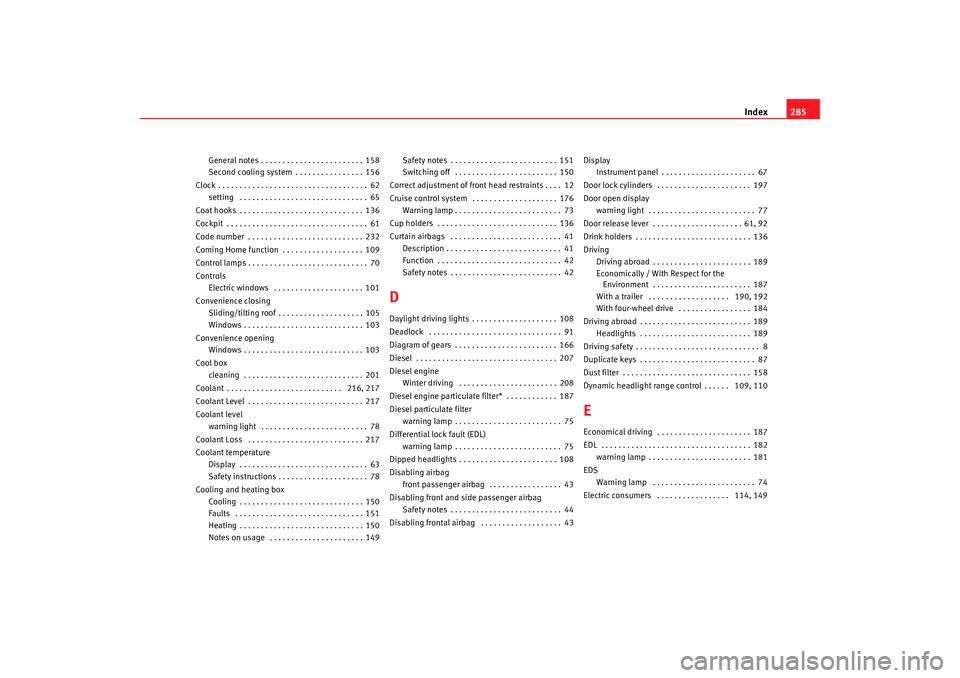

Index285
General notes . . . . . . . . . . . . . . . . . . . . . . . . 158
Second cooling system . . . . . . . . . . . . . . . . 156
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62 setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Coat hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Code number . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Coming Home function . . . . . . . . . . . . . . . . . . . 109
Control lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Controls Electric windows . . . . . . . . . . . . . . . . . . . . . 101
Convenience closing Sliding/tilting roof . . . . . . . . . . . . . . . . . . . . 105
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Convenience opening Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Cool box cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . 216, 217
Coolant Level . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Coolant level warning light . . . . . . . . . . . . . . . . . . . . . . . . . 78
Coolant Loss . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Coolant temperature Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Safety instructions . . . . . . . . . . . . . . . . . . . . . 78
Cooling and heating box Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Notes on usage . . . . . . . . . . . . . . . . . . . . . . 149 Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . 151
Switching off . . . . . . . . . . . . . . . . . . . . . . . . 150
Correct adjustment of front head restraints . . . . 12
Cruise control system . . . . . . . . . . . . . . . . . . . . 176 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 73
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Curtain airbags . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 42
DDaylight driving lights . . . . . . . . . . . . . . . . . . . . 108
Deadlock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Diagram of gears . . . . . . . . . . . . . . . . . . . . . . . . 166
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Diesel engineWinter driving . . . . . . . . . . . . . . . . . . . . . . . 208
Diesel engine particulate filter* . . . . . . . . . . . . 187
Diesel particulate filter warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 75
Differential lock fault (EDL) warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 75
Dipped headlights . . . . . . . . . . . . . . . . . . . . . . . 108
Disabling airbag front passenger airbag . . . . . . . . . . . . . . . . . 43
Disabling front and side passenger airbag Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Disabling frontal airbag . . . . . . . . . . . . . . . . . . . 43 Display
Instrument panel . . . . . . . . . . . . . . . . . . . . . . 67
Door lock cylinders . . . . . . . . . . . . . . . . . . . . . . 197
Door open display warning light . . . . . . . . . . . . . . . . . . . . . . . . . 77
Door release lever . . . . . . . . . . . . . . . . . . . . . 61, 92
Drink holders . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Driving Driving abroad . . . . . . . . . . . . . . . . . . . . . . . 189
Economically / With Respect for the Environment . . . . . . . . . . . . . . . . . . . . . . . 187
With a trailer . . . . . . . . . . . . . . . . . . . 190, 192
With four-wheel drive . . . . . . . . . . . . . . . . . 184
Driving abroad . . . . . . . . . . . . . . . . . . . . . . . . . . 189 Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Driving safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Duplicate keys . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Dust filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Dynamic headlight range control . . . . . . 109, 110
EEconomical driving . . . . . . . . . . . . . . . . . . . . . . 187
EDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182 warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 181
EDS Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 74
Electric consumers . . . . . . . . . . . . . . . . . 114, 149
alhambra_ingles_0708 Seite 285 Mittwoch, 10. September 2008 10:55 10

Index
286Electric windows
controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
one-touch closing and opening . . . . . . . . . 102
roll-back function . . . . . . . . . . . . . . . . . . . . 103
Electrical accessories . . . . . . . . . . . . . . . . . . . . 141
Electrical windows . . . . . . . . . . . . . . . . . . . . . . 101
Electronic differential lock . . . . . . . . . . . . . . . . 182 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 74
warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 181
Electronic immobiliser . . . . . . . . . . . . . . . . . . . 163
Electronic stabilisation program . . . . . . . . . . . 182
Electronic stabilisation programme . . . . . . . . . . 74 Description . . . . . . . . . . . . . . . . . . . . . . . . . 161
warning lamp . . . . . . . . . . . . . . . . . . . . 162, 183
Electronic stabilisation programme (ESP) warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 74
Emergency opening Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Engine Running in . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Engine compartment Working in the engine compartment . . . . . 209
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . 216
Engine fault indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Engine hood See Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . 211
Engine management Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 73 Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Checking level . . . . . . . . . . . . . . . . . . . . . . . 214
Oil properties . . . . . . . . . . . . . . . . . . . . . . . . 213
Specifications . . . . . . . . . . . . . . . . . . . . . . . 212
Topping up . . . . . . . . . . . . . . . . . . . . . . . . . 215
Engine oil dipstick . . . . . . . . . . . . . . . . . . . . . . 214
Engine oil pressure Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 77
Engine oil temperature display . . . . . . . . . . . . . 65
Engine oil temperature gauge . . . . . . . . . . . . . . 62
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . 187 Environmental friendliness . . . . . . . . . . . . 189
Environmentally friendly driving . . . . . . . . . . . 187
ESP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74, 182 warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 183
Exhaust gas indicator . . . . . . . . . . . . . . . . . . . . . 74
Exterior mirrors . . . . . . . . . . . . . . . . . . . . . 119, 196
External aerial . . . . . . . . . . . . . . . . . . . . . . . . . . 203
FFastening rings . . . . . . . . . . . . . . . . . . . . . . 15, 144
Fastening seat belt . . . . . . . . . . . . . . . . . . . . . . . 22
Fault in the exhaust system* . . . . . . . . . . . . . . . 74
Fault messages . . . . . . . . . . . . . . . . . . . . . . . . . . 67 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Faults in operation of air conditioning . . . . . . 158
First-aid kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108 Foot brake
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 73
Four-wheel drive . . . . . . . . . . . . . . . . . . . . . . . . 184 Replacing tyres . . . . . . . . . . . . . . . . . . . . . . 184
Snow chains . . . . . . . . . . . . . . . . . . . . . . . . 184
Winter tyres . . . . . . . . . . . . . . . . . . . . . . . . . 184
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Description . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Front passenger airbags . . . . . . . . . . . . . . . . . . . 43
Front seats adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
safety instructions . . . . . . . . . . . . . . . . . . . 131
Fuel Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Fuel level Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Fuel reserve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Fuel tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206 See also Fuel reserve . . . . . . . . . . . . . . . . . . 76
Fuel tank cap . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
Fuel: save . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Fuse box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 241
GG 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
alhambra_ingles_0708 Seite 286 Mittwoch, 10. September 2008 10:55 10

Index
288Manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . 166
Manual mode
Climatronic . . . . . . . . . . . . . . . . . . . . . . . . . 154
Mileage display . . . . . . . . . . . . . . . . . . . . . . . 65, 66
Mirrors Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . 119
Interior mirror . . . . . . . . . . . . . . . . . . . . . . . 118
Make-up mirrors . . . . . . . . . . . . . . . . . . . . . 114
Mobile phone . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Modifications . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Multifunction steering wheel . . . . . . . . . . . . . . . 84NNavigation system* . . . . . . . . . . . . . . . . . . . . . . . 83
Net bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Number of seats . . . . . . . . . . . . . . . . . . . . . . . . . 17OObservations . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Octane number . . . . . . . . . . . . . . . . . . . . . . . . . 207
Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Oil change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Oil properties . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
On board computer with multifunction display* Check working . . . . . . . . . . . . . . . . . . . . . . . . 79
Message on display . . . . . . . . . . . . . . . . . . . 79
One-touch closing and opening electric windows . . . . . . . . . . . . . . . . . . . . . 102 Overview
Control lamps . . . . . . . . . . . . . . . . . . . . . . . . 70
Instrument panel . . . . . . . . . . . . . . . . . . . . . . 61
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Multifunction steering wheel . . . . . . . . . . . . 84
Warning lamps . . . . . . . . . . . . . . . . . . . . . . . 70
PPaintworkPolishing . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Waxing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Parking aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Parking distance warning system . . . . . . . . . . 174
Parking lights . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Parts replacement . . . . . . . . . . . . . . . . . . . . . . . 202
Passenger compartment Climatronic . . . . . . . . . . . . . . . . . . . . . . . . . 156
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207 Trips to foreign countries . . . . . . . . . . . . . . 189
Physical principles of a frontal collision . . . . . . 19
Plastic key tab . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Plastic parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Pollution filter . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Power steering . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Preheating system indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
RRaising the vehicle with the vehicle tool kit jack . . 239
Reading lights . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Rear door driving with the tailgate open . . . . . . . . . . . 99
Rear fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . 108 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 73
warning light . . . . . . . . . . . . . . . . . . . . . . . . 108
Rear seats characteristics of seat equipment . . . . . . . 126
moving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
safety instructions . . . . . . . . . . . . . . . . . . . 131
Rear window heating . . . . . . . . . . . . . . . . . . . . 115 Heating element wires . . . . . . . . . . . . . . . . 197
Rear window wiper . . . . . . . . . . . . . . . . . . . . . . 117
Rear-view mirror . . . . . . . . . . . . . . . . . . . . . . . . 118
Refilling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
Remote control key Replacing the battery . . . . . . . . . . . . . . . . . . 95
Synchronising . . . . . . . . . . . . . . . . . . . . . . . . 95
Repairs Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Replacement keys . . . . . . . . . . . . . . . . . . . . . . . . 87
Replacing the battery Remote control key . . . . . . . . . . . . . . . . . . . . 95
Replacing tyres Four-wheel drive . . . . . . . . . . . . . . . . . . . . . 184
Retractor See Automatic belt retractor . . . . . . . . . . . . . 22
alhambra_ingles_0708 Seite 288 Mittwoch, 10. September 2008 10:55 10
