Seats and stowage
124Front seatsAdjusting front seats The control elements ⇒fig. 86 are mirrored for the front right-hand
seat.
Adjusting the seat forwards and backwards
– Pull up the lever and move the seat forwards or backwards ⇒ .
– Then release the grip and move the seat further until the catch engages.
Adjusting the backrest angle
– Take your weight off the backrest and turn the hand wheel. Adjusting the lumbar support
25)
– Take your weight off the backrest and turn the hand wheel.
Turning the seat
25)
– Adjust the seat surface to its lowest position and push the seat back as far as it will go.
–On the driver's seat , adjust the backrest fully forward so that it
will not hit the steering wheel when turning the seat round.
– Lift the lever and turn the seat round ⇒.
Adjusting the seat height
– Pull the lever up or push down (several times if necessary) from its home position. This adjusts the seat height in stages. ⇒
Adjusting the armrest
25)
– Turn the thumb wheel underneath the arm rest to adjust it to the size of the occupant.The curvature of the cushioned area is determined by the settings made in
the lumbar region. This supports the natural curvature of the spine very effec-
tively.
WARNING
•
Never adjust the driver or front passenger seat while the vehicle is in
motion. While adjusting your seat, you will assume an incorrect sitting
position. Risk of injury. Adjust the driver or front passenger seat only when
the vehicle is stationary.
Fig. 86 Front left seat
controls
A1
A1
A2
25)Optional equipmentA3A4
A4
A5A6
alhambra_ingles_0708 Seite 124 Mittwoch, 10. September 2008 10:55 10

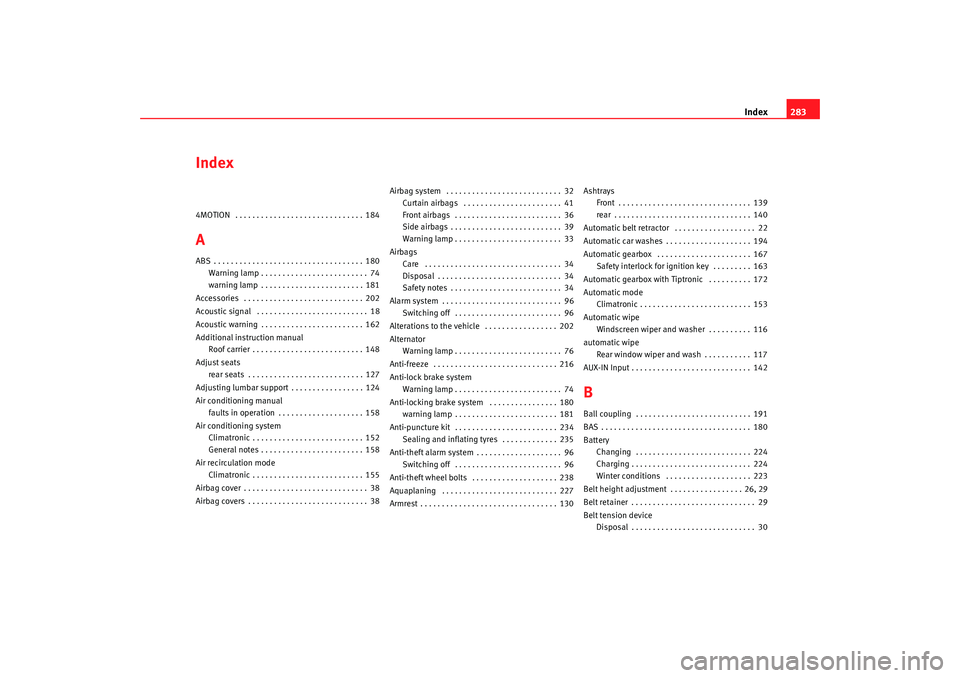

Index283
Index4MOTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184AABS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 74
warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 181
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Acoustic signal . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Acoustic warning . . . . . . . . . . . . . . . . . . . . . . . . 162
Additional instruction manual Roof carrier . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Adjust seats rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Adjusting lumbar support . . . . . . . . . . . . . . . . . 124
Air conditioning manual faults in operation . . . . . . . . . . . . . . . . . . . . 158
Air conditioning system Climatronic . . . . . . . . . . . . . . . . . . . . . . . . . . 152
General notes . . . . . . . . . . . . . . . . . . . . . . . . 158
Air recirculation mode Climatronic . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Airbag cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Airbag covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Curtain airbags . . . . . . . . . . . . . . . . . . . . . . . 41
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . 36
Side airbags . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 33
Airbags Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Alarm system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96 Switching off . . . . . . . . . . . . . . . . . . . . . . . . . 96
Alterations to the vehicle . . . . . . . . . . . . . . . . . 202
Alternator Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 76
Anti-freeze . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
Anti-lock brake system Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 74
Anti-locking brake system . . . . . . . . . . . . . . . . 180 warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 181
Anti-puncture kit . . . . . . . . . . . . . . . . . . . . . . . . 234 Sealing and inflating tyres . . . . . . . . . . . . . 235
Anti-theft alarm system . . . . . . . . . . . . . . . . . . . . 96 Switching off . . . . . . . . . . . . . . . . . . . . . . . . . 96
Anti-theft wheel bolts . . . . . . . . . . . . . . . . . . . . 238
Aquaplaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
Armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130 Ashtrays
Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Automatic belt retractor . . . . . . . . . . . . . . . . . . . 22
Automatic car washes . . . . . . . . . . . . . . . . . . . . 194
Automatic gearbox . . . . . . . . . . . . . . . . . . . . . . 167 Safety interlock for ignition key . . . . . . . . . 163
Automatic gearbox with Tiptronic . . . . . . . . . . 172
Automatic mode Climatronic . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Automatic wipe Windscreen wiper and washer . . . . . . . . . . 116
automatic wipe Rear window wiper and wash . . . . . . . . . . . 117
AUX-IN Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
BBall coupling . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
BAS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Battery Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
Winter conditions . . . . . . . . . . . . . . . . . . . . 223
Belt height adjustment . . . . . . . . . . . . . . . . . 26, 29
Belt retainer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Belt tension device Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
