navigation system Seat Alhambra 2008 Owner's Manual

Cockpit79
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
On board computer with multifunction displayDescription
The information from the multi-function indicator and on board computer is
shown on these displays. The functions and indications of the multi-function
indicator are described in the chapter “Intruments”.
When the ignition is switched on, the on-board computer continually controls
the working of certain systems and vehicle components while the vehicle is
in motion.
Faults in the operation or urgent repairs or services are indicated by sound
signals and light warnings in red or yellow,depending on priority, on the
instrument panel.
In addition to the red and yellow symbols, text messages appear on the
driver's display.
Note
•
Depending on the model version or the country, it is possible that the
equipment installed in your vehicle does not display certain messages, or
they do not correspond with those in this manual. For this reason, we advise
you to consult the chapter “Luminous Indicators” for complementary informa-
tion on the different symbols and a description of their function.
Check operationVehicles with a manual gearbox
If faults exist, these will be indicated after the ignition is switched on. The
corresponding sound signal is emitted at the same time.
Vehicles with an automatic gearbox
Once the ignition is switched on with the lever in position P or N, the driver
warning appears on the display:
WITH CAR STOPPED, DEPRESS BRAKE TO SELECT GEAR
After selecting a gear ( R, D , etc) the warning is erased.
Fig. 49 Vehicle instru-
ment panel display with
telematic or navigation
system.Fig. 50 Display in vehicle
with on-board computer.
alhambra_ingles_0708 Seite 79 Mittwoch, 10. September 2008 10:55 10

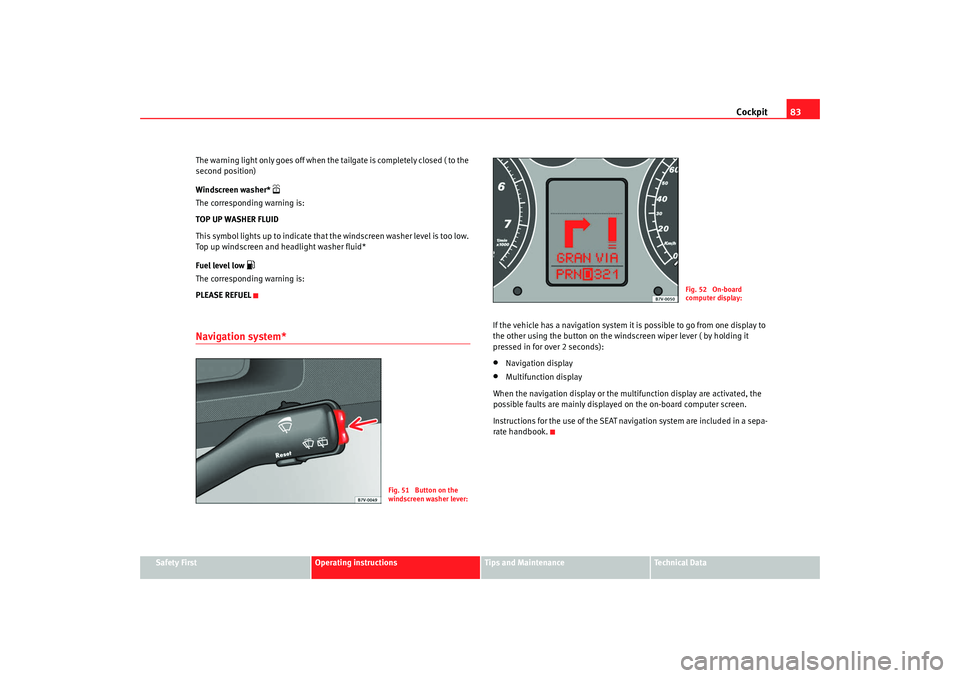

Cockpit83
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
The warning light only goes off when the tailgate is completely closed ( to the
second position)
Windscreen washer*

The corresponding warning is:
TOP UP WASHER FLUID
This symbol lights up to indicate that the windscreen washer level is too low.
Top up windscreen and headlight washer fluid*
Fuel level low

The corresponding warning is:
PLEASE REFUELNavigation system*
If the vehicle has a navigation system it is possible to go from one display to
the other using the button on the windscreen wiper lever ( by holding it
pressed in for over 2 seconds):•
Navigation display
•
Multifunction display
When the navigation display or the multifunction display are activated, the
possible faults are mainly displayed on the on-board computer screen.
Instructions for the use of the SEAT navigation system are included in a sepa-
rate handbook.
Fig. 51 Button on the
windscreen washer lever:
Fig. 52 On-board
computer display:
alhambra_ingles_0708 Seite 83 Mittwoch, 10. September 2008 10:55 10

Cockpit
84Steering wheel controlsMultifunction steering wheel*
These controls enable you to perform various functions without taking your hands off the steering wheel.The controls on the multi-function steering wheel ⇒fig. 53 only work when
the ignition is switched on.
Rocker switch for the cruise control system (CCS) :
− By briefly pressing the button the programmed speed is recov-
ered.
− If the button is held down the speed increases. The speed of the
vehicle at the moment the button is released will be stored.
− By briefly pressing the button the actual speed is stored.
− If the button is held down the speed decreases. The speed of the
vehicle at the moment the button is released will be stored.
Button for switching off CCS temporarily. The target speed remains
stored. Rocker switch for volume control
8) for the radio unit.
− Press button to raise the volume of the radio.
− Press button to lower the volume of the radio.
Rocker switch for various functions:
− Button for: station search, forwards (radio), listening to TIM
messages, starting with oldest (radio / navigation), fast forward
(cassette mode), next track (CD mode).
Fig. 53 Multi-function steering wheel with controls
A1
 
 
 -
 -
A2

8)Only for factory-fitted radio.A3

A4

alhambra_ingles_0708 Seite 84 Mittwoch, 10. September 2008 10:55 10

Cockpit85
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
−
Button for: station search, backwards (radio), listening to TIM
messages, starting with latest (radio / navigation), fast rewind
(cassette mode), last track (CD mode).
Pushbutton for switching lighting on and off on the controls on the multi-
function steering wheel (on the side of the steering wheel).
Note
The cruise control system is switched on and off using the button on the turn-
signal / main beam lever.Te l e p h o n e *Handsfree system for mobile telephones*Using the hands-free unit you can telephone without having to hold the
mobile telephone in your hand.
The voice of the person you are talking to will be relayed via the loudspeakers
of the radio system. You do not have to do anything in particular to respond -
simply behave as if you were talking to the front seat passenger.
The microphone is located on the left-hand side of the drink holder.
The required volume for the conversation can be set via the radio controls.
Note
•
P l e as e n o t e t h a t y o u w i l l b e a b l e t o h o l d a p h o n e c o n v e r sa t i o n t h r o u g h t h e
handsfree system only when the key is in the ignition. If the key is removed, the conversation will only be possible through the telephone, since the
handsfree system is disconnected.
•
When leaving the vehicle, either take the mobile telephone with you or
switch the automatic call acceptance off as incoming calls will be passed on
even if the radio is switched off.
Telephone preinstallation*The telephone preinstallation consists of:•
a microphone (on the left of the drinks holder),
•
an interface box,
•
the automatic loudspeaker switch in the radio system to relay telephone
conversations,
•
a support incorporated in the dash panel,
•
and a telephone roof aerial.
In order to use the telephone together with the vehicle system, a mobile tele-
phone holder adapted to the dash panel is also required. Next, the mobile
telephone holder will then have to be connected to the dash panel telephone
console.
For any queries concerning its use, please contact your SEAT Dealer.

A5
alhambra_ingles_0708 Seite 85 Mittwoch, 10. September 2008 10:55 10

Seats and stowage
142AUX-IN InputGeneral notes
The AUX-IN socket is found on the centre console, next to the
gearbox lever.The external audio sources connected to the AUX-IN socket will only be played
through the radio loudspeakers or the radio and navigation system. The
external audio sources can not be operated through the radio or the radio and
navigation system.
For operating the external audio source , consult the instructions manual of
the manufacturer in question.
If you wish, you can select whenever you want another audio source at the
radio or the radio and navigation system. While the external audio source is
not switched off, it will be playing as background. Take into account that the equipment does not change to the last selected
audio source on finishing the reproduction of the external audio source. The
radio or the radio and navigation system remain in the AUX menu. Another
radio source must be selected manually.
For the AUX-IN socket you need a 3.5 jack connector. If the external audio
source does not have this type of connector, an adapter should be used.
WARNING
The objects which are not attached inside the vehicle could hinder the
driver and cause severe injuries in the event of sharp braking or accident.•
The external audio source must not be placed on the instrument panel
in any case. A sharp manoeuvre can throw the device towards the compart-
ment and injure the vehicle passengers.
•
The external audio source must not be assembled in any case near the
airbag. See chapter “Airbag system”. A sharp manoeuvre can throw the
device towards the compartment and injure the vehicle passengers.
•
T he e xter na l a udio sou rce m ust n ot b e hel d in ha n d or o n th e legs w hile
driving. A sharp manoeuvre can throw the device towards the compartment
and injure the vehicle passengers.
•
Place the external audio source cables so that they are not in the way
while driving.Note
If the external audio source is connected to the vehicle with the 12-volt power
point, jamming may occur while playing with some adapters.
Fig. 113 AUX-IN socket
location
alhambra_ingles_0708 Seite 142 Mittwoch, 10. September 2008 10:55 10

If and when243
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Main beam headlights

Rear window heater

Rear windscreen wiper

Horn

Interior lights

Electric windows

Usable electric windows

Fog lights

Rear fog light

Hazard warning light switch

Instrument panel lighting

Climate control

Heating

Radio, navigation system

/ 
Rear light
-
Registration plate light

Electrical consumer Symbol
alhambra_ingles_0708 Seite 243 Mittwoch, 10. September 2008 10:55 10

Index
288Manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . 166
Manual mode
Climatronic . . . . . . . . . . . . . . . . . . . . . . . . . 154
Mileage display . . . . . . . . . . . . . . . . . . . . . . . 65, 66
Mirrors Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . 119
Interior mirror . . . . . . . . . . . . . . . . . . . . . . . 118
Make-up mirrors . . . . . . . . . . . . . . . . . . . . . 114
Mobile phone . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Modifications . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Multifunction steering wheel . . . . . . . . . . . . . . . 84NNavigation system* . . . . . . . . . . . . . . . . . . . . . . . 83
Net bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Number of seats . . . . . . . . . . . . . . . . . . . . . . . . . 17OObservations . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Octane number . . . . . . . . . . . . . . . . . . . . . . . . . 207
Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Oil change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Oil properties . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
On board computer with multifunction display* Check working . . . . . . . . . . . . . . . . . . . . . . . . 79
Message on display . . . . . . . . . . . . . . . . . . . 79
One-touch closing and opening electric windows . . . . . . . . . . . . . . . . . . . . . 102 Overview
Control lamps . . . . . . . . . . . . . . . . . . . . . . . . 70
Instrument panel . . . . . . . . . . . . . . . . . . . . . . 61
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Multifunction steering wheel . . . . . . . . . . . . 84
Warning lamps . . . . . . . . . . . . . . . . . . . . . . . 70
PPaintworkPolishing . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Waxing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Parking aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Parking distance warning system . . . . . . . . . . 174
Parking lights . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Parts replacement . . . . . . . . . . . . . . . . . . . . . . . 202
Passenger compartment Climatronic . . . . . . . . . . . . . . . . . . . . . . . . . 156
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207 Trips to foreign countries . . . . . . . . . . . . . . 189
Physical principles of a frontal collision . . . . . . 19
Plastic key tab . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Plastic parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Pollution filter . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Power steering . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Preheating system indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
RRaising the vehicle with the vehicle tool kit jack . . 239
Reading lights . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Rear door driving with the tailgate open . . . . . . . . . . . 99
Rear fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . 108 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 73
warning light . . . . . . . . . . . . . . . . . . . . . . . . 108
Rear seats characteristics of seat equipment . . . . . . . 126
moving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
safety instructions . . . . . . . . . . . . . . . . . . . 131
Rear window heating . . . . . . . . . . . . . . . . . . . . 115 Heating element wires . . . . . . . . . . . . . . . . 197
Rear window wiper . . . . . . . . . . . . . . . . . . . . . . 117
Rear-view mirror . . . . . . . . . . . . . . . . . . . . . . . . 118
Refilling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
Remote control key Replacing the battery . . . . . . . . . . . . . . . . . . 95
Synchronising . . . . . . . . . . . . . . . . . . . . . . . . 95
Repairs Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Replacement keys . . . . . . . . . . . . . . . . . . . . . . . . 87
Replacing the battery Remote control key . . . . . . . . . . . . . . . . . . . . 95
Replacing tyres Four-wheel drive . . . . . . . . . . . . . . . . . . . . . 184
Retractor See Automatic belt retractor . . . . . . . . . . . . . 22
alhambra_ingles_0708 Seite 288 Mittwoch, 10. September 2008 10:55 10
